LOFAR LBA 3CRR survey: public data release

This page gives access to the 58-MHz LBA survey of 3CRR sources by Boxelaar et al (2025). The catalogue can also be found on Vizier. You can download the FITS catalogue for the whole survey here or browse it below. Click on the pictures of sources to download FITS images.

Name RA DEC z S58 (Jy) ES58 (Jy) Resolution maj axis (arcsec) Resolution minor axis (arcsec) Map rms noise level (mJy/beam) Image download

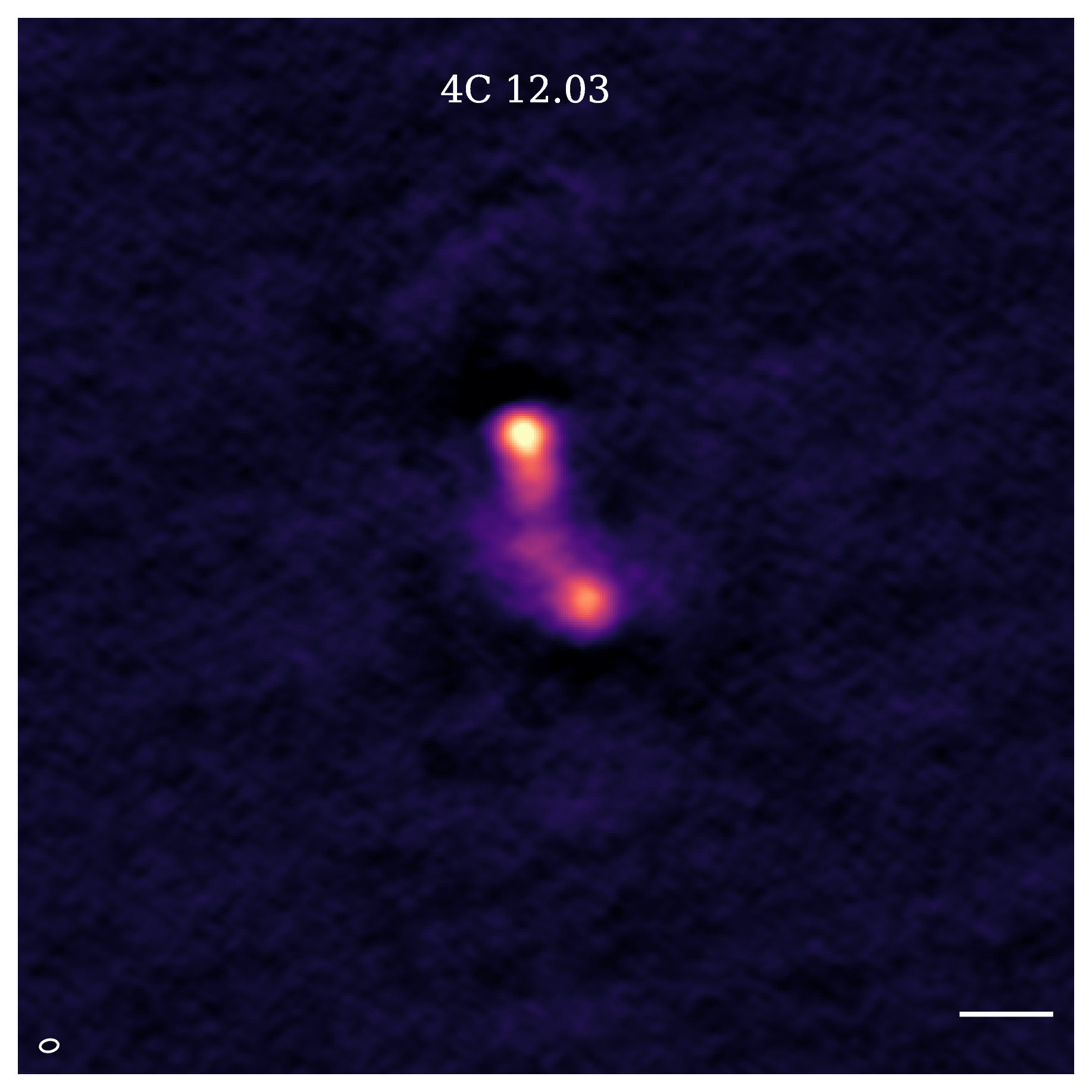

4C12.03 2.46917 12.73464 0.156 29.41 2.94 14.8 9.8 12.7

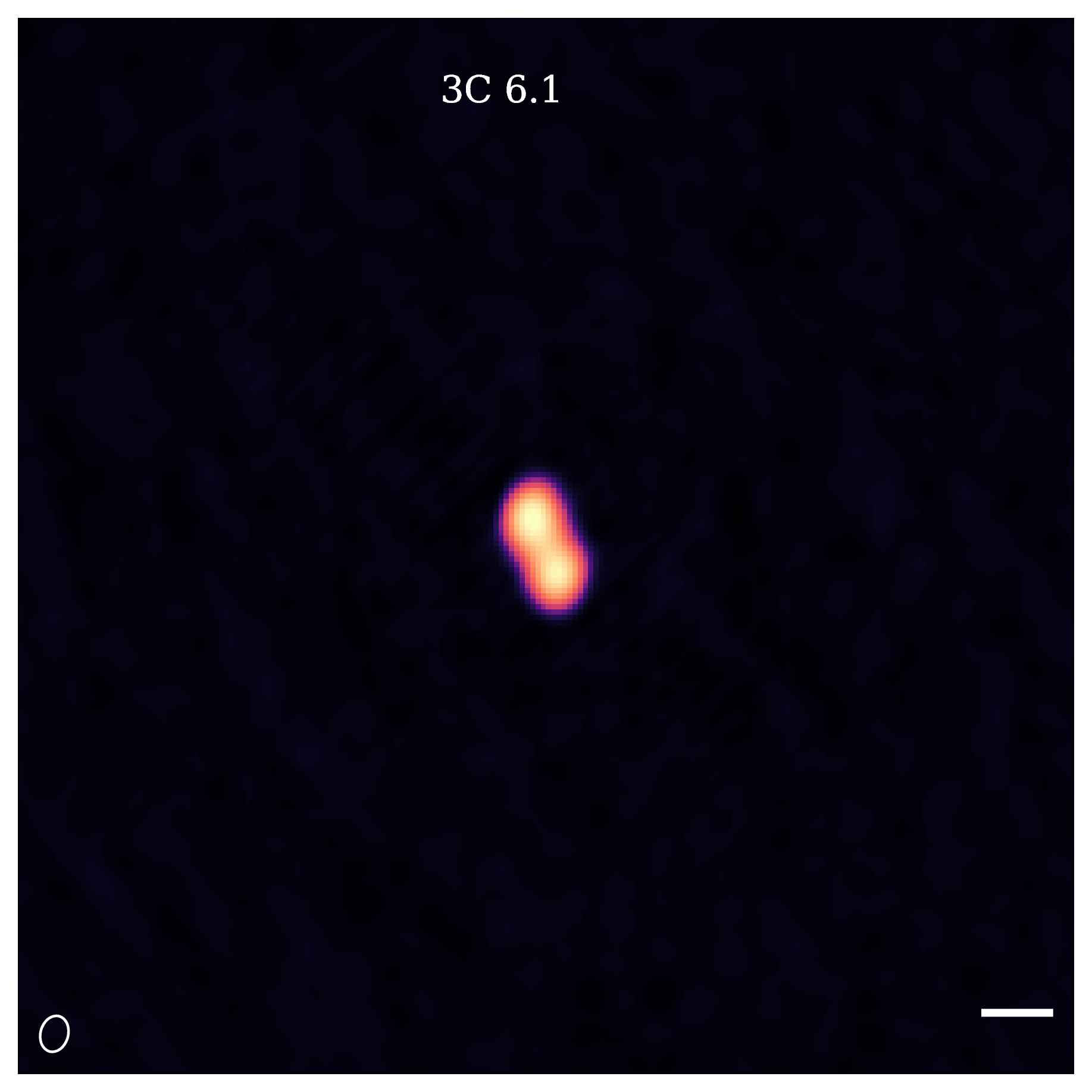

3C6.1 4.13013 79.28066 0.8404 31.03 3.1 13.8 10.5 9.24

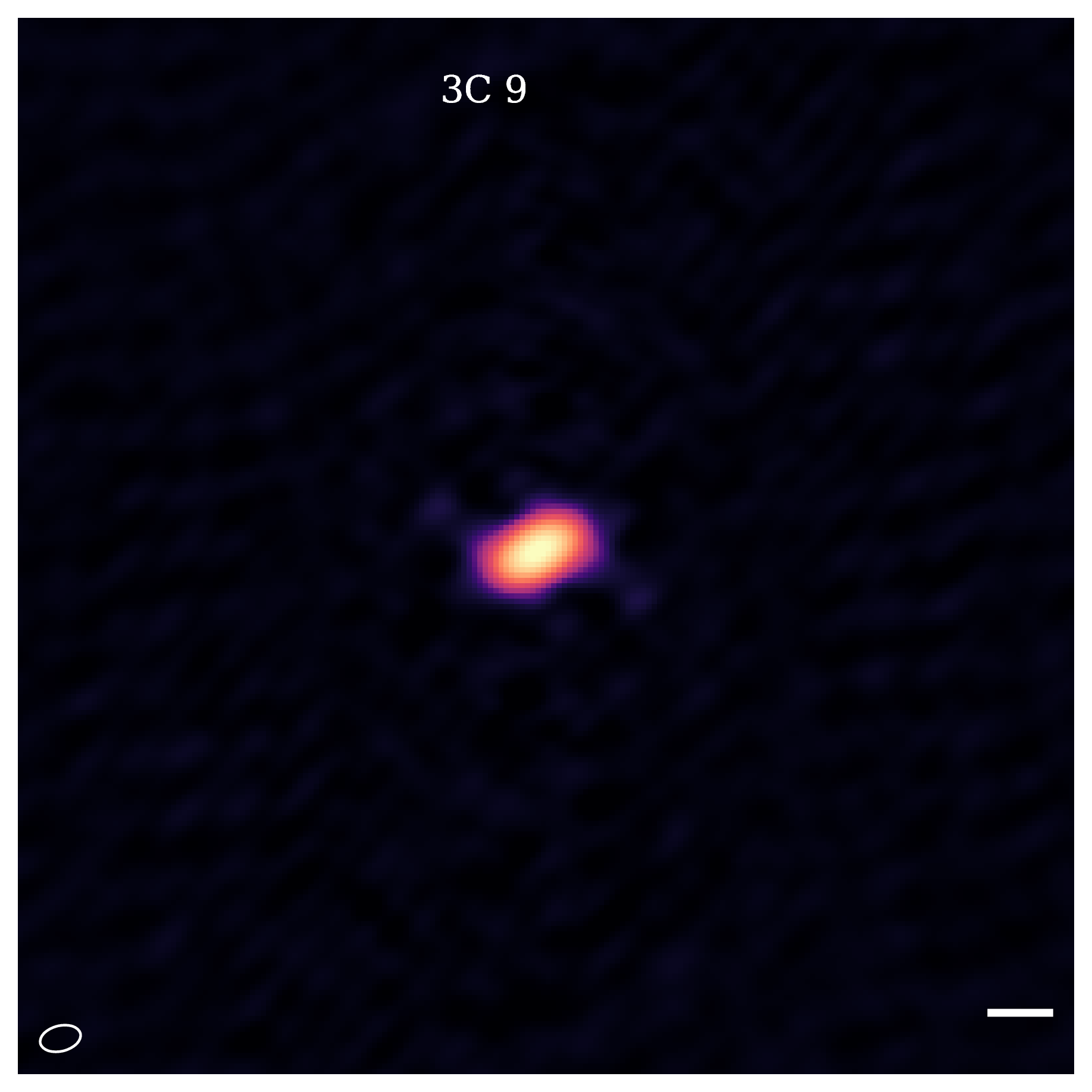

3C9 5.1051 15.68189 2.019758 50.22 5.02 15.6 9.7 10.32
3C13 8.56065 39.40463 1.351 33.14 3.31 14.1 8.3 10.37
3C14 9.02684 18.63309 1.469 31.2 3.12 16.0 9.6 8.66

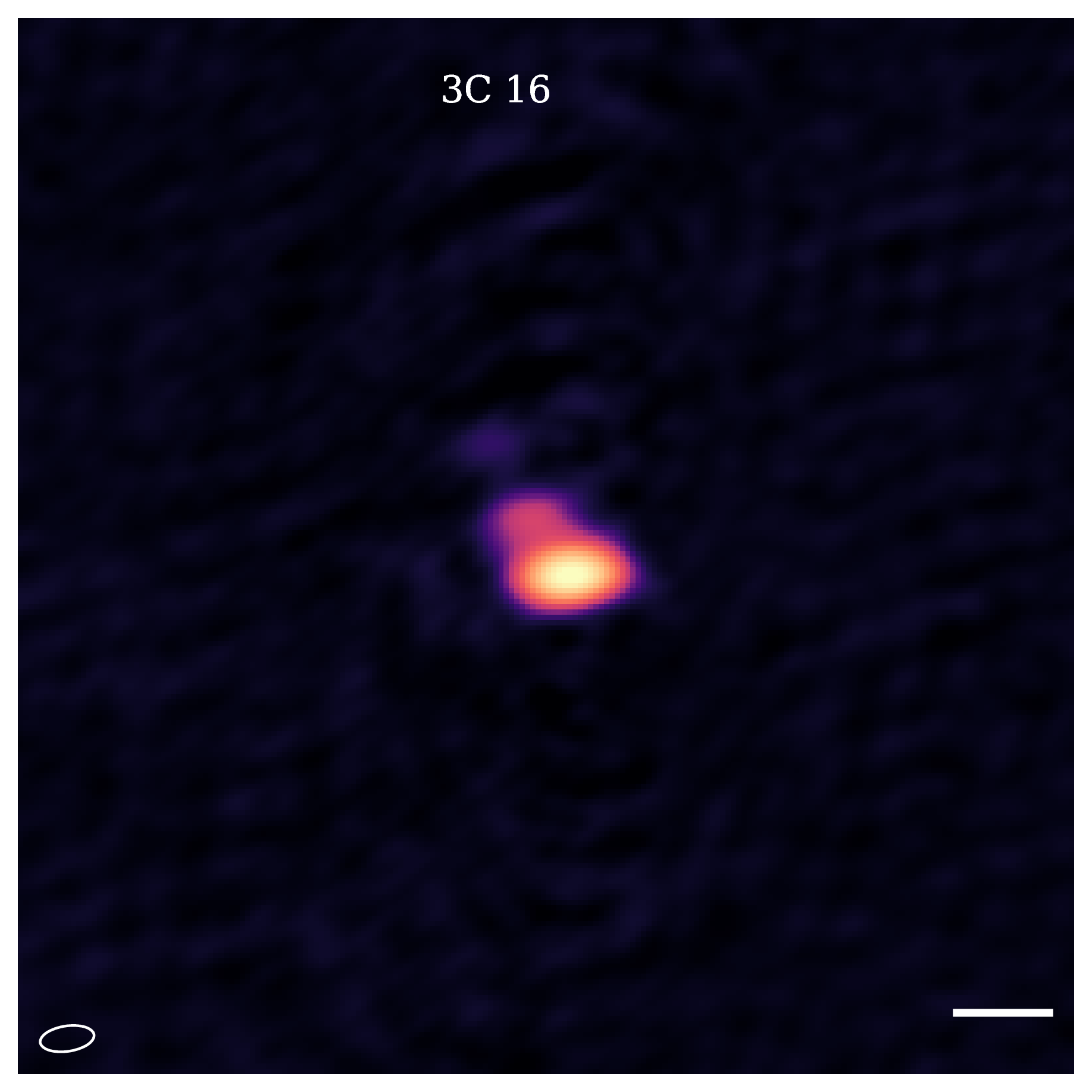

3C16 9.43572 13.33194 0.406 31.22 3.12 20.6 9.6 15.35
3C19 10.22927 33.1687 0.482 27.54 2.75 11.1 6.0 13.66

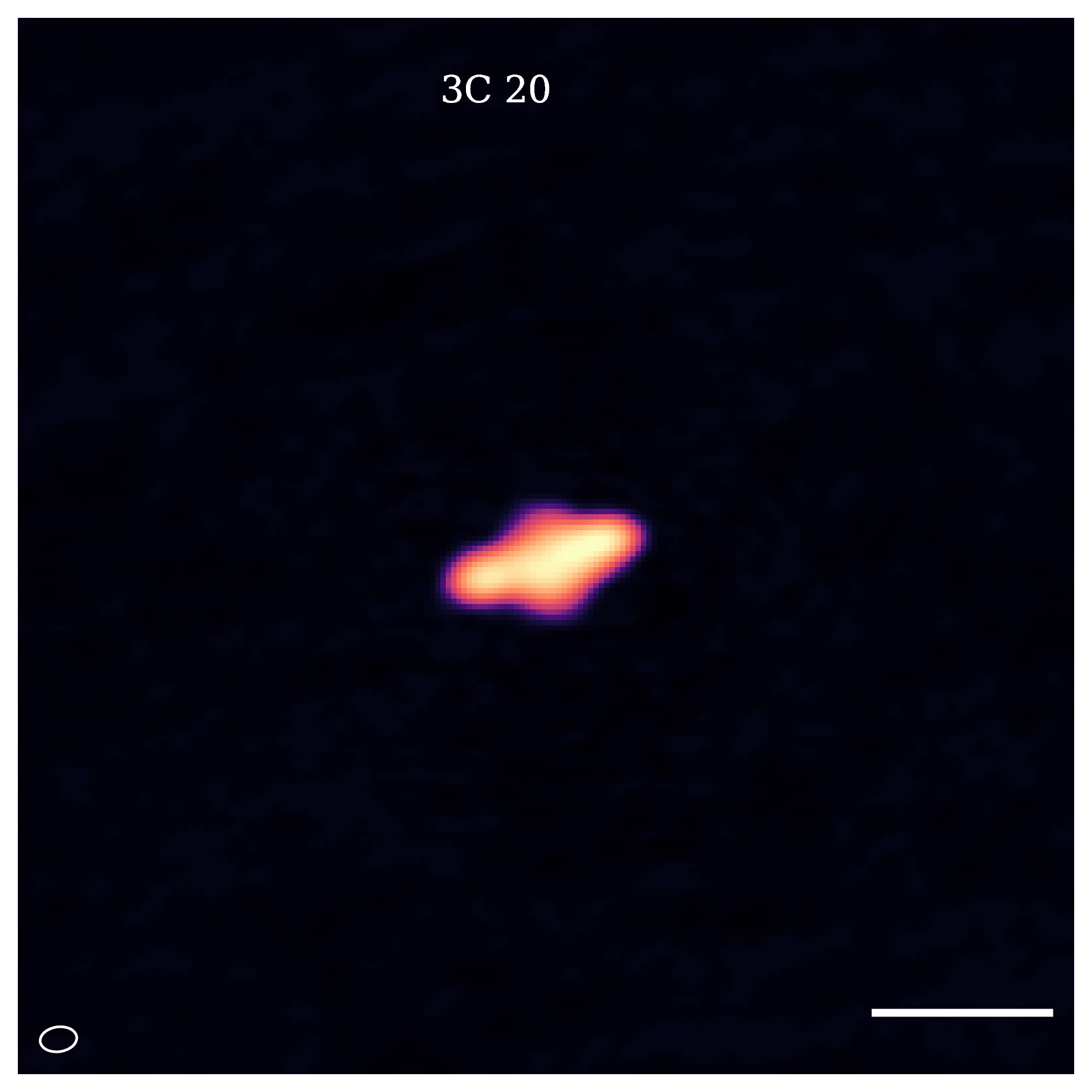

3C20 10.78825 52.06003 0.174 86.48 8.65 13.9 9.4 8.95
3C22 12.73427 51.20095 0.936 59.52 5.95 12.6 8.4 15.0

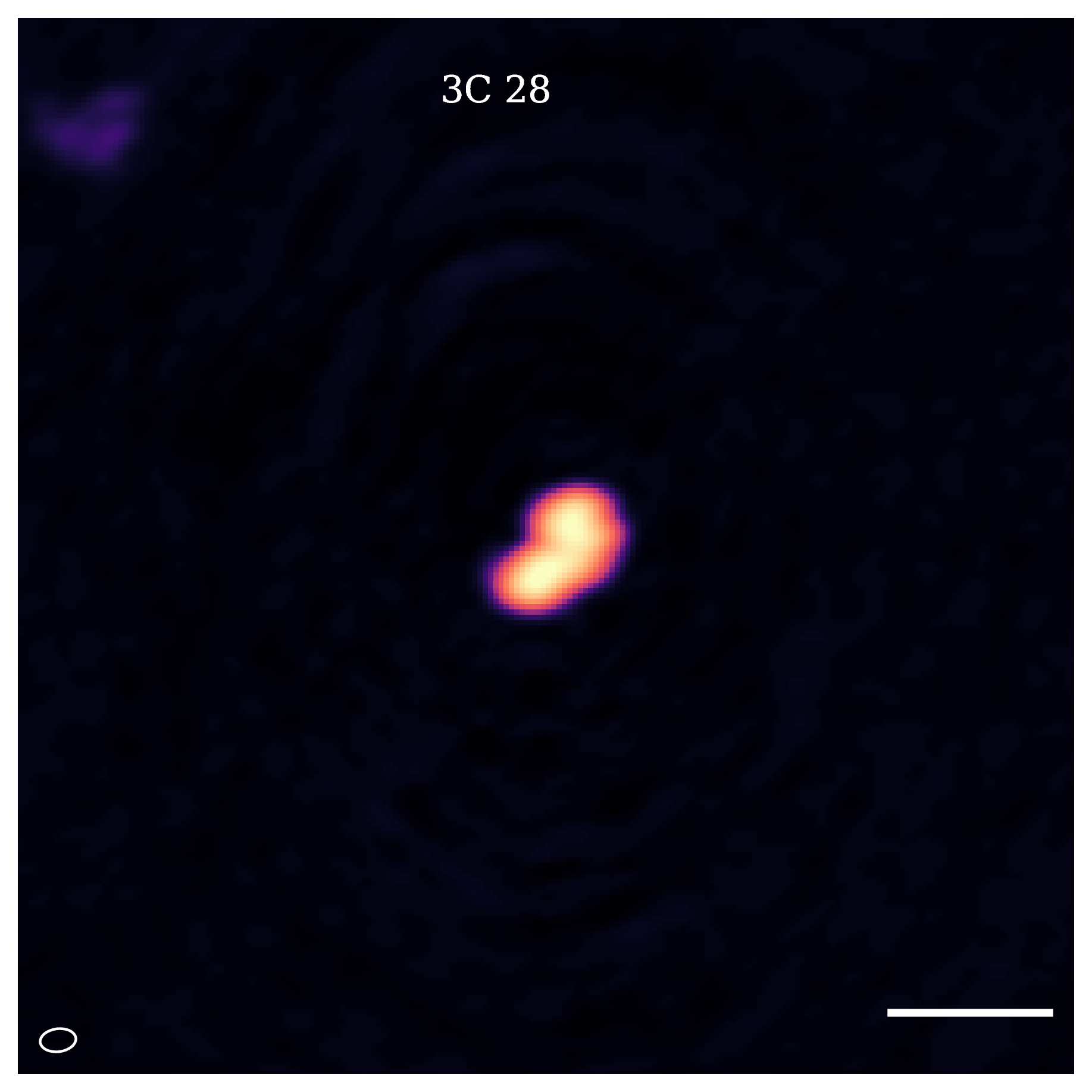

3C28 13.96087 26.41041 0.195298 64.34 6.43 13.6 8.7 8.81

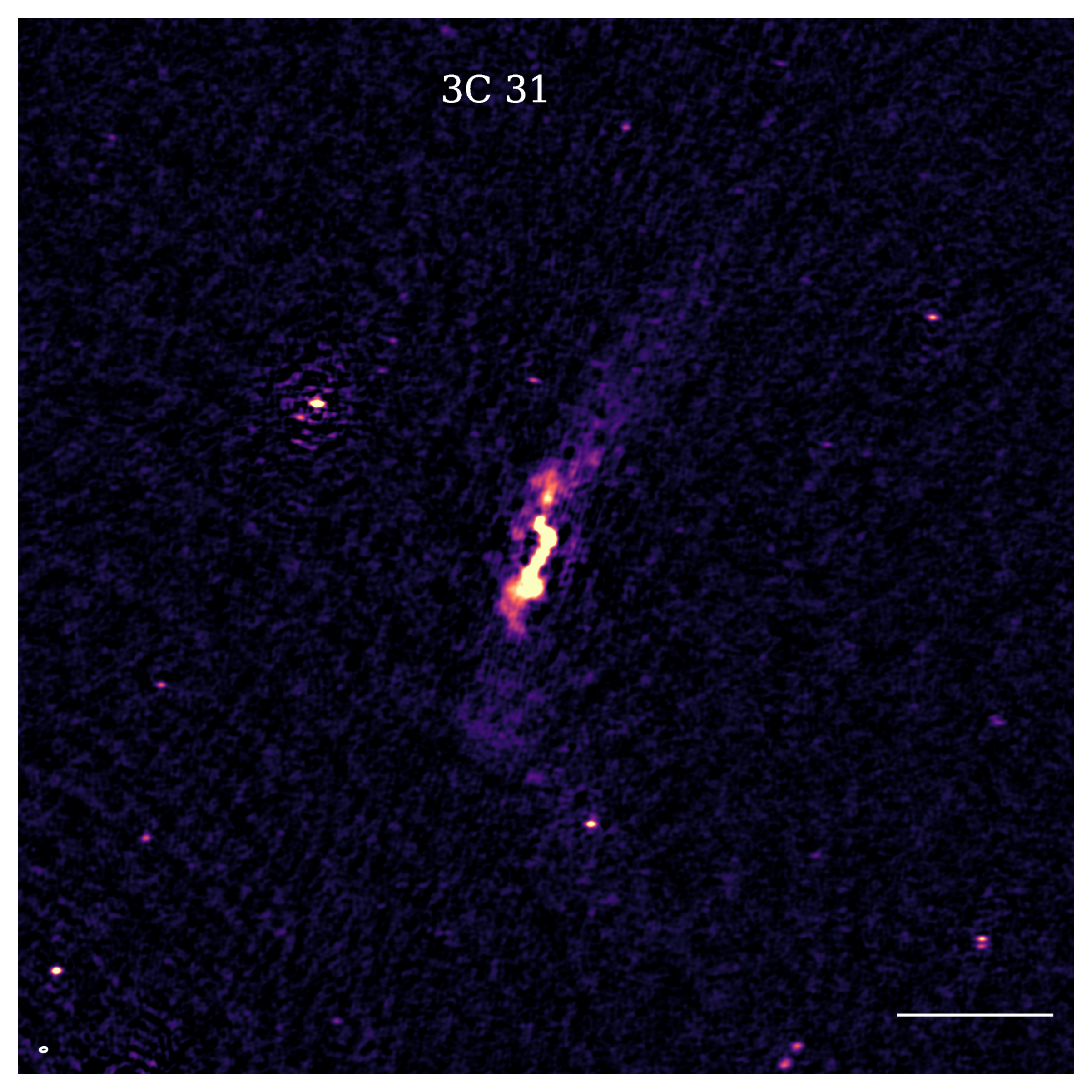

3C31 16.85403 32.41253 0.017005 43.75 4.37 26.1 16.5 10.47

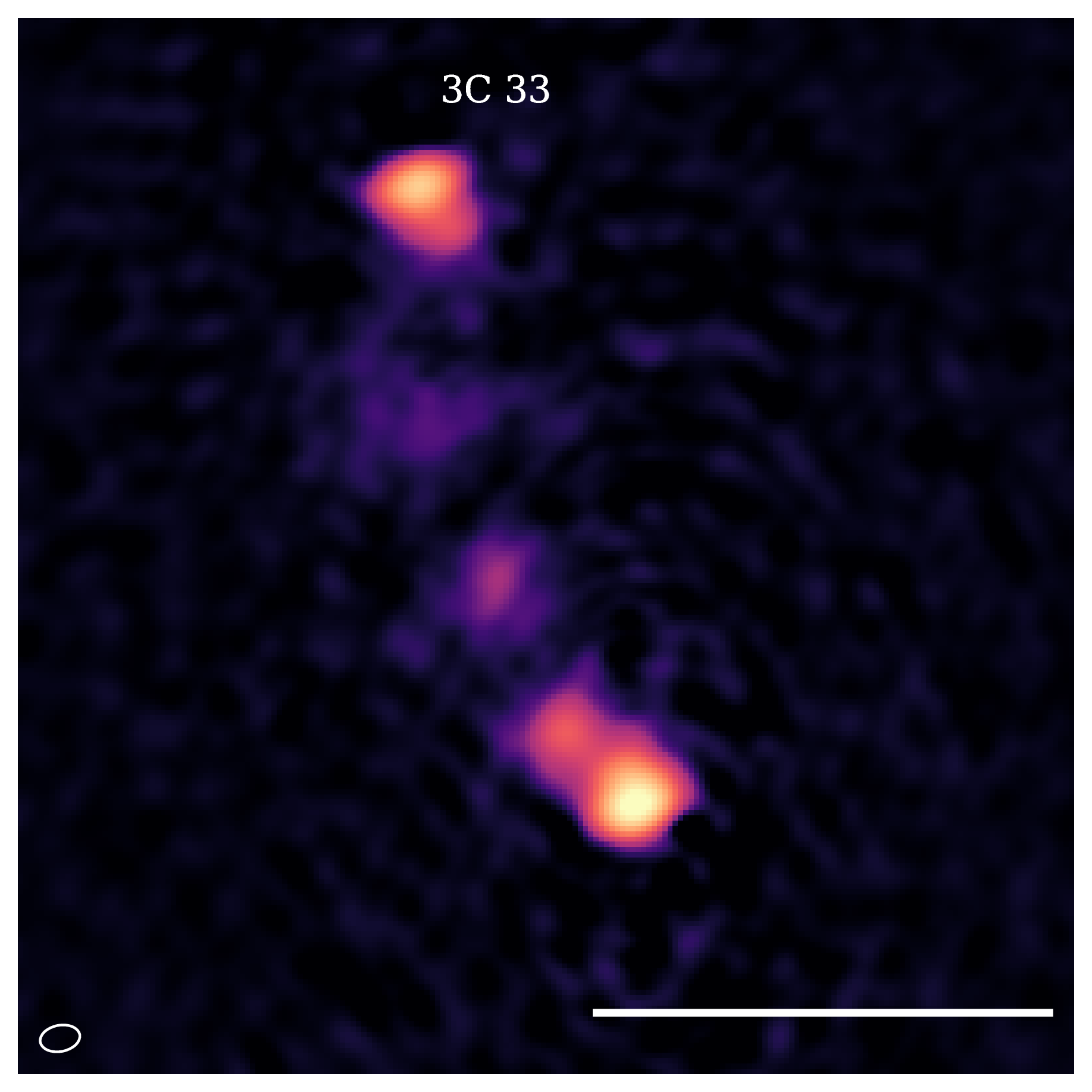

3C33 17.22031 13.33732 0.061049 127.06 12.71 15.2 9.9 13.37

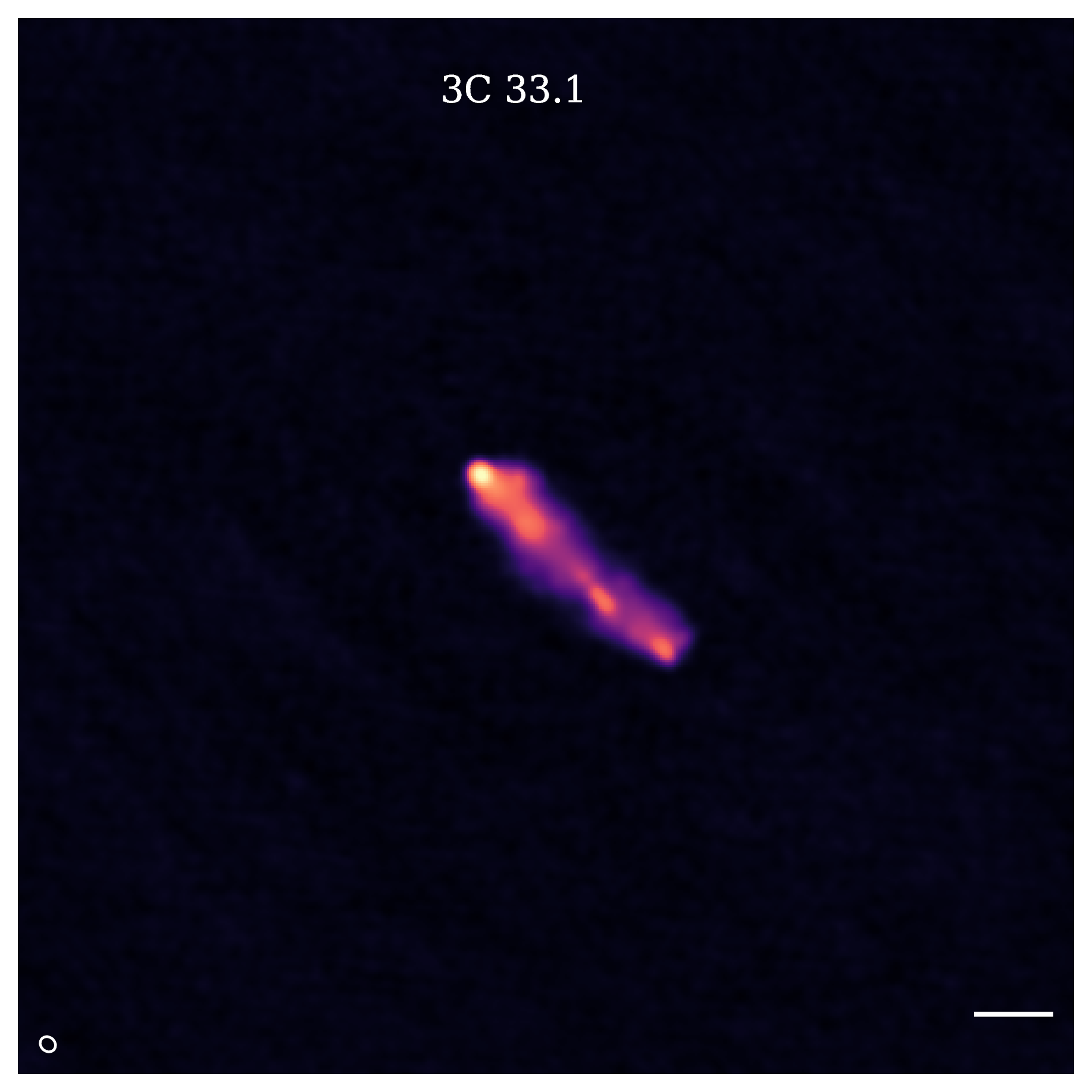

3C33.1 17.43446 73.19926 0.18099 44.41 4.44 14.1 12.1 9.98

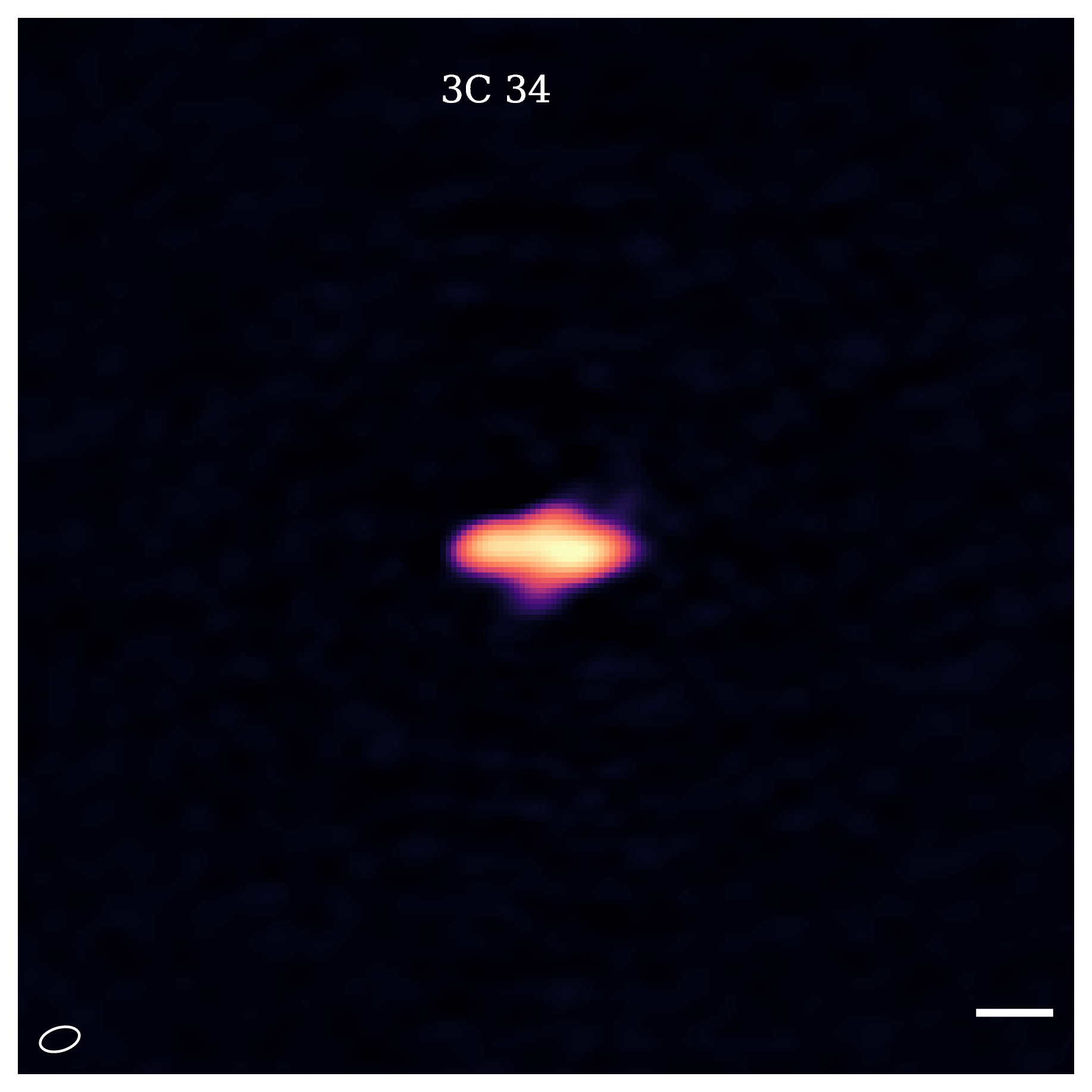

3C34 17.57778 31.78902 0.69 42.84 4.28 15.3 8.8 8.52

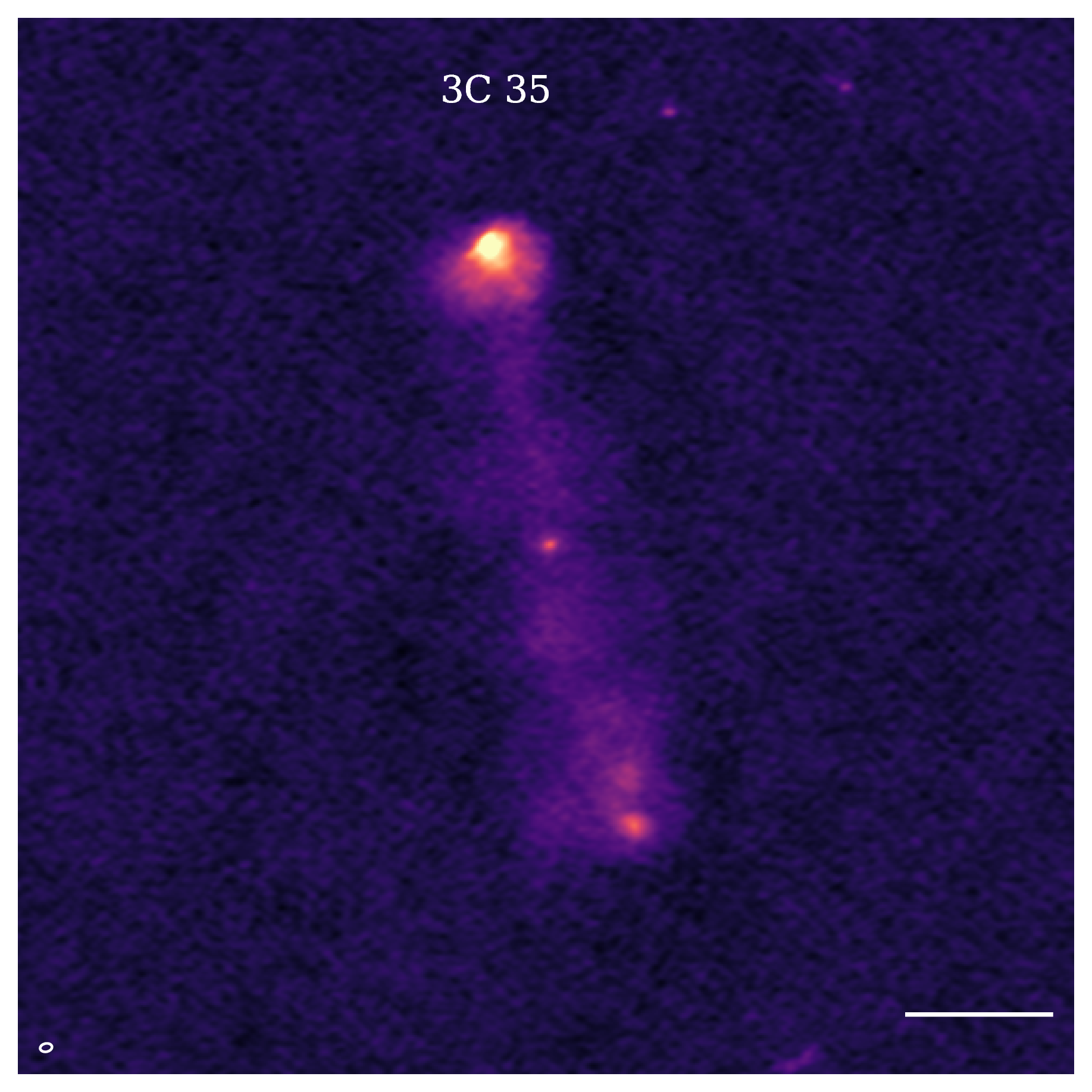

3C35 18.00939 49.47642 0.067 32.0 3.2 12.8 8.9 6.61

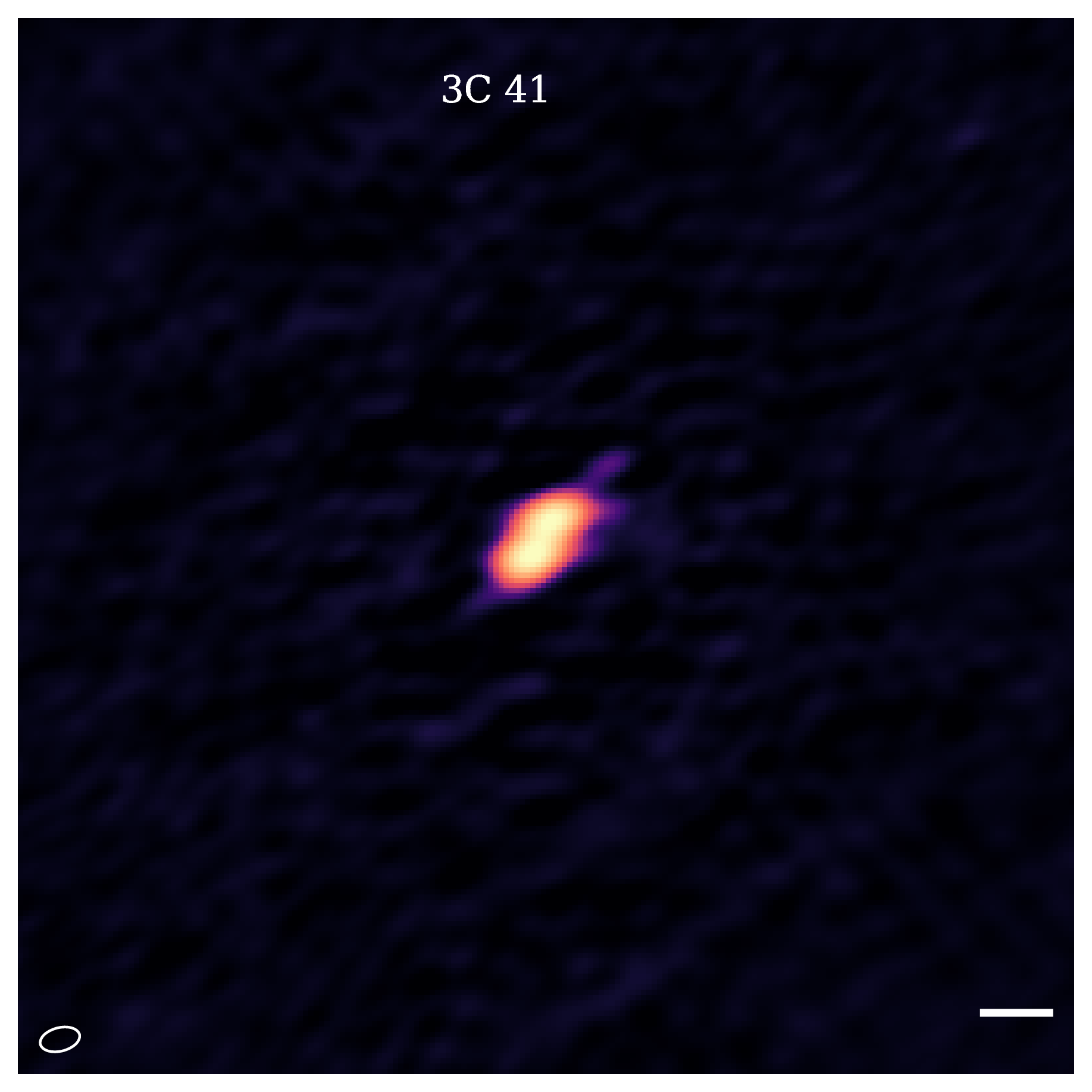

3C41 21.68469 33.21974 0.795 32.79 3.28 15.3 8.9 11.2
3C42 22.12638 29.04984 0.395007 30.11 3.01 13.0 7.8 9.01

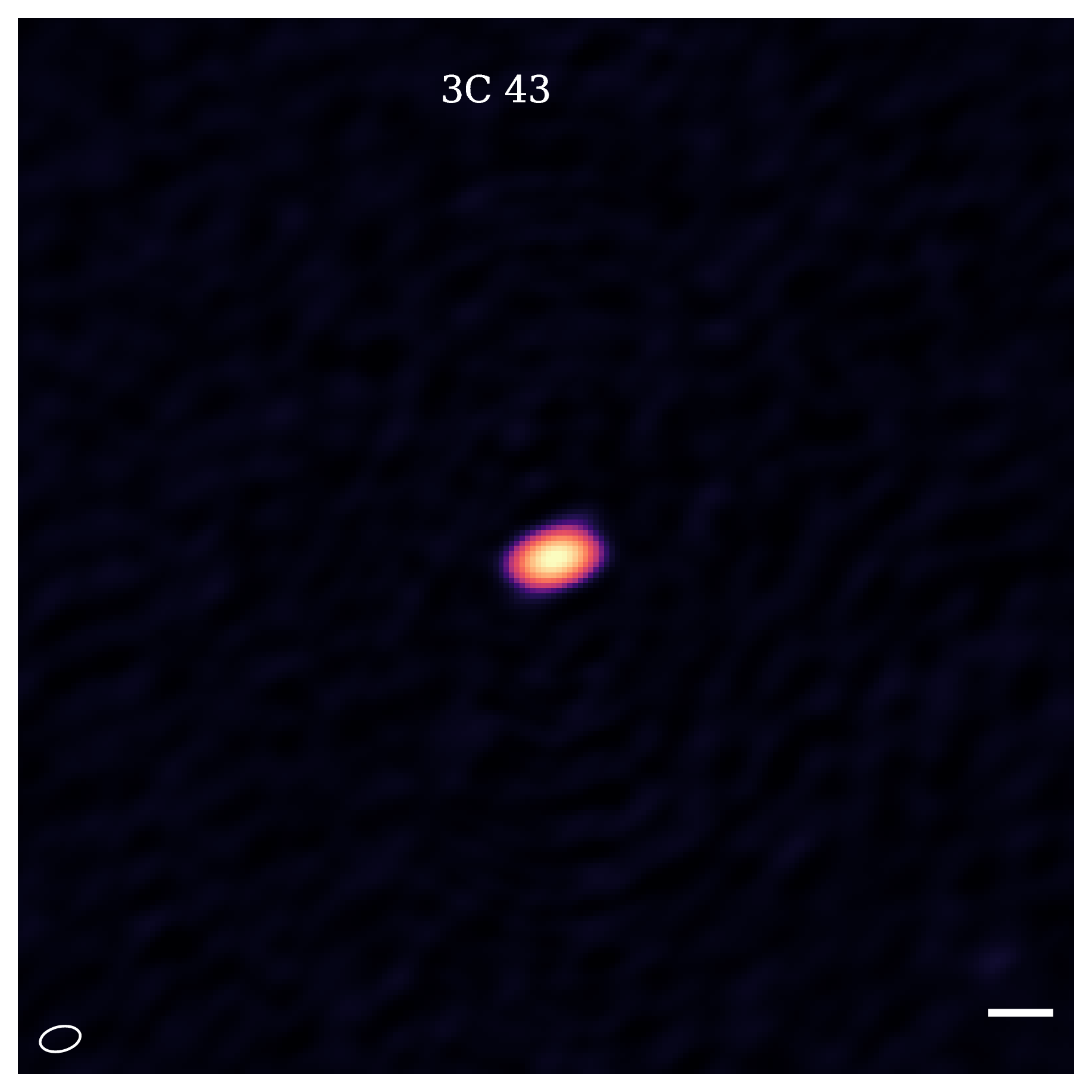

3C43 22.49925 23.63885 1.459 26.75 2.68 15.5 9.3 10.45

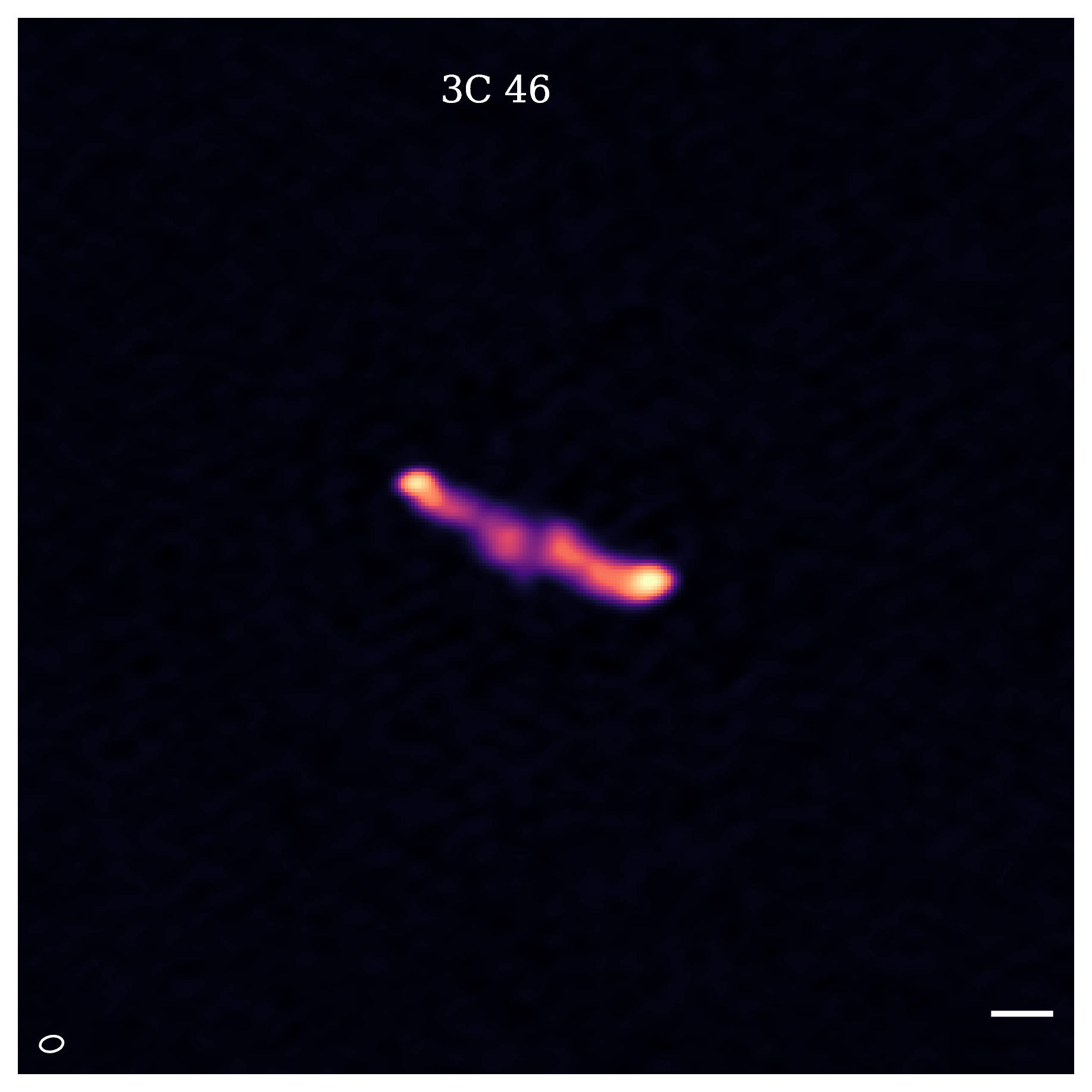

3C46 23.86802 37.90156 0.4373 27.82 2.78 13.8 9.1 6.5

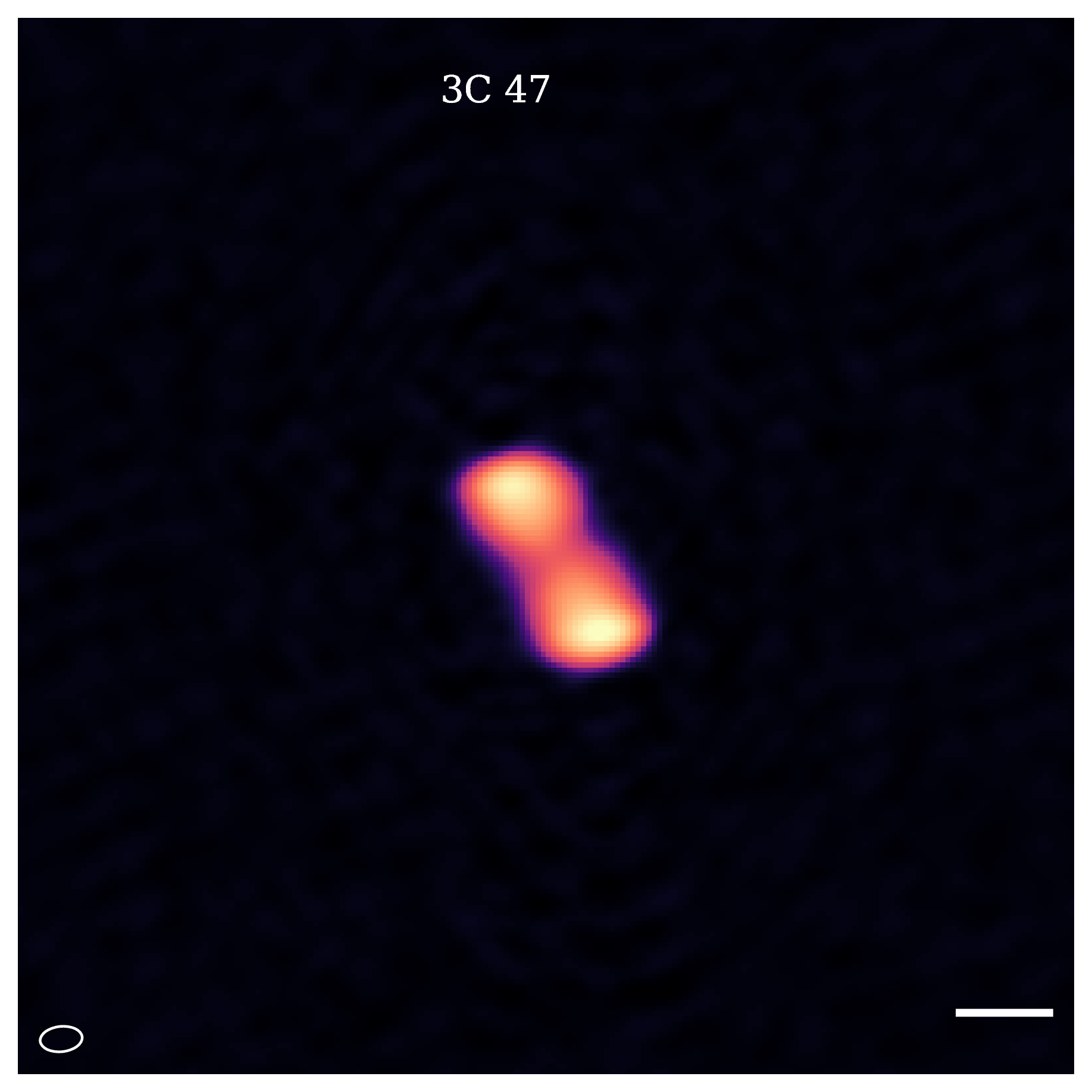

3C47 24.10177 20.95766 0.425 88.23 8.82 16.0 9.6 8.72
3C48 24.42208 33.15976 0.369 86.05 8.6 13.6 9.1 9.45

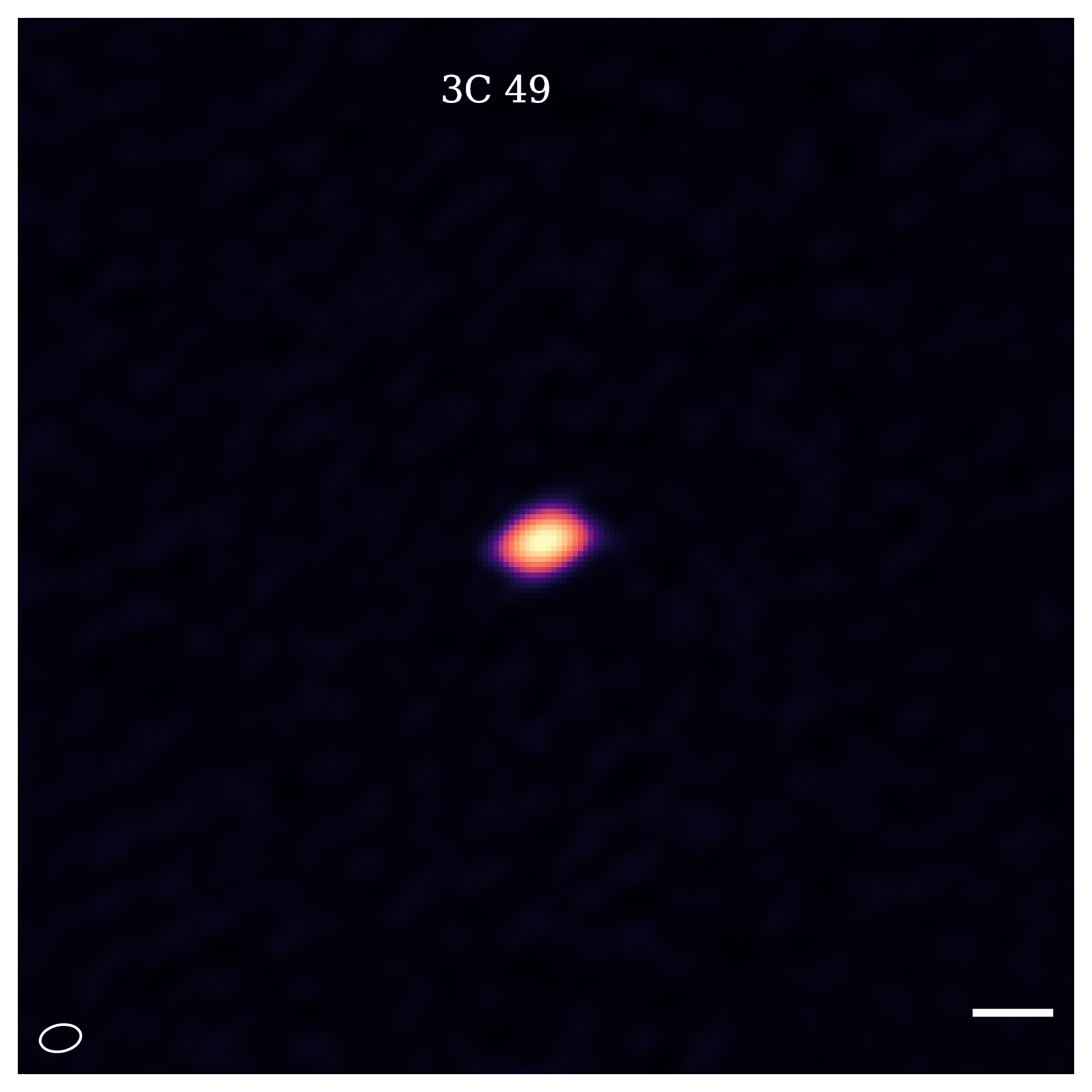

3C49 25.2882 13.89122 0.621 13.73 1.37 15.6 10.1 8.76
3C55 29.29408 28.86098 0.7348 61.3 6.13 15.2 9.1 7.4

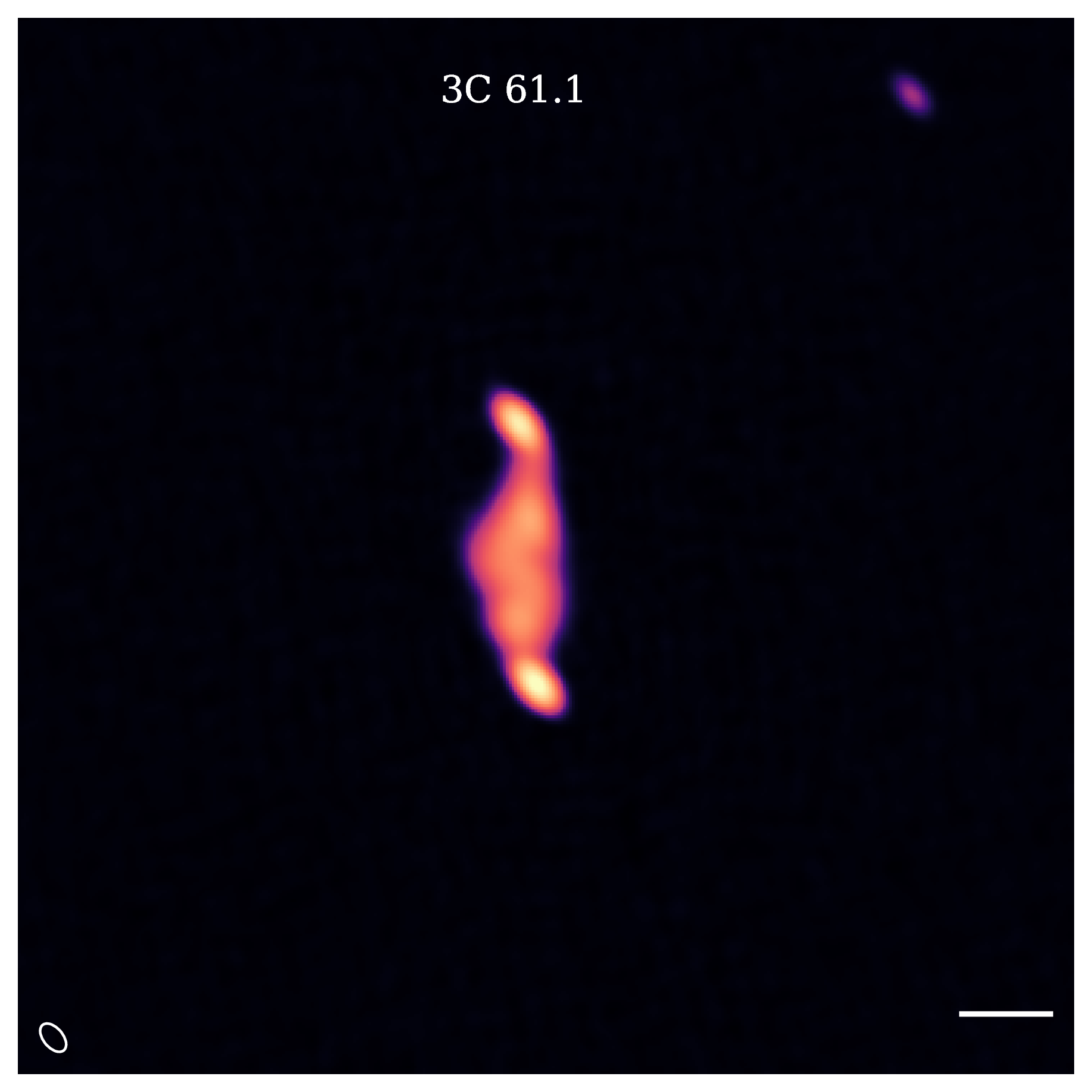

3C61.1 35.64602 86.31838 0.188 93.35 9.34 23.1 13.6 6.31

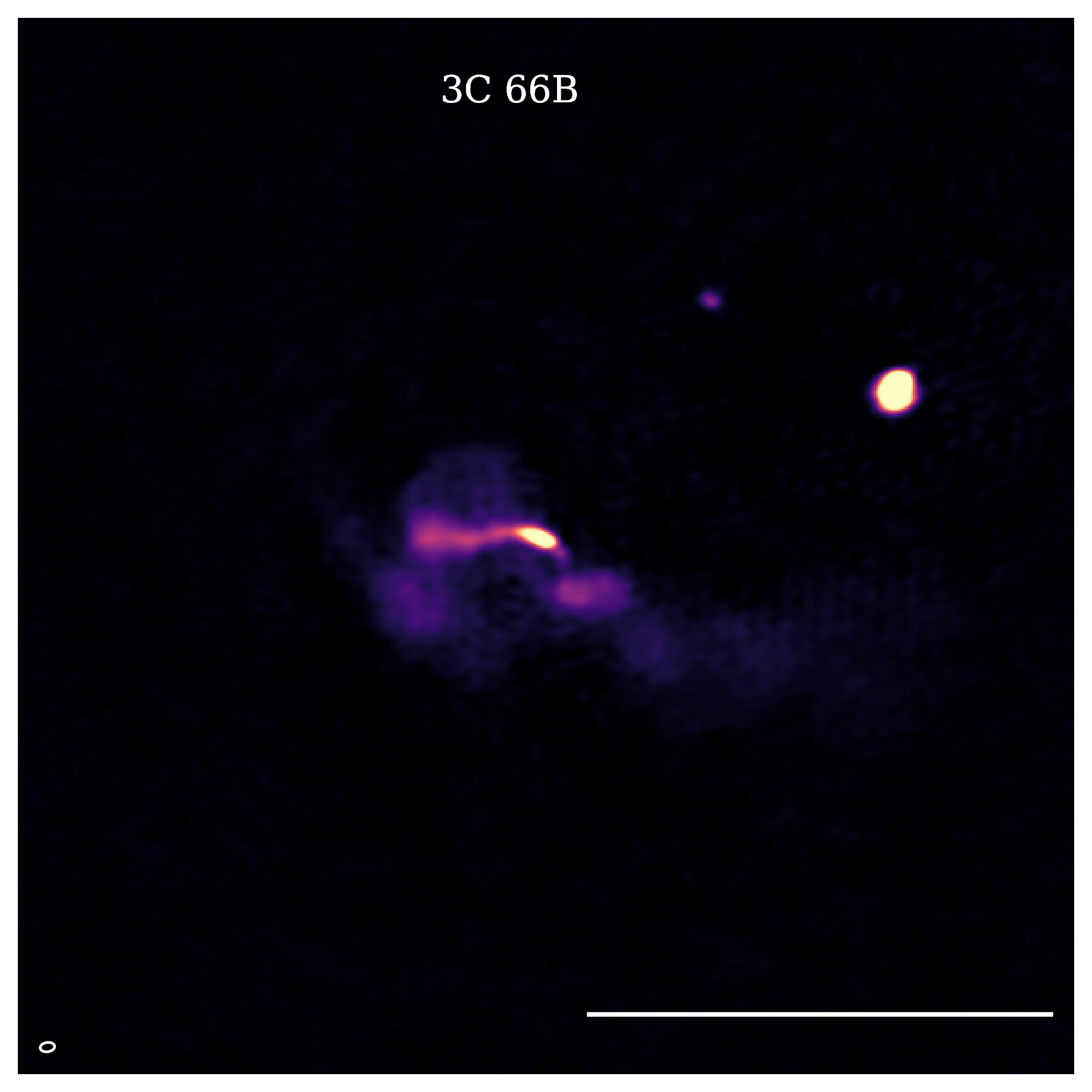

3C66b 35.79755 42.99205 0.02092 95.51 9.55 14.9 9.5 7.92

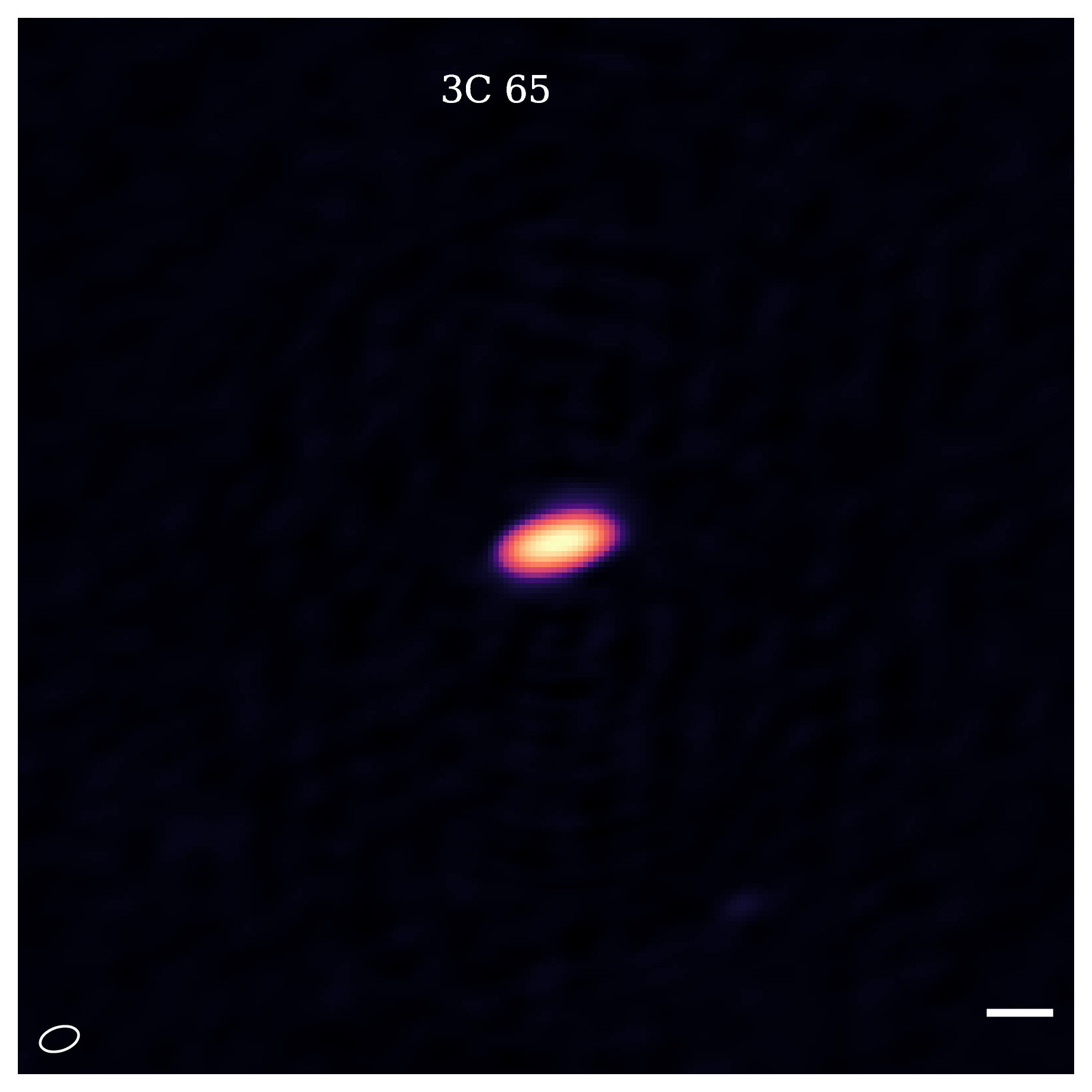

3C65 35.92996 40.01457 1.176 35.9 3.59 15.0 9.0 7.37

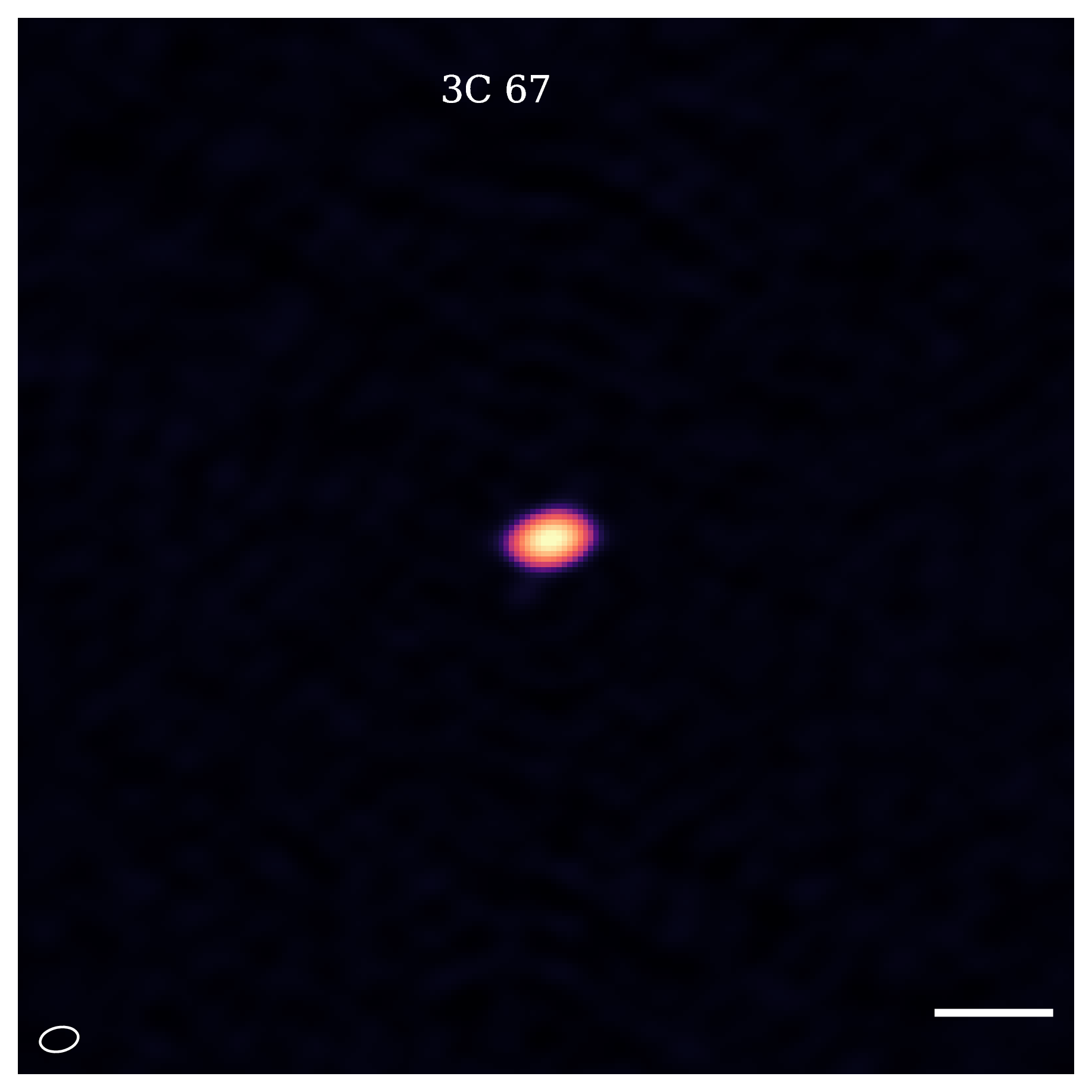

3C67 36.05123 27.83653 0.3102 18.86 1.89 14.6 9.1 8.28

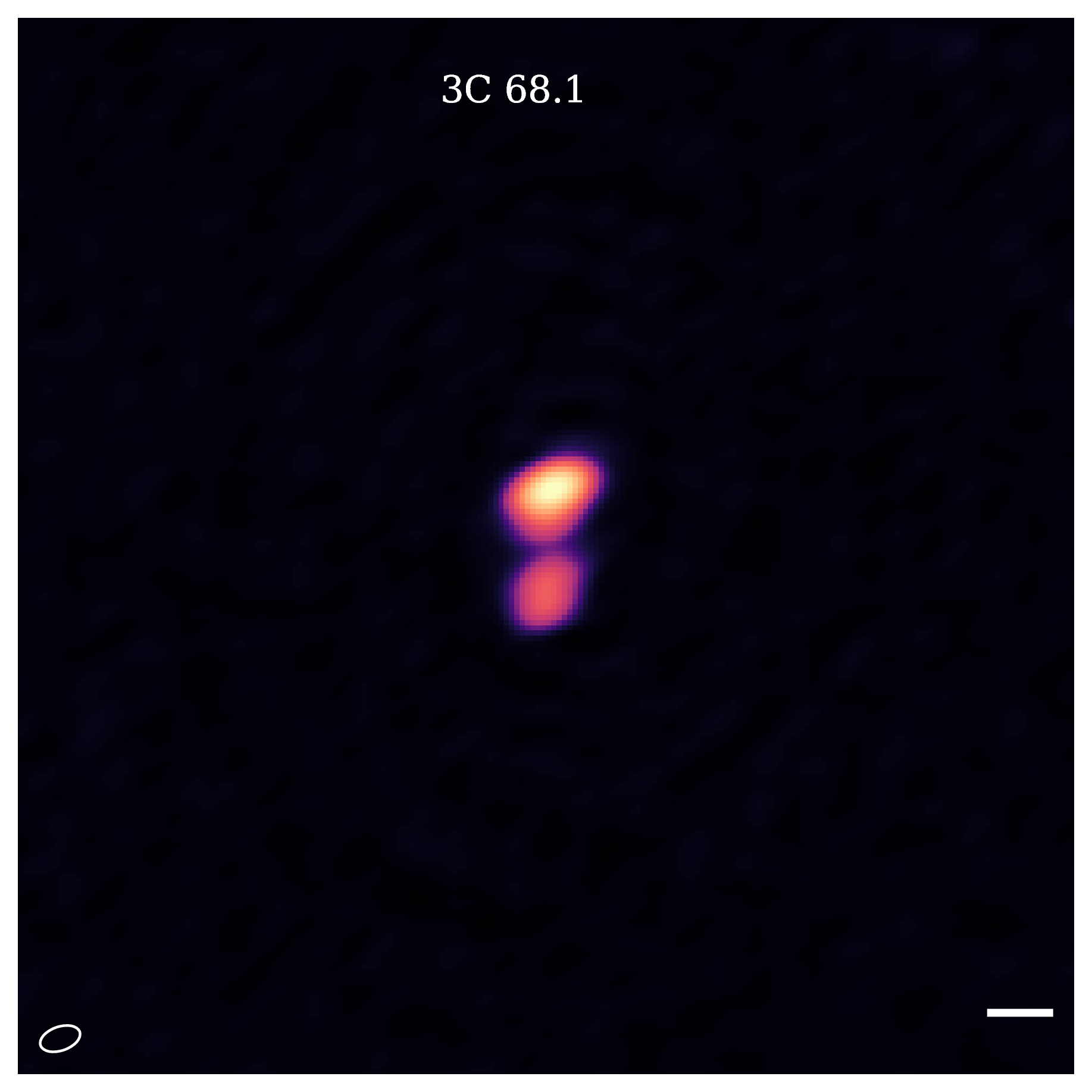

3C68.1 38.12032 34.39631 1.238 38.25 3.83 15.7 9.1 7.97

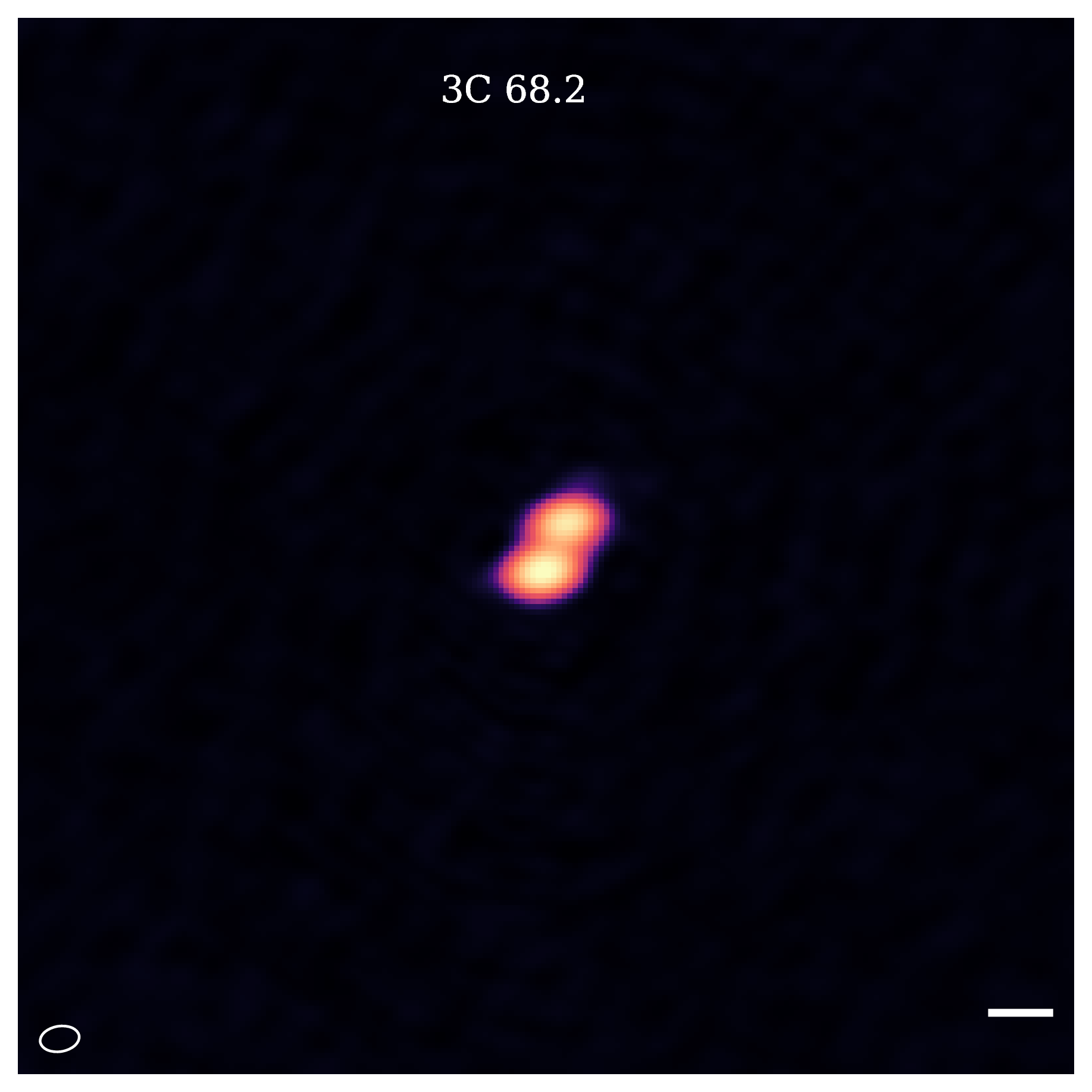

3C68.2 38.59917 31.57139 1.575 43.16 4.32 14.9 9.6 7.75

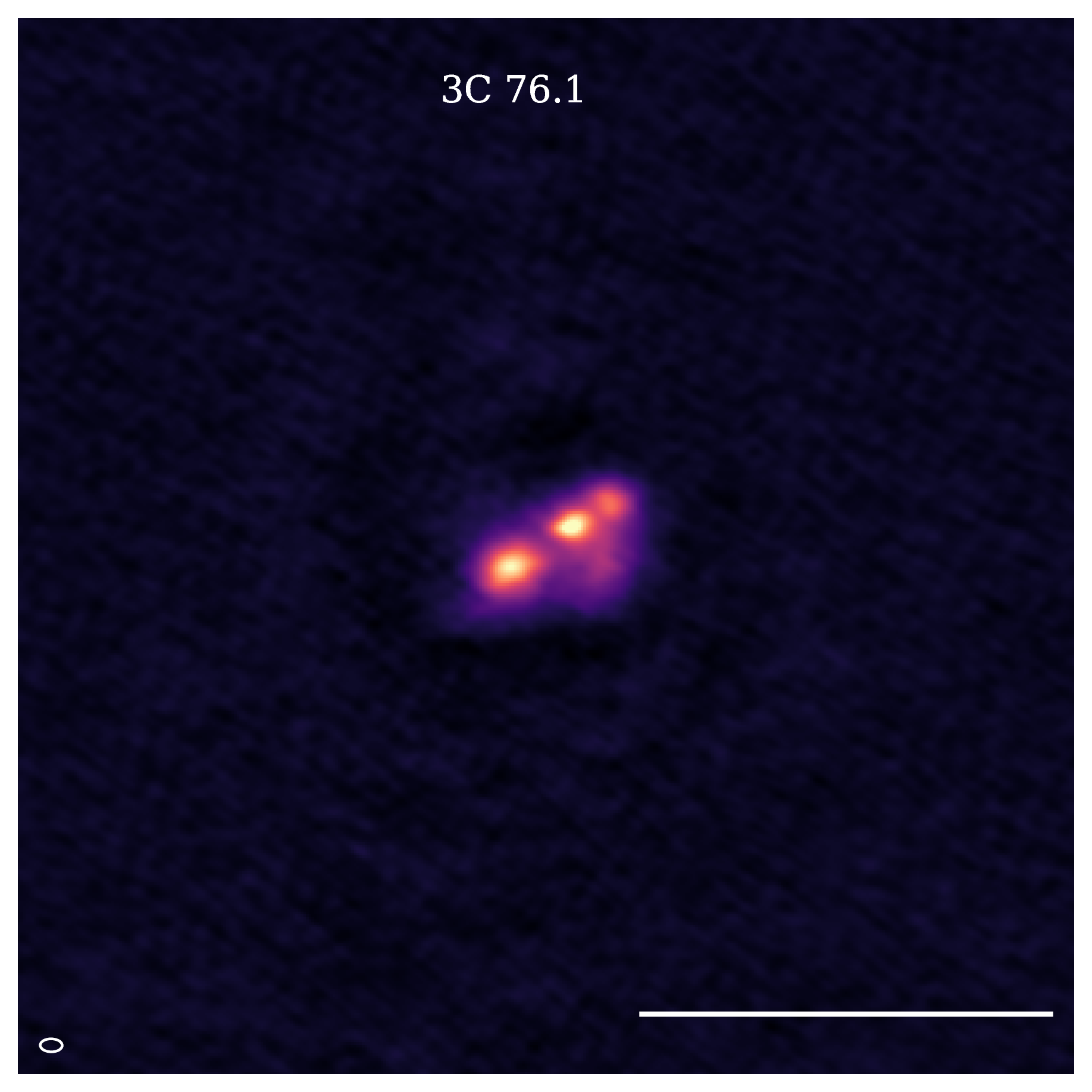

3C76.1 45.81079 16.43758 0.032489 42.66 4.27 16.6 9.7 11.24

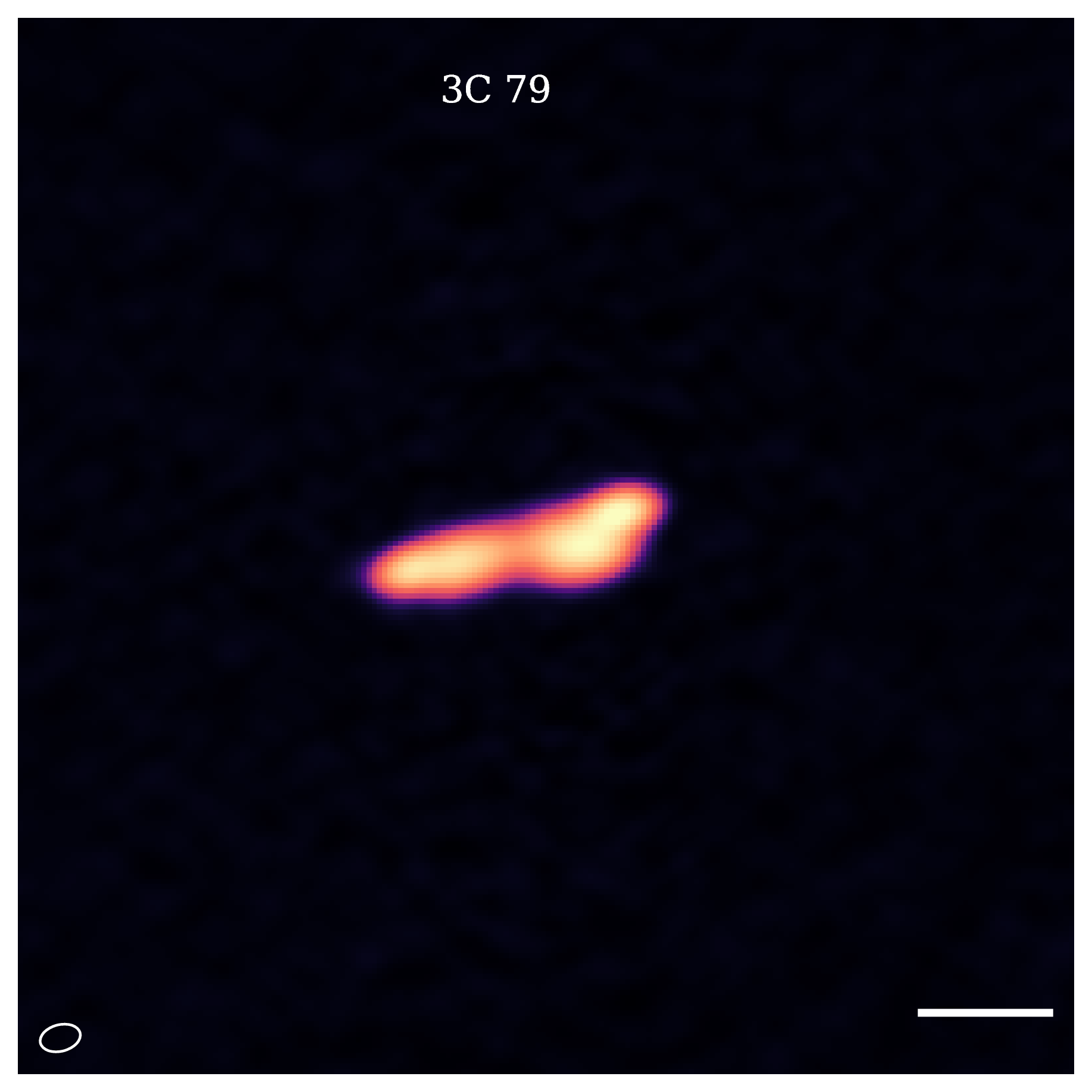

3C79 47.50039 17.09962 0.2559 75.13 7.51 15.5 10.1 7.96
3C83.1b 49.56527 41.85775 0.025665 257.6 25.76 15.8 8.7 14.6

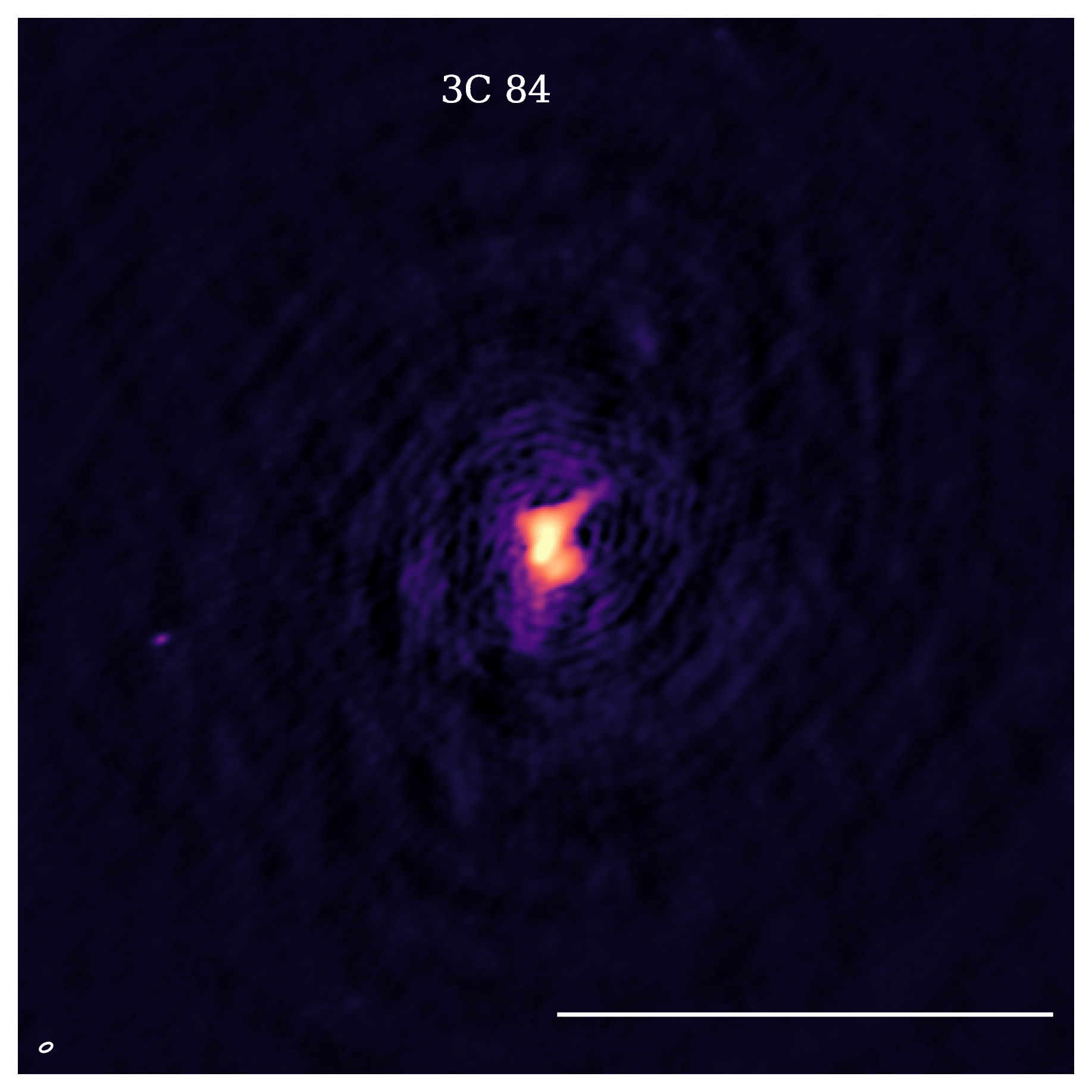

3C84 49.95067 41.5117 0.01767 269.3 26.93 27.0 18.6 37.16

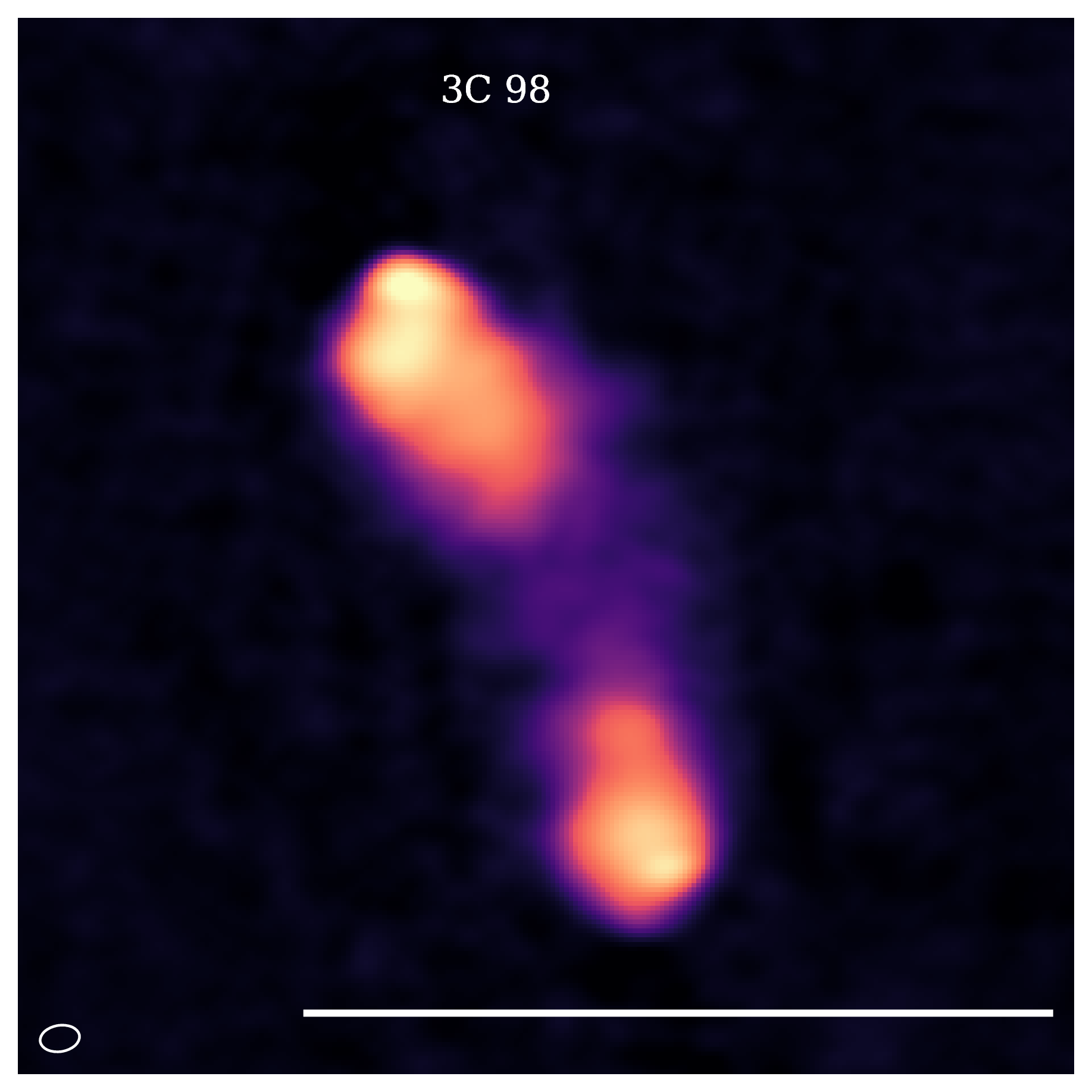

3C98 59.72684 10.43411 0.030961 118.22 11.82 17.4 11.5 10.13

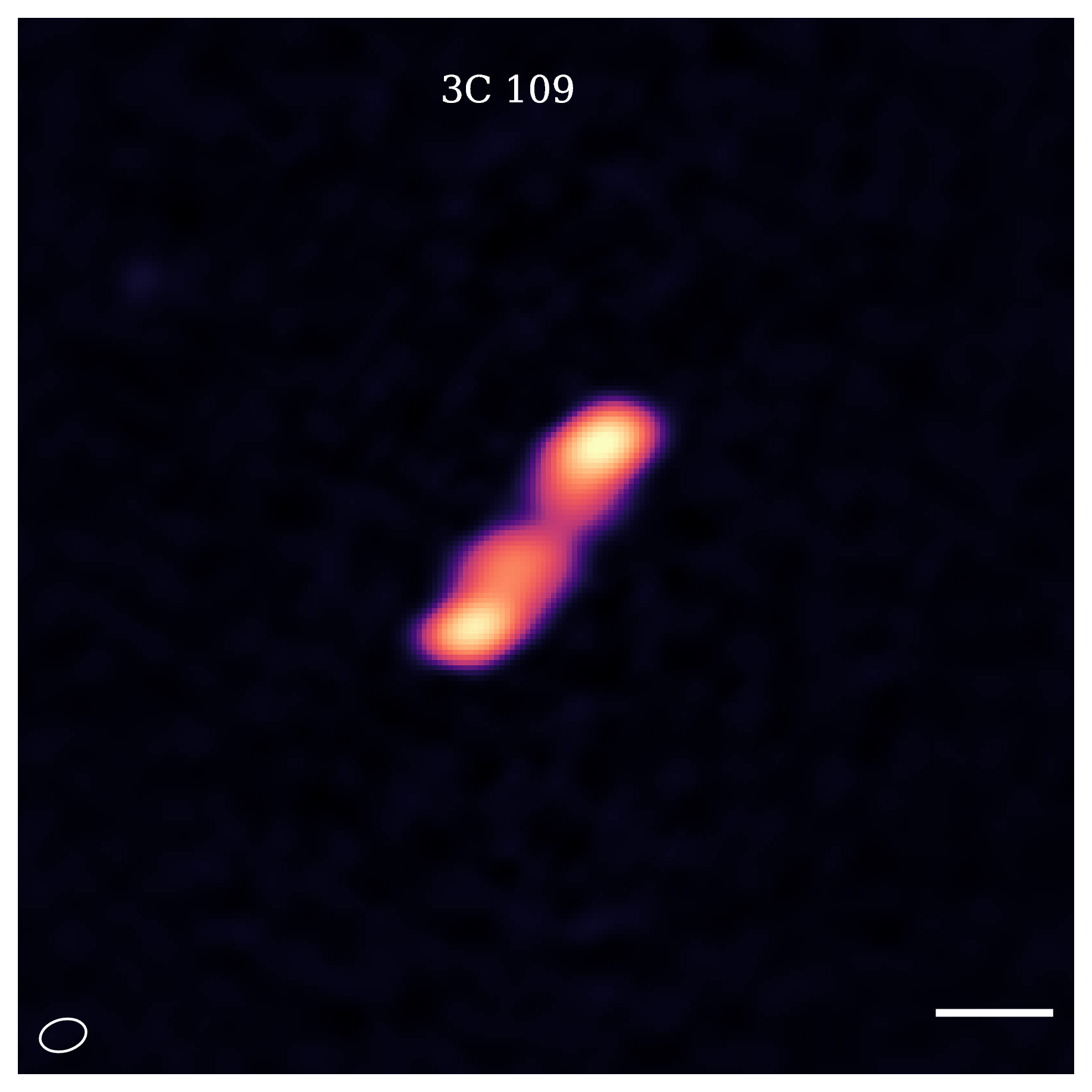

3C109 63.41809 11.20411 0.305 56.7 5.67 18.1 12.3 9.58

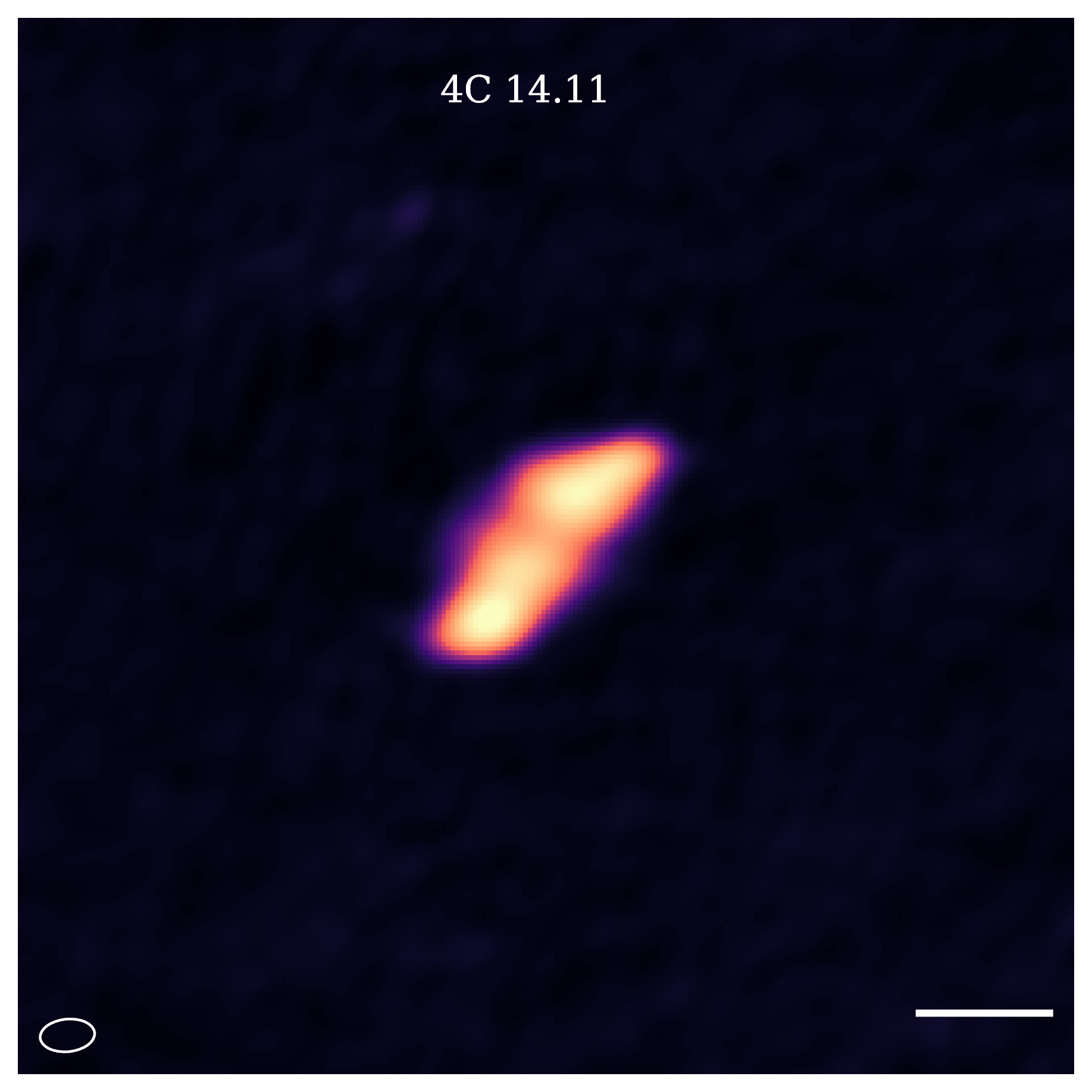

4C14.11 63.62422 14.27324 0.206 22.5 2.25 24.0 14.3 11.8
3C123 69.26823 29.6705 0.2177 479.93 47.99 15.1 8.0 15.63

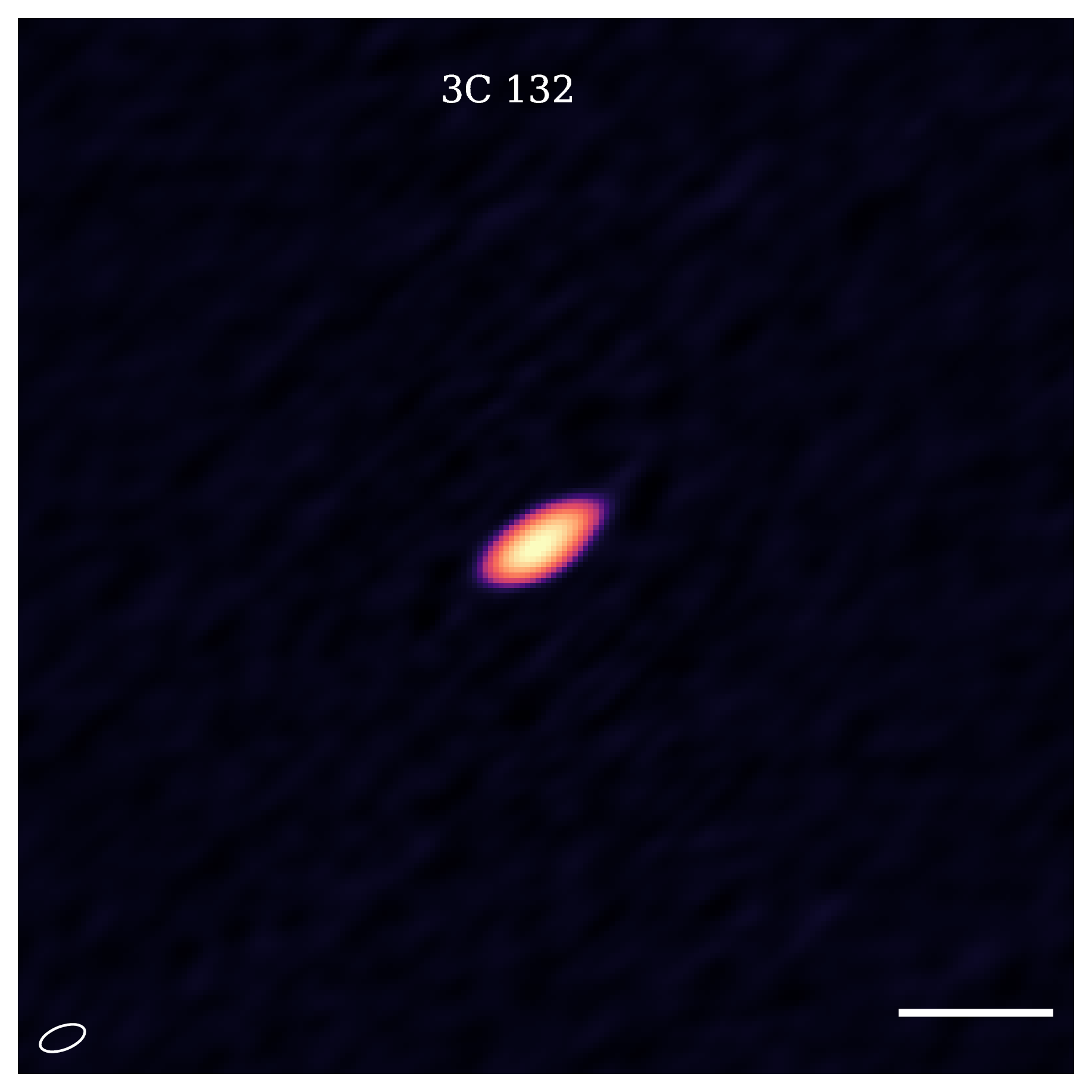

3C132 74.17922 22.82304 0.214 31.1 3.11 17.8 8.8 13.4

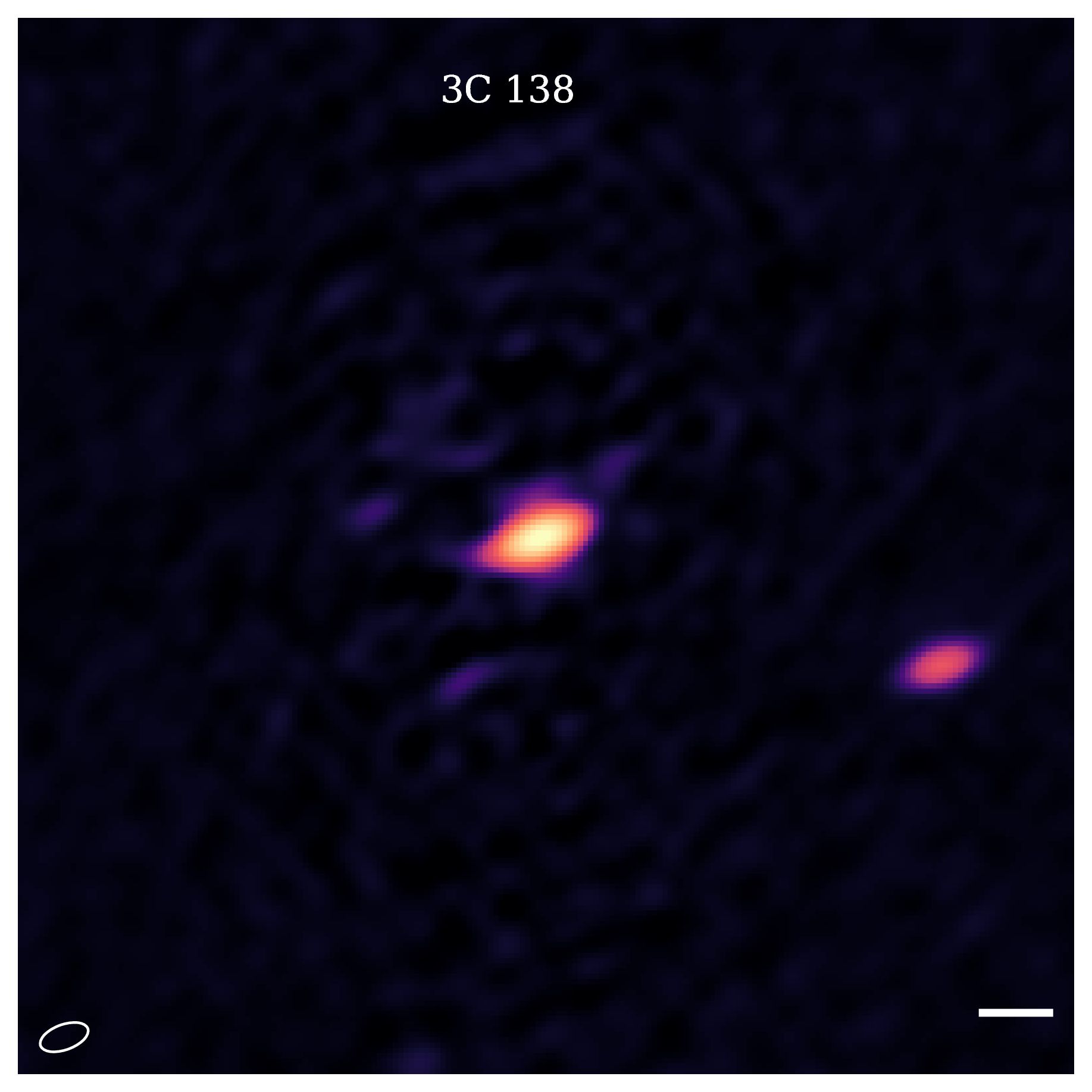

3C138 80.29119 16.63946 0.759 23.39 2.34 19.0 9.6 12.09
3C147 85.65057 49.85201 0.545 48.51 4.85 14.8 11.5 8.36

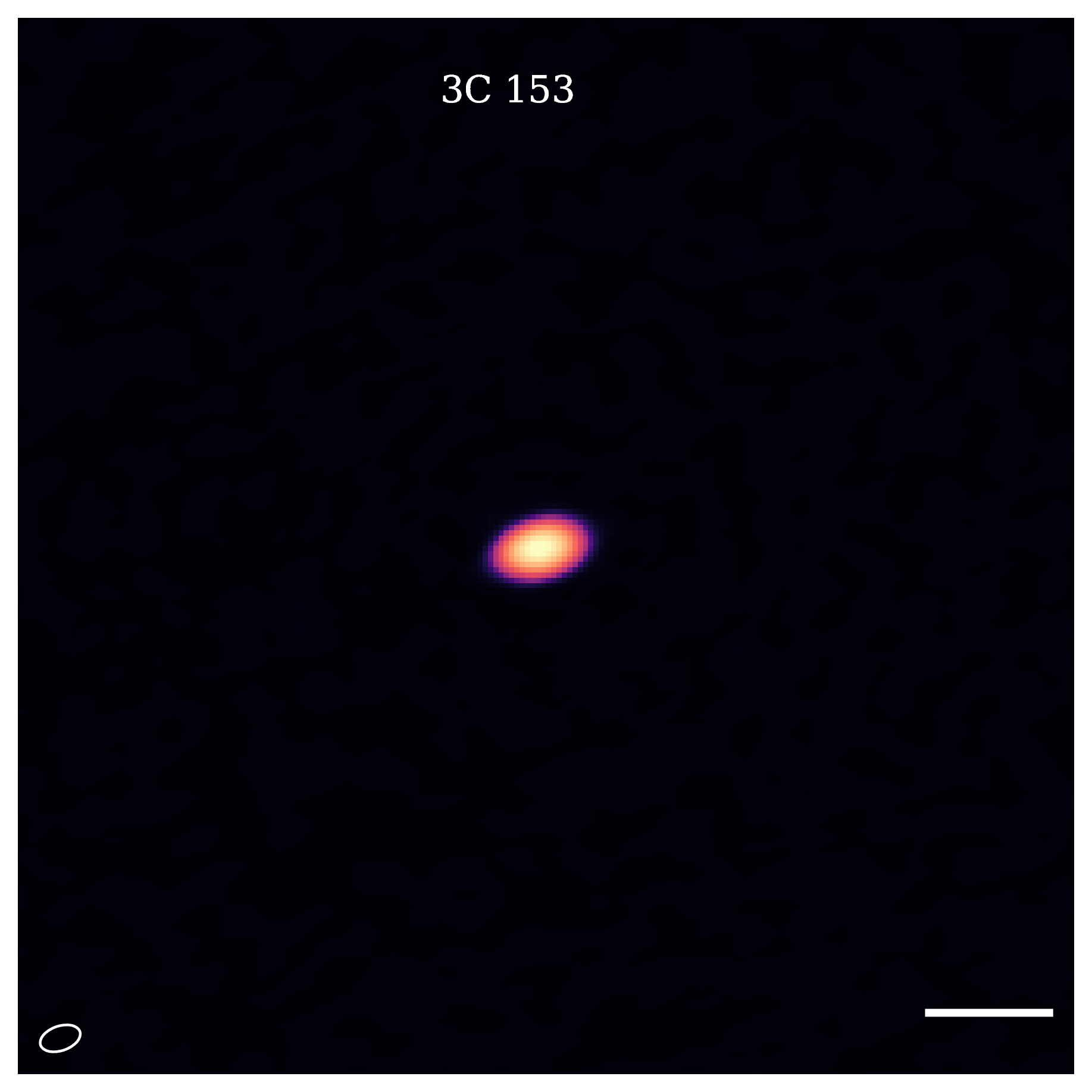

3C153 92.38544 48.07094 0.2769 31.27 3.13 15.8 9.3 6.09

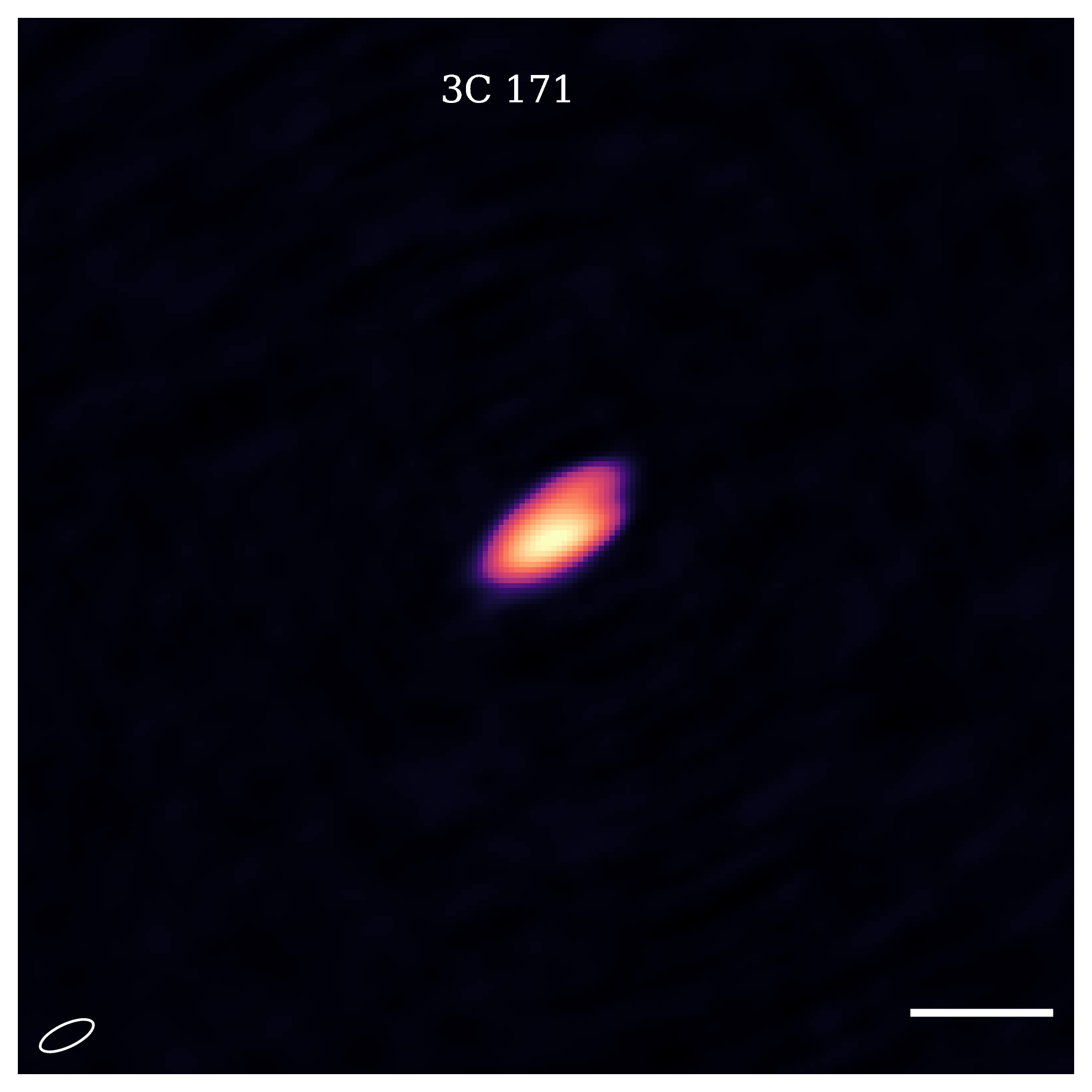

3C171 103.8117 54.15004 0.238 49.44 4.94 22.0 8.6 8.58
3C172 105.53396 25.22931 0.5191 35.48 3.55 13.4 8.7 9.37

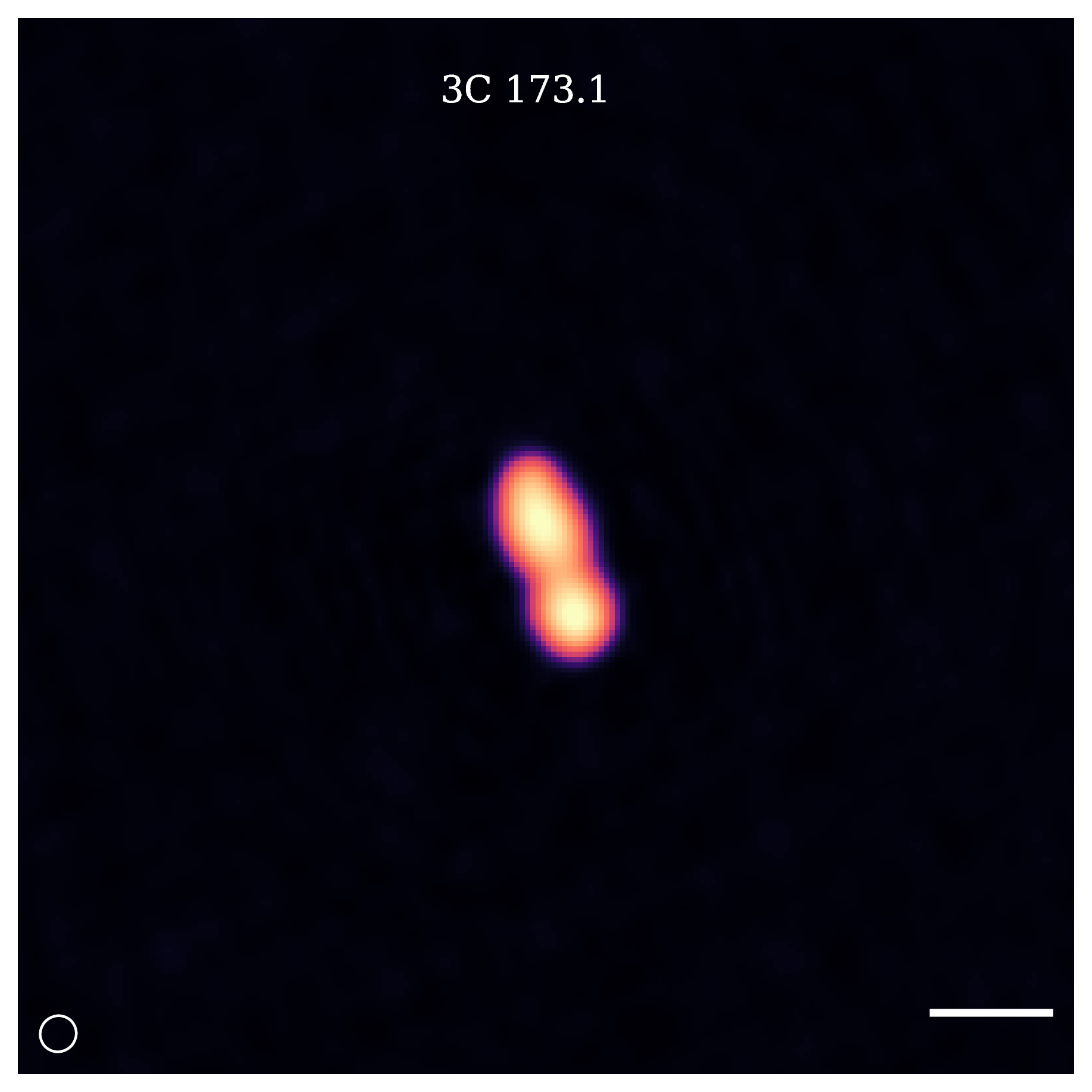

3C173.1 107.32575 74.82549 0.2229 46.73 4.67 13.9 13.5 7.32

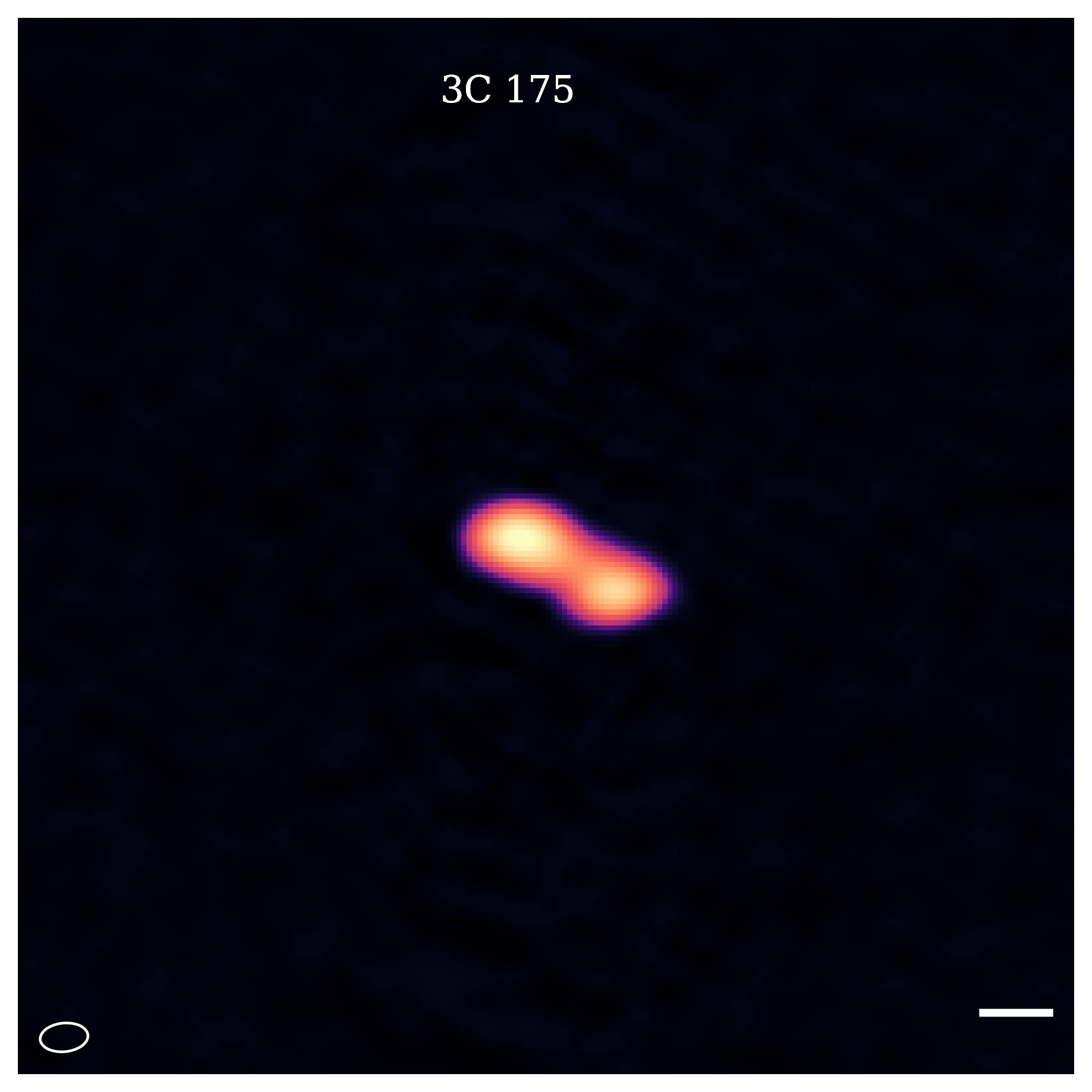

3C175 108.26009 11.77119 0.77 55.61 5.56 18.2 10.8 8.64

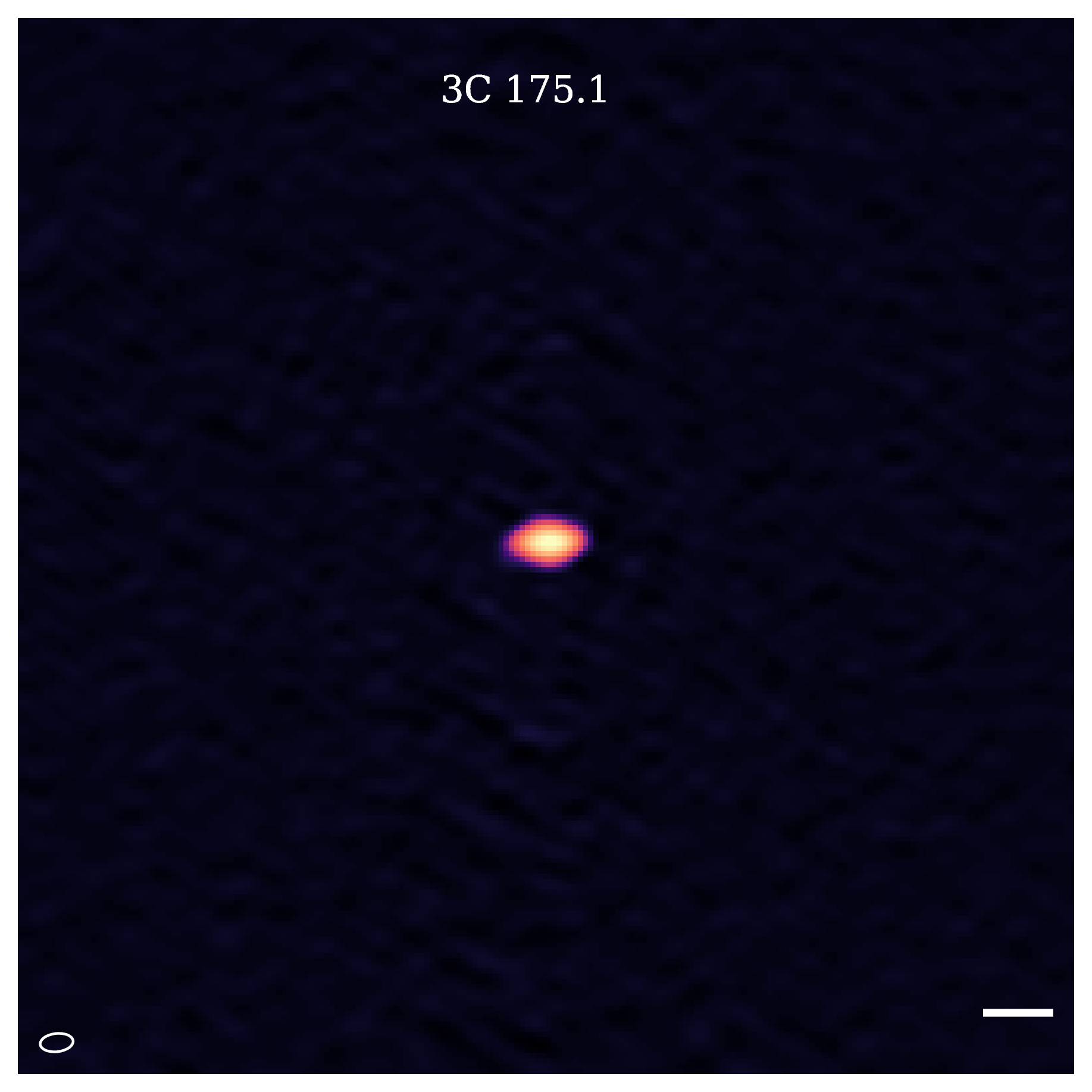

3C175.1 108.51951 14.60611 0.92 18.83 1.88 12.5 6.9 15.37

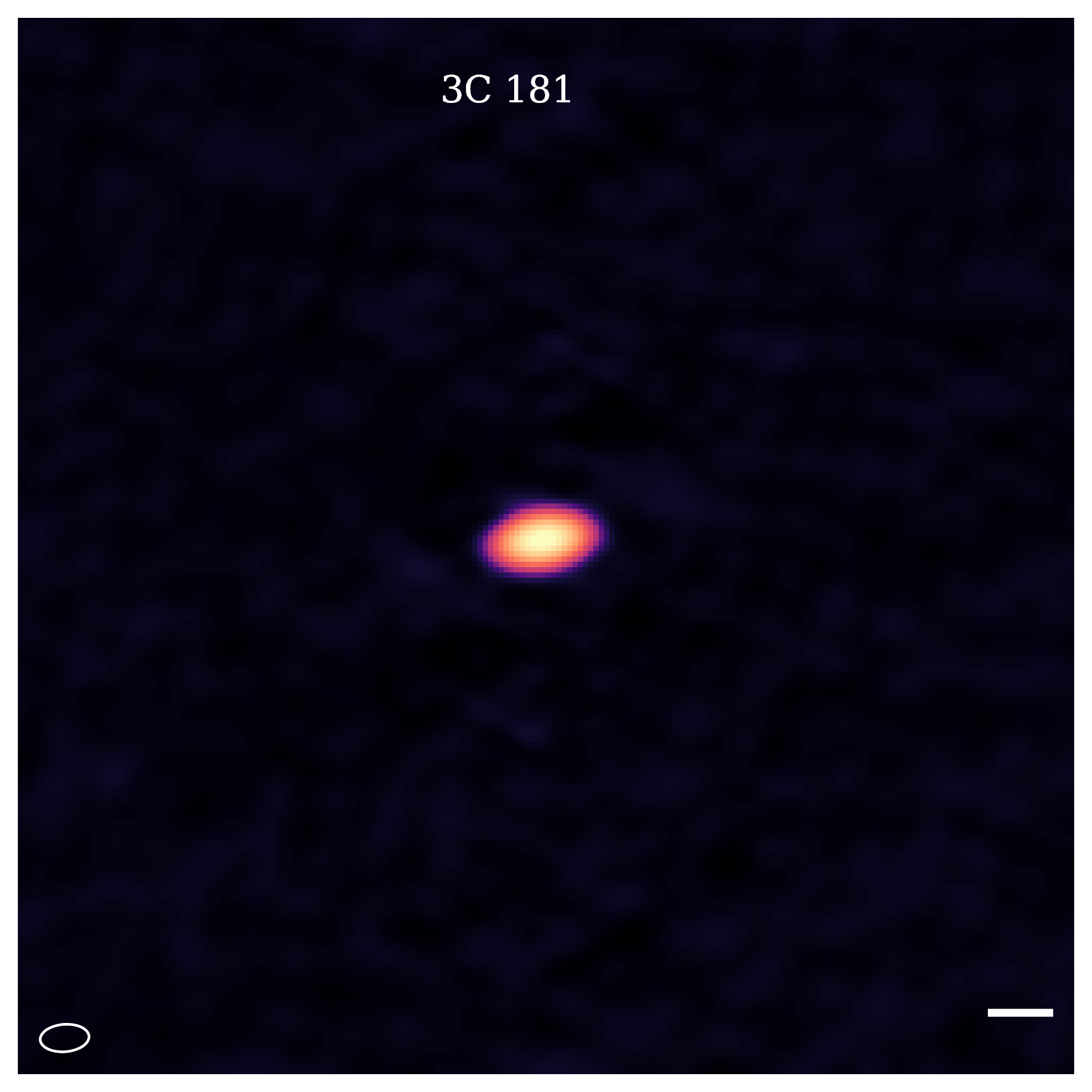

3C181 112.04294 14.62673 1.382 24.99 2.5 18.5 10.4 13.46
3C184 114.85155 70.38662 0.994 31.55 3.15 17.7 11.7 6.55

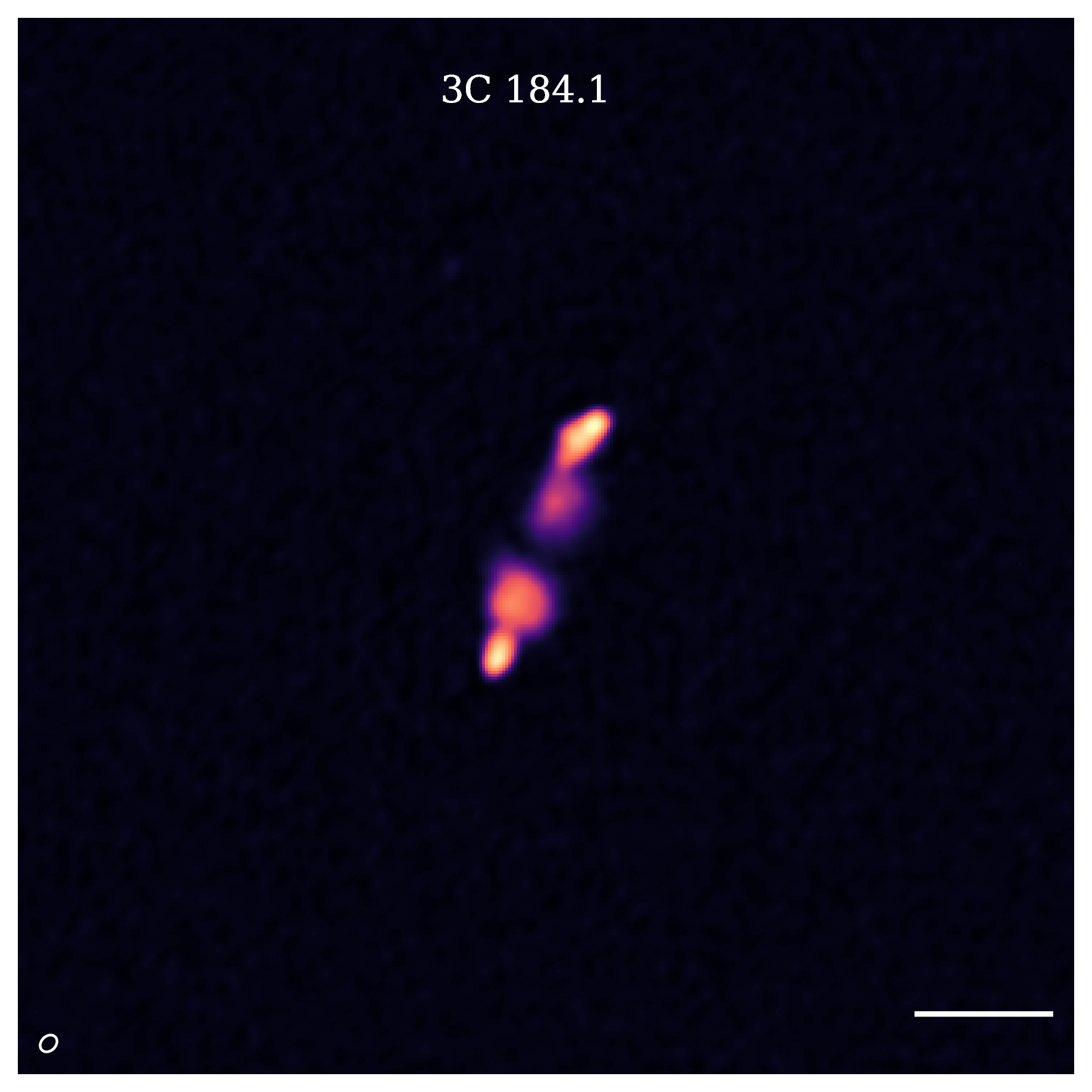

3C184.1 115.75577 80.44058 0.118115 44.82 4.48 12.9 10.1 10.12
3C186 116.07286 37.88815 1.065505 38.81 3.88 11.2 6.2 13.82

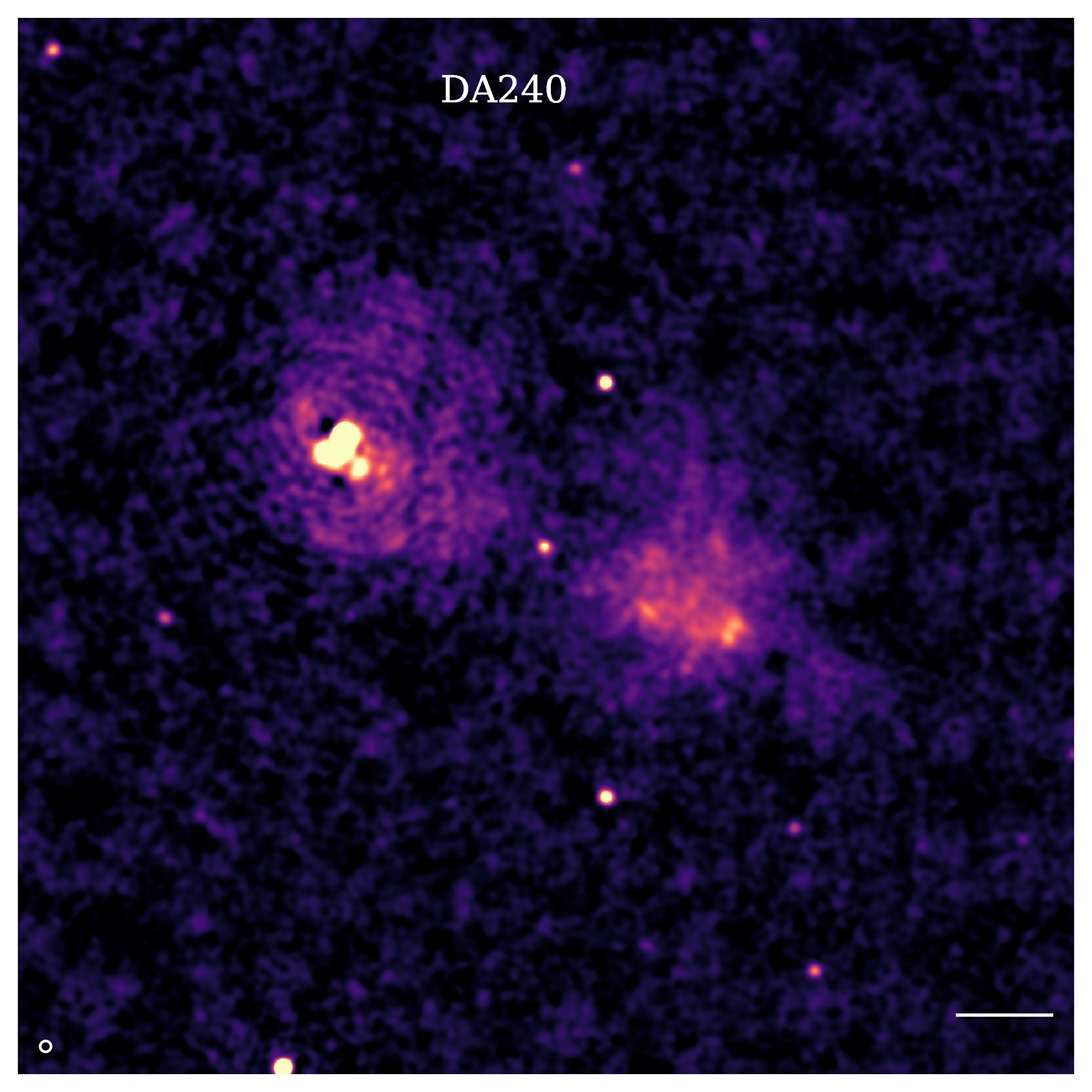

DA240 117.15387 55.81619 0.035661 38.38 3.84 32.4 32.4 12.35

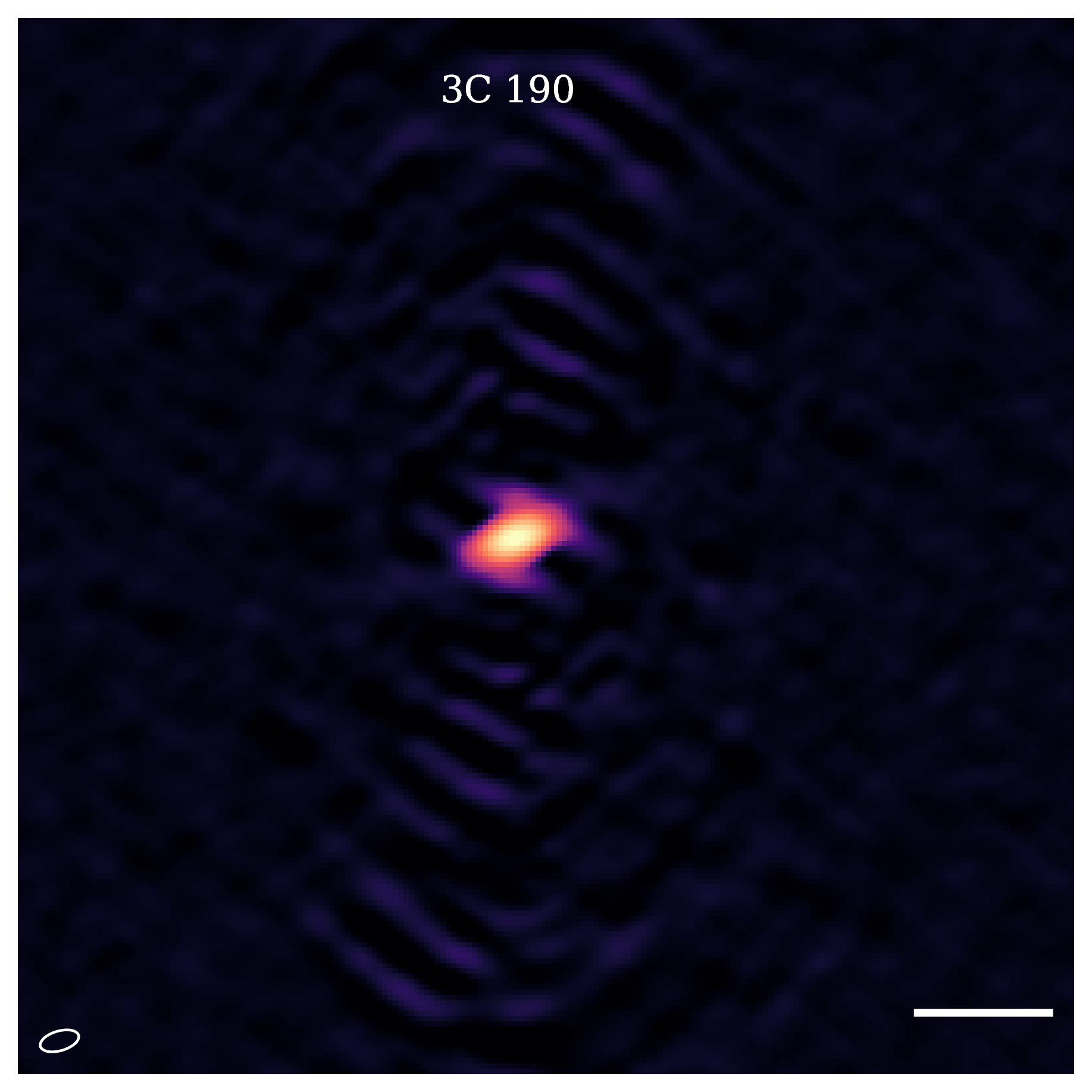

3C190 120.38982 14.24529 1.195649 40.38 4.04 15.1 7.4 16.63
3C191 121.19985 10.25655 1.968179 36.32 3.63 17.2 9.7 10.76
3C192 121.39588 24.16393 0.059678 58.14 5.81 18.7 9.9 7.25

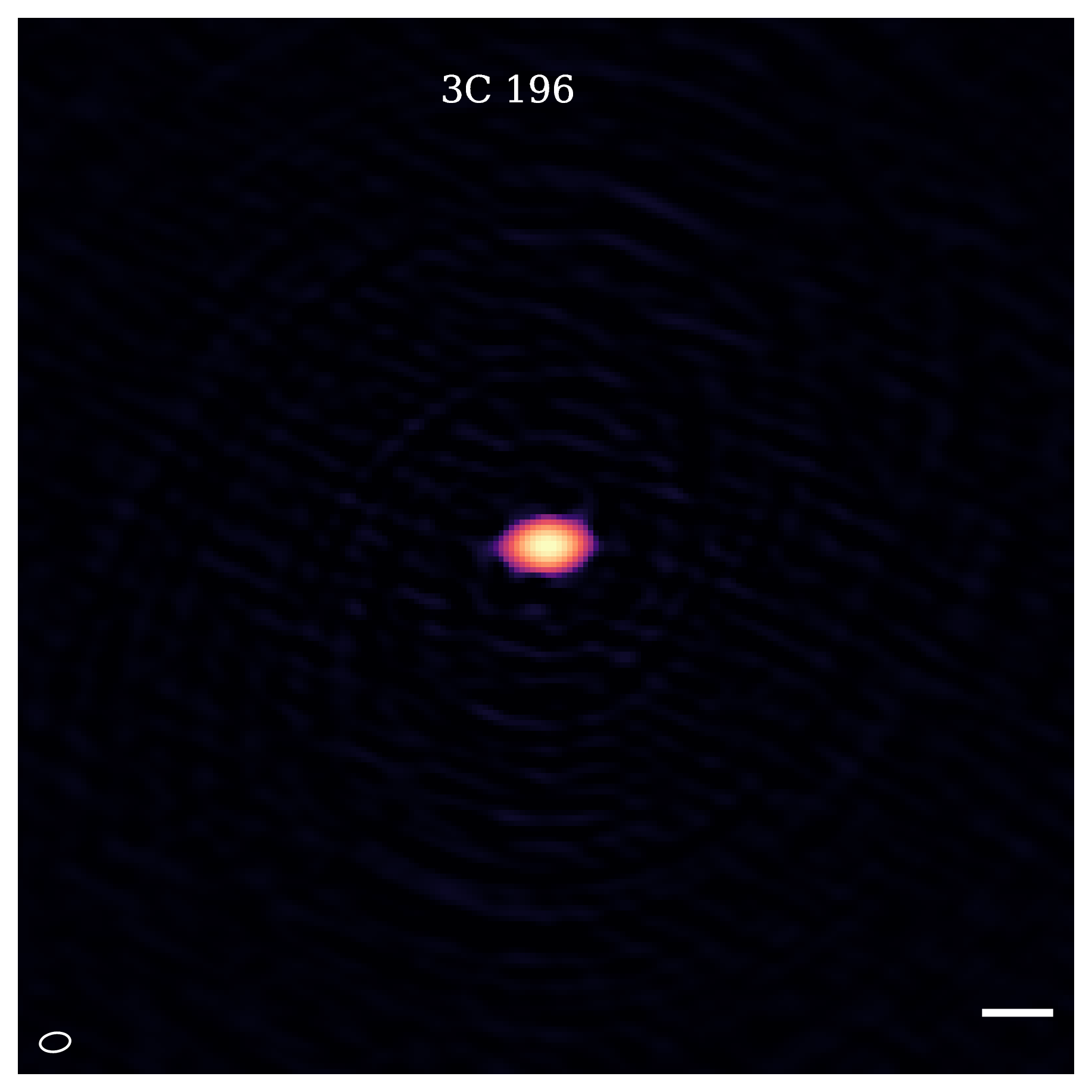

3C196 123.40014 48.21738 0.870359 157.09 15.71 11.4 7.1 6.7

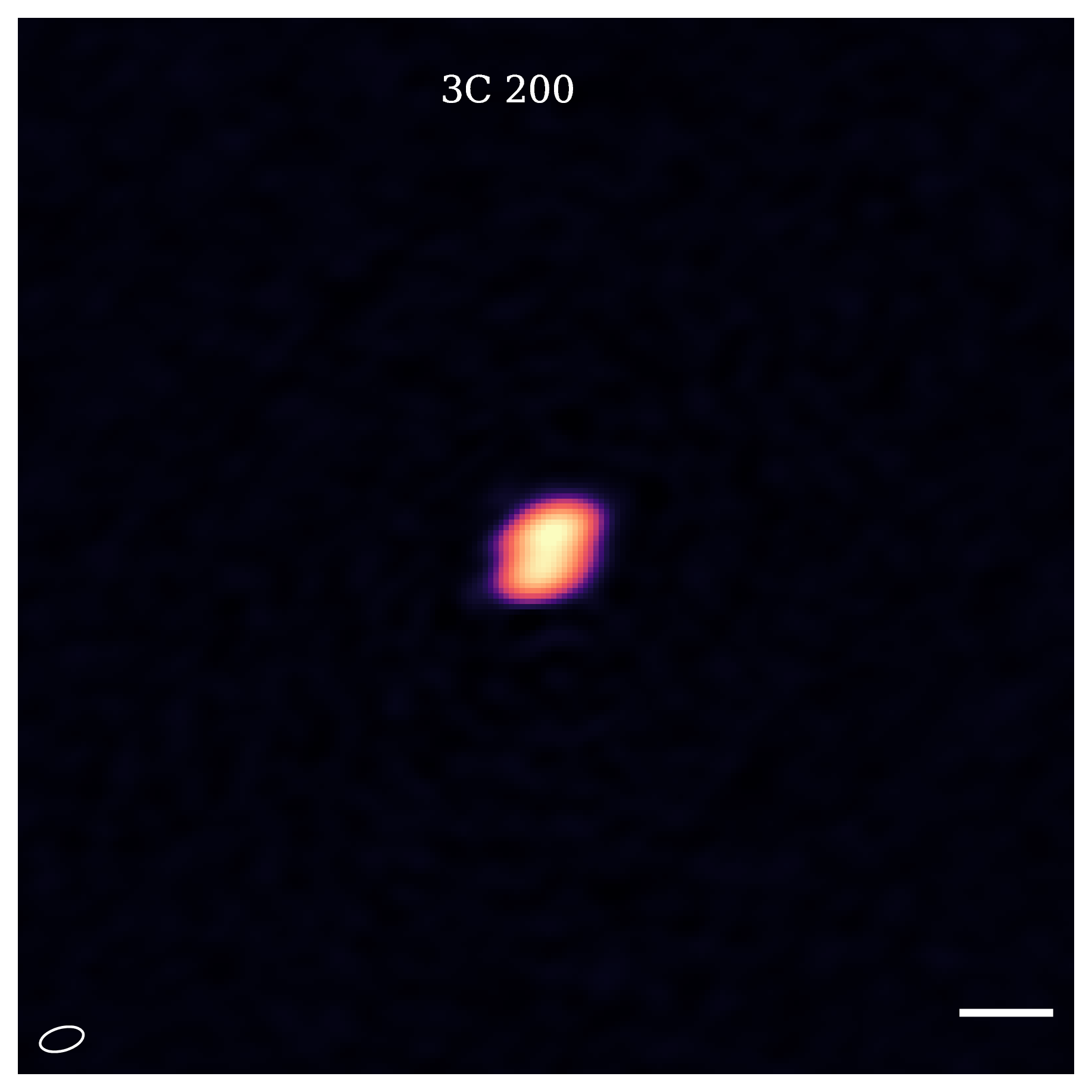

3C200 126.85573 29.31261 0.45607 32.85 3.29 16.8 8.7 7.84

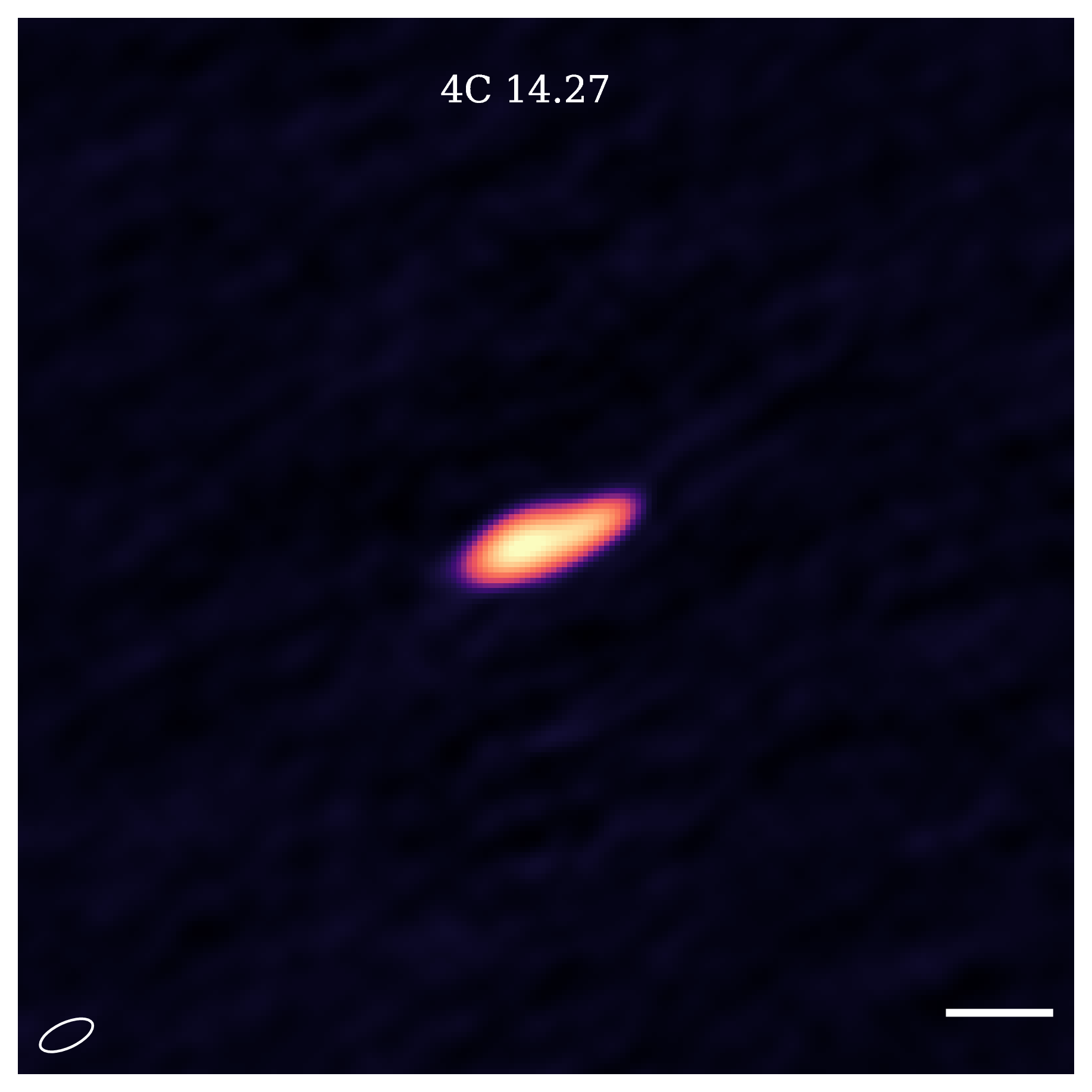

4C14.27 128.76506 14.19697 0.3618 22.17 2.22 21.5 9.5 13.68
3C204 129.43732 65.22637 1.112 38.93 3.89 14.7 9.3 8.99

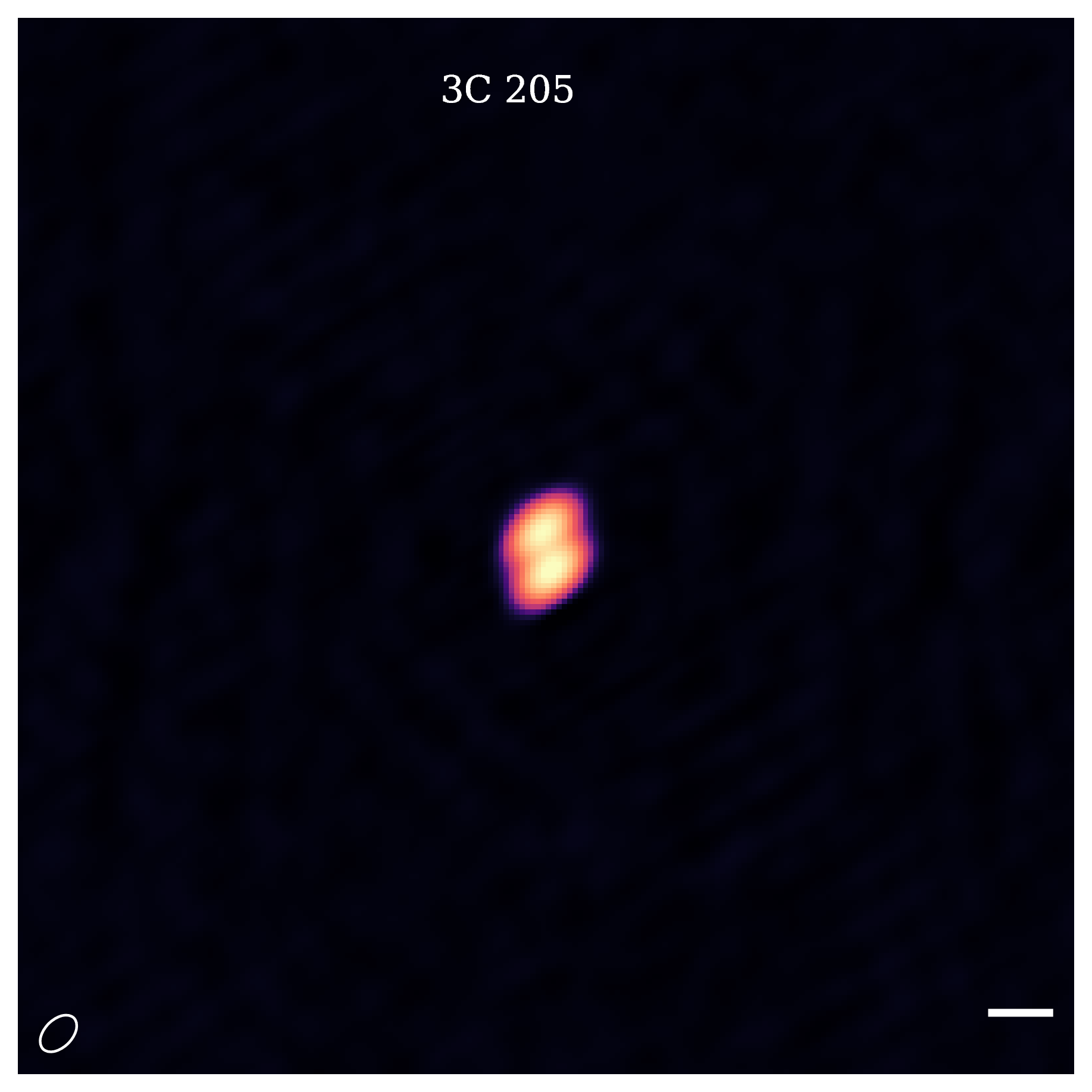

3C205 129.77718 57.90475 1.53154 38.19 3.82 16.6 10.5 8.84

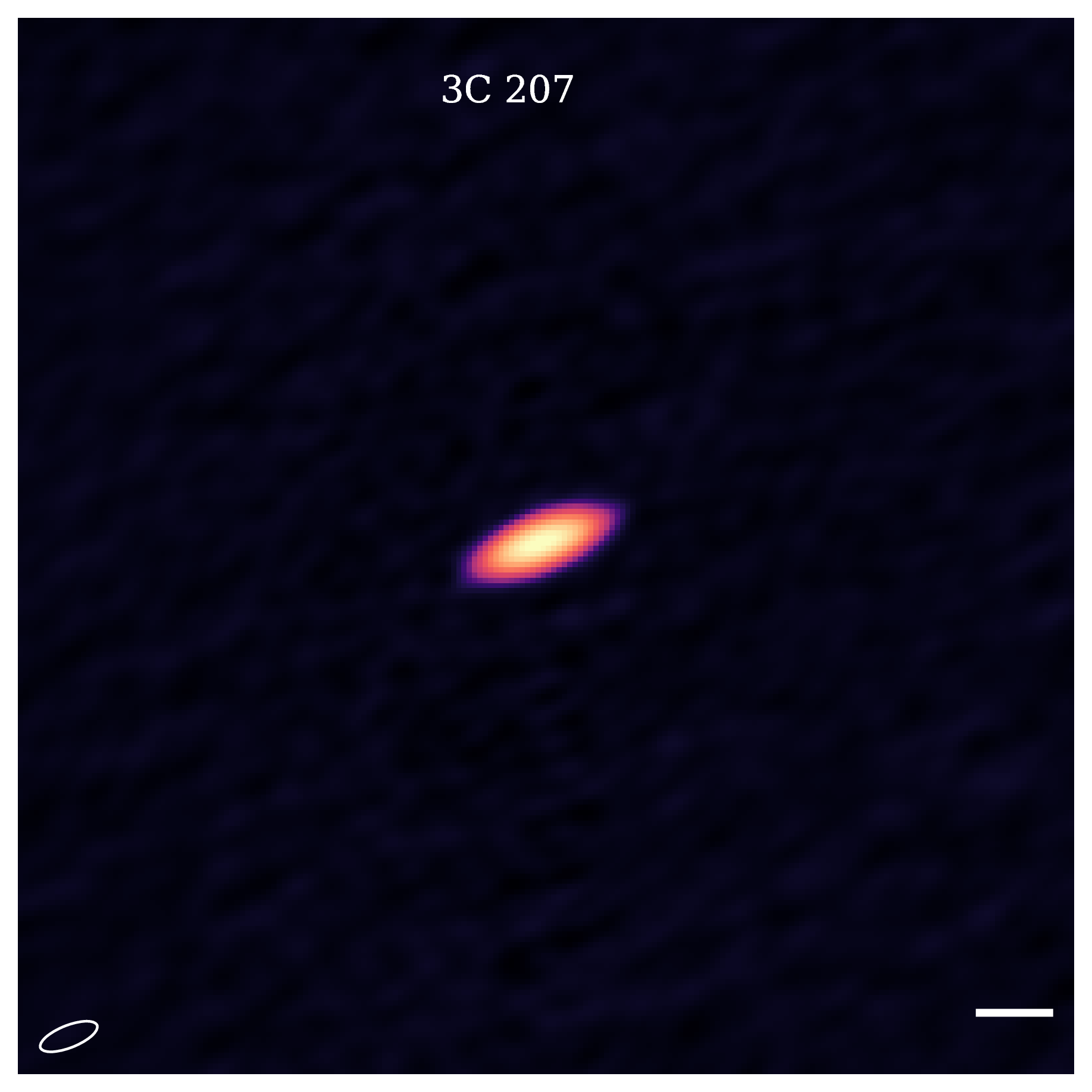

3C207 130.19829 13.20655 0.680384 28.31 2.83 23.1 8.4 15.99
3C208 133.28587 13.88194 1.11151 40.7 4.07 28.6 8.3 25.91

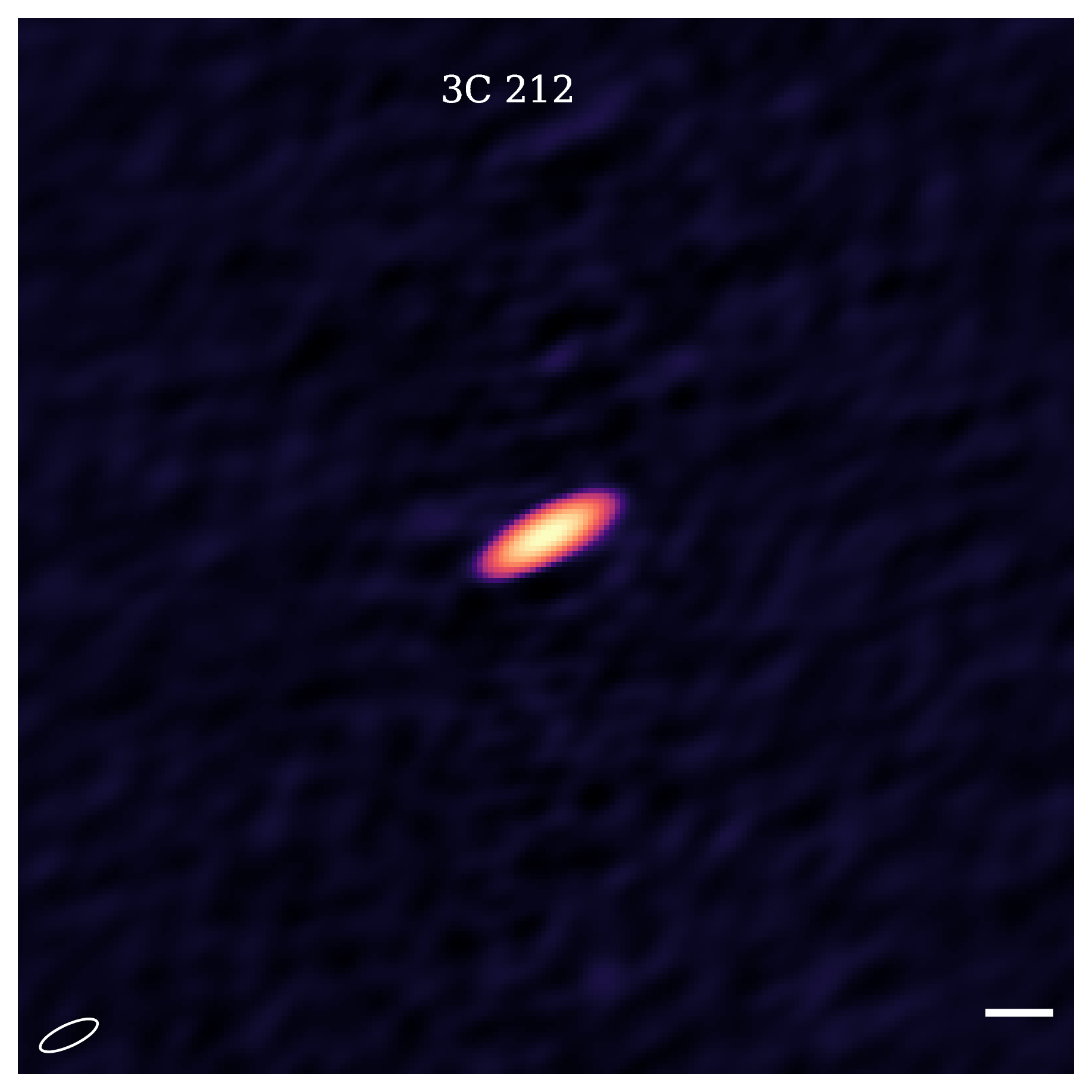

3C212 134.6727 14.16243 1.049306 33.89 3.39 23.7 8.1 22.3
3C215 136.6328 16.76995 0.411058 34.63 3.46 21.7 8.3 15.99

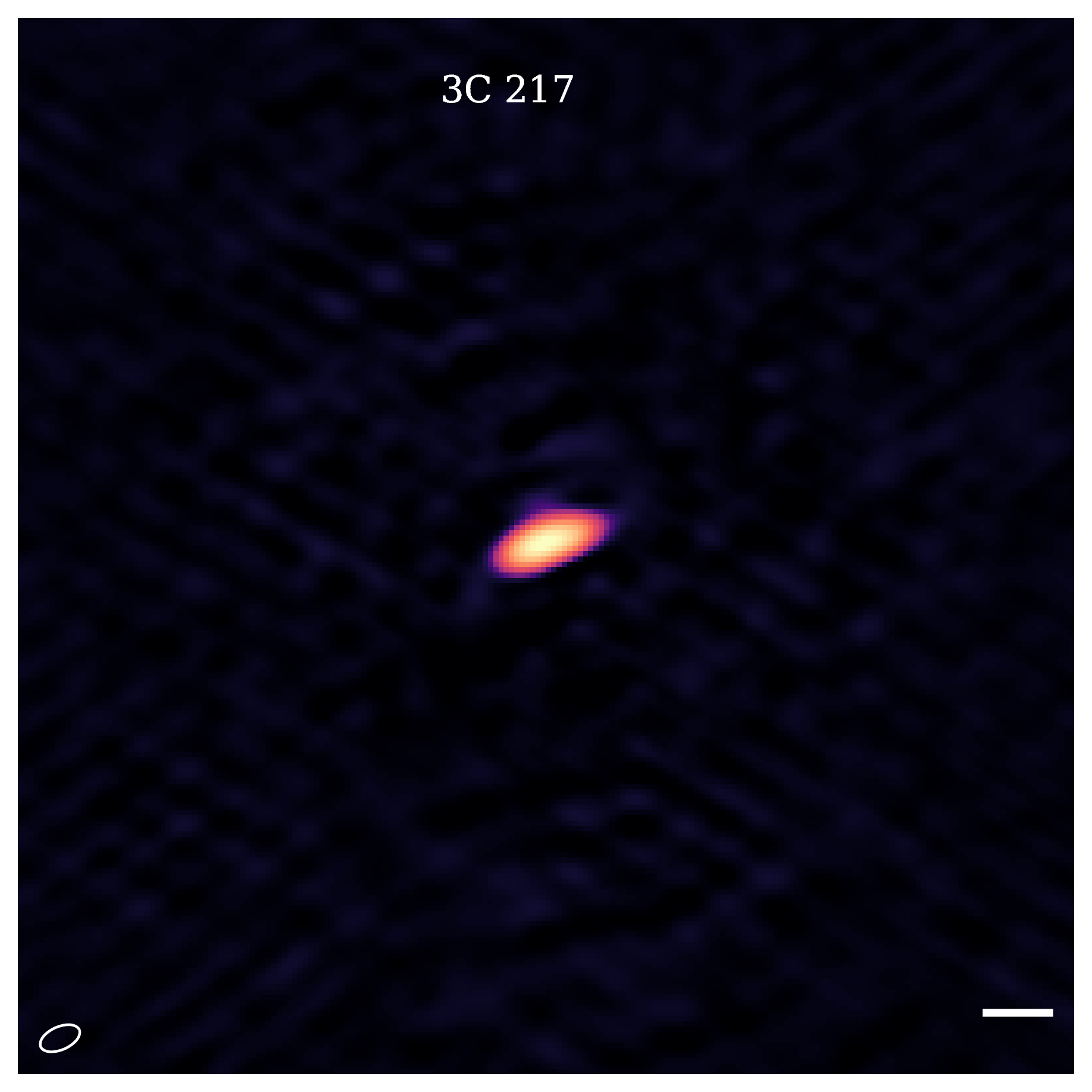

3C217 137.21077 37.80534 0.898 37.35 3.74 16.0 8.7 11.21

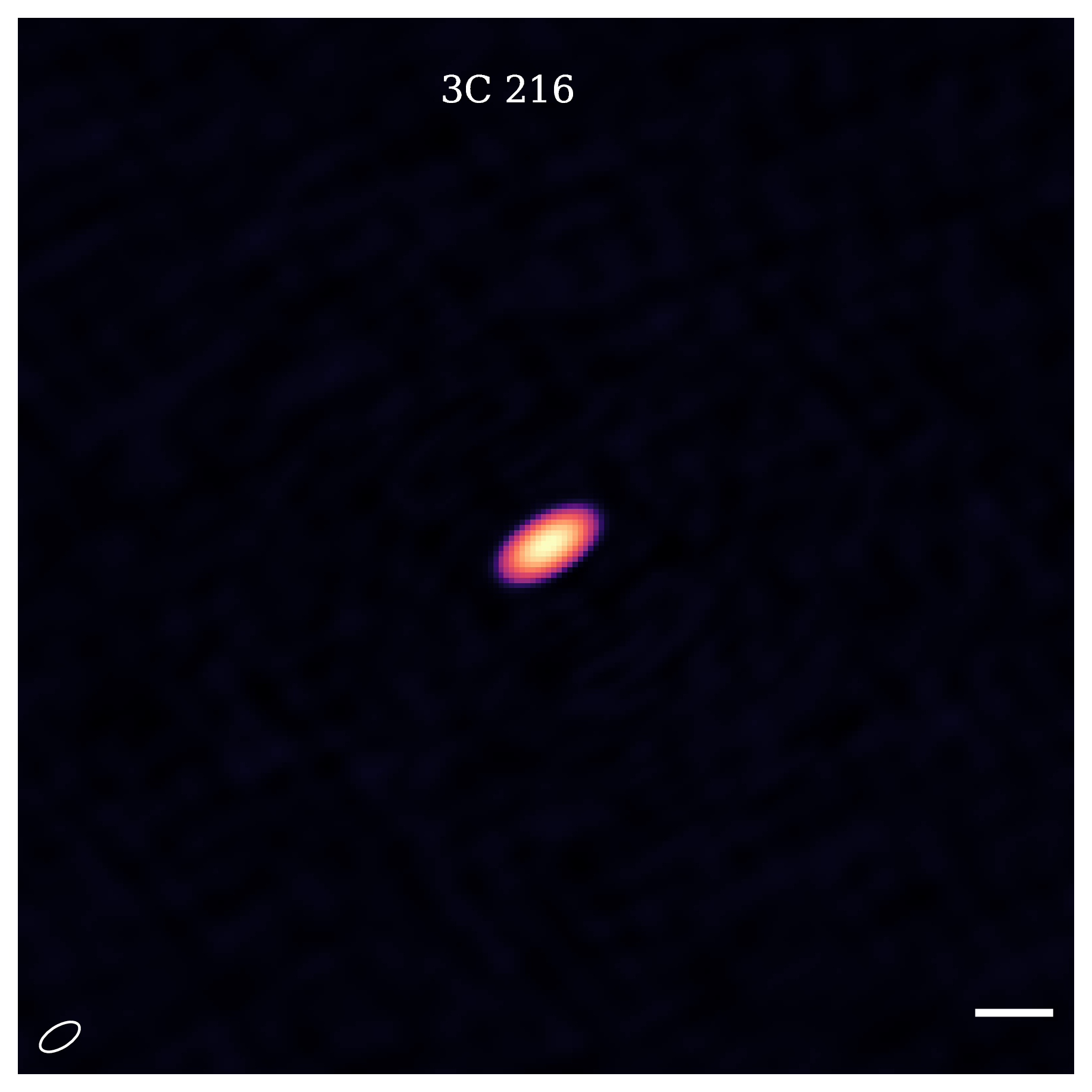

3C216 137.38957 42.89625 0.670021 52.68 5.27 16.8 8.3 10.55
3C219 140.28594 45.64924 0.174565 110.03 11.0 15.0 9.2 5.95

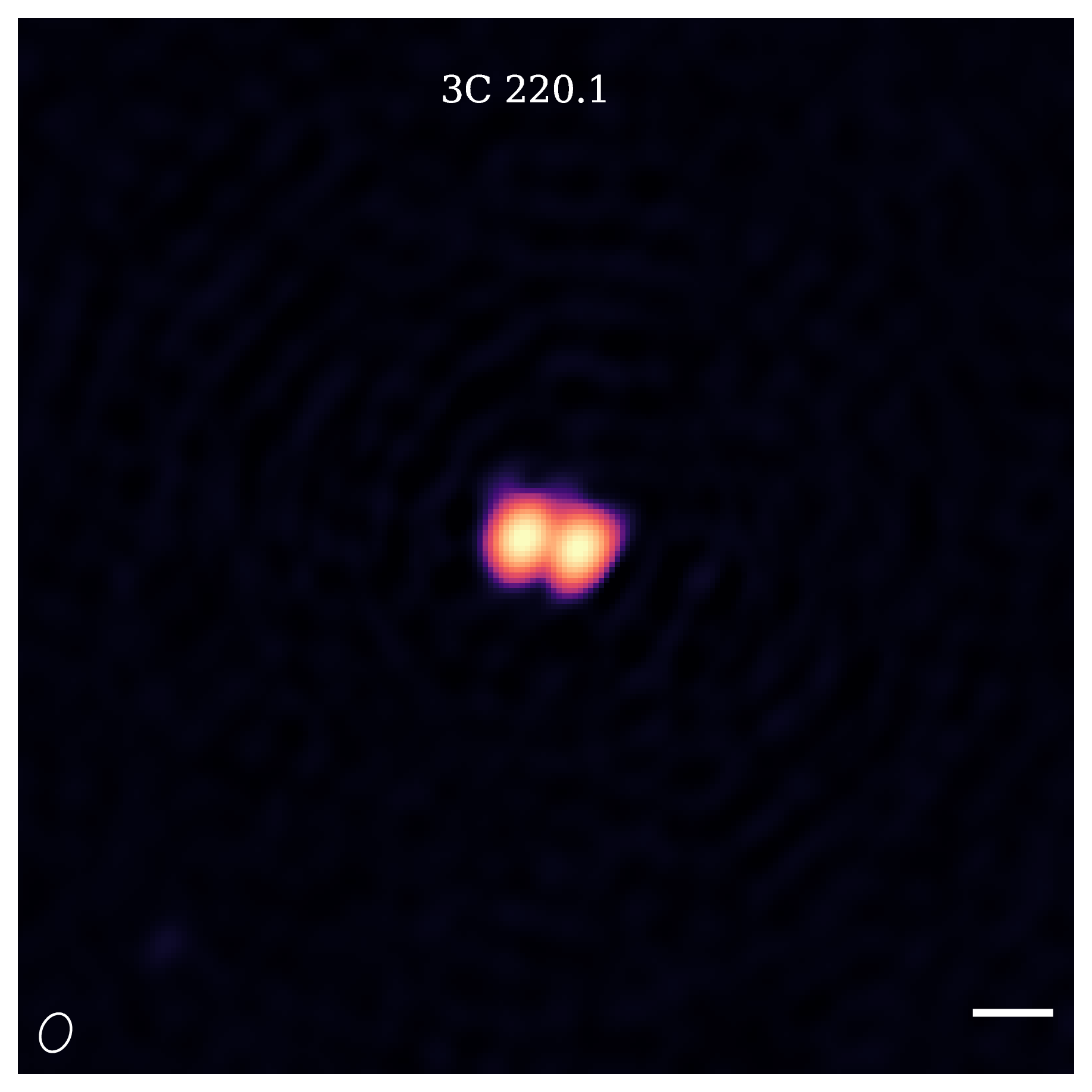

3C220.1 143.16519 79.10876 0.62333 52.5 5.25 14.9 11.1 8.54

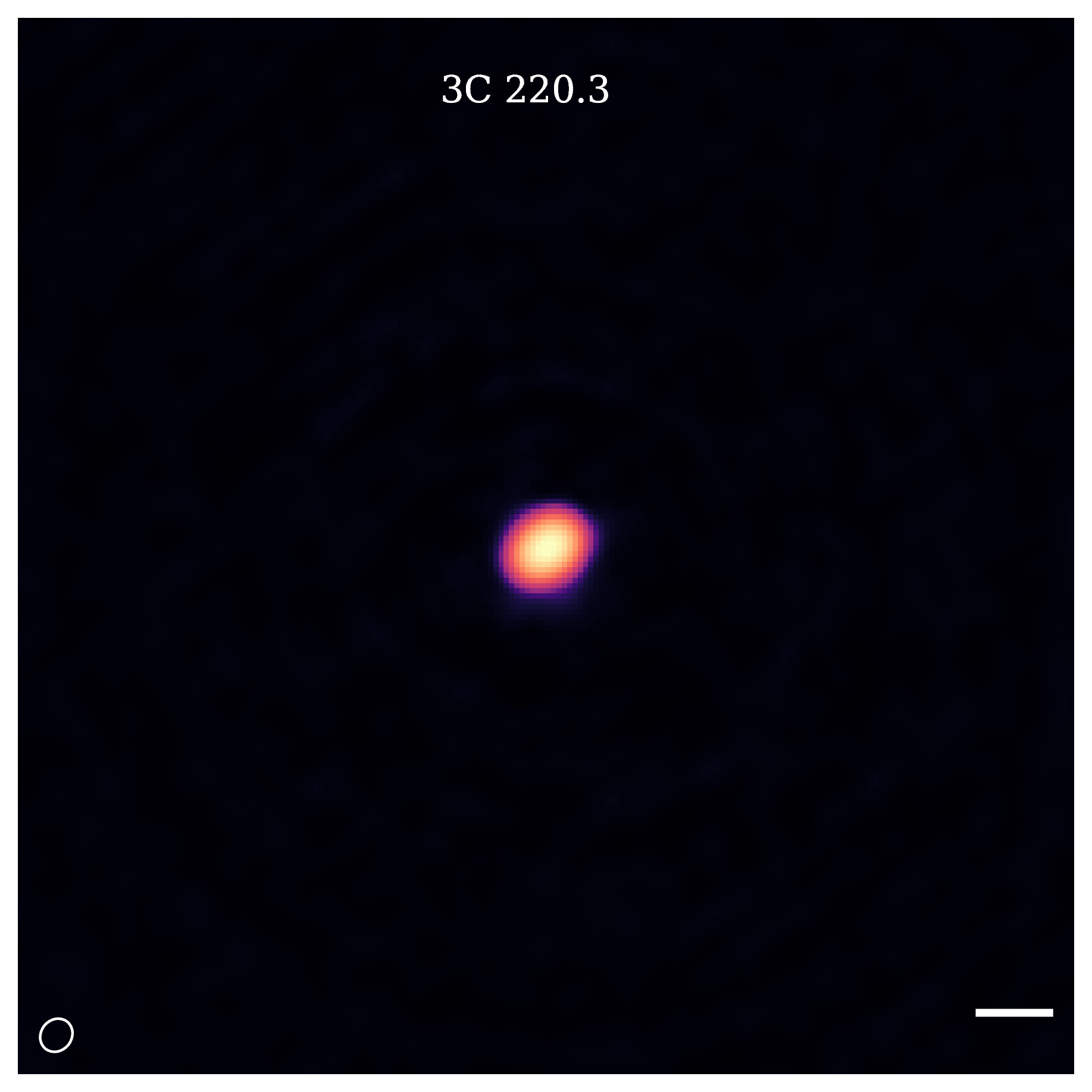

3C220.3 144.84932 83.25719 0.68 53.15 5.31 13.1 11.6 7.04

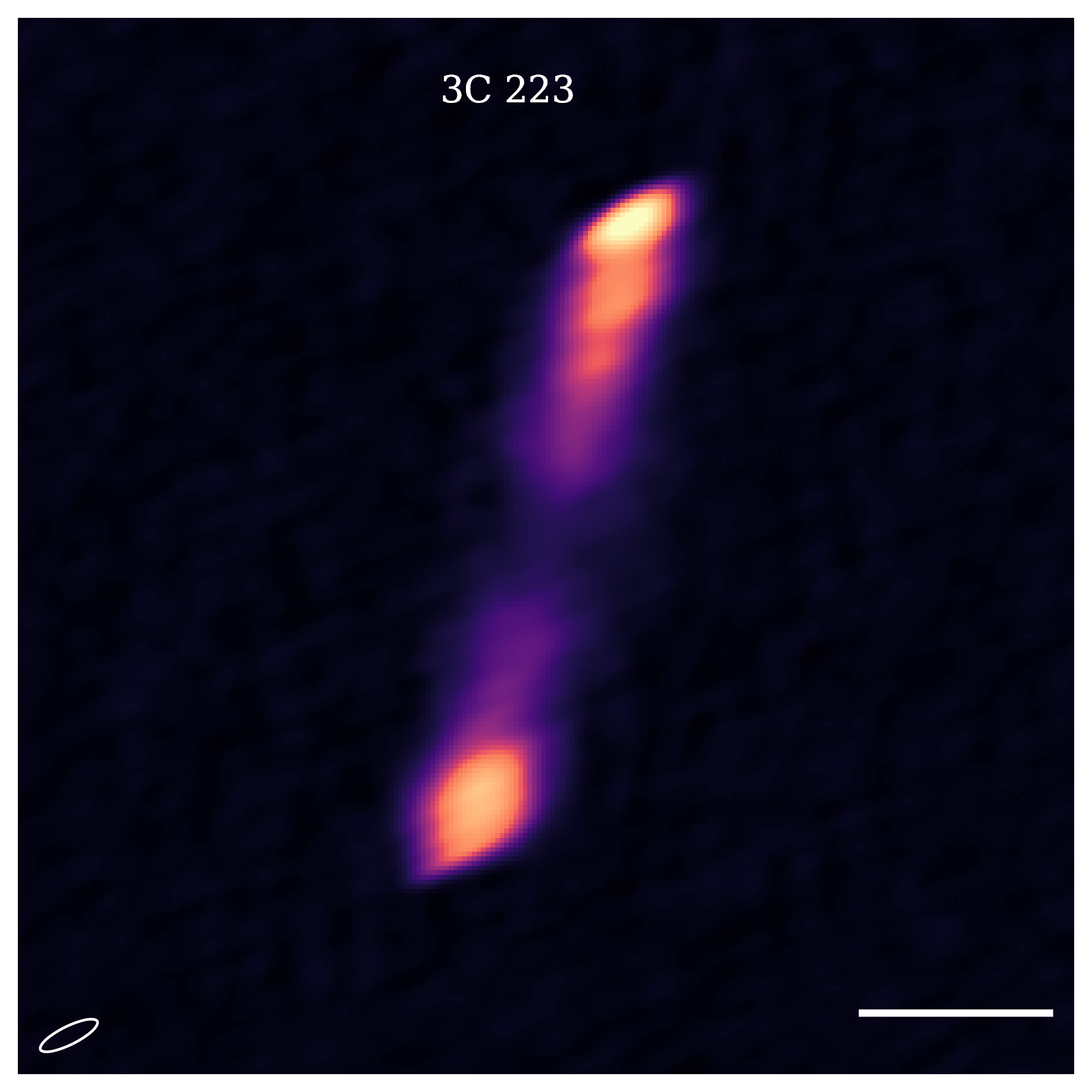

3C223 144.96983 35.89971 0.136513 40.96 4.1 27.4 7.9 9.53

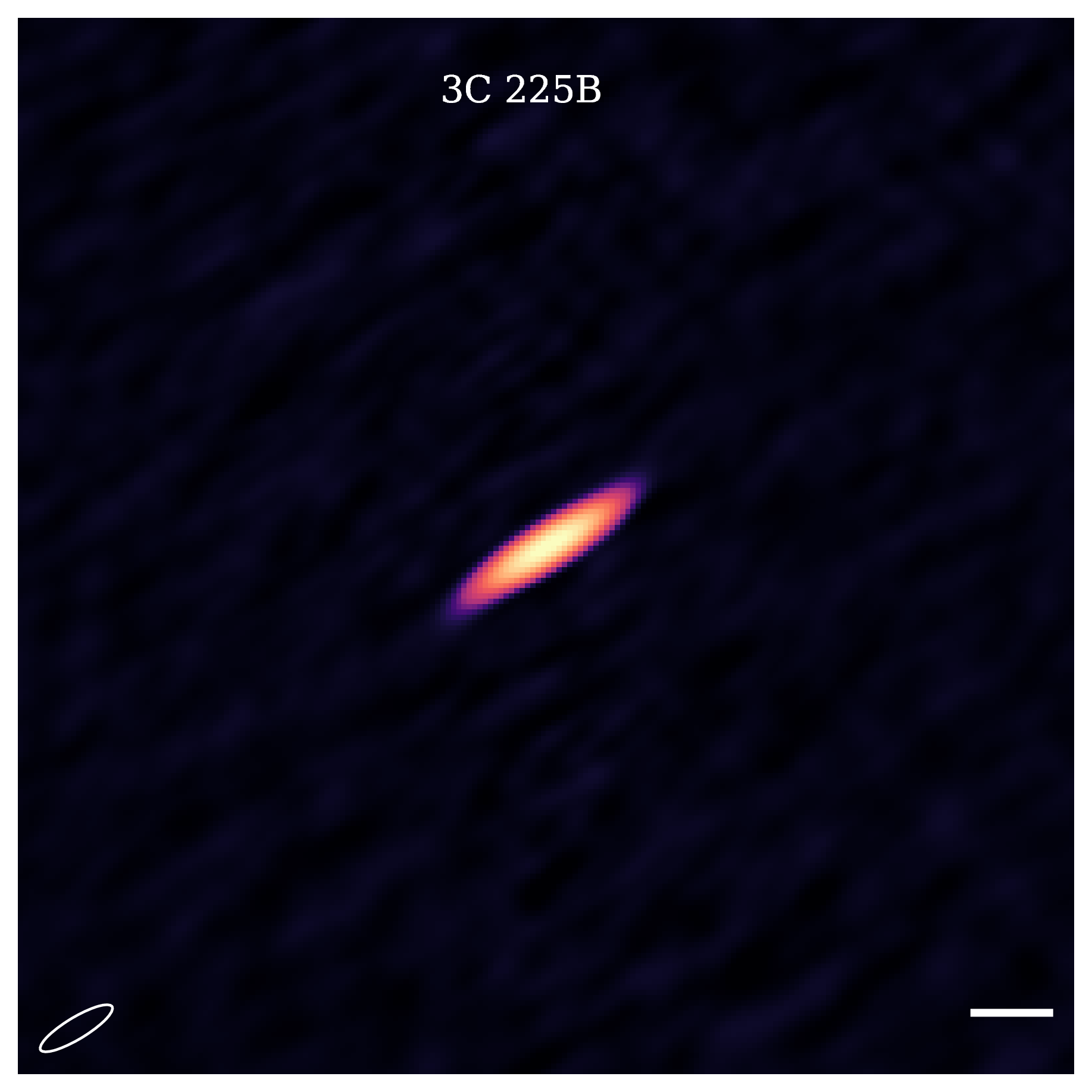

3C225b 145.56397 13.76377 0.583475 55.61 5.56 31.6 8.2 14.06

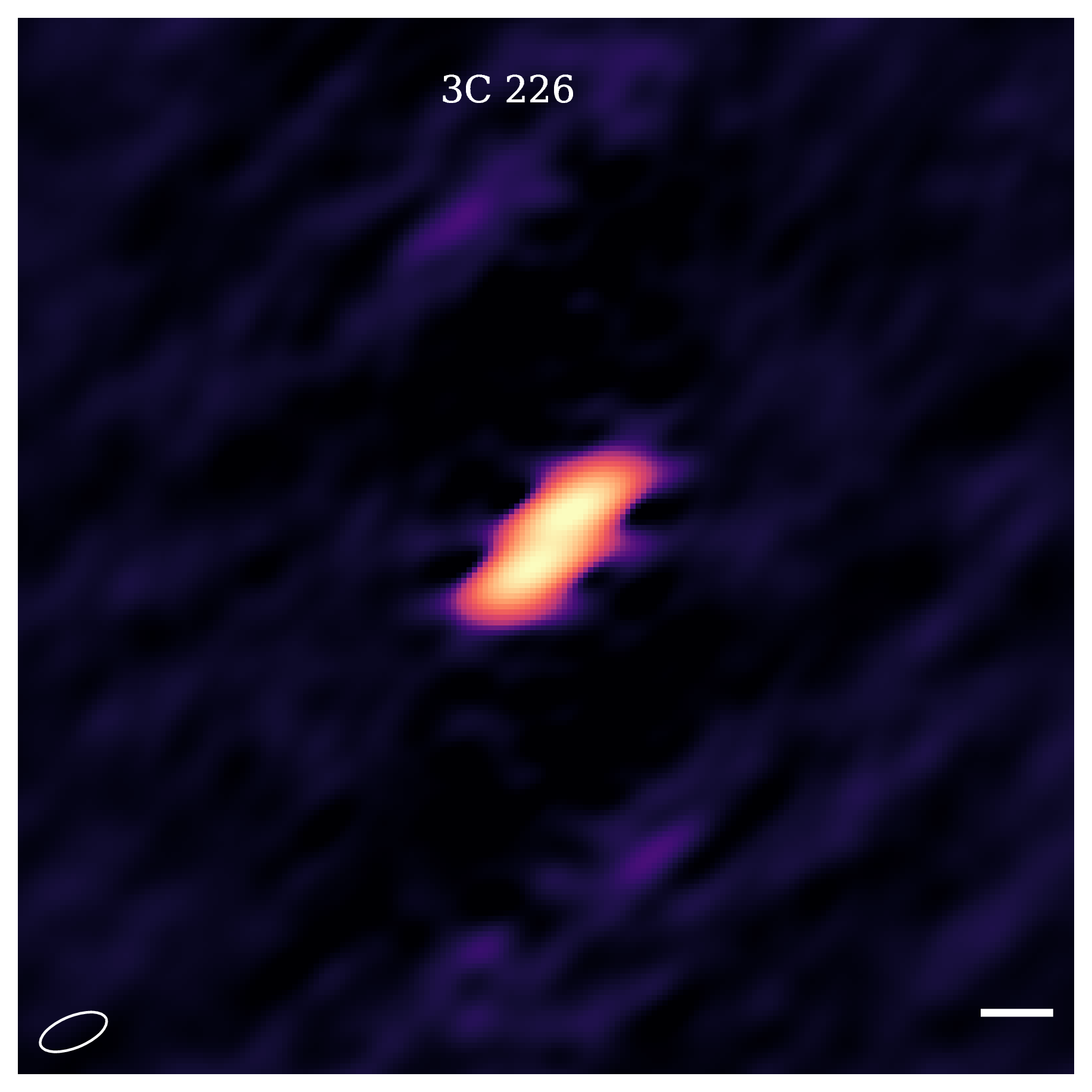

3C226 146.06823 9.77201 0.817 48.88 4.89 26.8 12.0 22.13

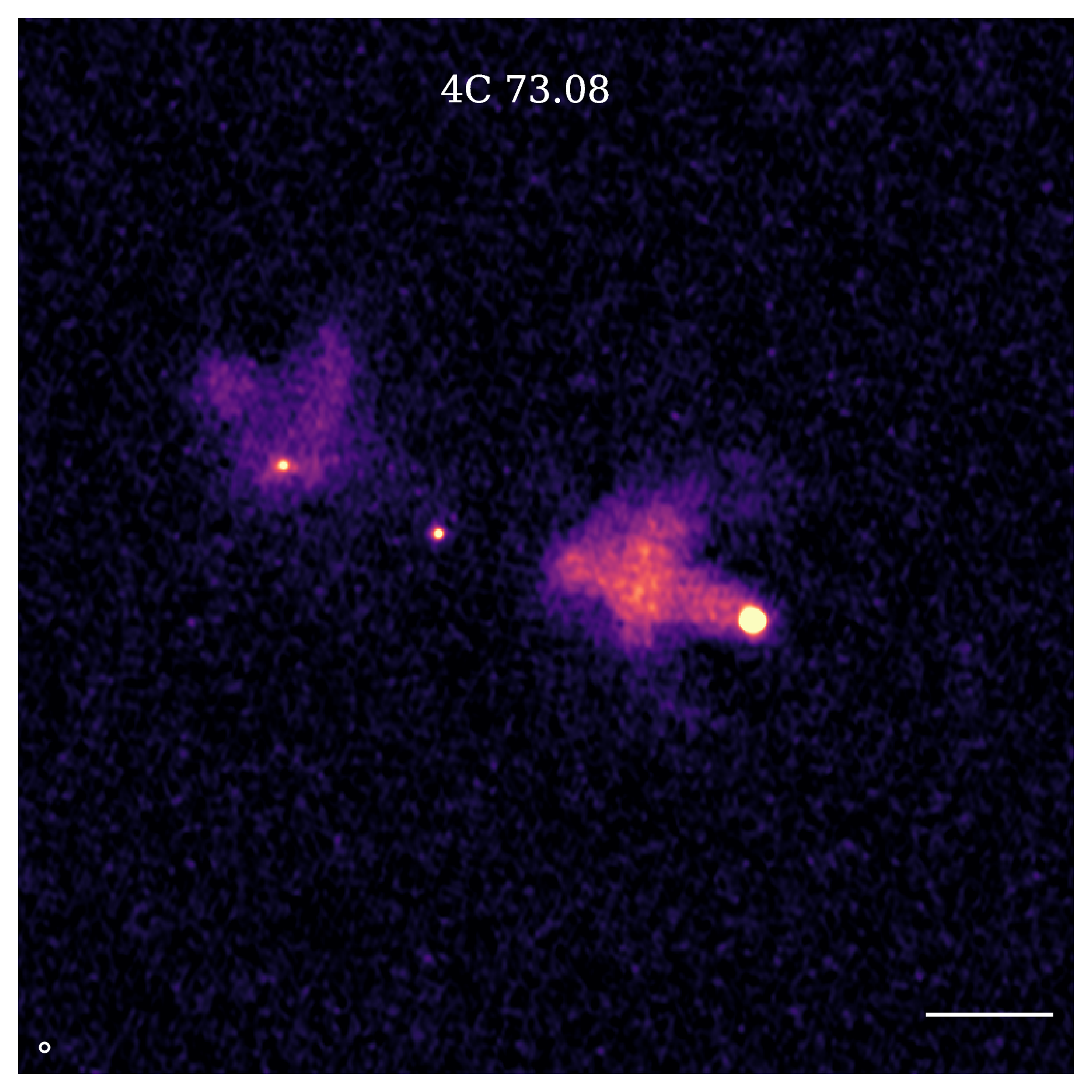

4C73.08 147.44145 73.23972 0.04728 47.41 4.74 12.6 12.6 8.15

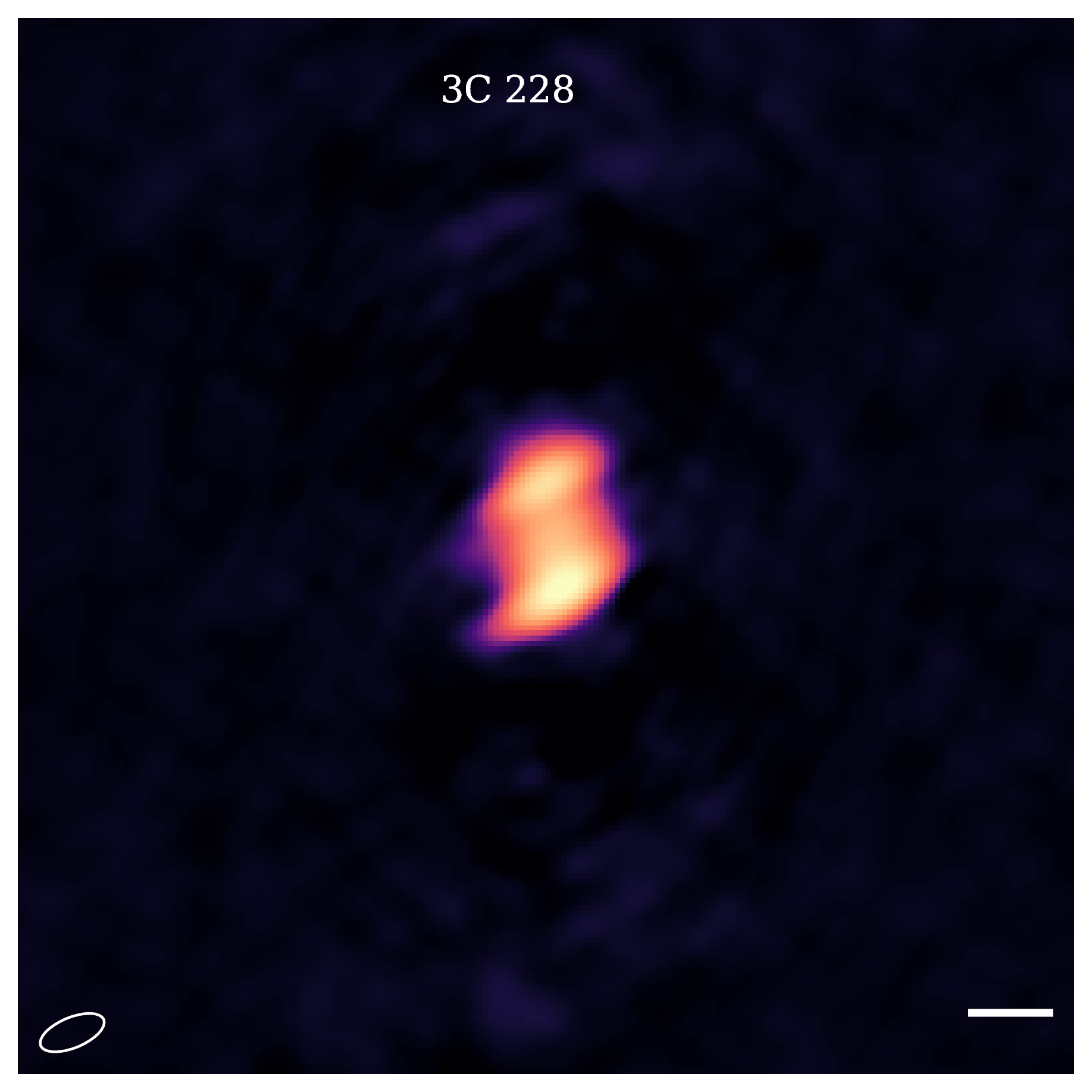

3C228 147.54496 14.33351 0.551815 39.78 3.98 25.8 11.5 13.64
3C231 148.9705 69.67948 0.000897 28.89 2.89 15.6 10.1 12.34

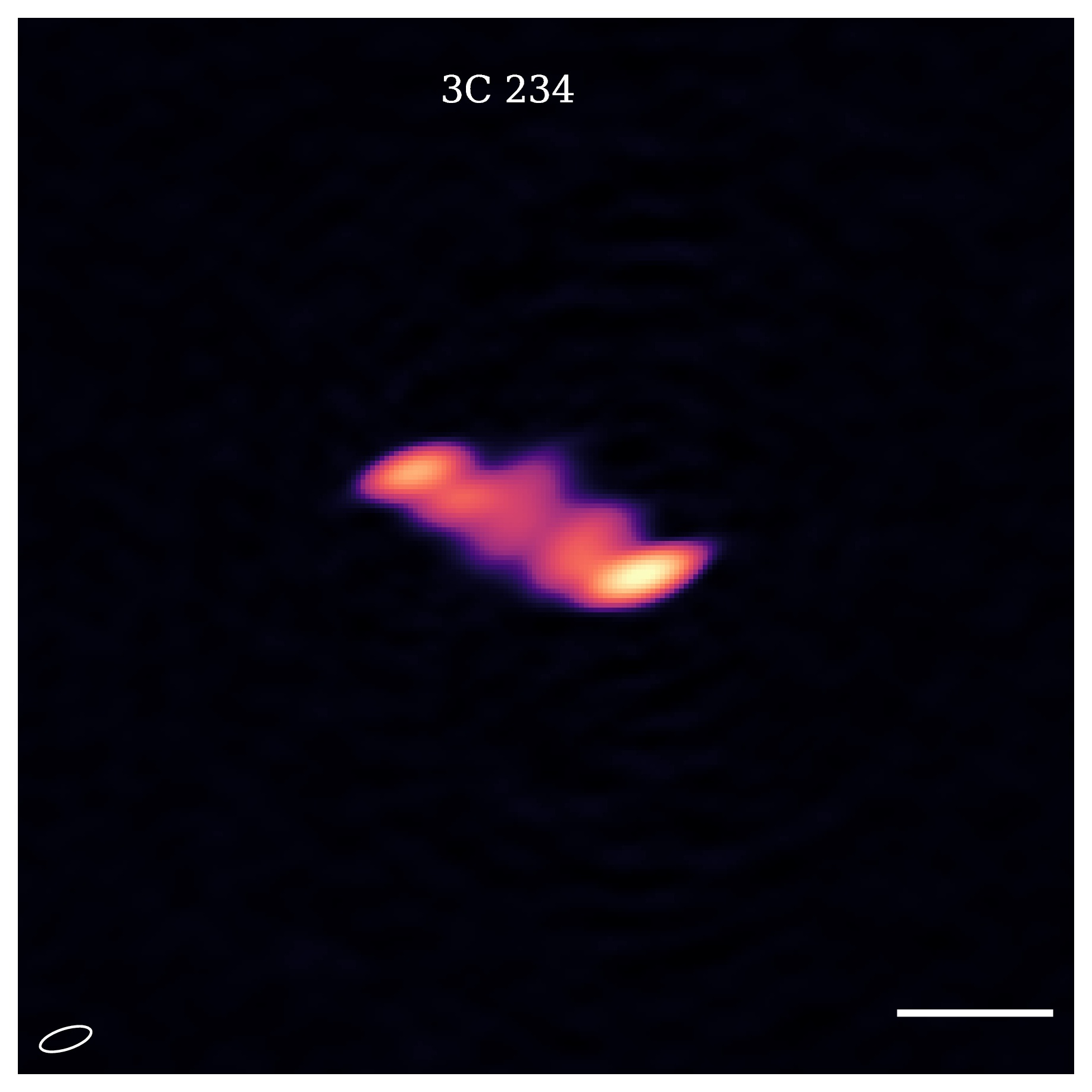

3C234 150.45634 28.78583 0.184896 96.12 9.61 22.4 8.6 7.28

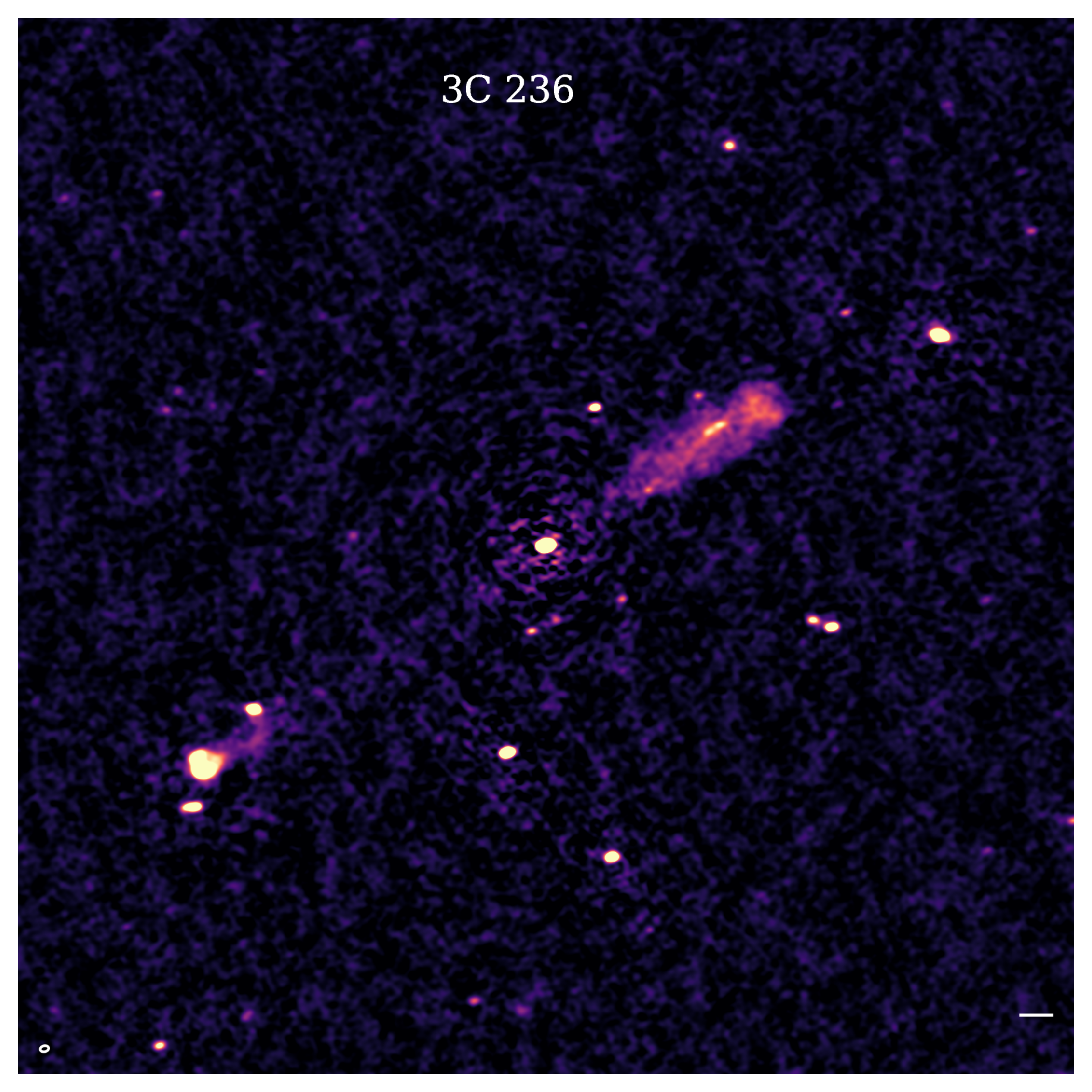

3C236 151.50729 34.90289 0.1005 14.47 1.45 30.2 21.0 11.68

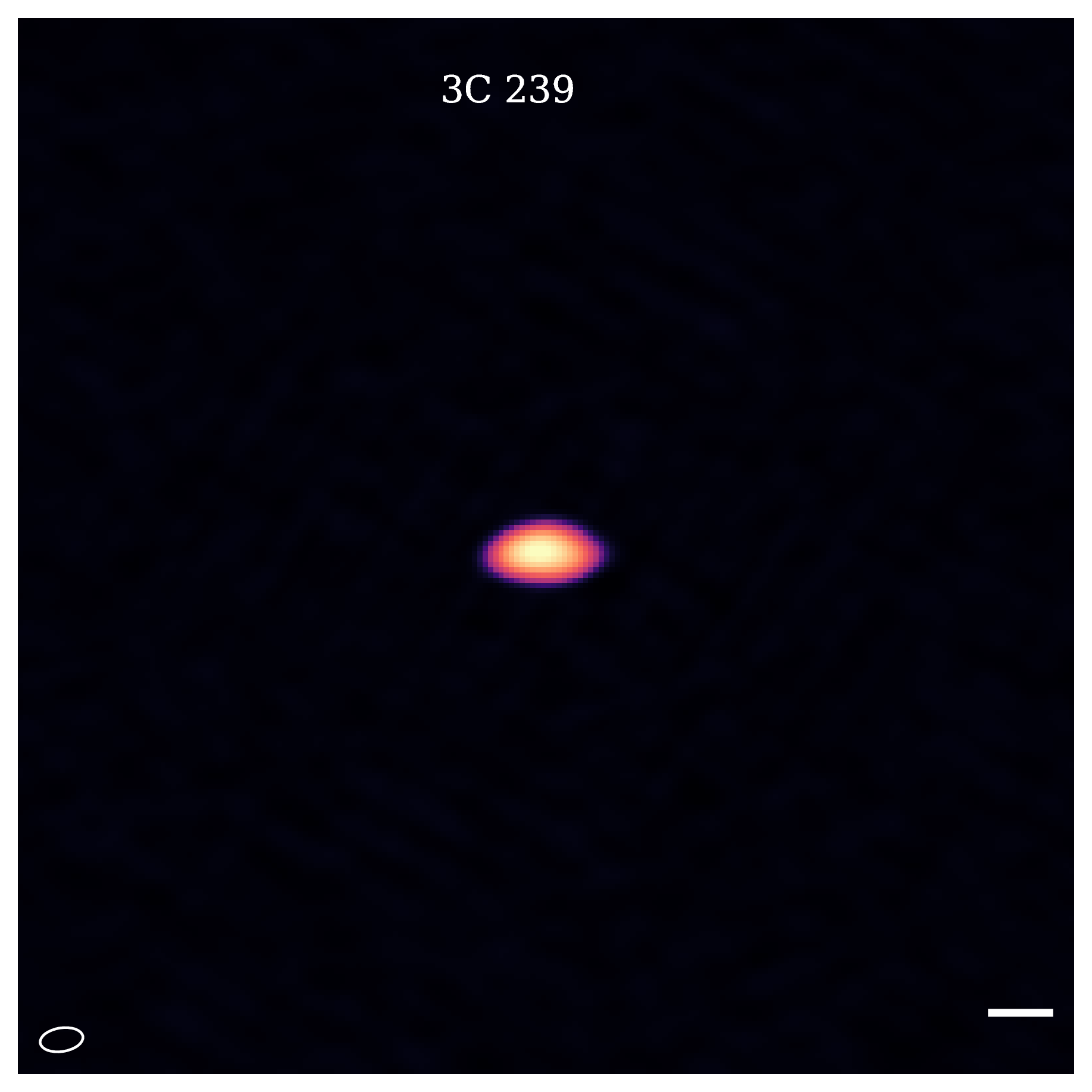

3C239 152.93923 46.47215 1.781 42.26 4.23 16.3 8.9 7.59

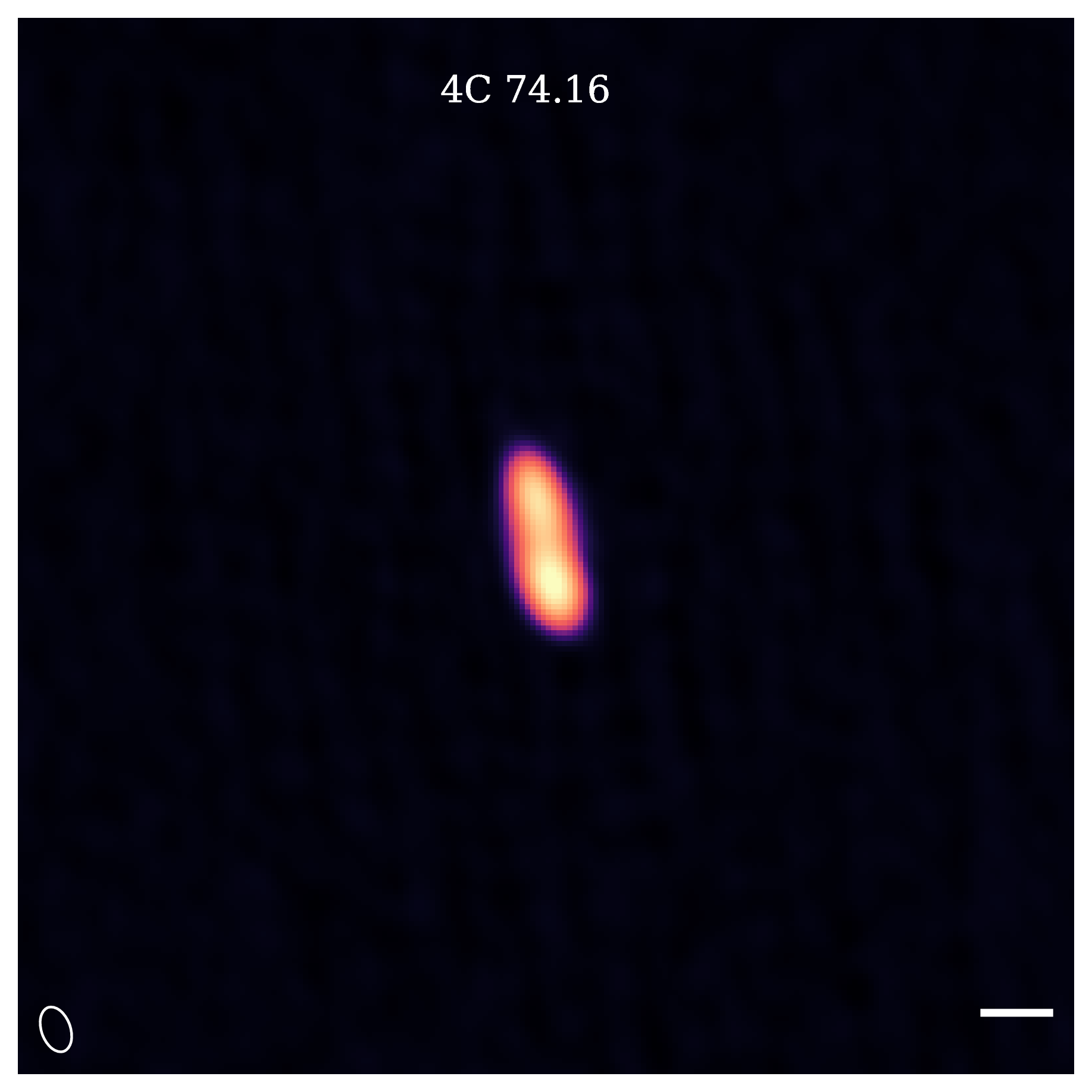

4C74.16 153.56117 74.62678 0.81 30.7 3.07 17.6 11.0 8.22

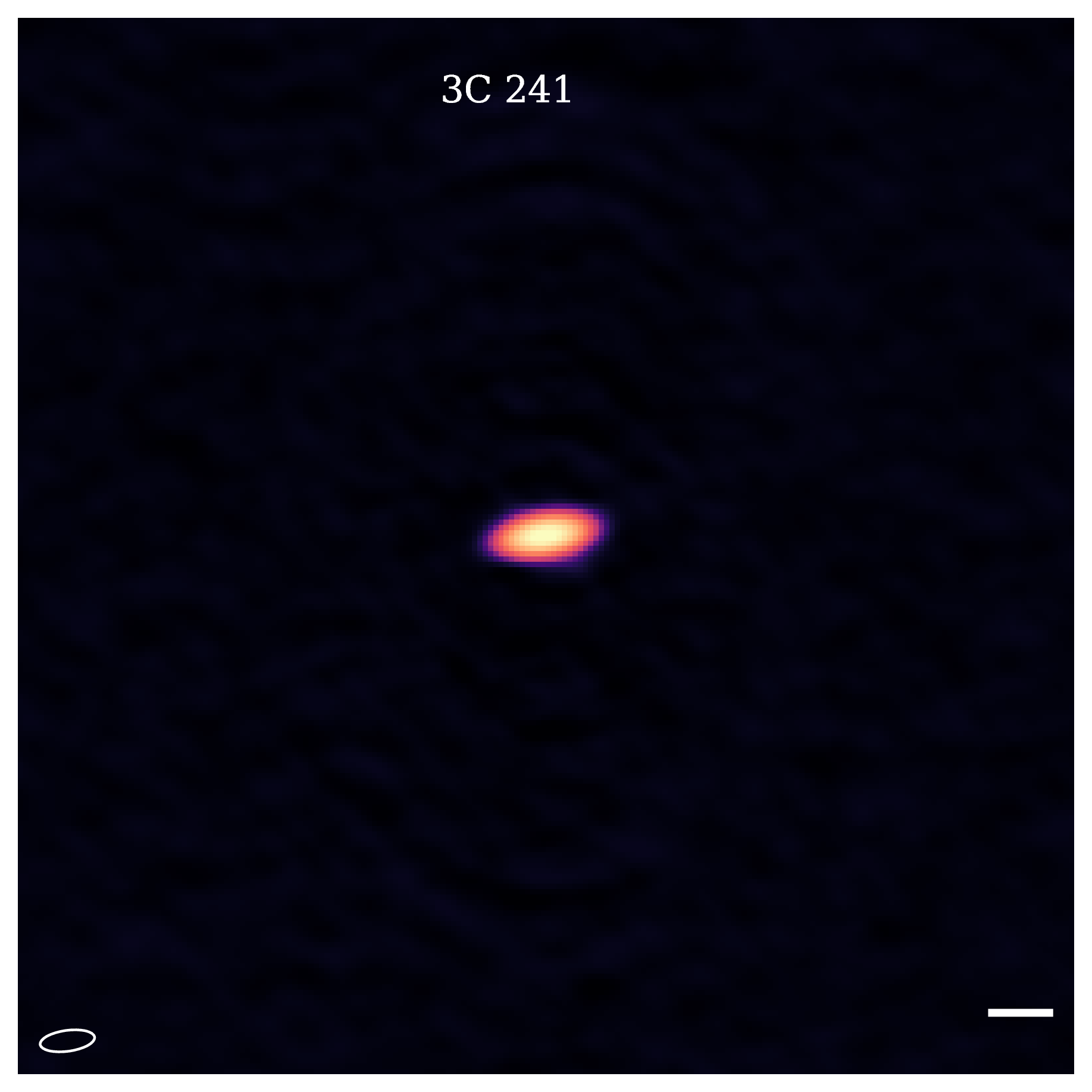

3C241 155.47719 21.99186 1.617 16.56 1.66 20.8 7.9 9.6

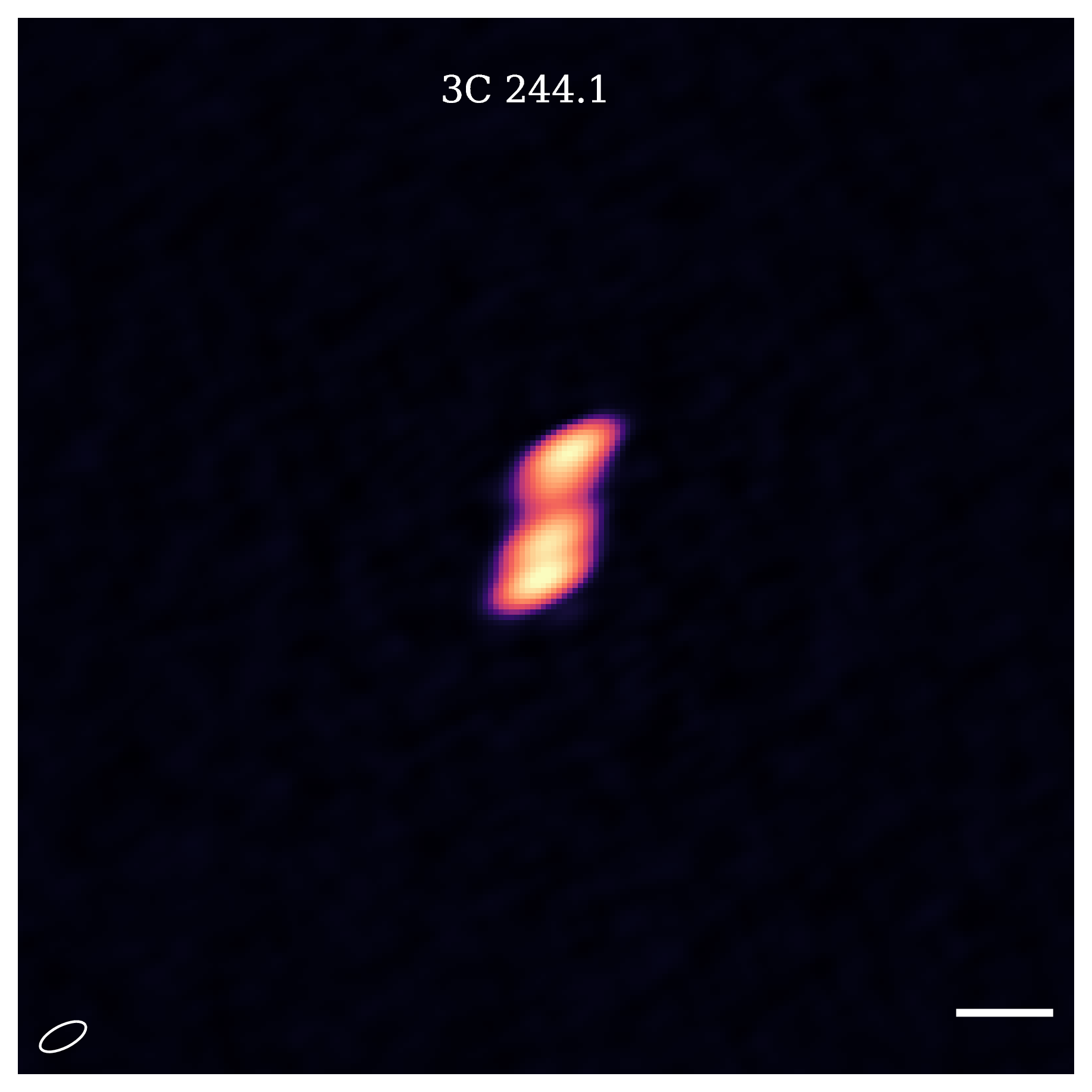

3C244.1 158.3916 58.24324 0.428698 58.12 5.81 19.0 8.3 8.9

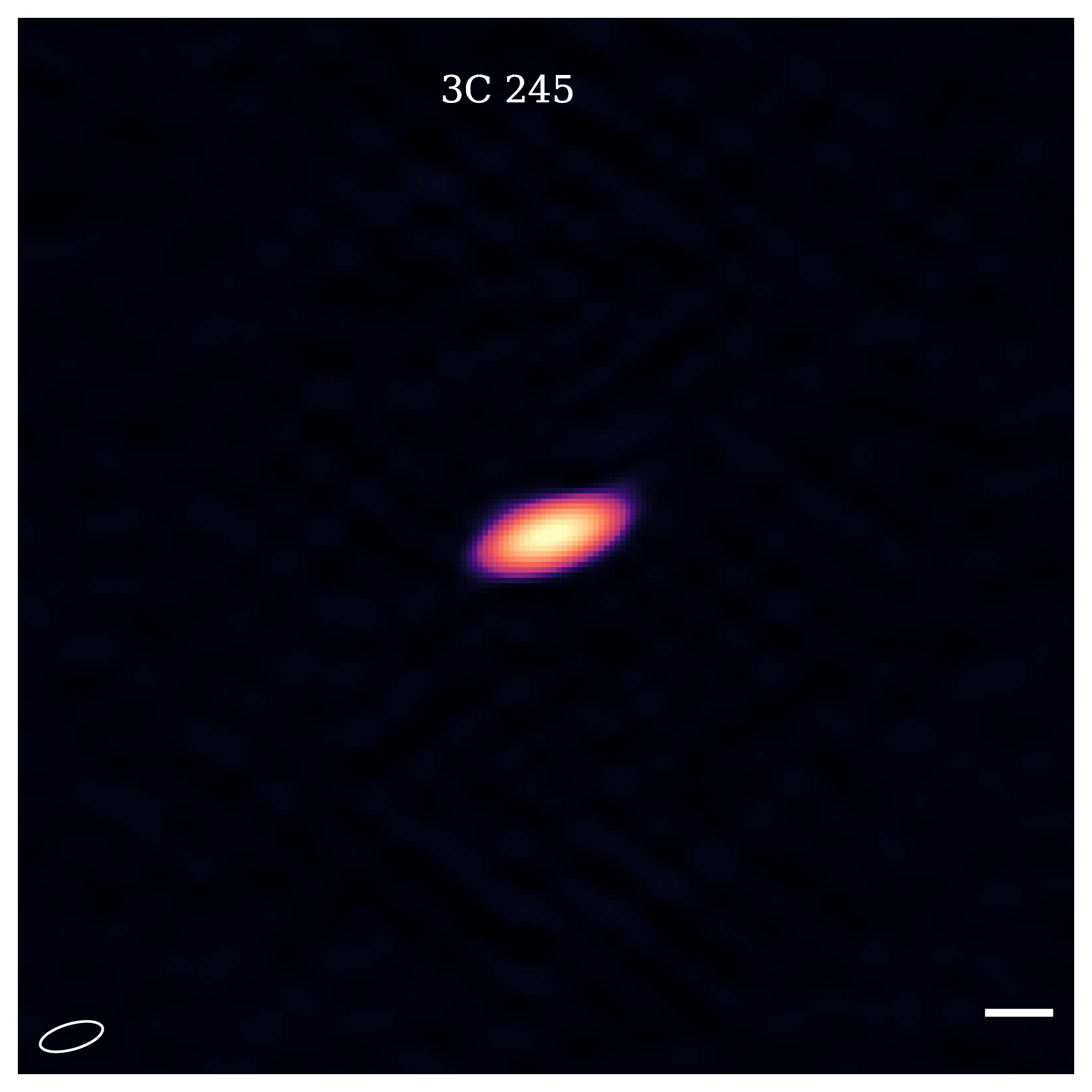

3C245 160.68586 12.05868 1.0286 35.32 3.53 24.5 9.7 9.18
3C247 164.74494 43.02309 0.7489 21.97 2.2 14.8 9.1 7.02

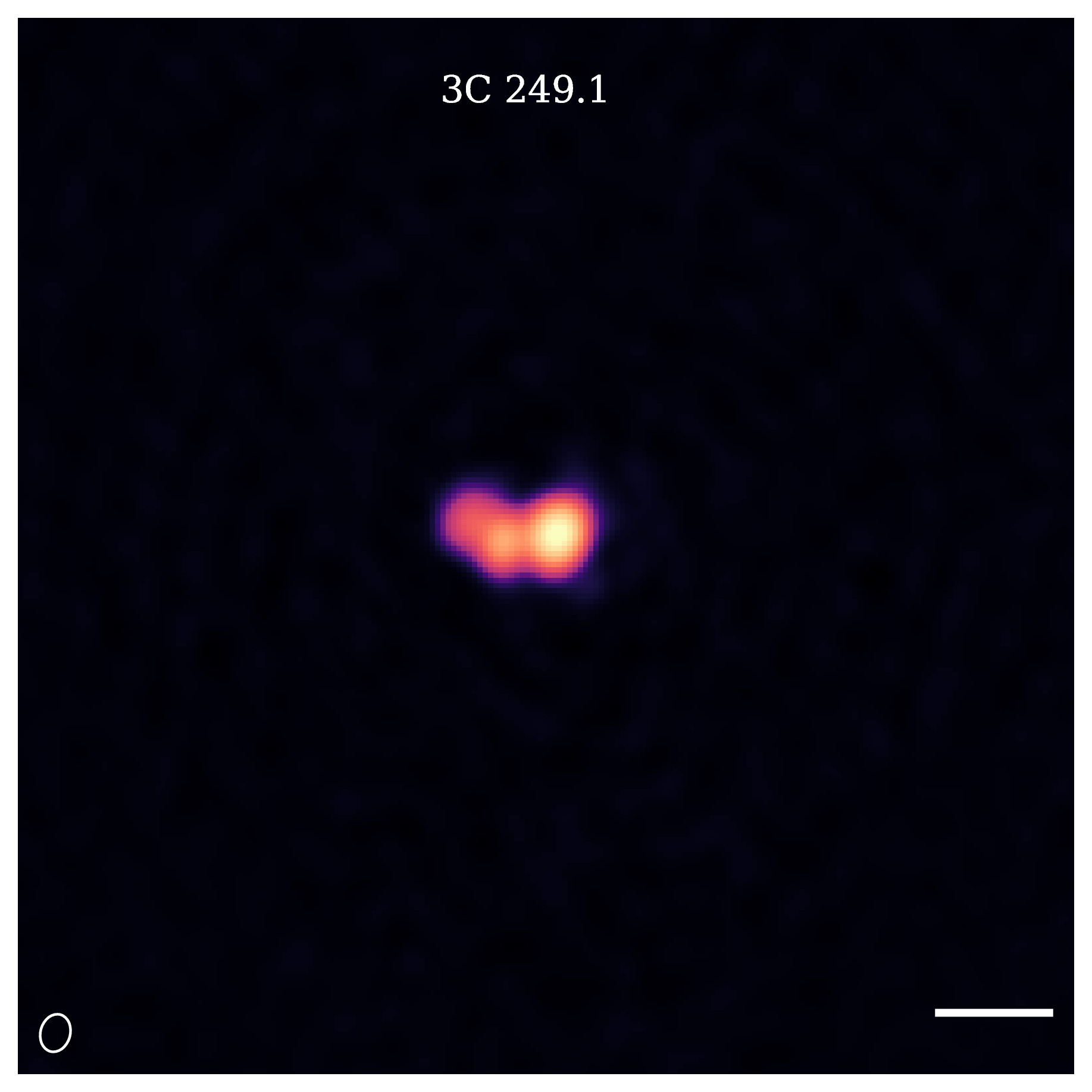

3C249.1 166.05775 76.98283 0.3115 38.86 3.89 14.4 11.3 8.36

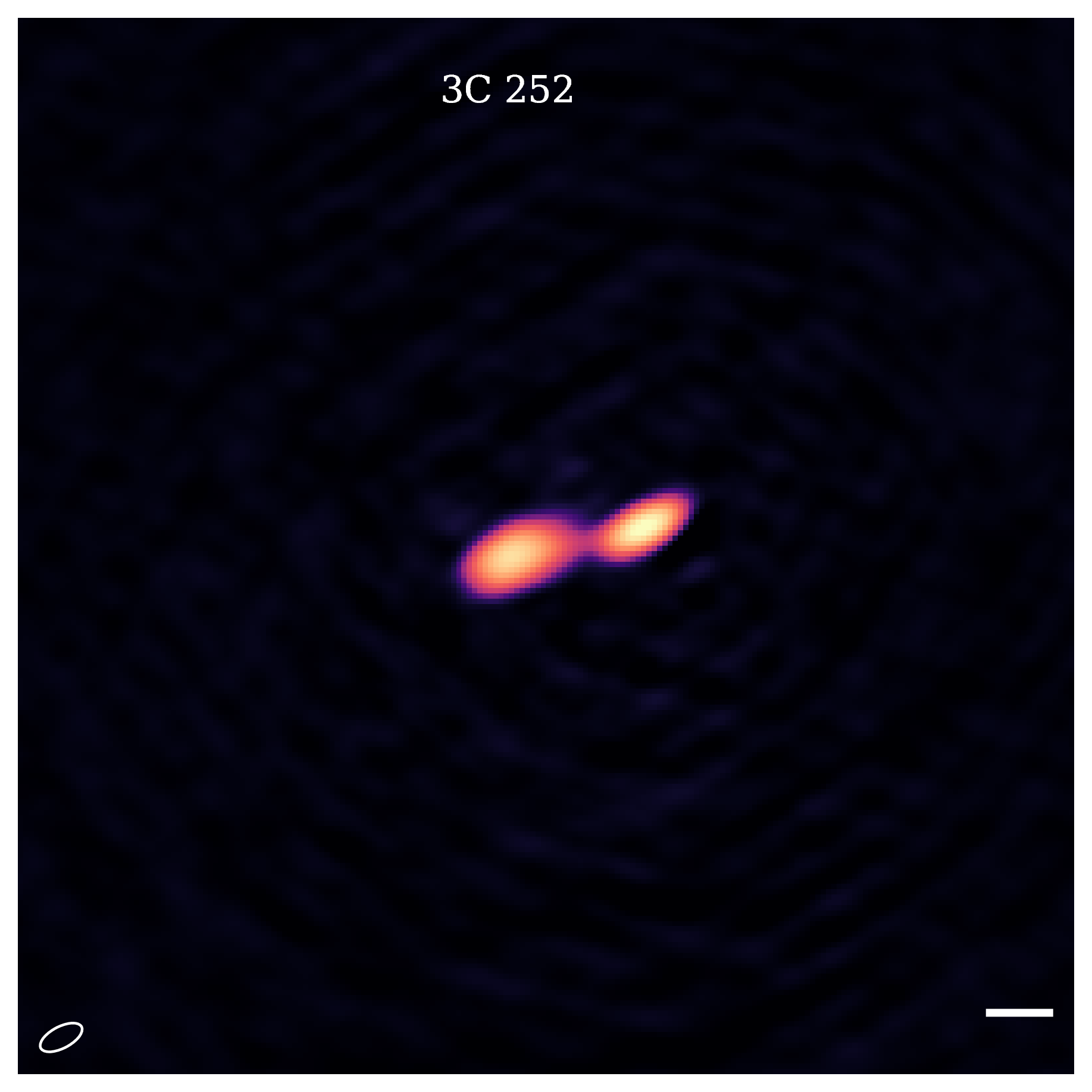

3C252 167.8875 35.67819 1.1 43.74 4.37 17.5 8.2 8.67

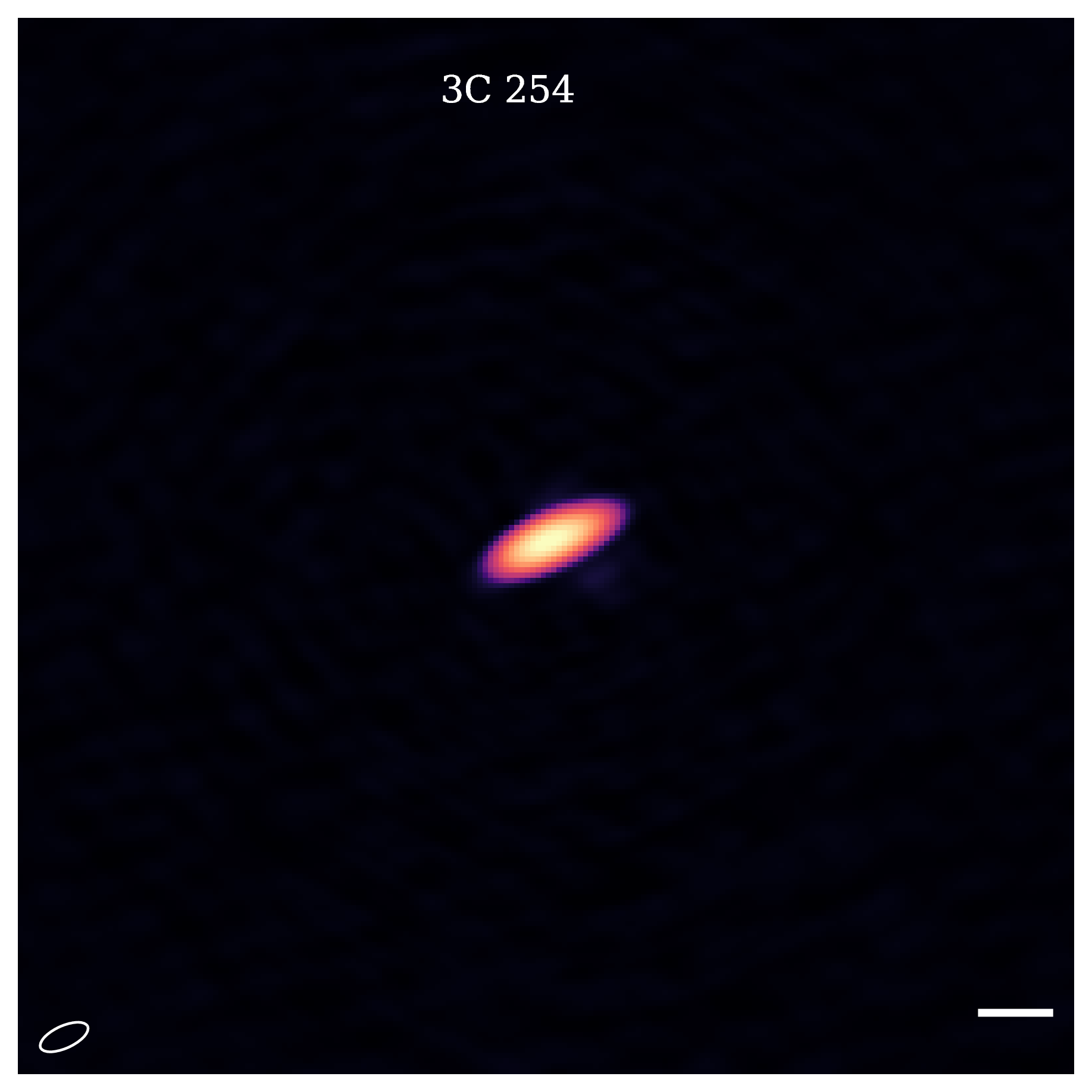

3C254 168.66135 40.6223 0.735926 64.65 6.46 19.6 8.5 7.4

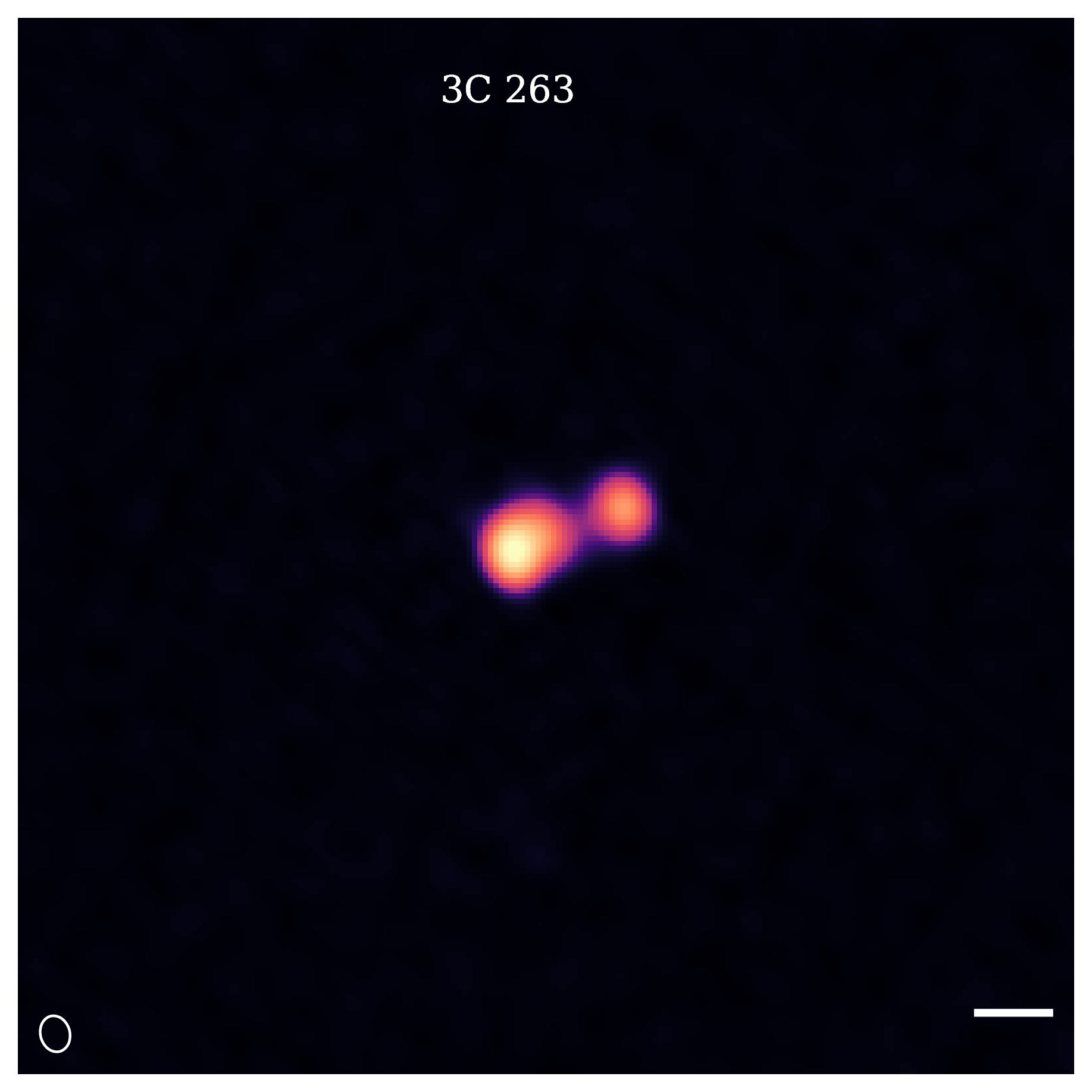

3C263 174.9876 65.79708 0.646 41.11 4.11 13.8 11.1 8.37

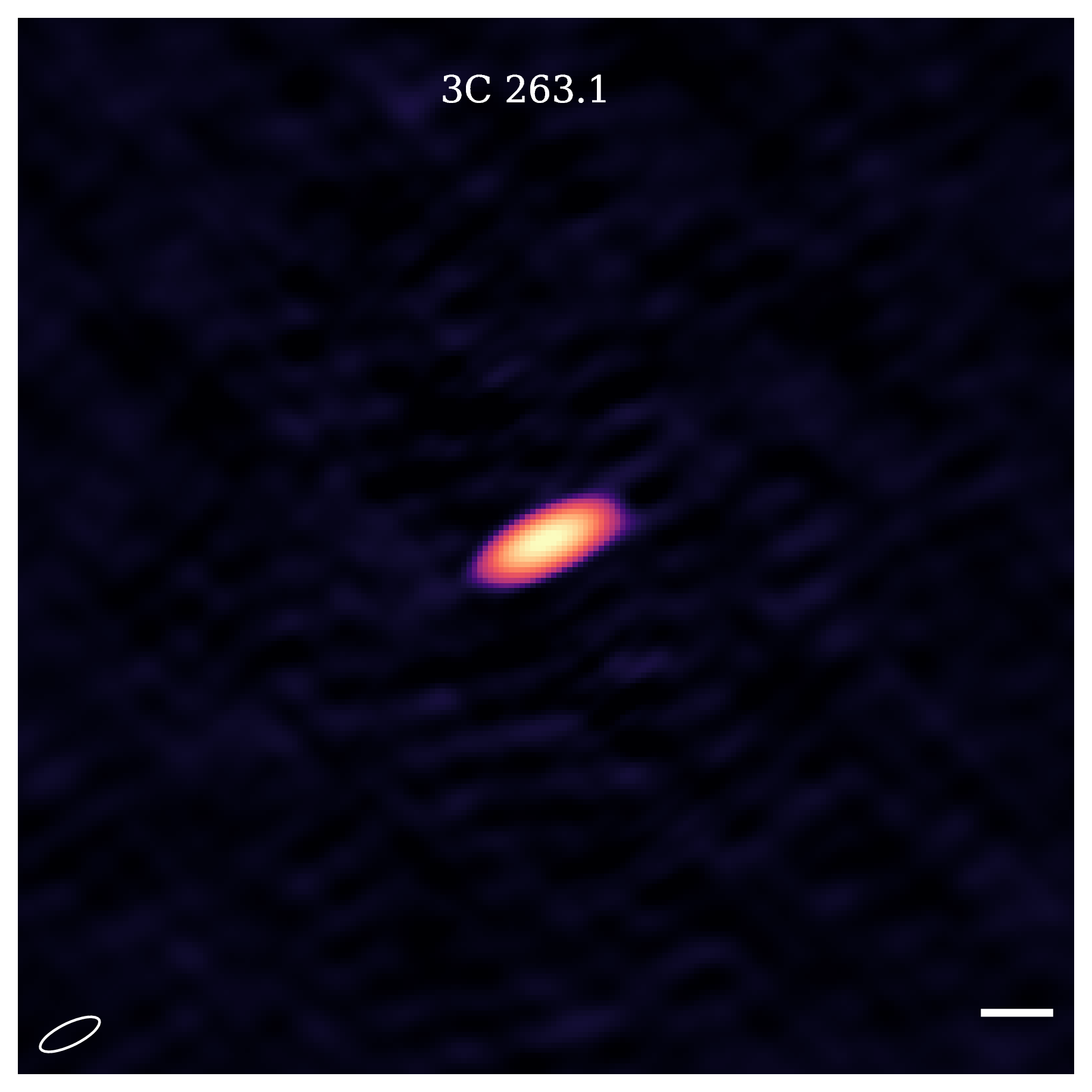

3C263.1 175.85446 22.11561 0.824 39.7 3.97 24.7 8.5 13.85
3C264 176.27087 19.60632 0.021595 74.4 7.44 24.4 8.4 12.13
3C265 176.3704 31.5633 0.811 70.89 7.09 25.6 8.7 7.47
3C266 176.4307 49.76896 1.275 30.29 3.03 14.3 11.5 11.7

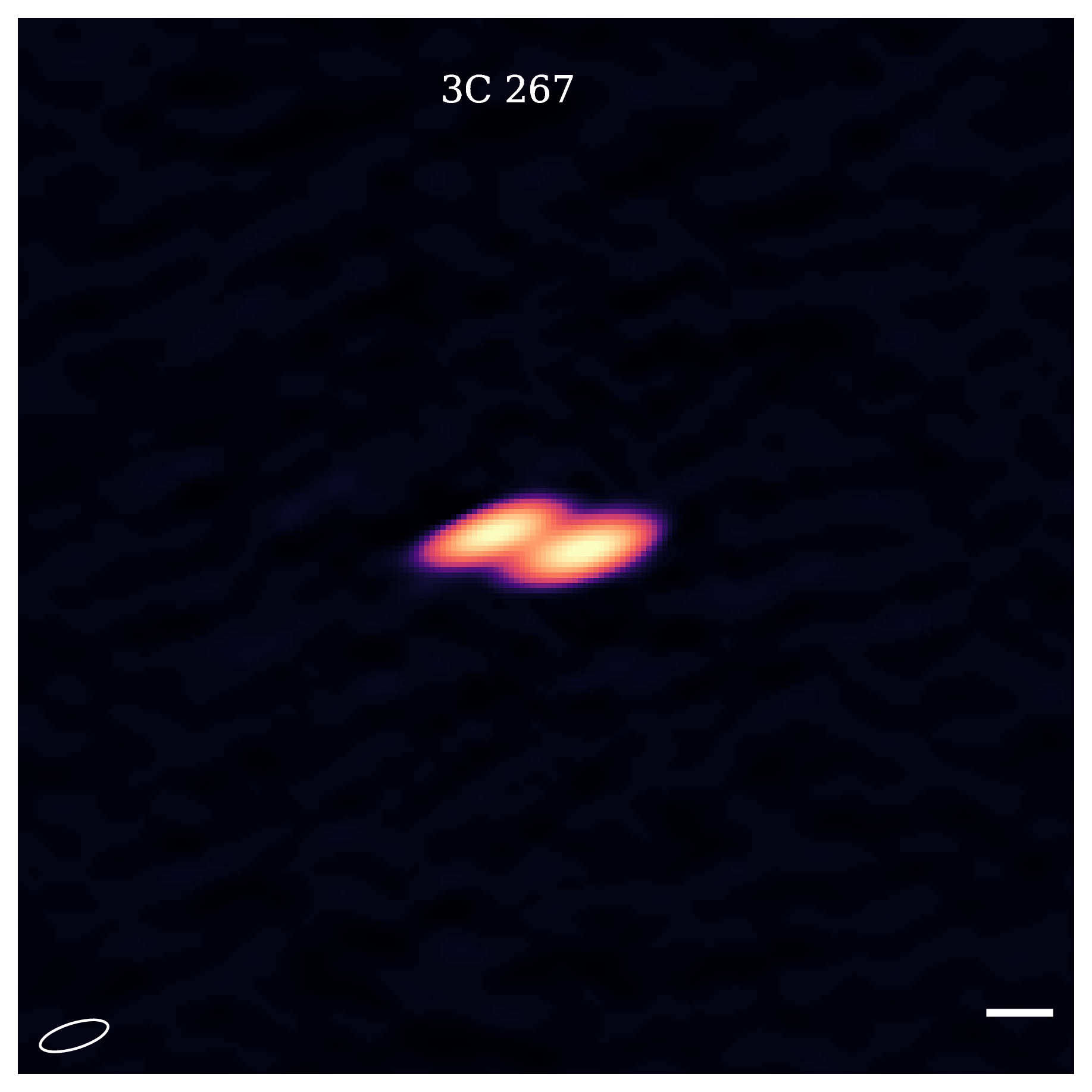

3C267 177.48575 12.7886 1.14 33.6 3.36 26.8 9.6 10.2
3C268.1 180.07855 73.01262 0.97 50.5 5.05 17.2 10.7 9.14

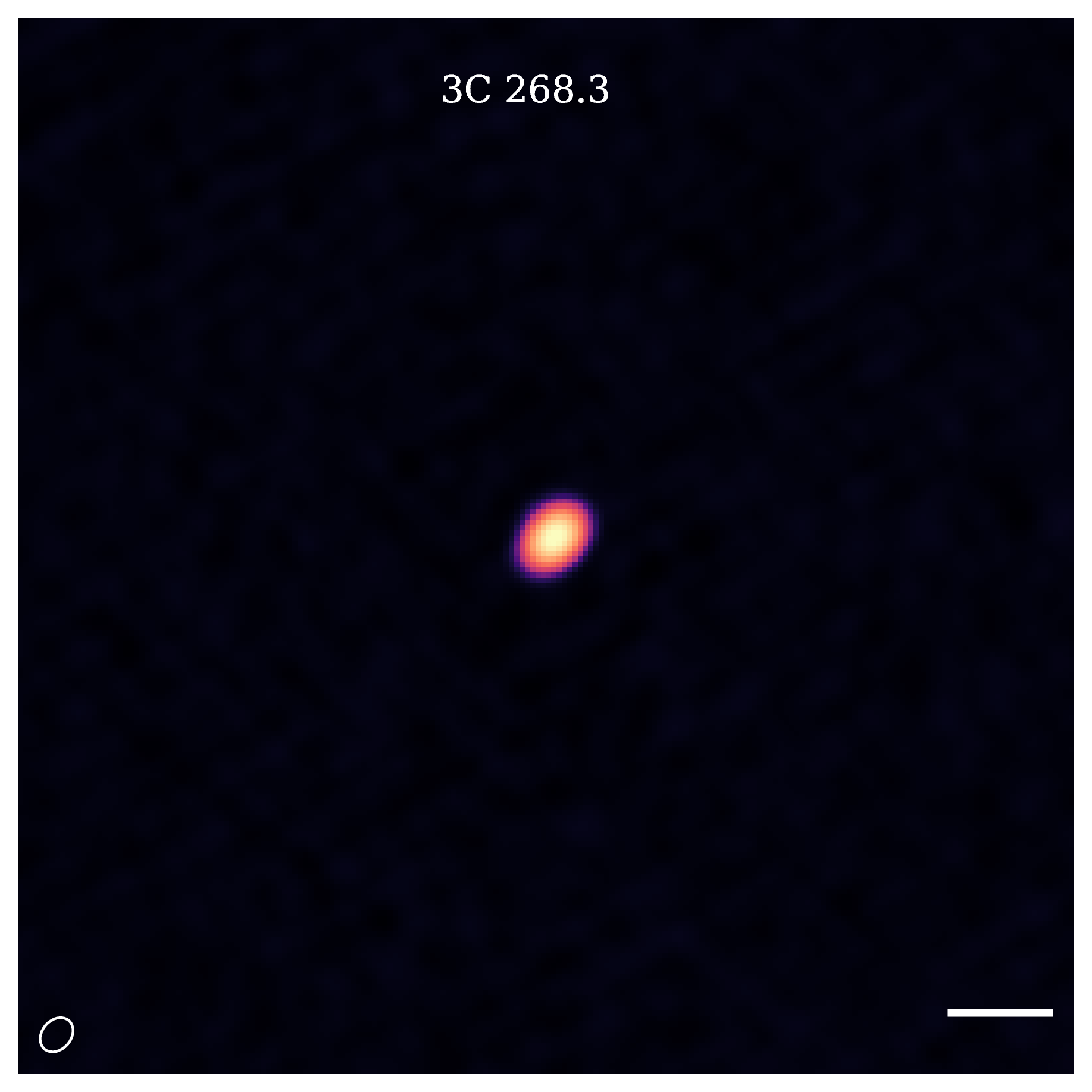

3C268.3 181.603 64.22696 0.371726 17.94 1.79 14.2 11.0 9.63
3C268.4 182.30671 43.65581 1.3991 27.29 2.73 24.1 8.1 7.13
3C270.1 185.14115 33.72001 1.528731 37.18 3.72 24.5 7.8 9.02
3C272.1 186.2656 12.88698 0.003392 1654.55 165.46 27.9 9.8 20.48
A1552 187.46083 11.74139 0.085893 26.17 2.62 35.9 21.7 27.55

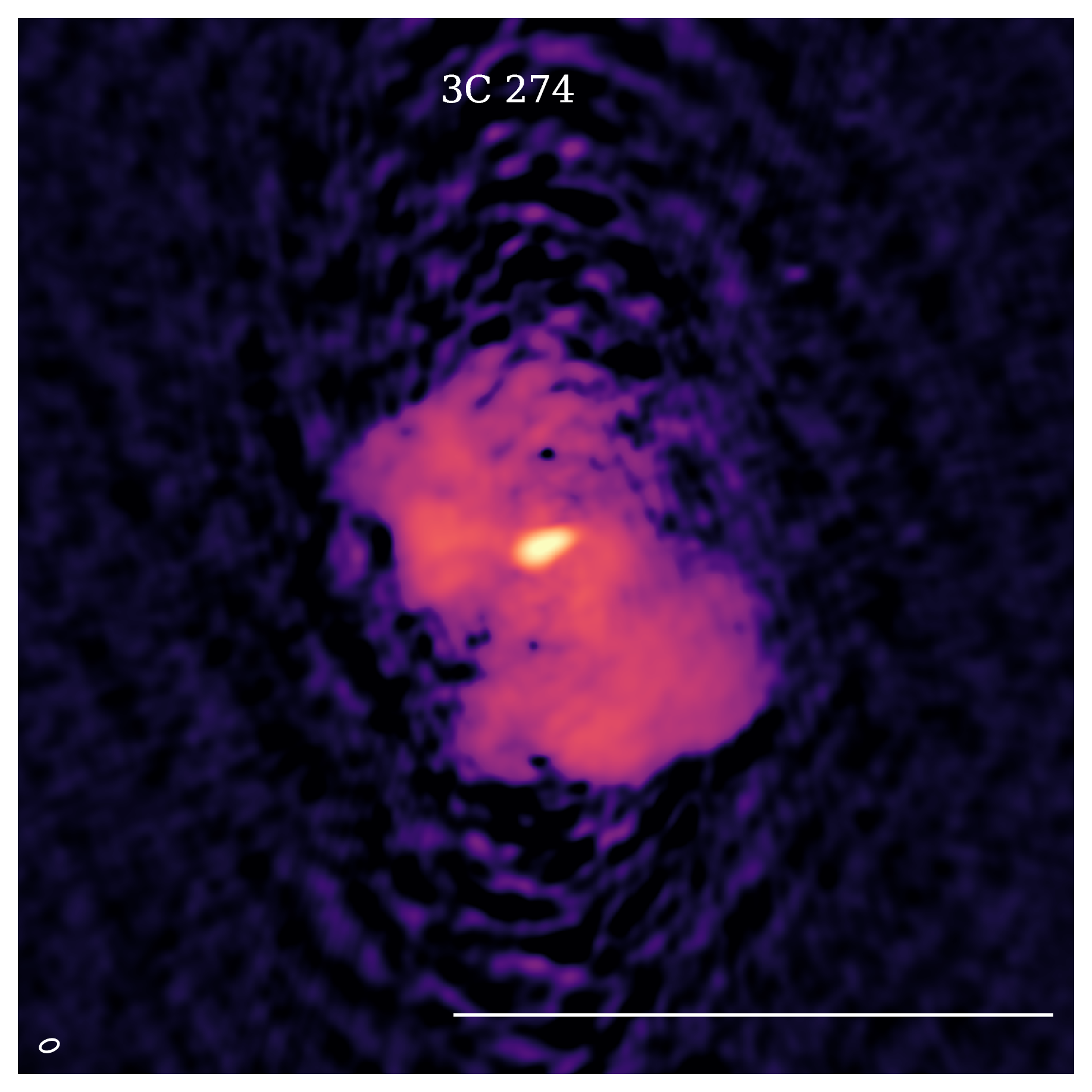

3C274 187.70593 12.39112 0.004283 2442.97 244.3 20.2 8.0 27.55
3C274.1 188.86106 21.34299 0.4227 46.99 4.7 25.1 8.9 8.14

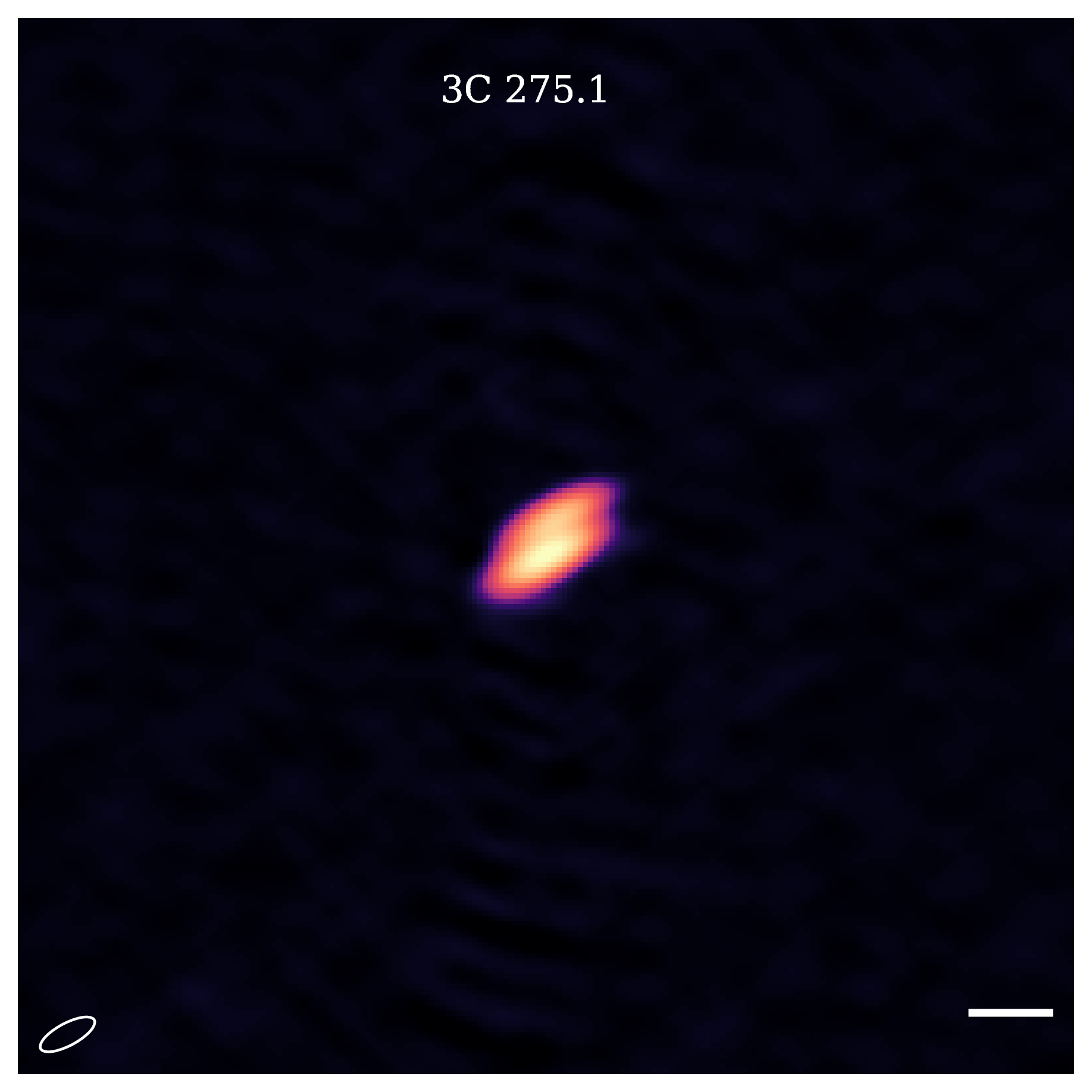

3C275.1 190.9902 16.3815 0.555225 43.18 4.32 23.0 8.5 11.13
3C277.2 193.38766 15.70811 0.766 30.0 3.0 24.0 8.9 9.86
3C280 194.23751 47.33885 0.996 58.38 5.84 16.2 9.3 10.0

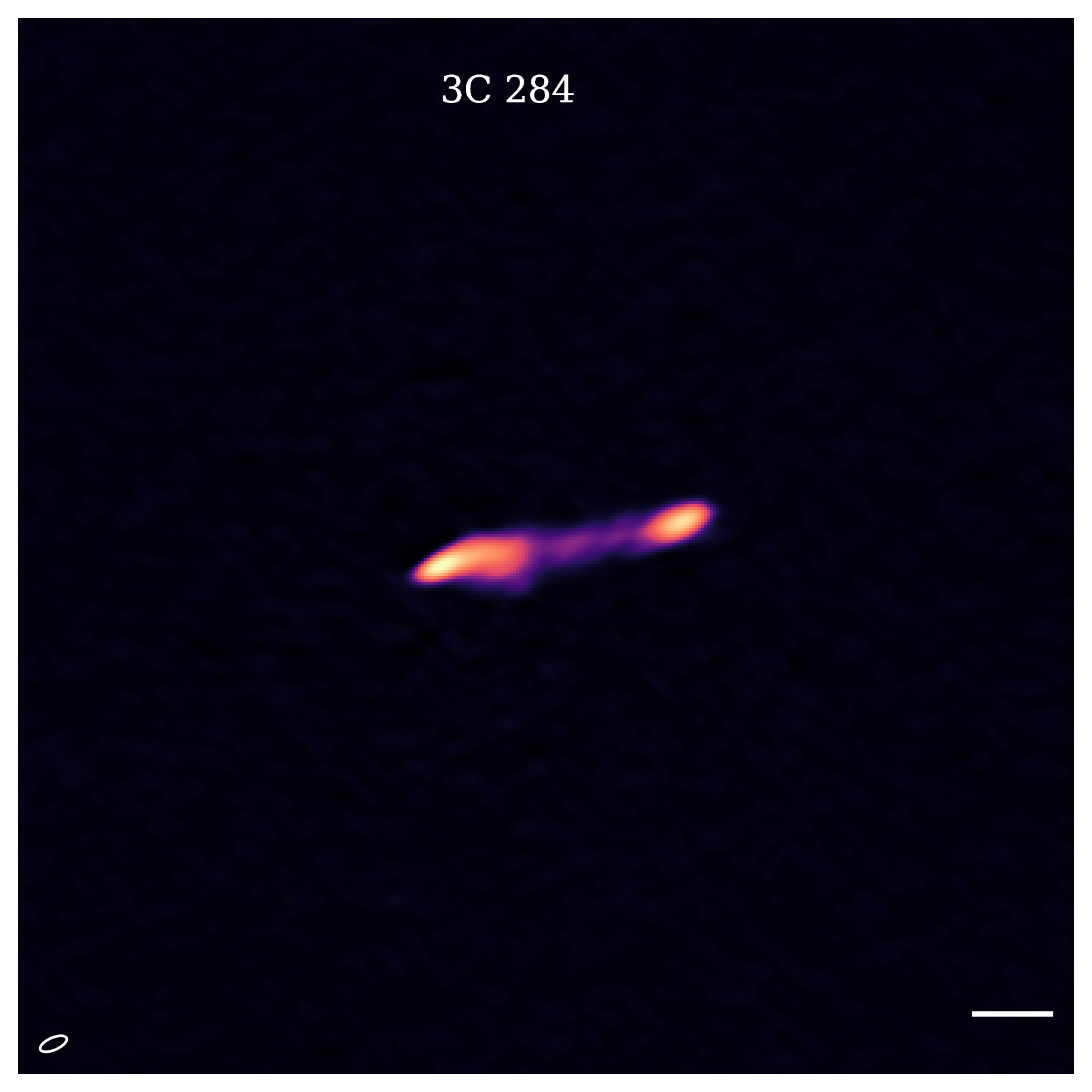

3C284 197.76946 27.46859 0.23992 37.94 3.79 19.1 8.3 8.8

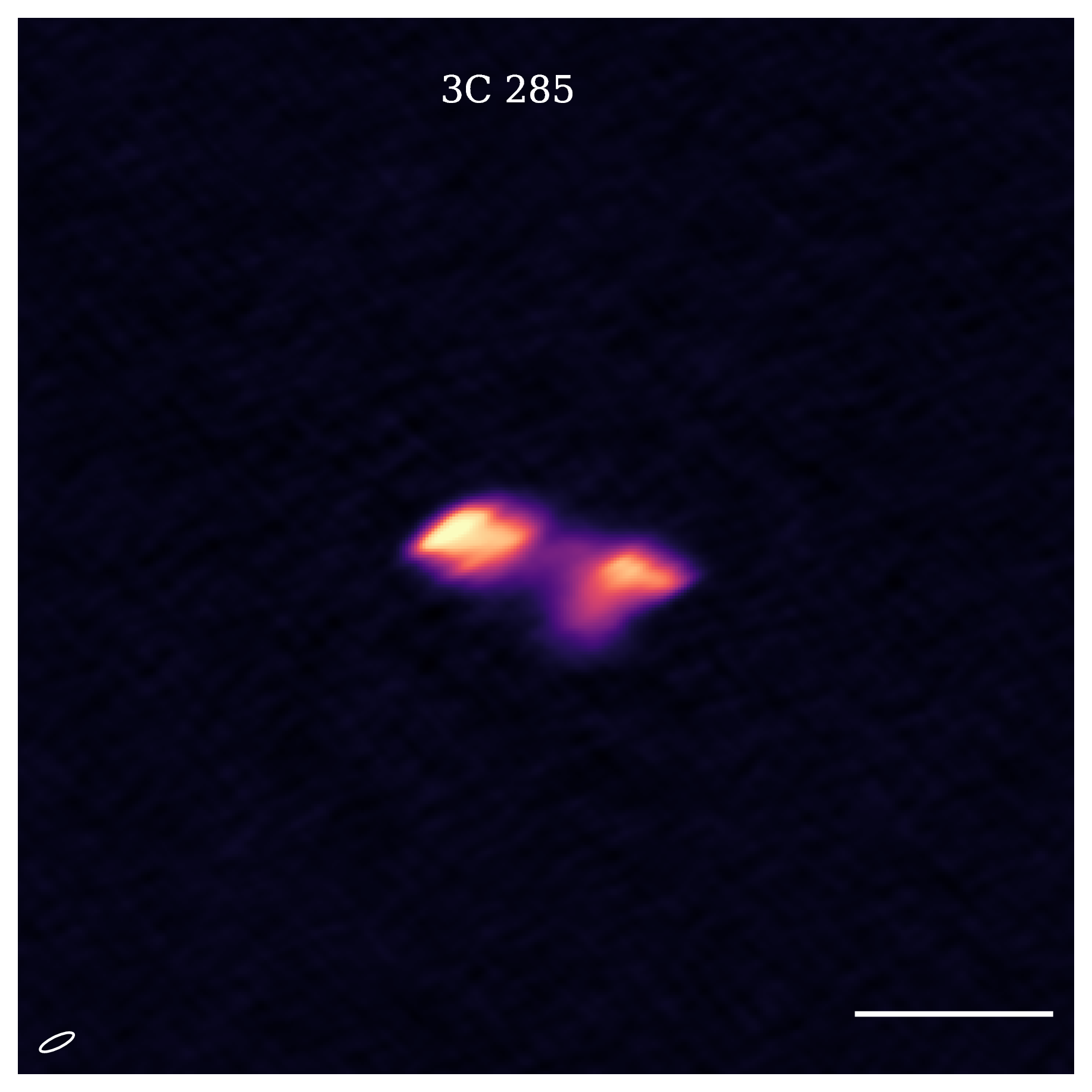

3C285 200.32451 42.58744 0.079385 25.75 2.58 25.1 7.9 8.36

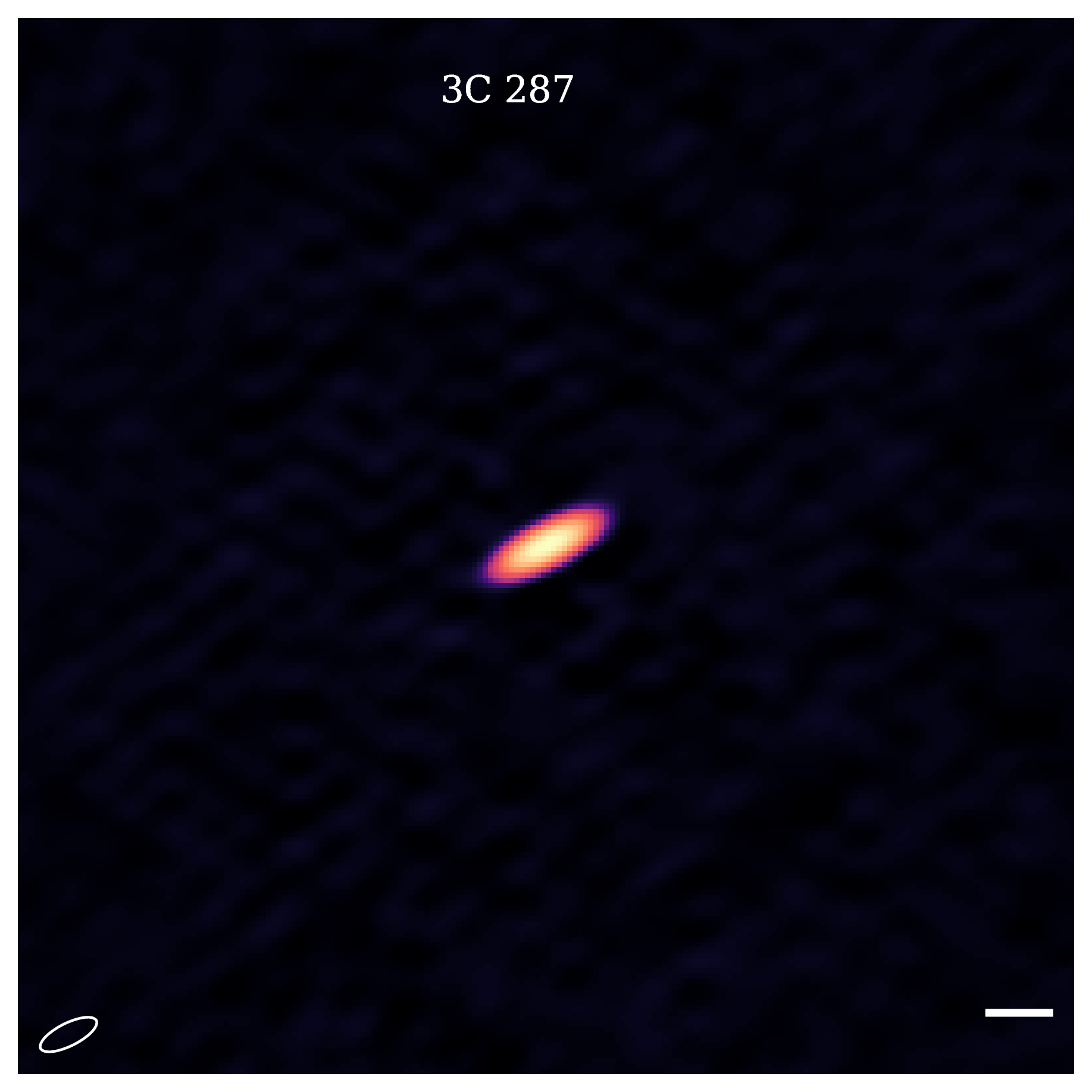

3C287 202.65704 25.15302 1.055 20.11 2.01 23.6 8.6 9.66

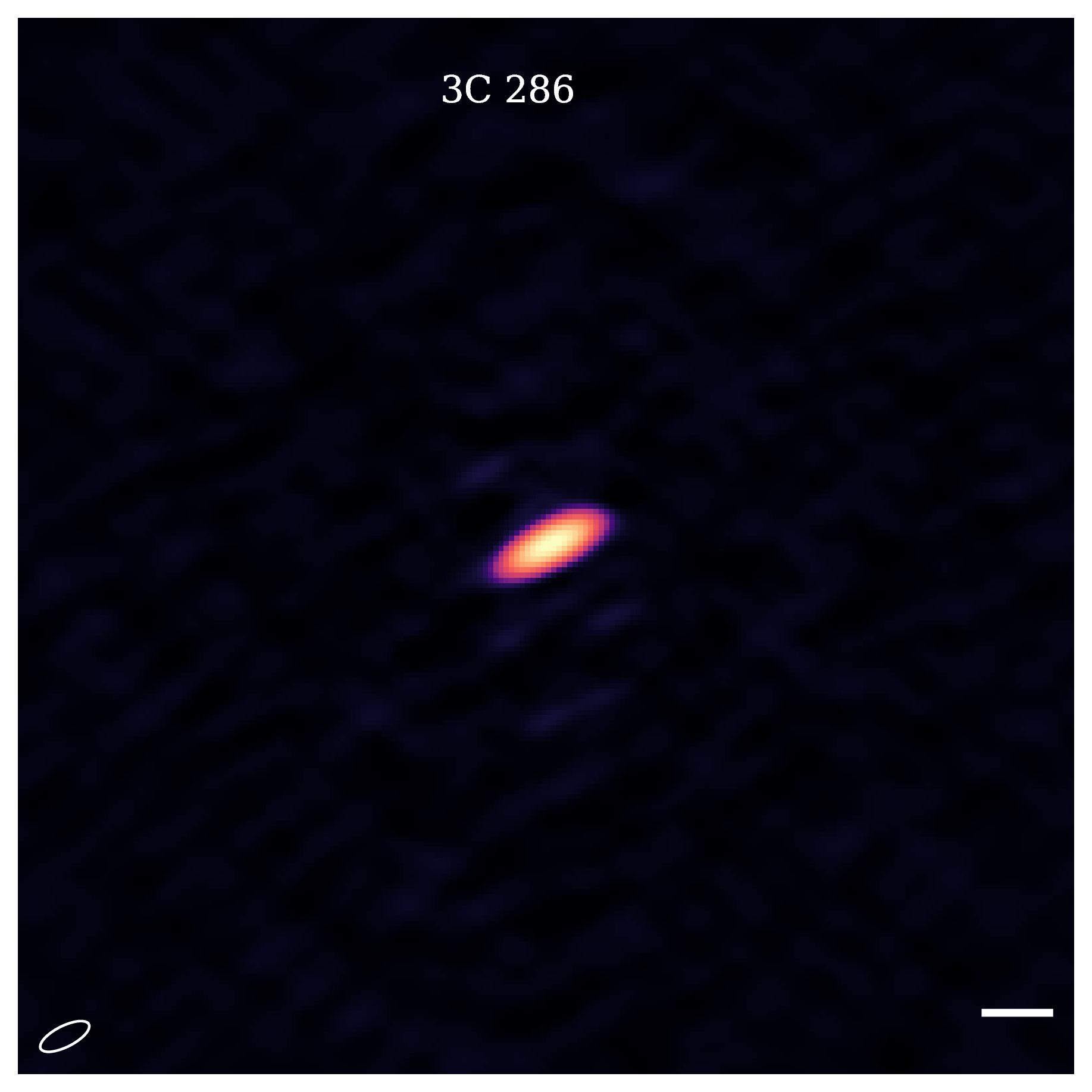

3C286 202.78453 30.50916 0.849886 28.24 2.82 20.5 7.9 9.61

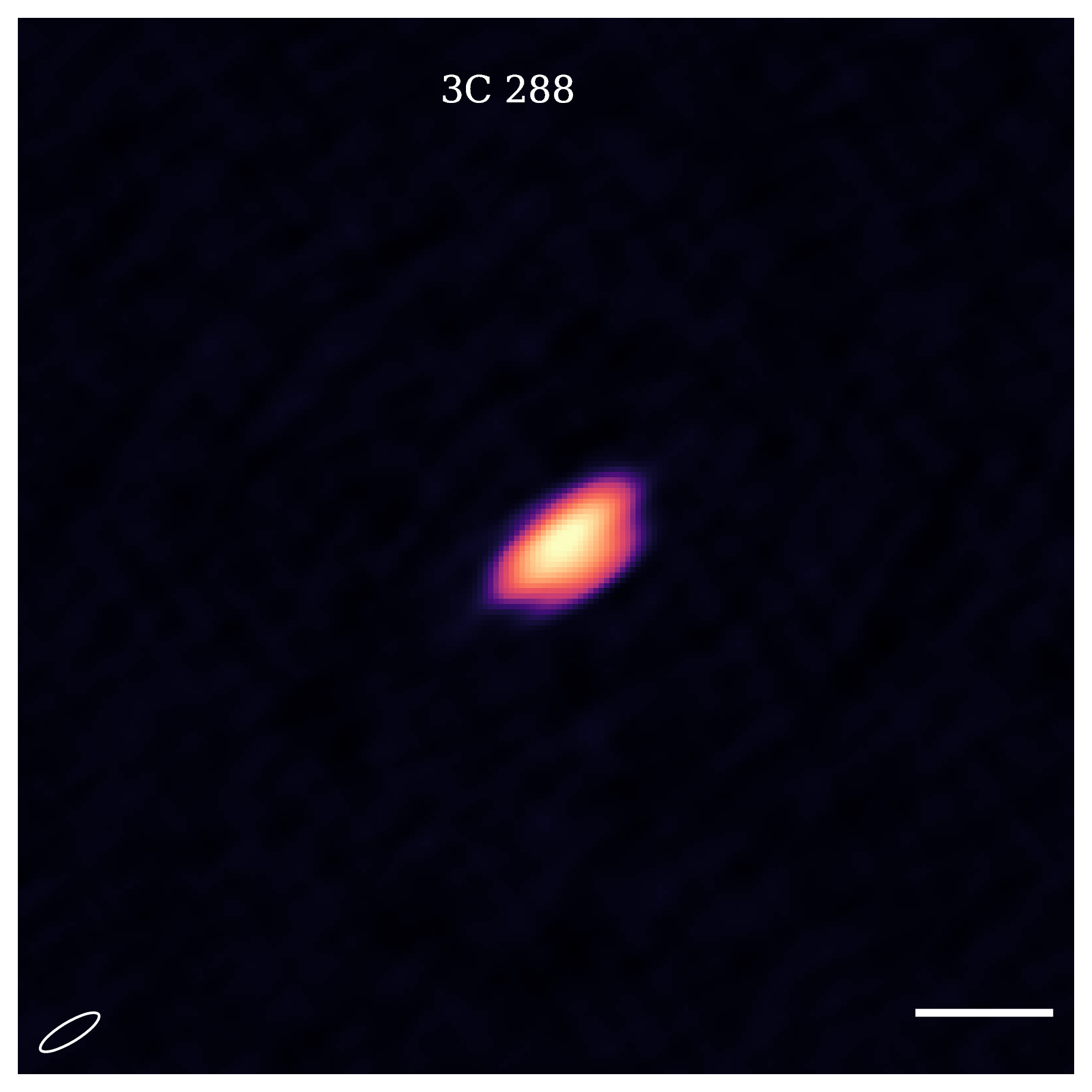

3C288 204.70834 38.85283 0.25 42.57 4.26 25.8 7.4 10.17
3C289 206.35986 49.77572 0.967 28.21 2.82 16.6 9.6 8.91

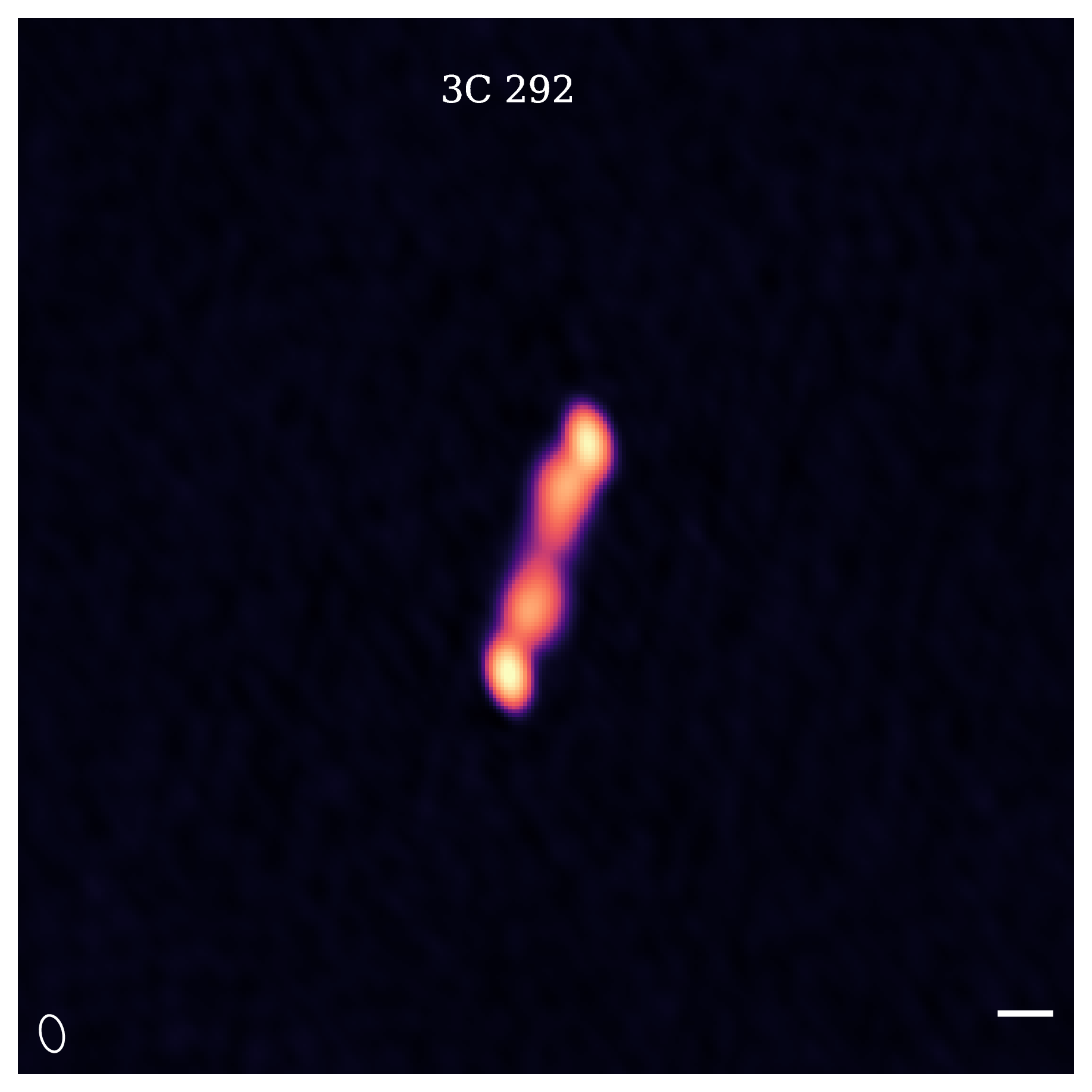

3C292 207.67517 64.49183 0.71 37.75 3.77 19.4 12.0 10.96

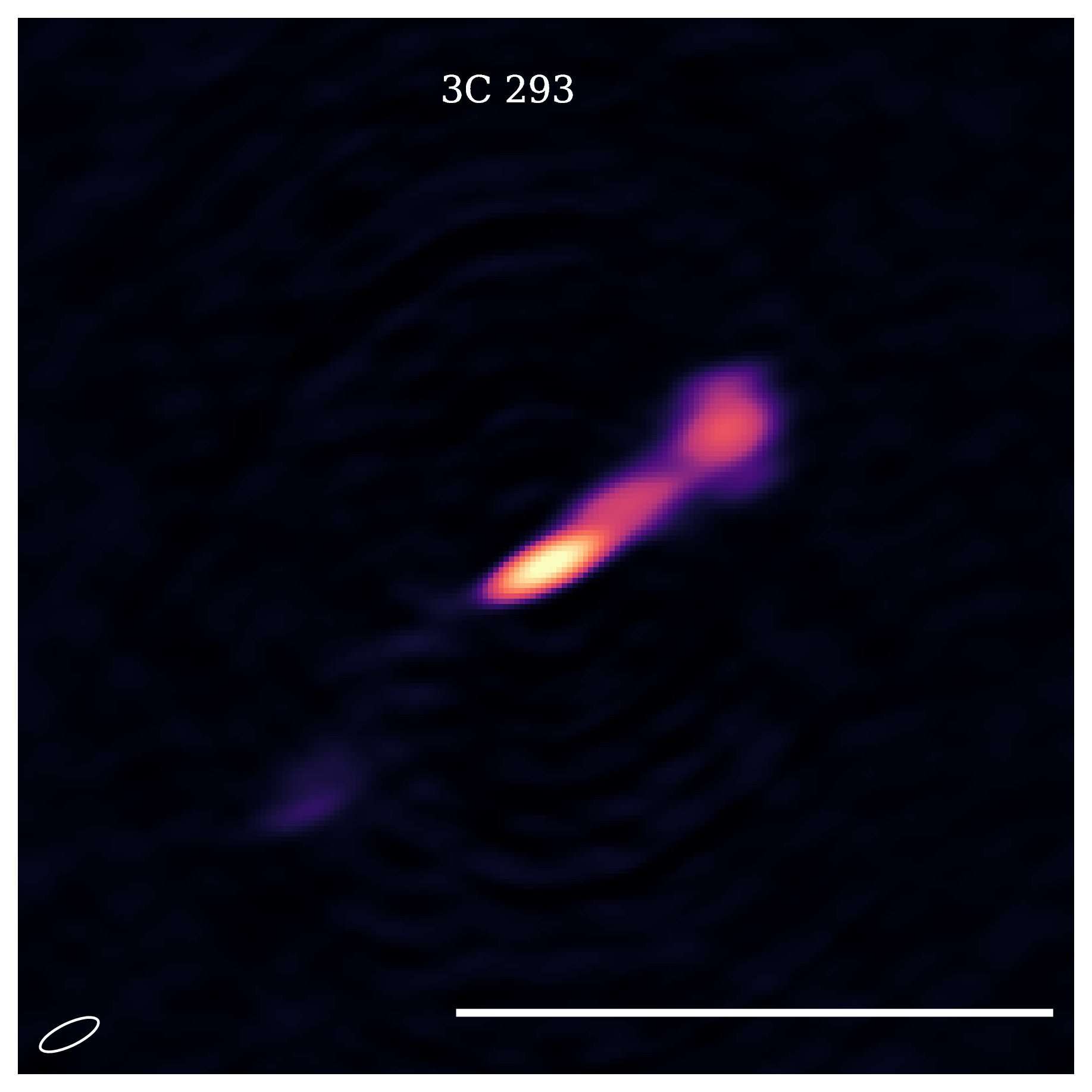

3C293 208.07434 31.44625 0.045194 33.31 3.33 24.2 8.5 8.76

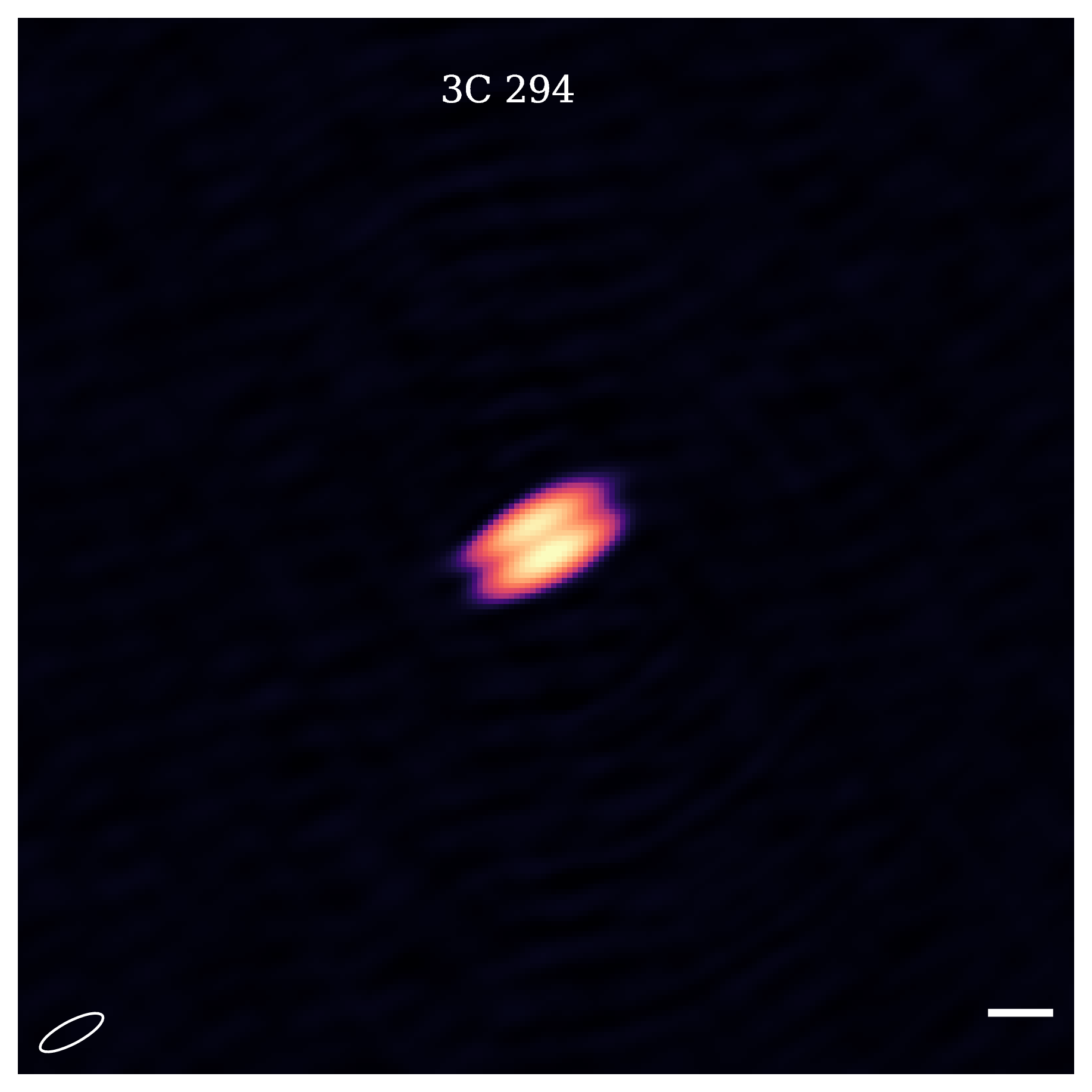

3C294 211.68342 34.19031 1.784 40.78 4.08 26.6 8.4 8.76
3C295 212.83537 52.20276 0.461687 136.72 13.67 18.5 9.4 5.06
3C296 214.22065 10.80738 0.02471 25.89 2.59 18.2 8.6 12.3

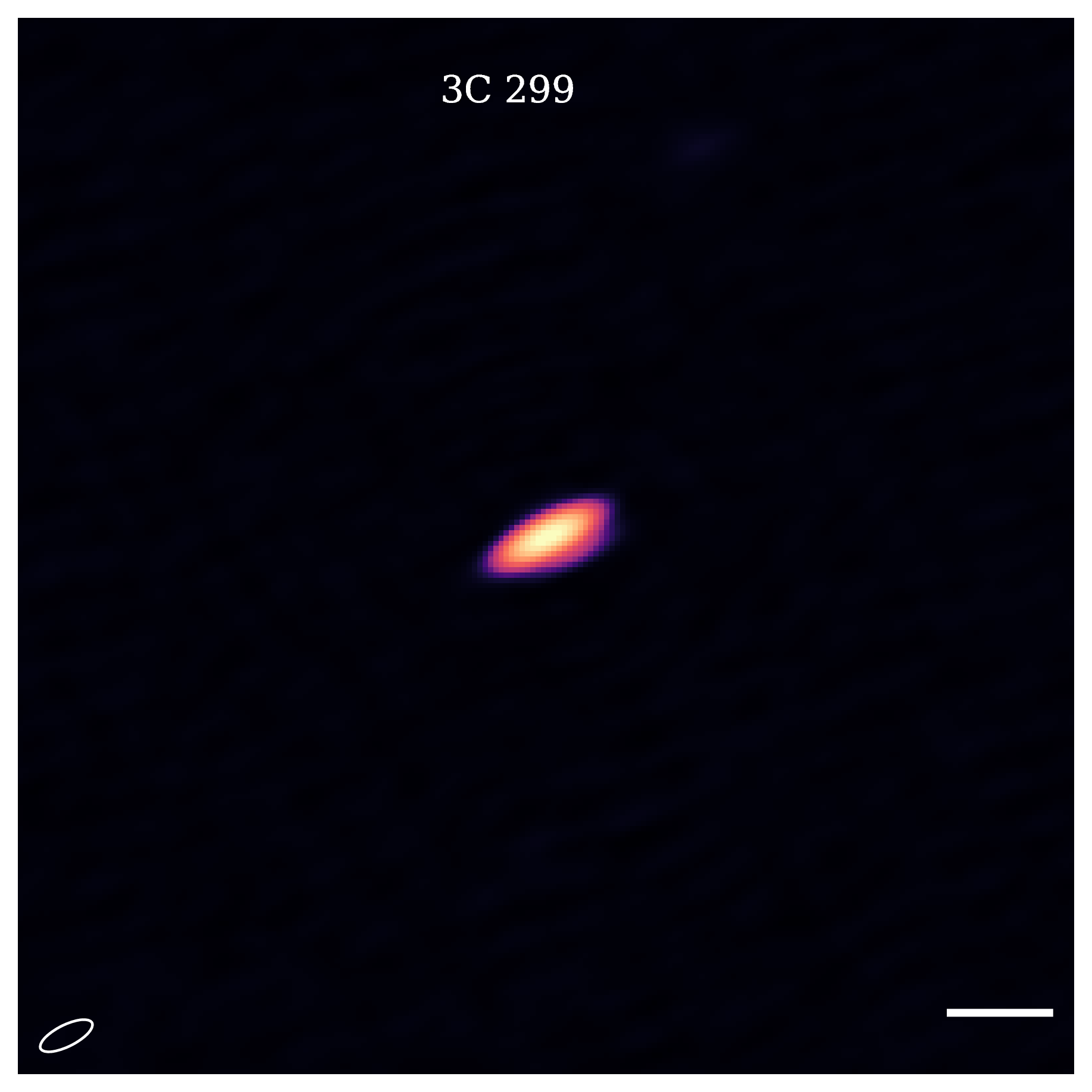

3C299 215.27242 41.74651 0.367 28.13 2.81 21.8 8.2 7.31

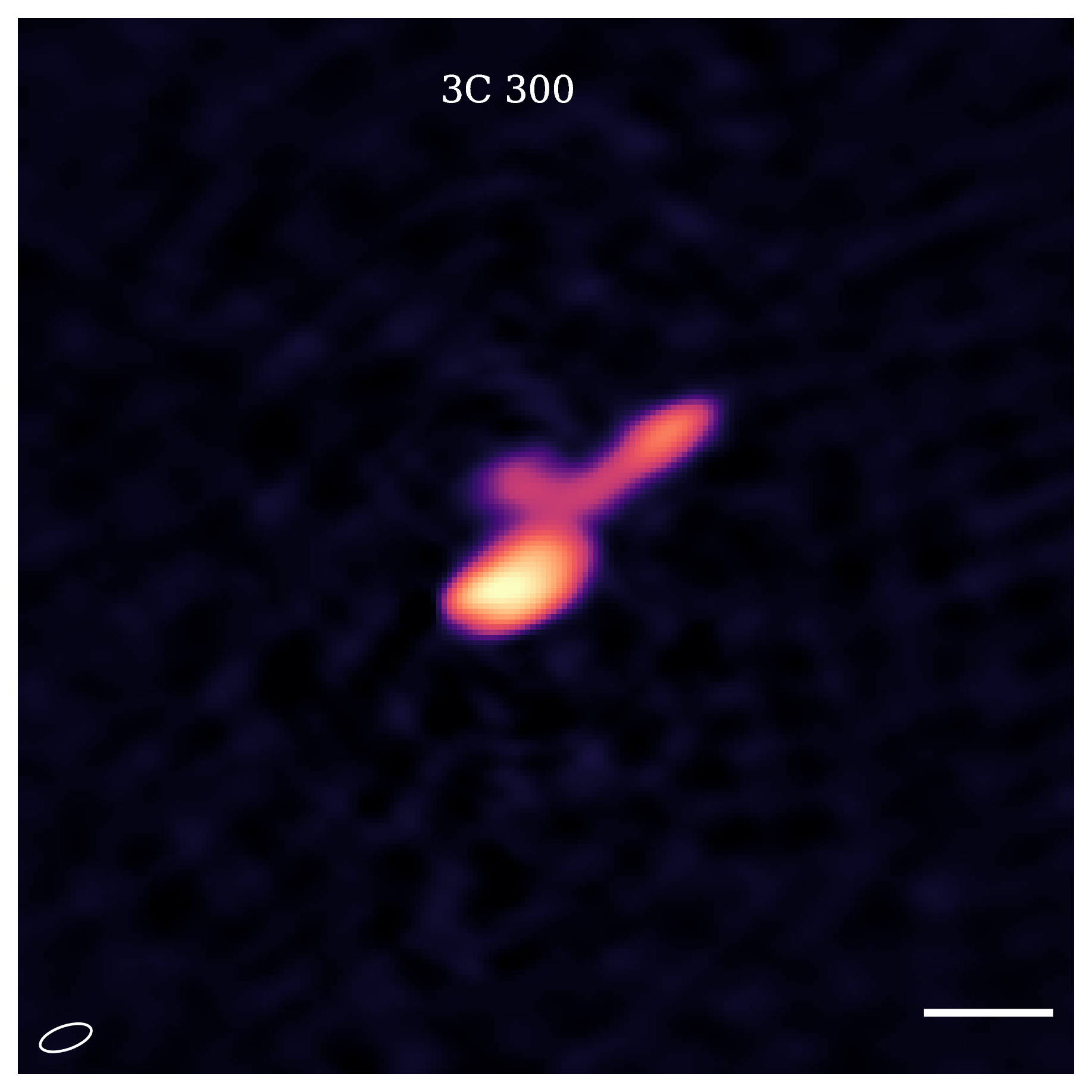

3C300 215.7542 19.58833 0.27 51.9 5.19 20.5 9.0 13.01

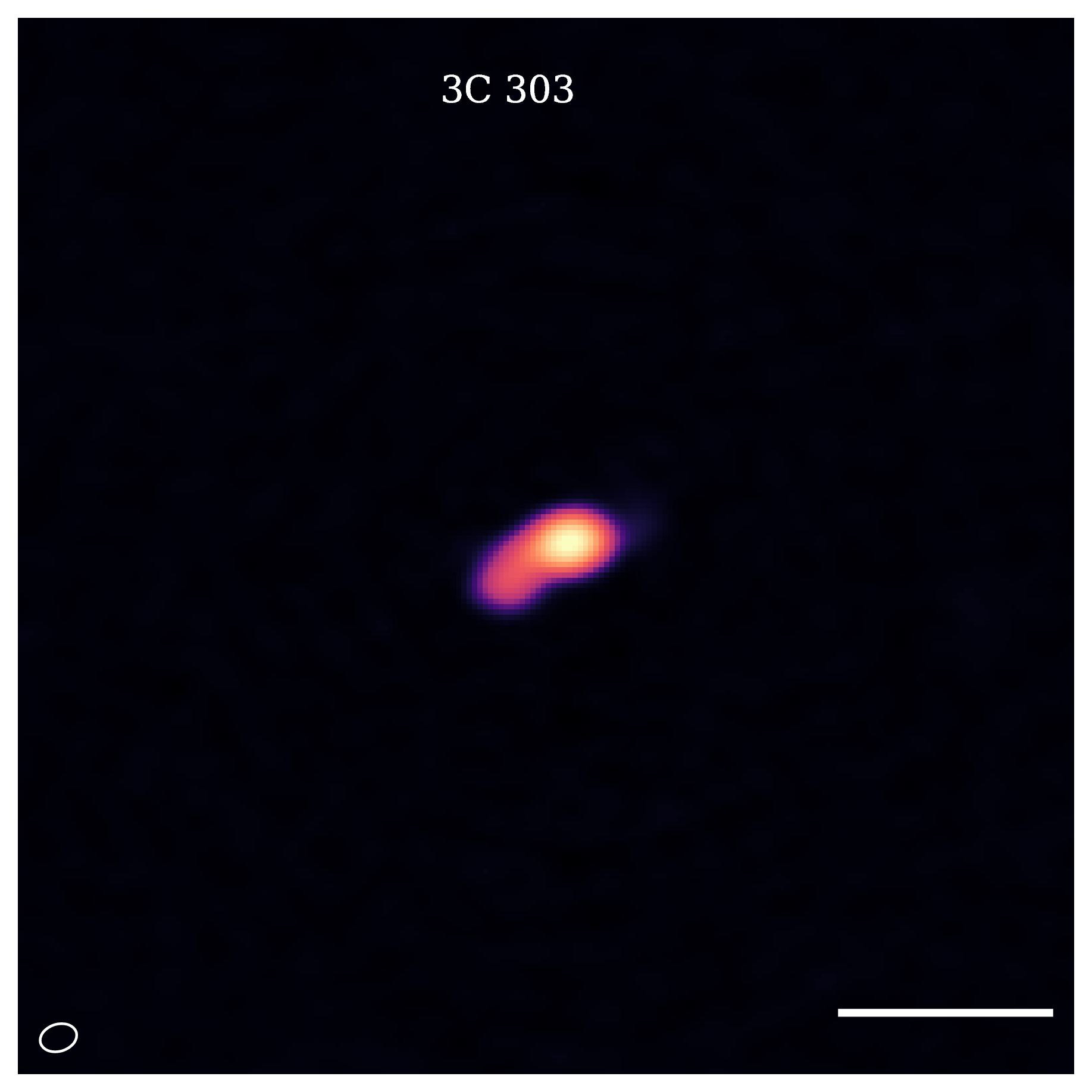

3C303 220.7615 52.02703 0.141208 30.44 3.04 14.1 10.3 6.55
3C305 222.33986 63.27052 0.041706 39.57 3.96 16.3 10.3 9.32
3C309.1 224.7816 71.67219 0.901113 47.05 4.7 12.8 11.3 9.93

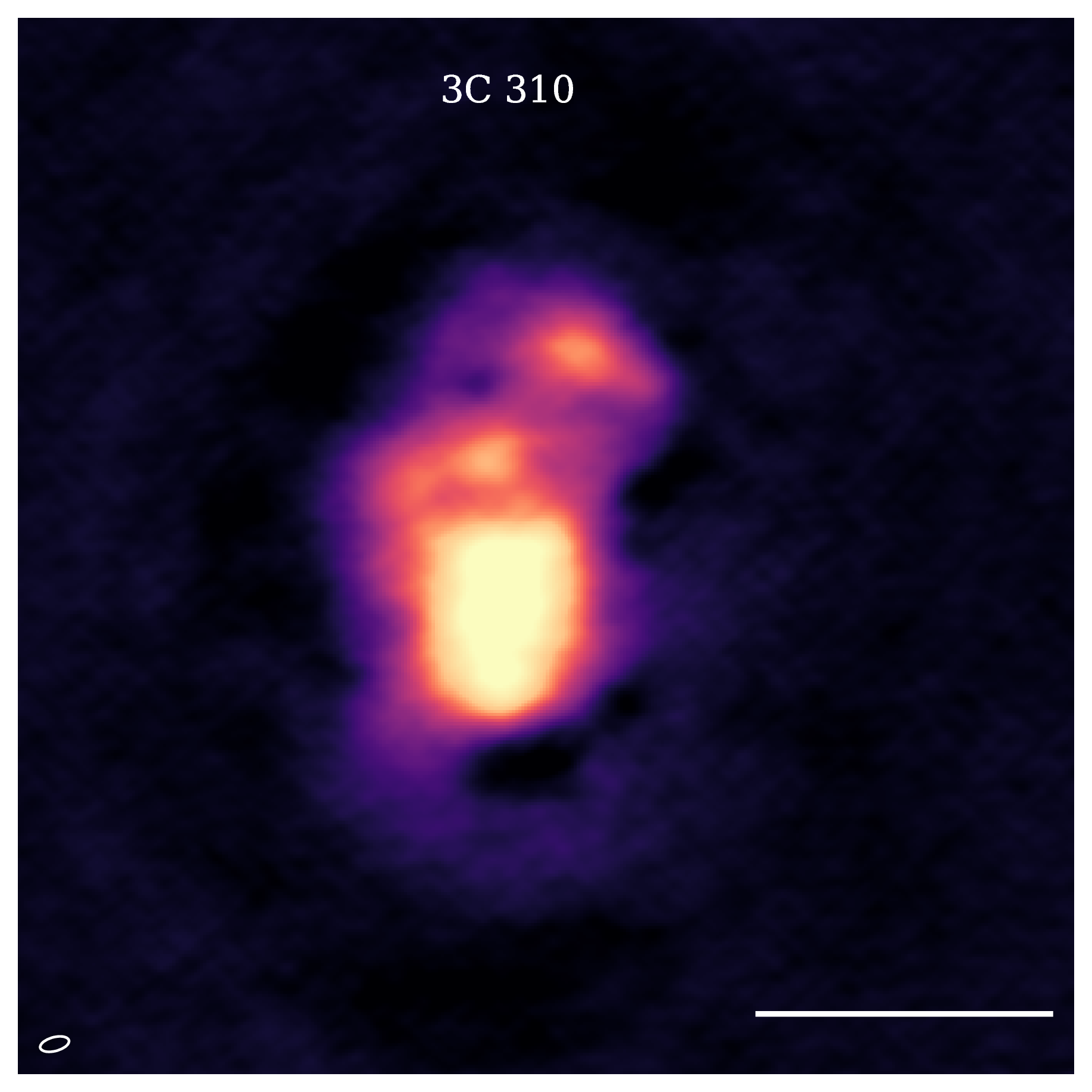

3C310 226.23825 26.0162 0.0538 187.2 18.72 19.2 9.0 10.19
3C314.1 227.59375 70.76444 0.1197 37.35 3.73 26.8 9.7 39.91

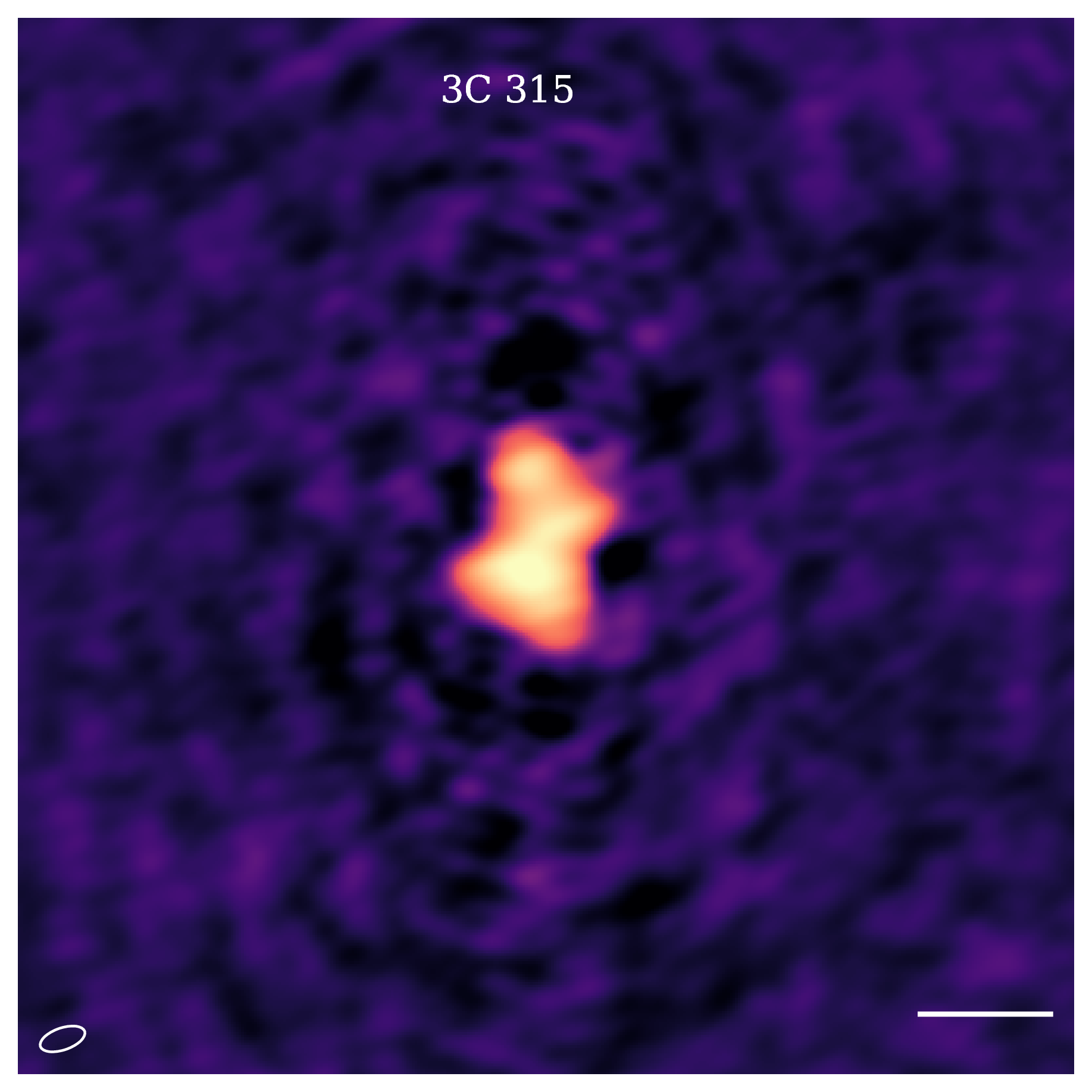

3C315 228.41707 26.12552 0.1083 95.25 9.52 35.6 16.7 51.55

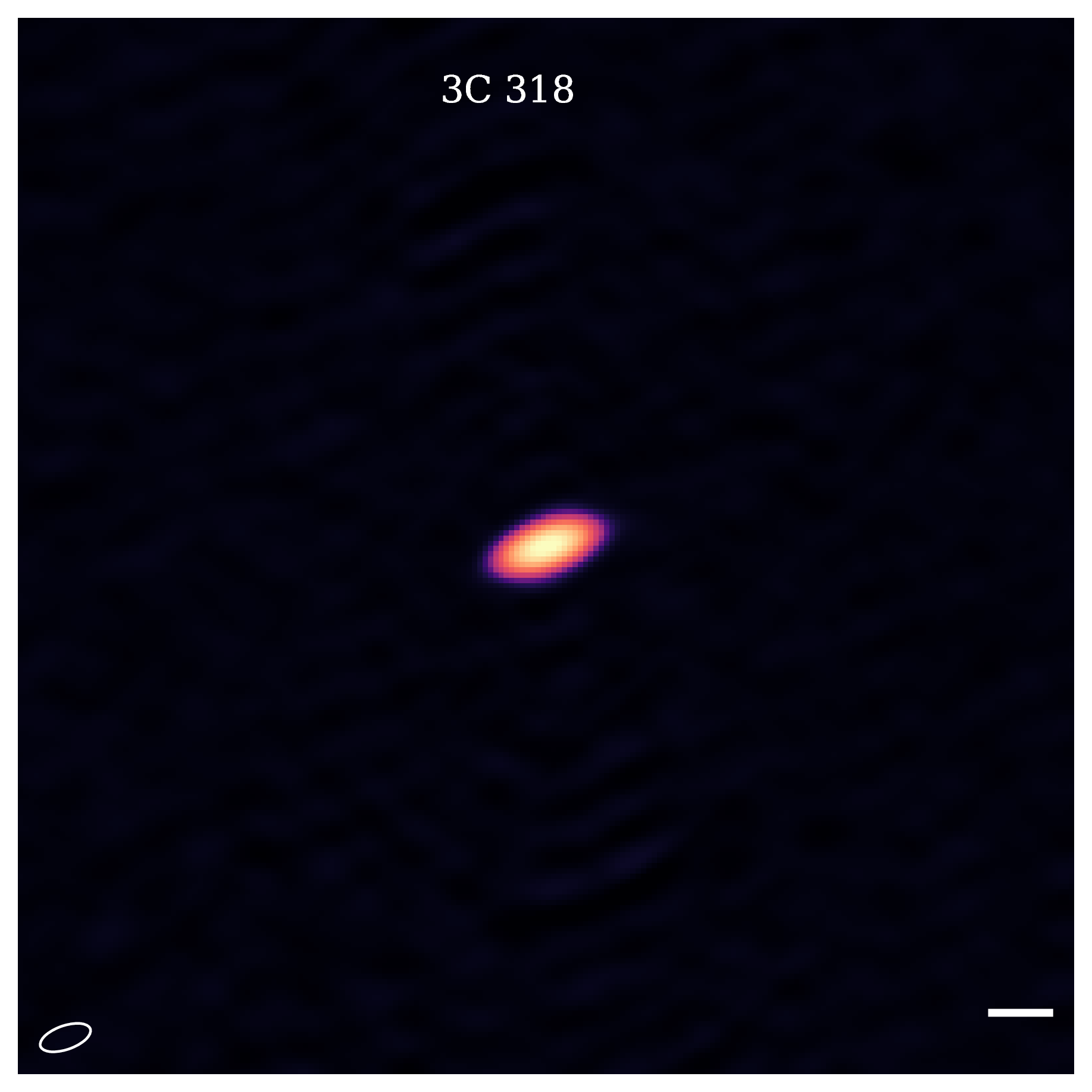

3C318 230.02275 20.26822 1.572248 25.21 2.52 20.0 9.0 9.91
3C319 231.0235 54.47178 0.192 45.62 4.56 14.3 13.1 11.41
3C321 232.9311 24.07195 0.096456 45.68 4.57 20.0 8.8 8.85

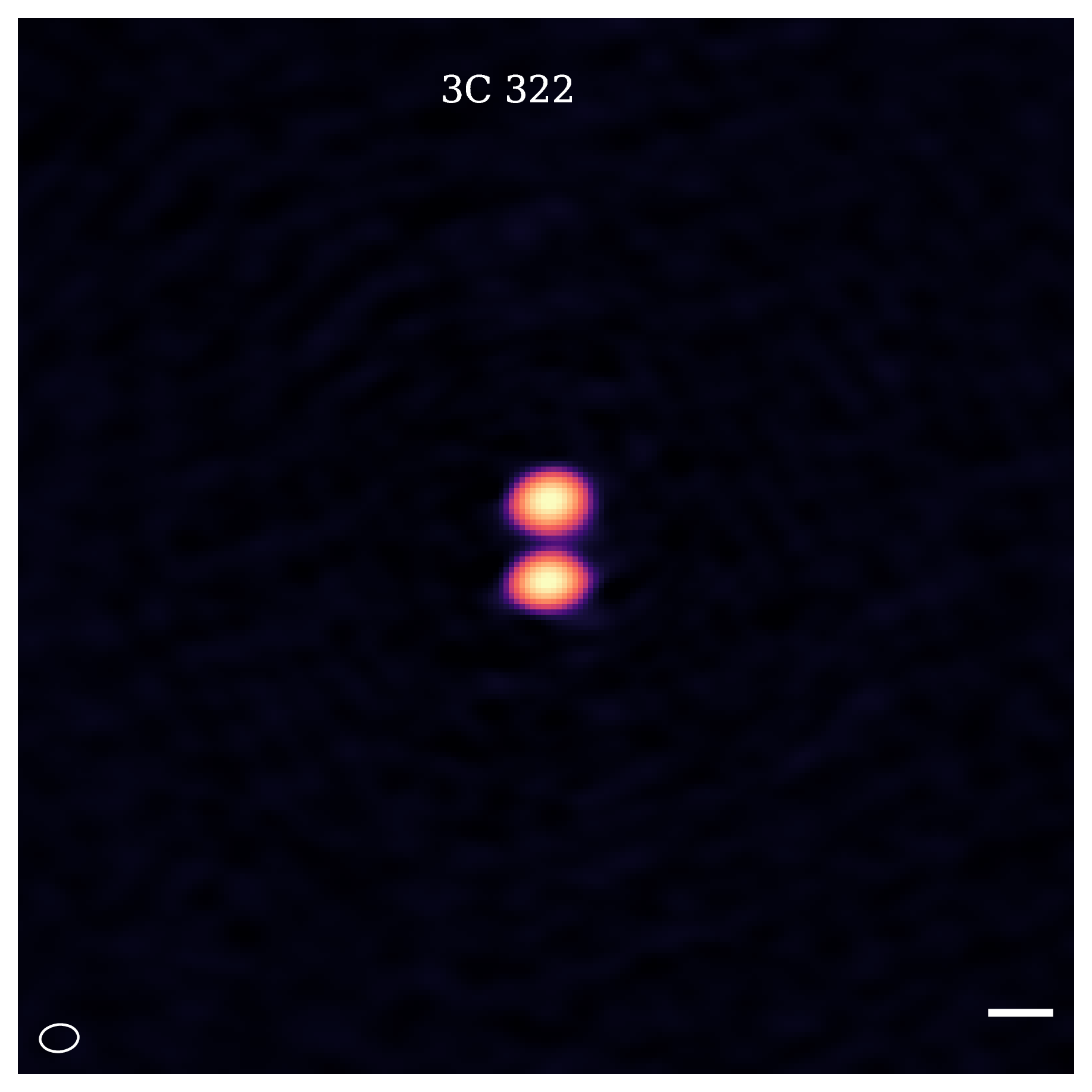

3C322 233.75524 55.61452 1.681 28.7 2.87 14.5 10.3 9.34

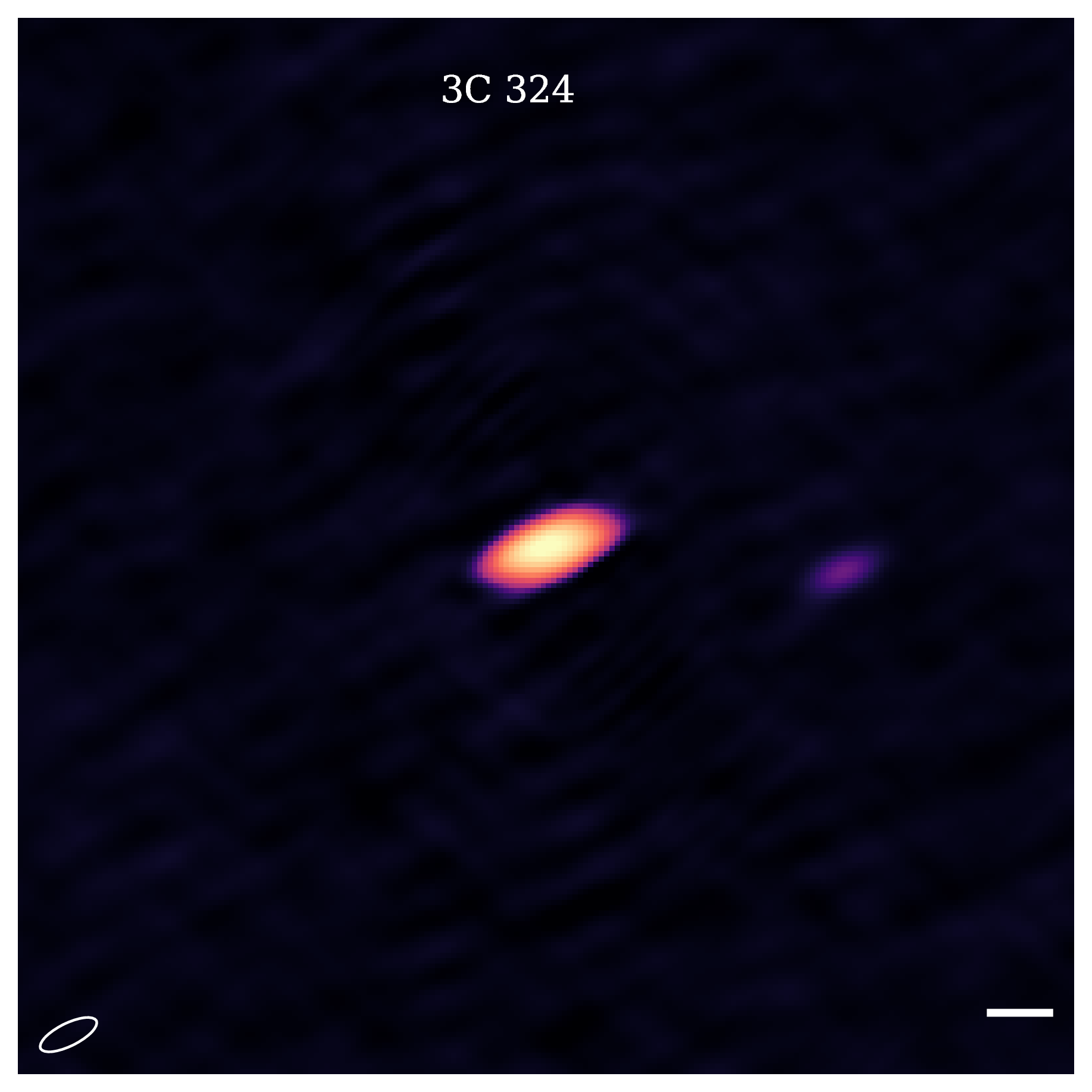

3C324 237.45344 21.42722 1.206 34.56 3.46 23.6 8.6 13.66

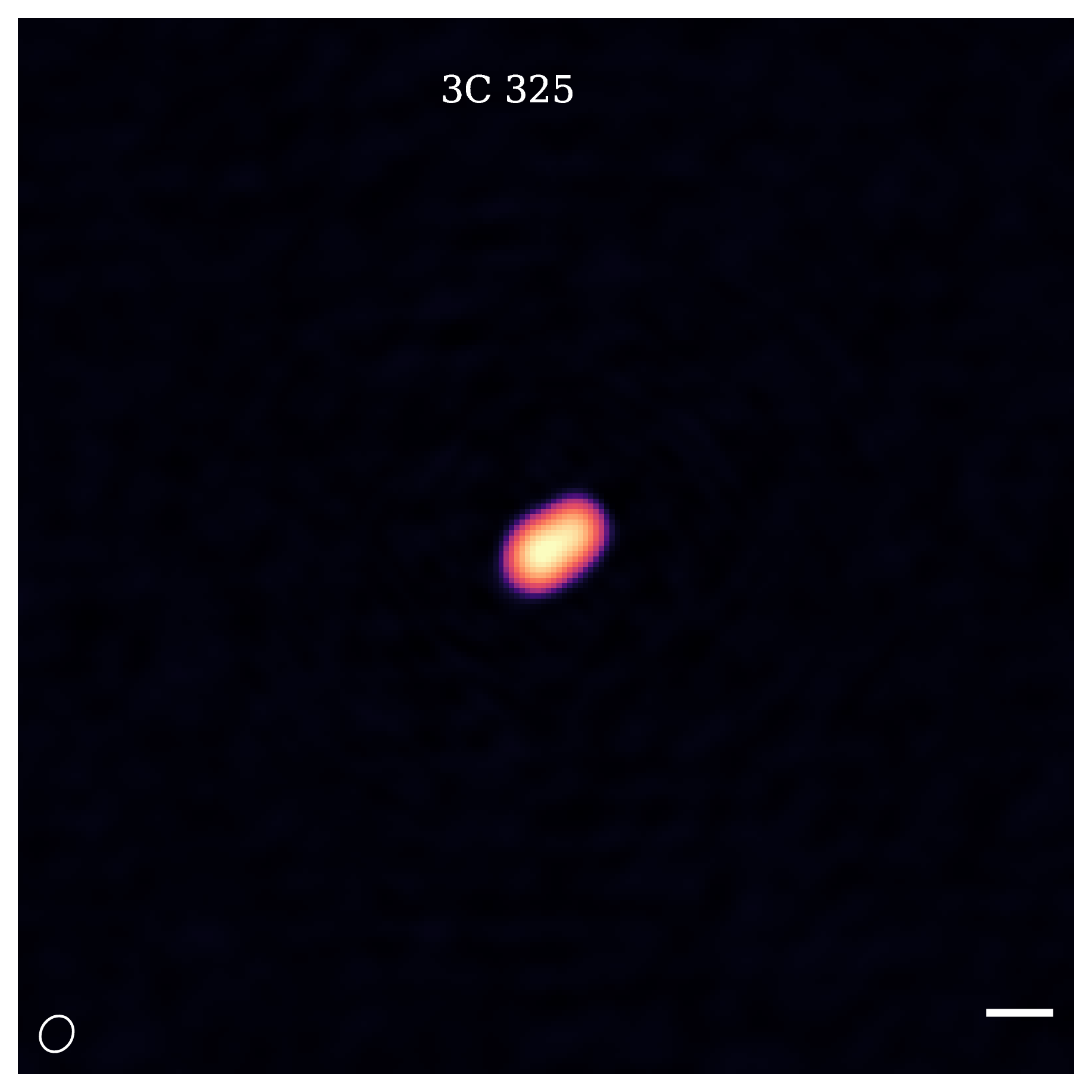

3C325 237.49338 62.68932 1.135 37.67 3.77 14.0 12.0 7.69
3C326 238.0375 20.09167 0.089 53.1 5.31 31.8 31.8 41.14

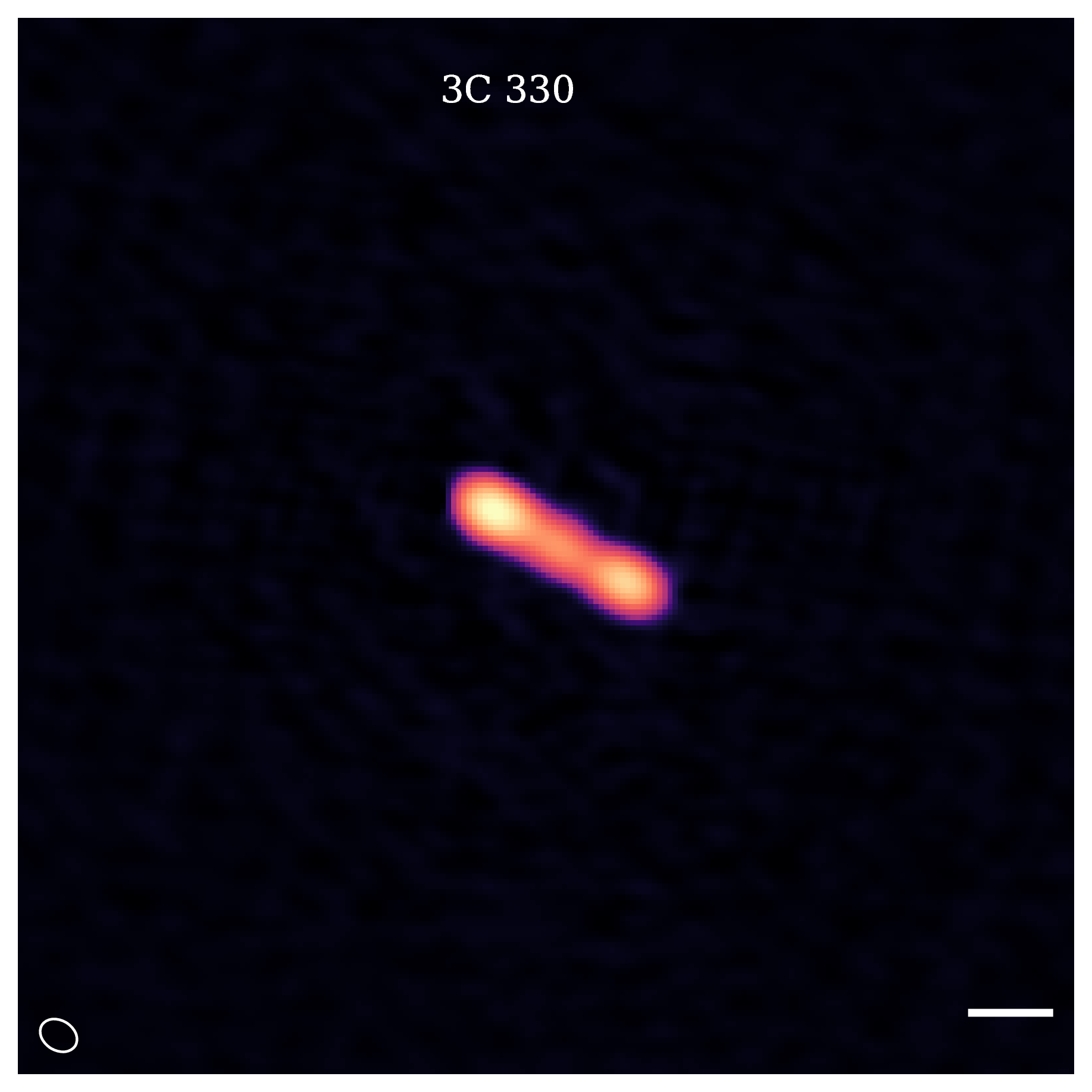

3C330 242.40253 65.94545 0.55 65.48 6.55 14.9 11.3 9.45
NGC6109 244.41893 35.00427 0.029815 29.49 2.95 31.0 31.0 18.78

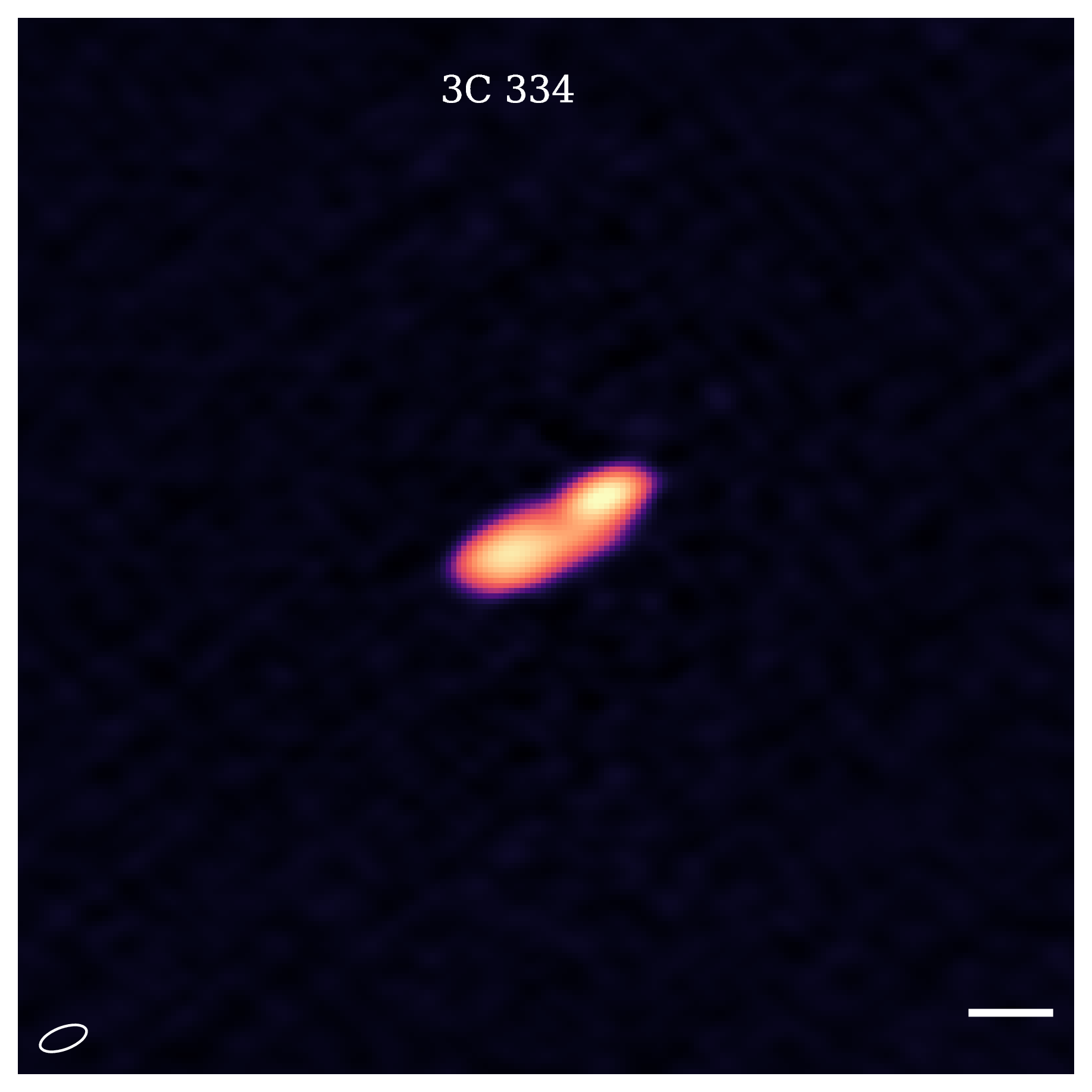

3C334 245.09092 17.60665 0.555167 39.99 4.0 18.5 8.3 12.92

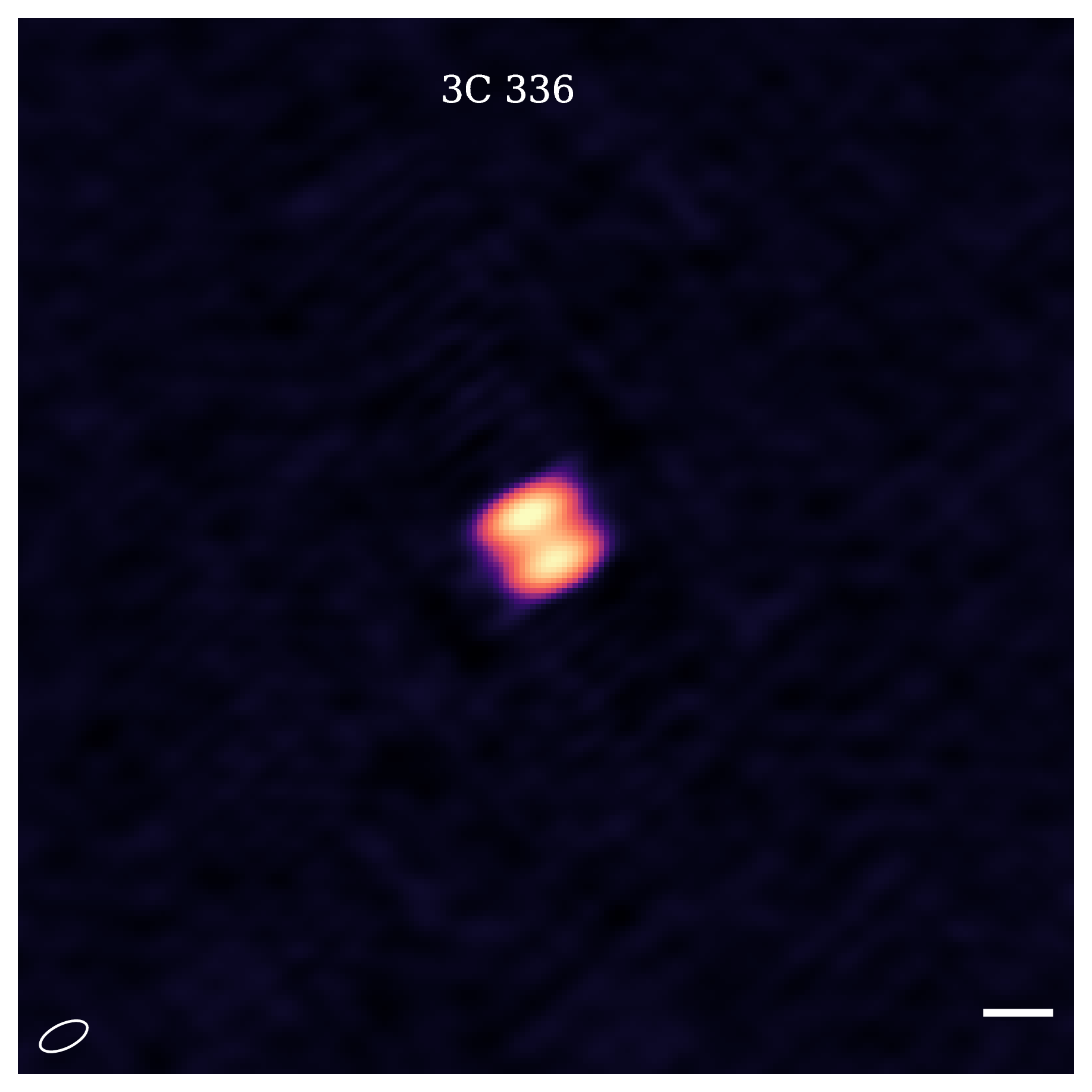

3C336 246.16289 23.7534 0.927154 31.06 3.11 19.3 9.2 15.71
3C341 247.01487 27.69336 0.448 31.19 3.12 22.9 8.3 10.51

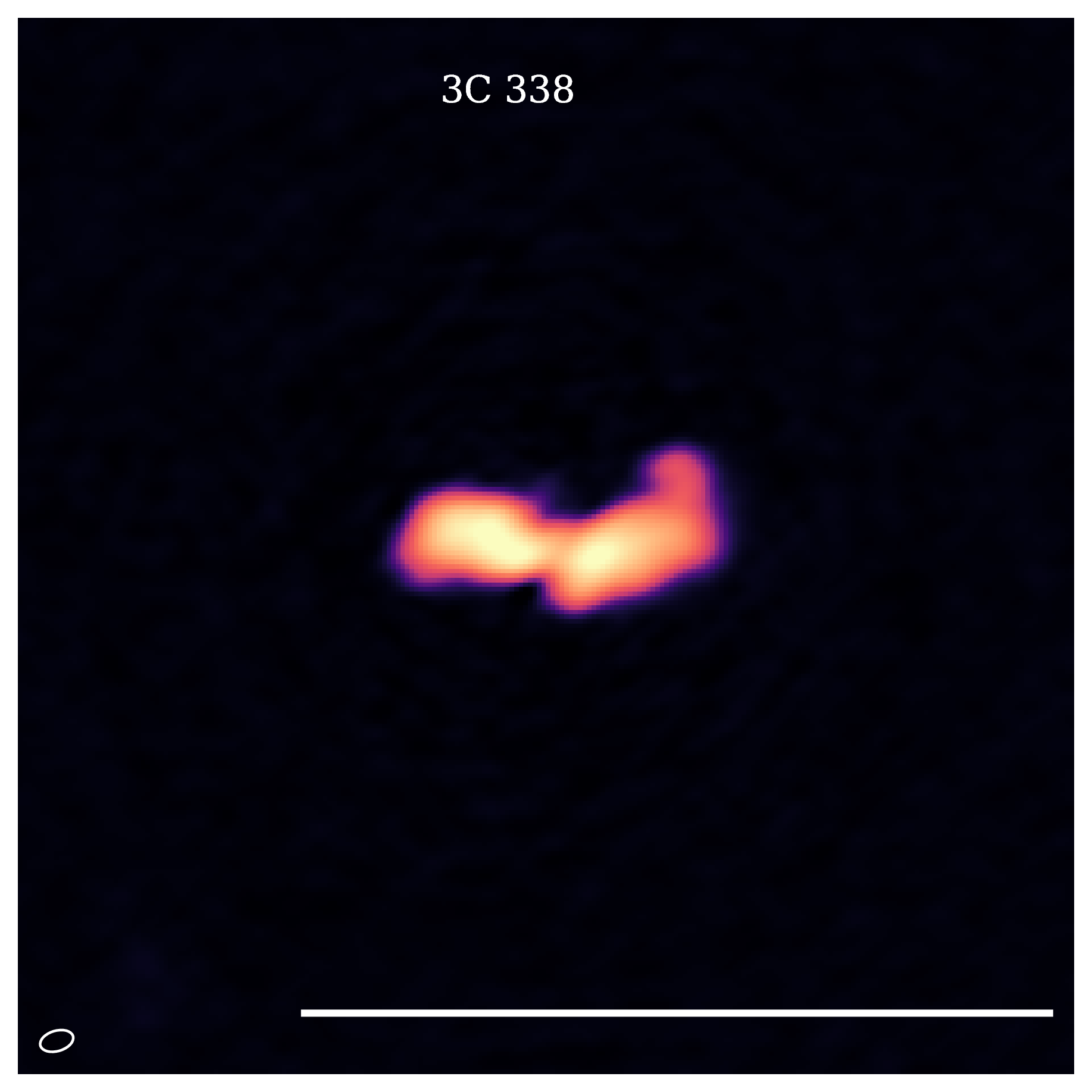

3C338 247.15935 39.55118 0.030354 150.74 15.07 14.9 9.0 6.92

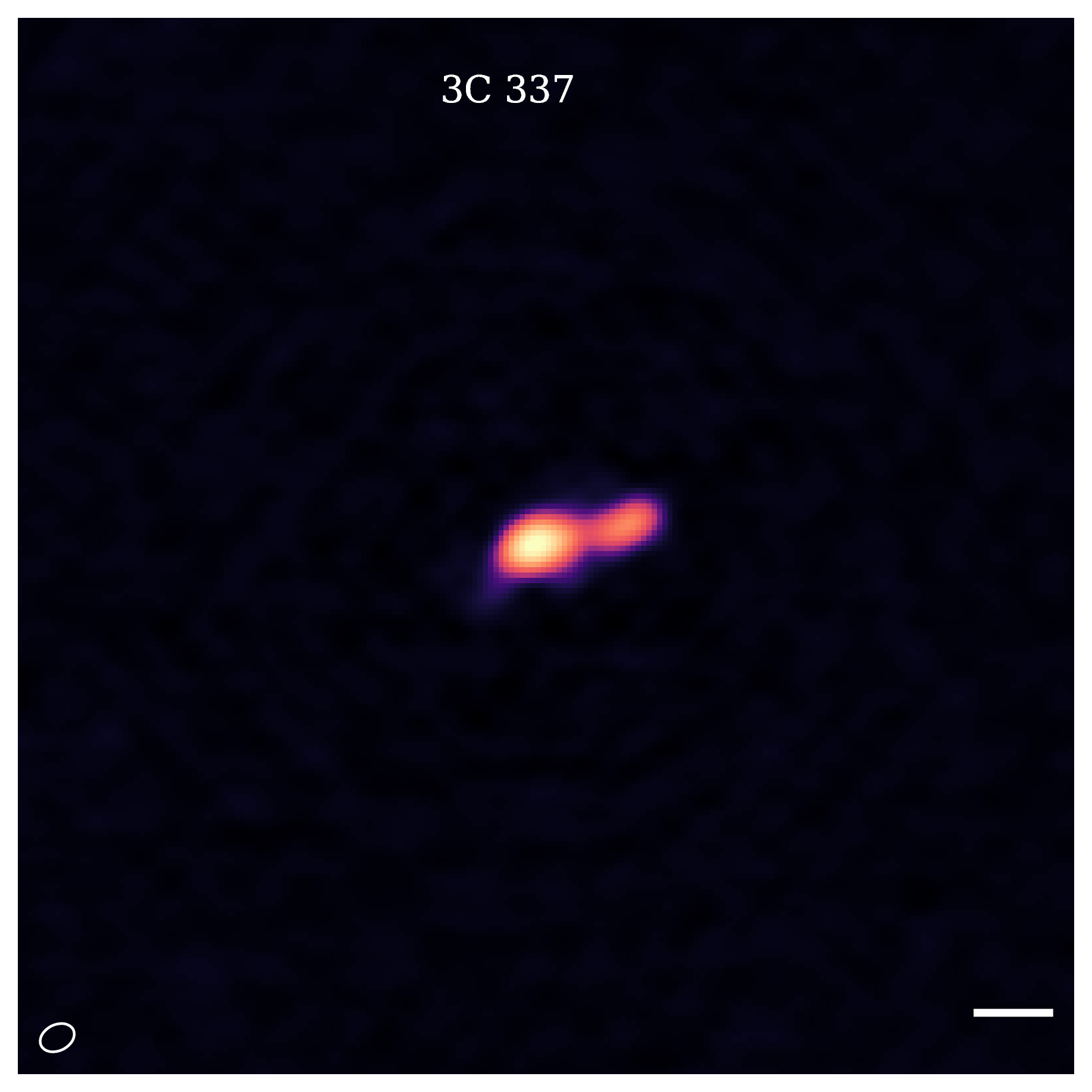

3C337 247.22019 44.31808 0.635 20.47 2.05 13.6 9.8 9.23

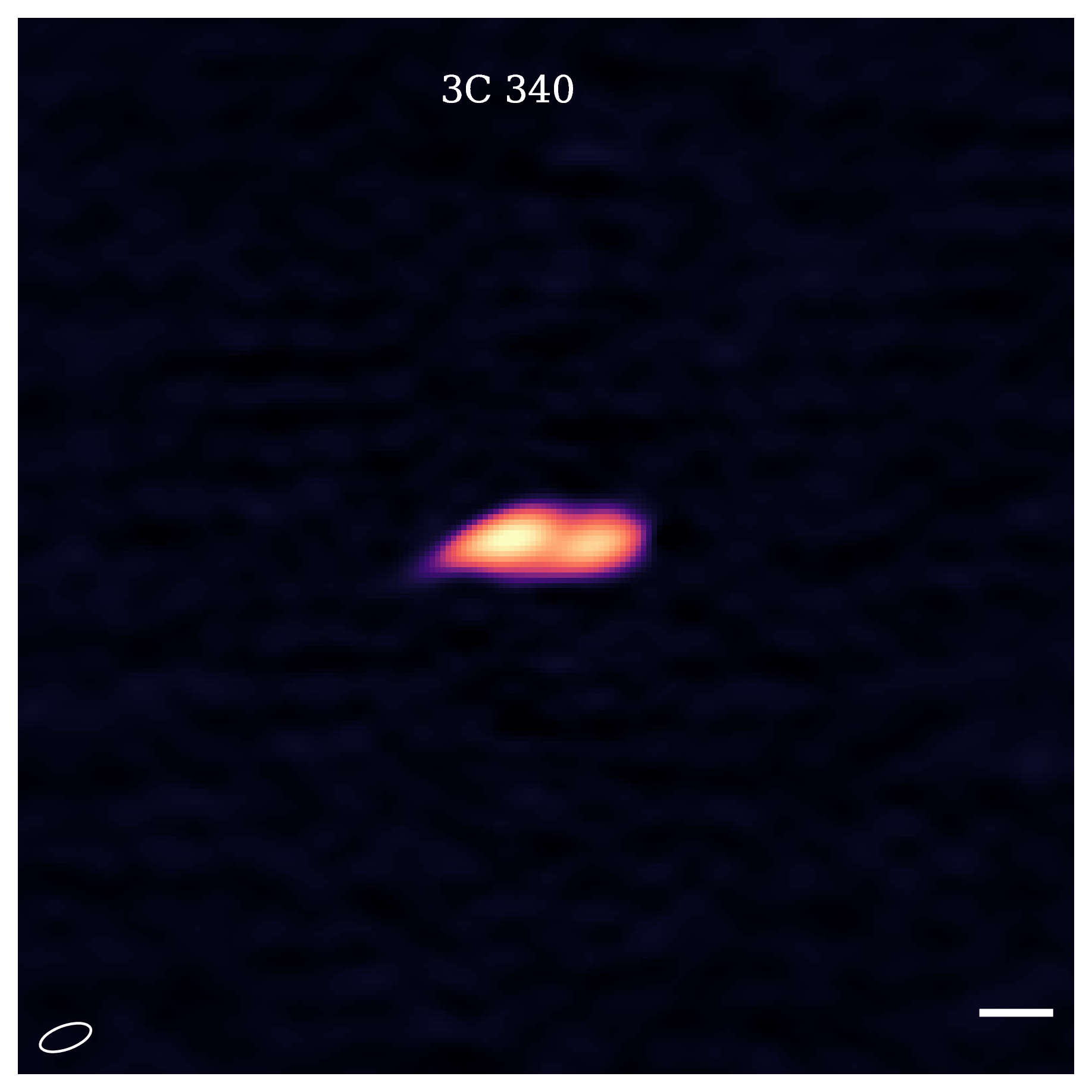

3C340 247.40388 23.33734 0.7754 25.62 2.56 20.2 8.9 12.12

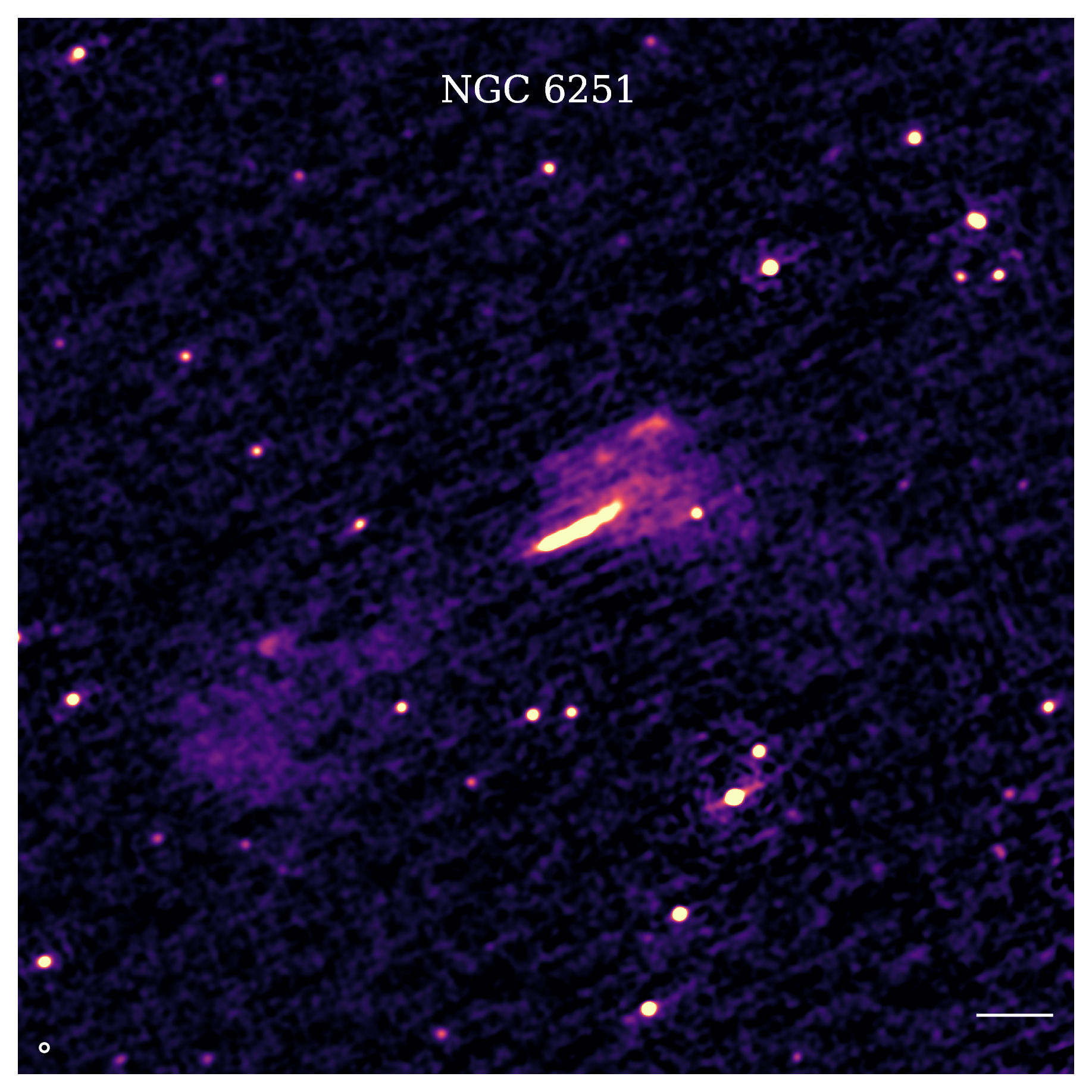

NGC6251 248.13321 82.53789 0.02471 21.12 2.11 45.4 45.4 13.23

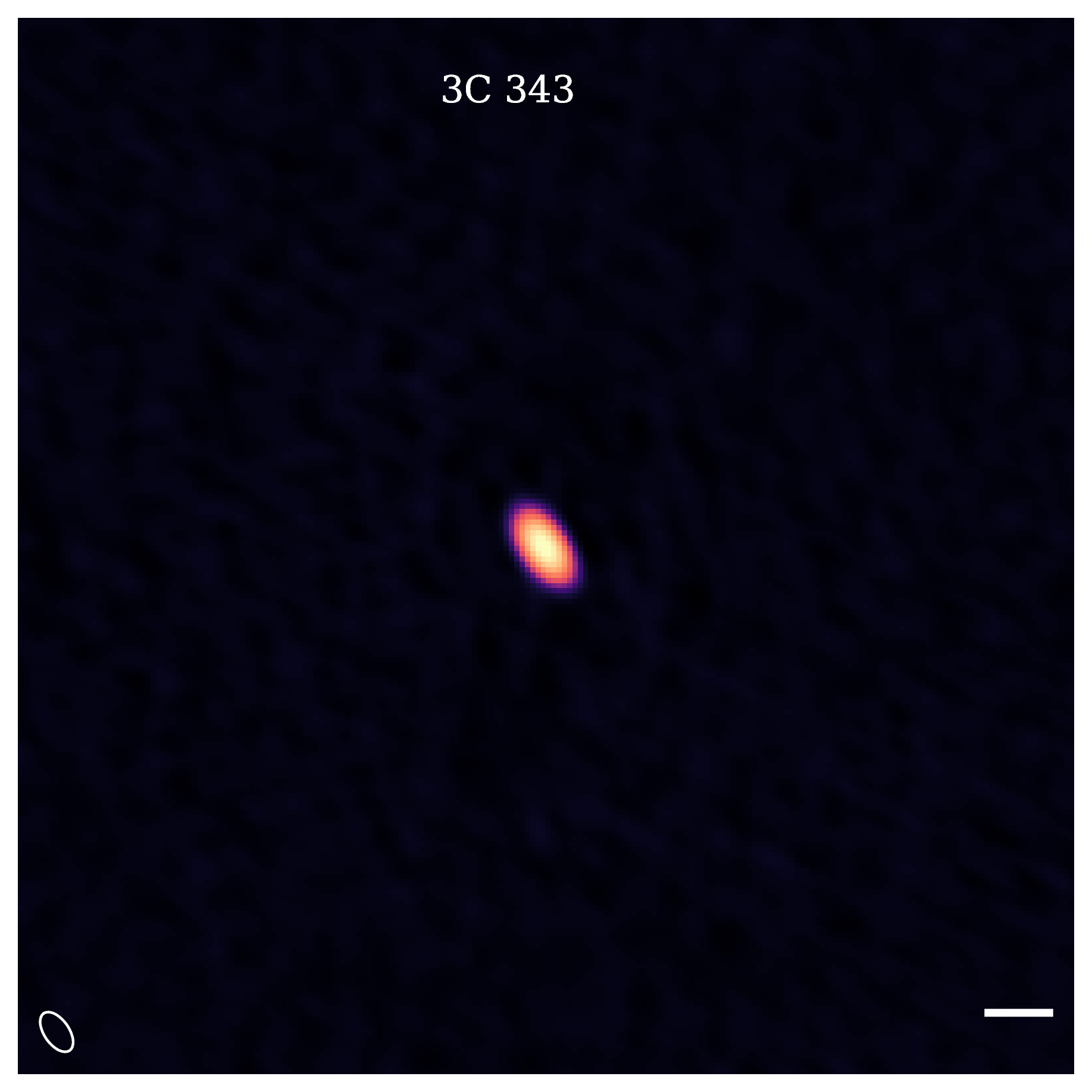

3C343 248.64086 62.75997 0.988 8.71 0.87 17.2 9.4 9.9
3C343.1 249.6176 62.57898 0.75238 8.58 0.86 13.1 9.3 988.89

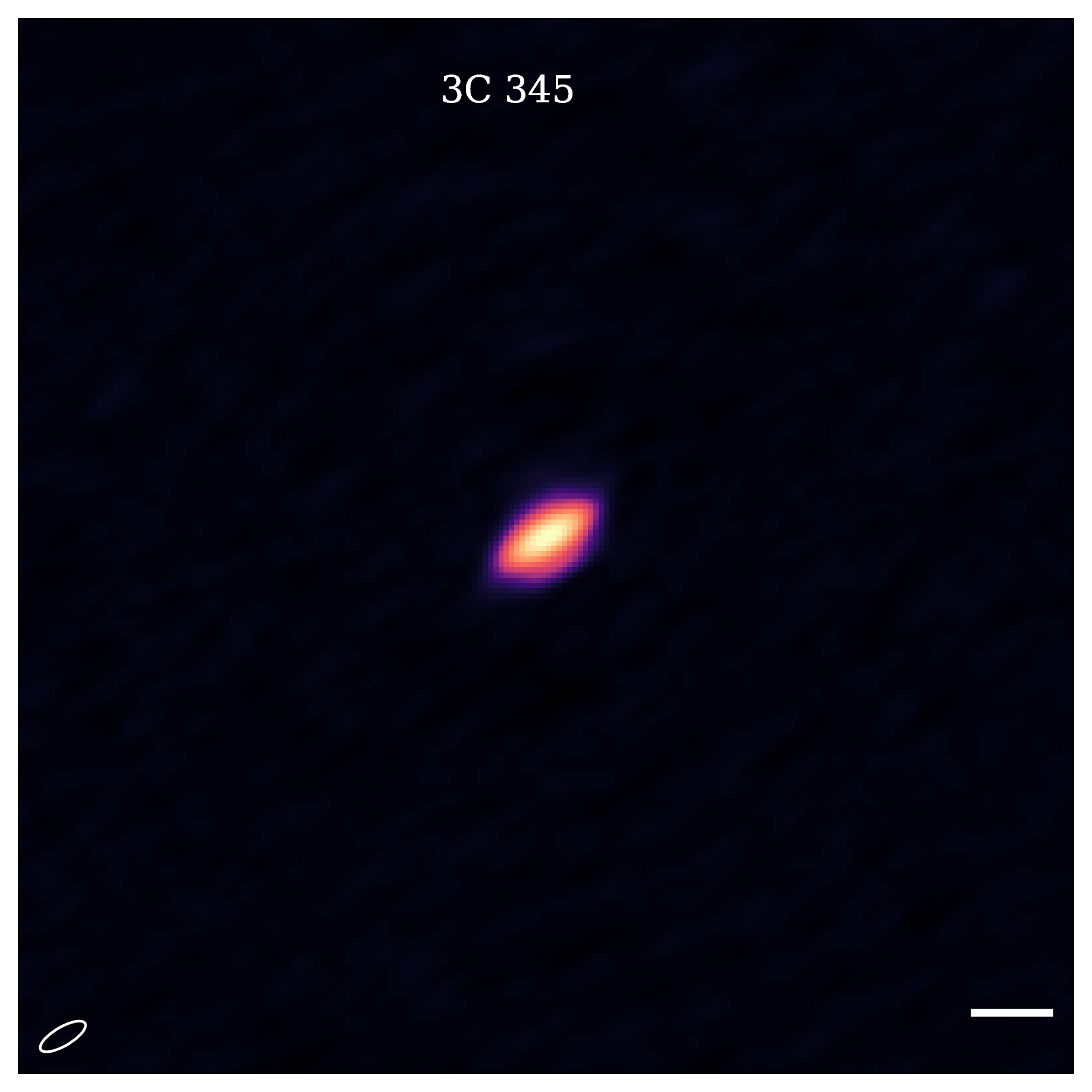

3C345 250.74504 39.81028 0.593415 35.88 3.59 19.5 7.1 9.25

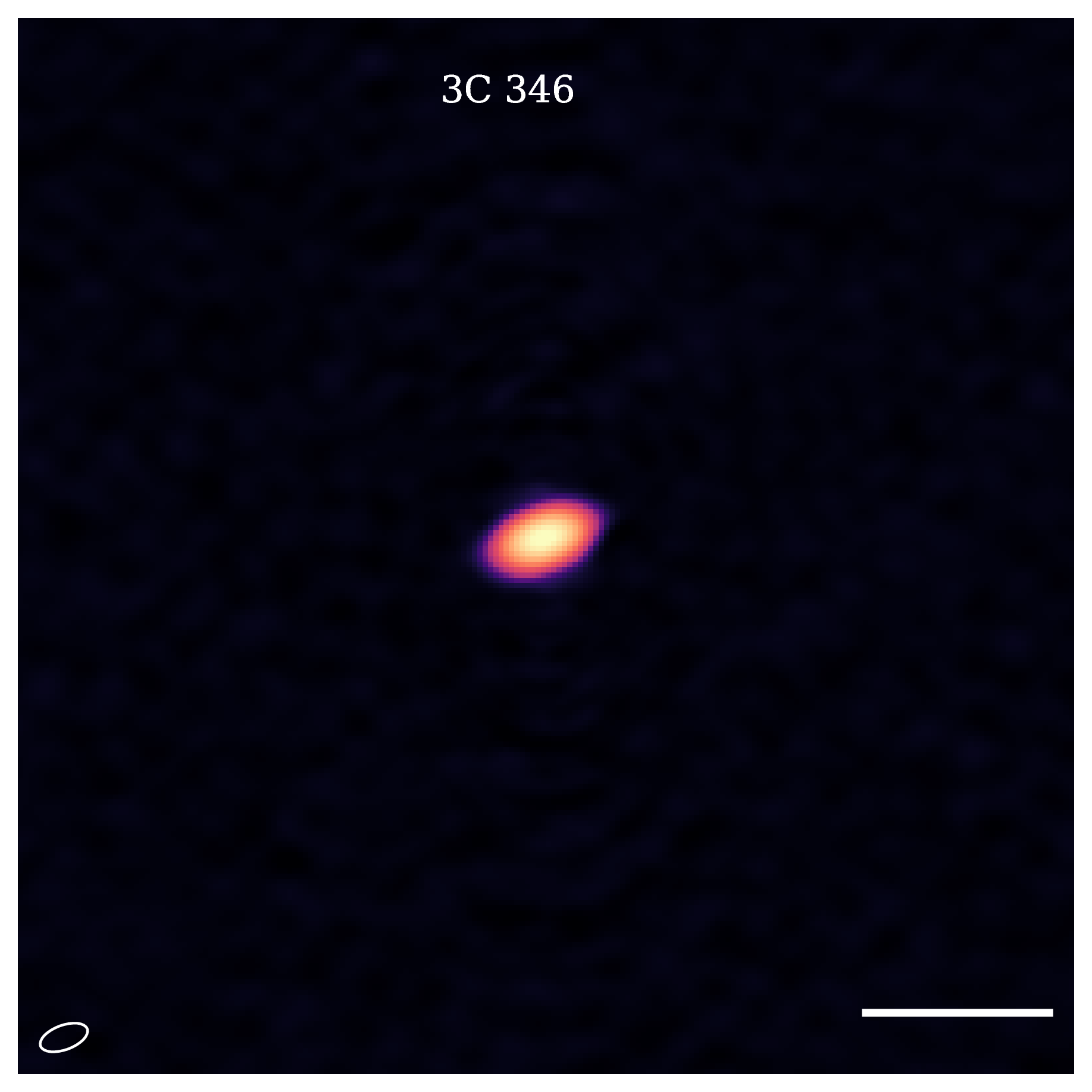

3C346 250.9525 17.26374 0.163025 25.31 2.53 18.8 9.3 10.06

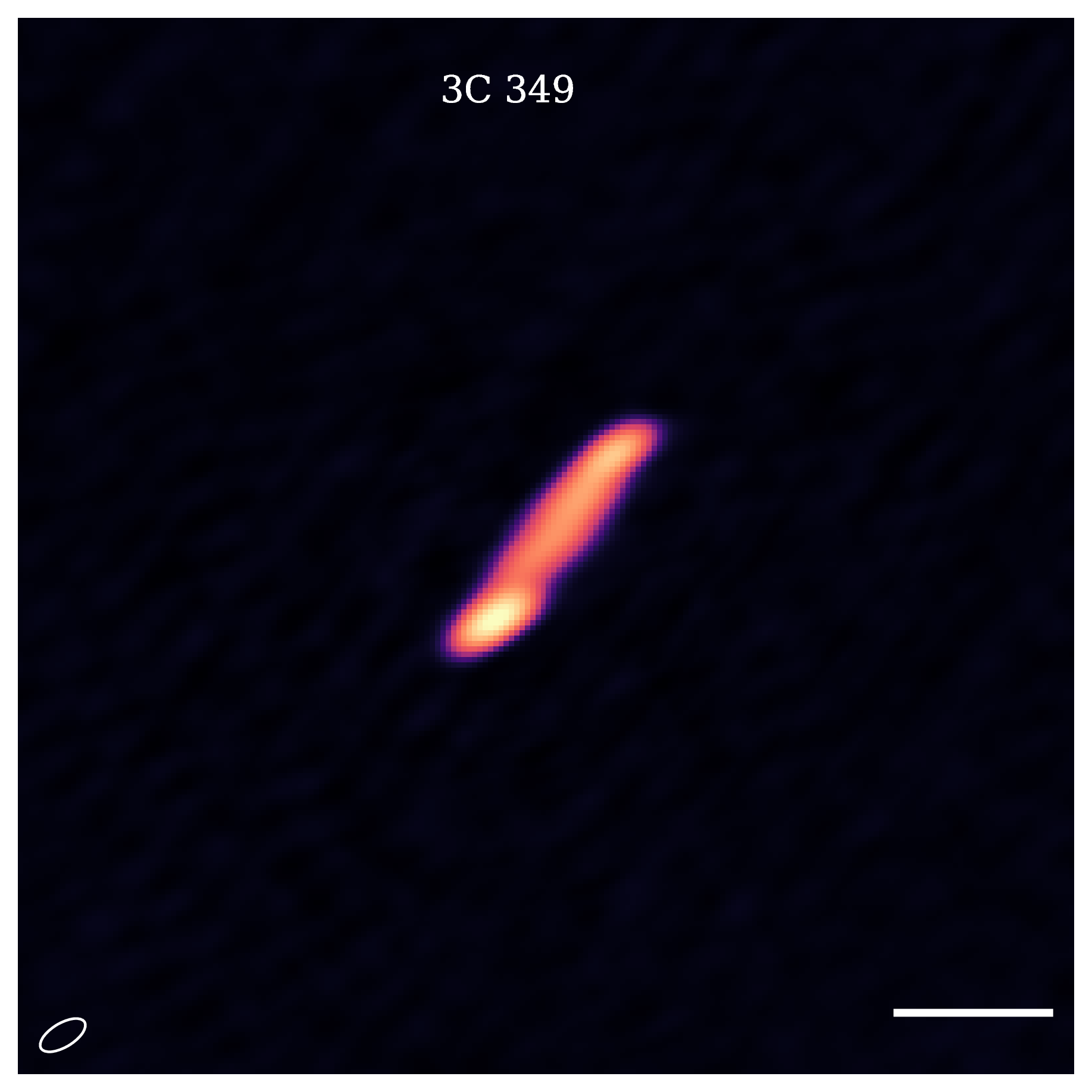

3C349 254.87309 47.04558 0.205 34.57 3.46 19.3 9.0 9.01

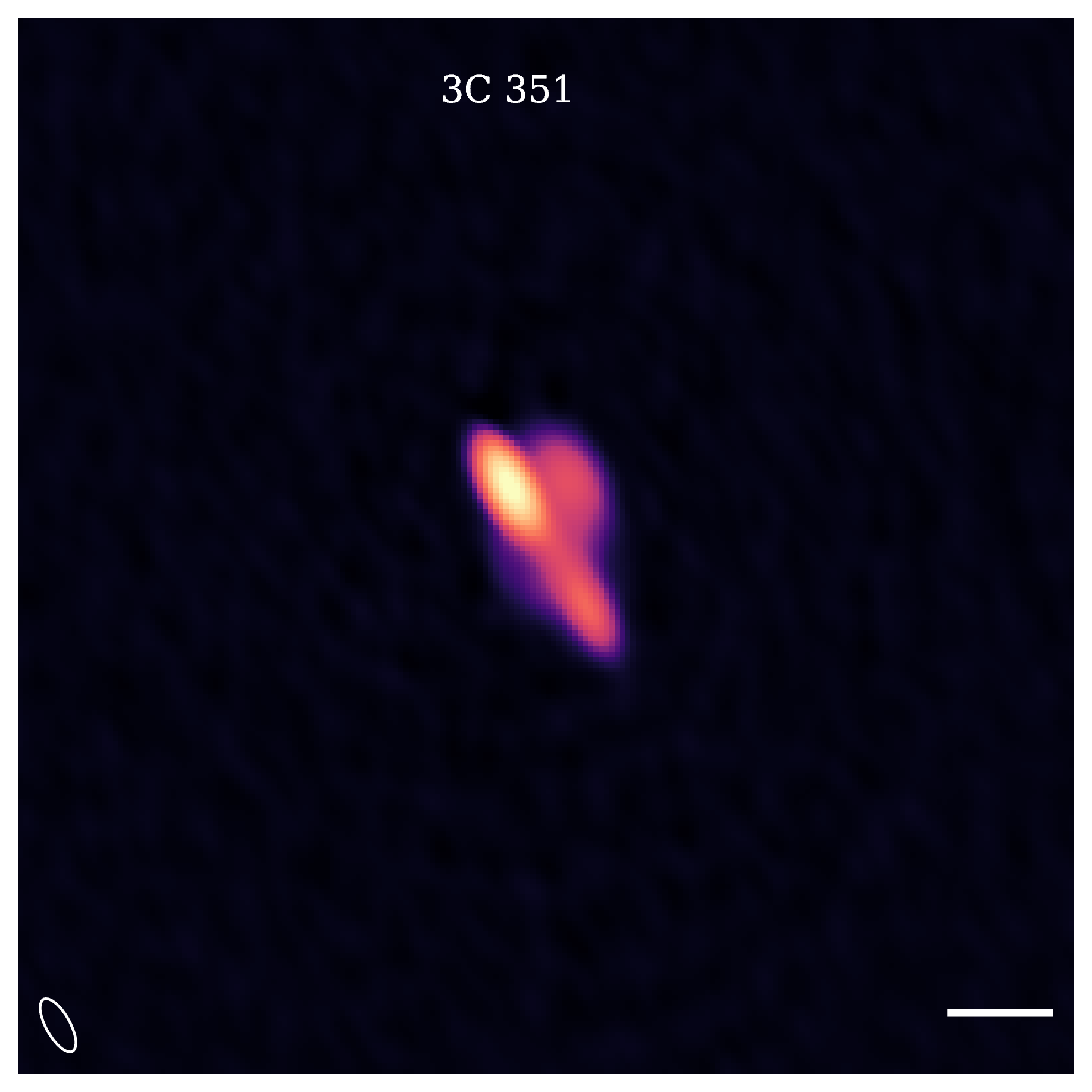

3C351 256.17238 60.74184 0.371523 30.33 3.03 22.5 9.0 12.17

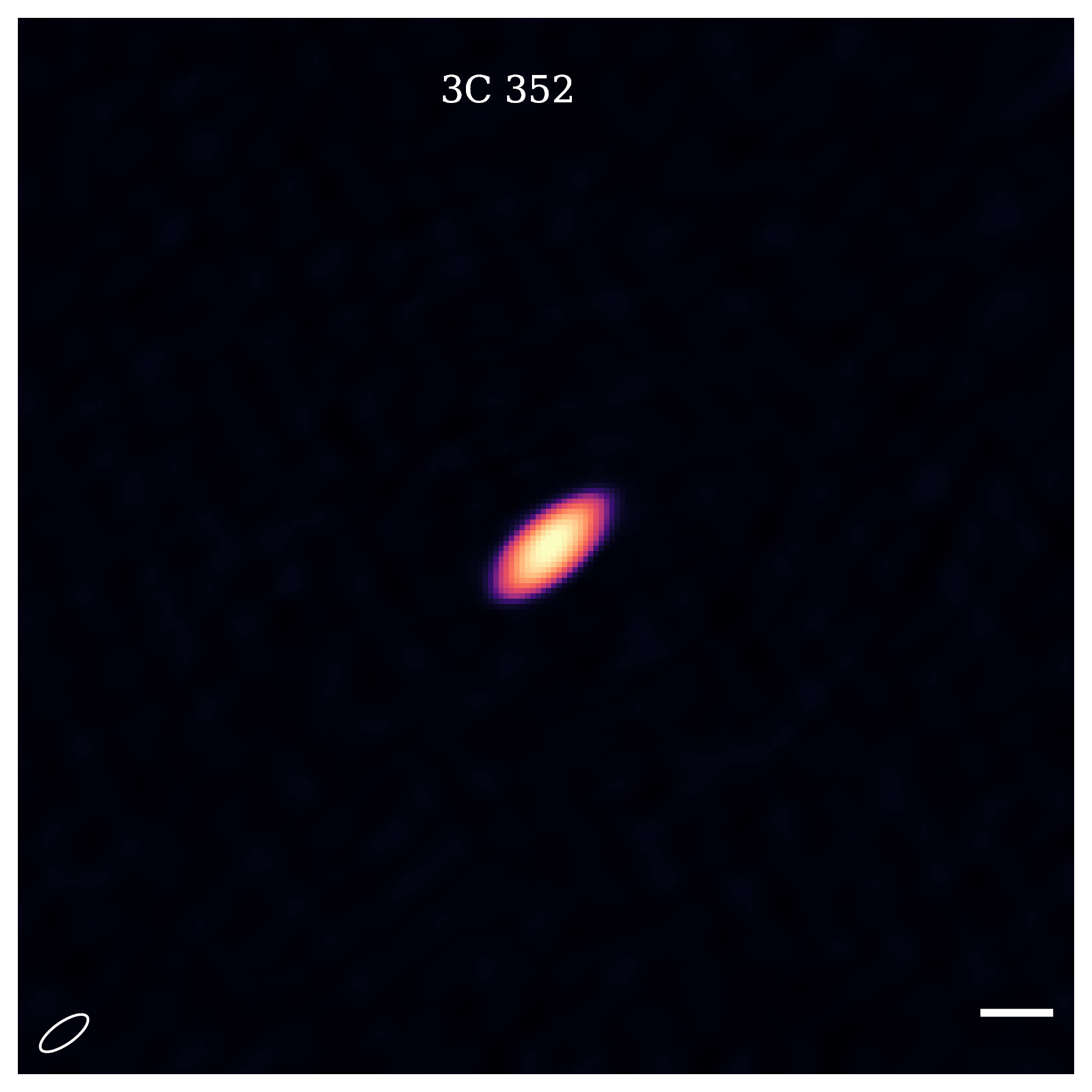

3C352 257.6837 46.02474 0.8067 37.27 3.73 21.4 8.3 7.93
3C356 261.07934 50.96115 1.079 37.33 3.73 10.9 8.5 11.57

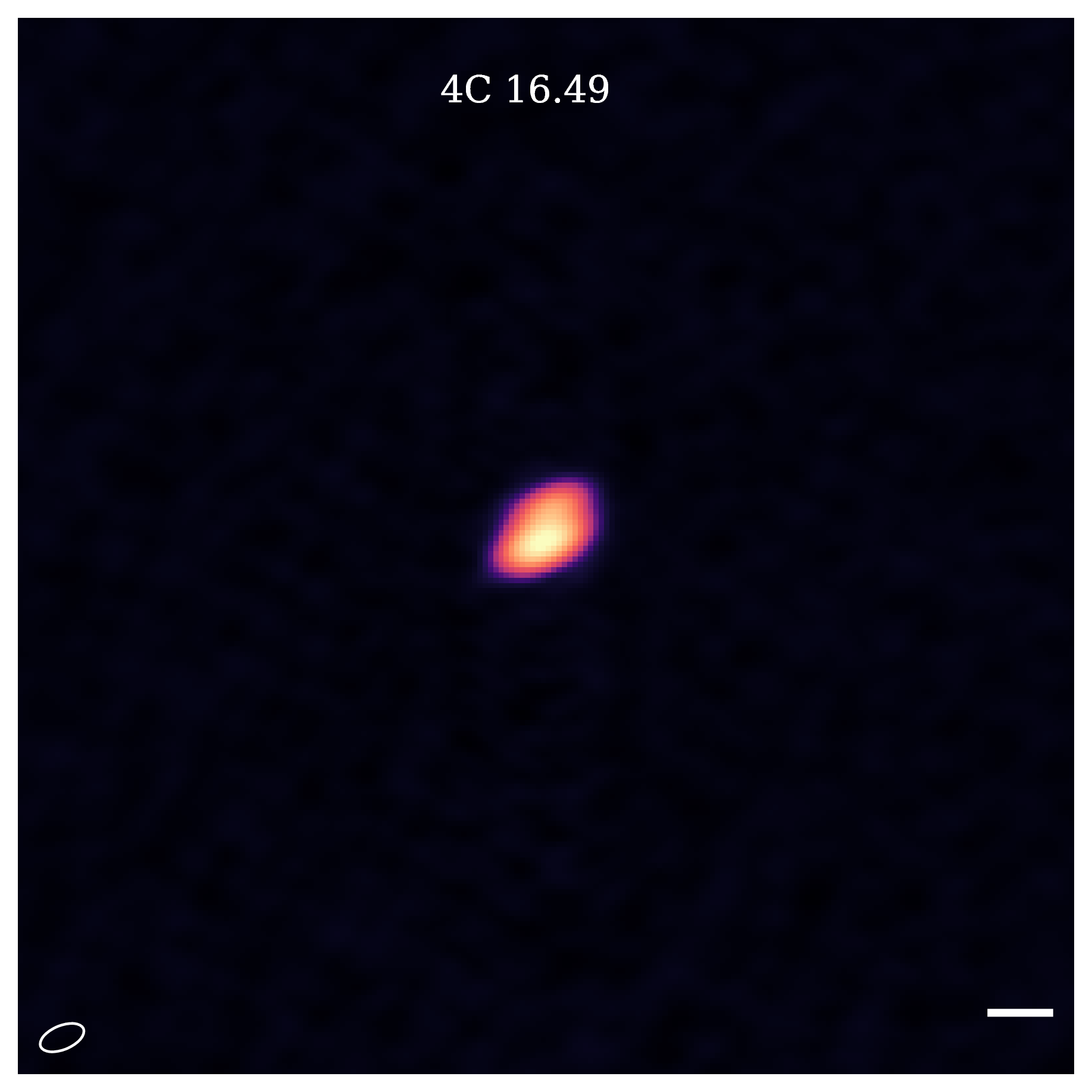

4C16.49 263.67751 16.00892 1.88 29.45 2.94 17.5 9.1 10.44

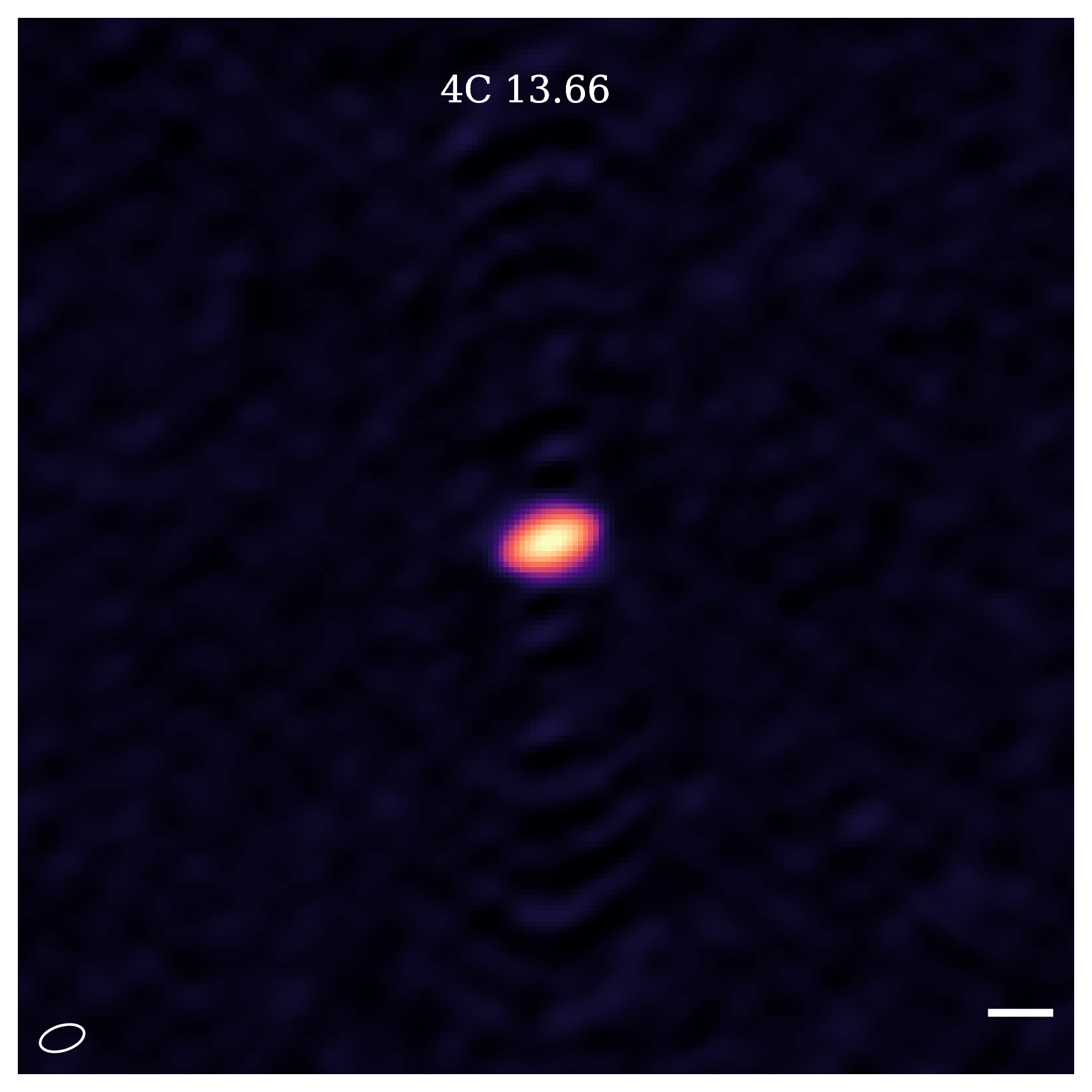

4C13.66 270.41232 13.85663 1.45 16.86 1.69 17.2 9.4 15.74
3C368 271.27663 11.02576 1.131 51.83 5.18 16.8 9.8 11.97

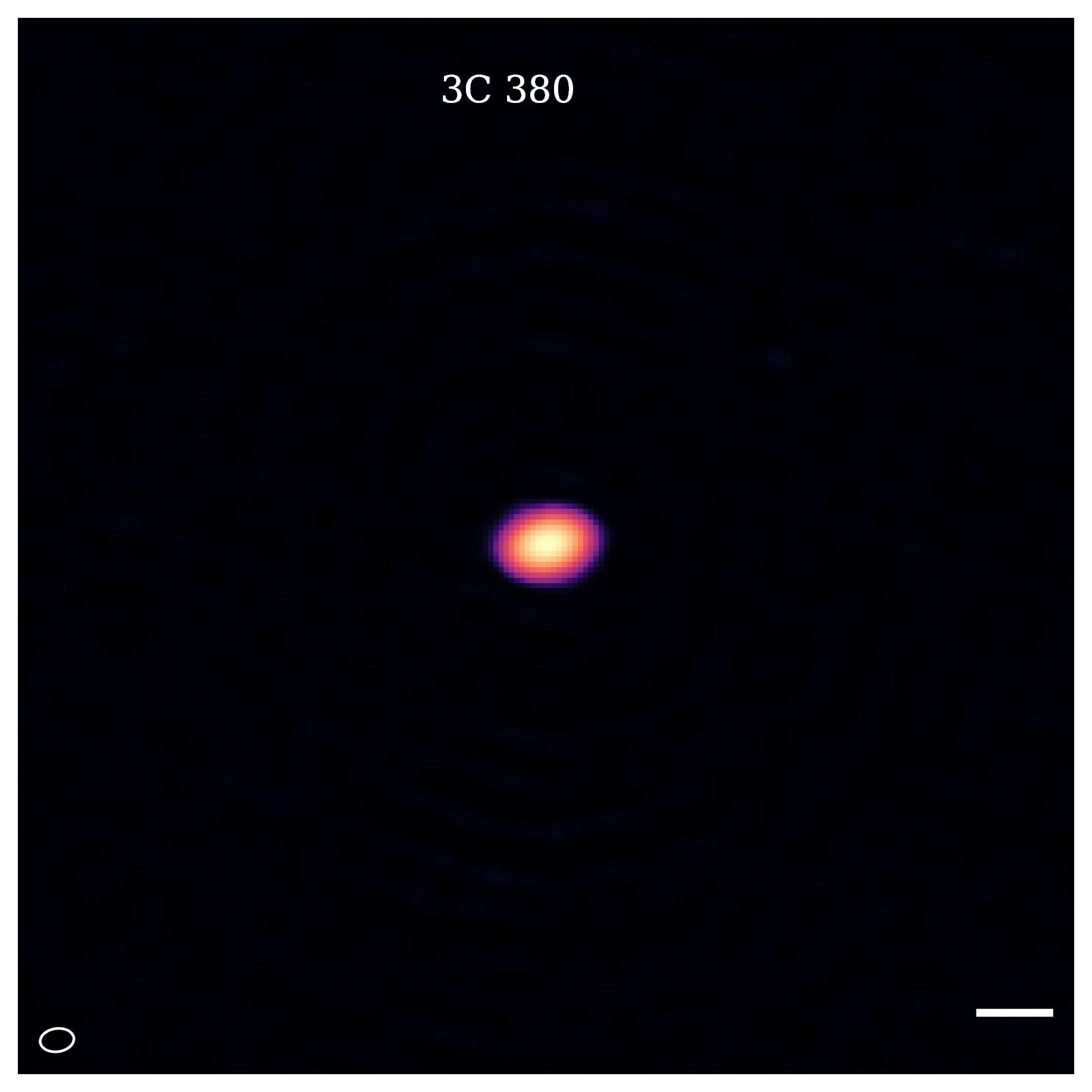

3C380 277.38242 48.74616 0.6919 163.37 16.34 12.8 8.8 4.86
3C381 278.44293 47.45073 0.1674 115.68 11.57 11.0 8.9 16.42

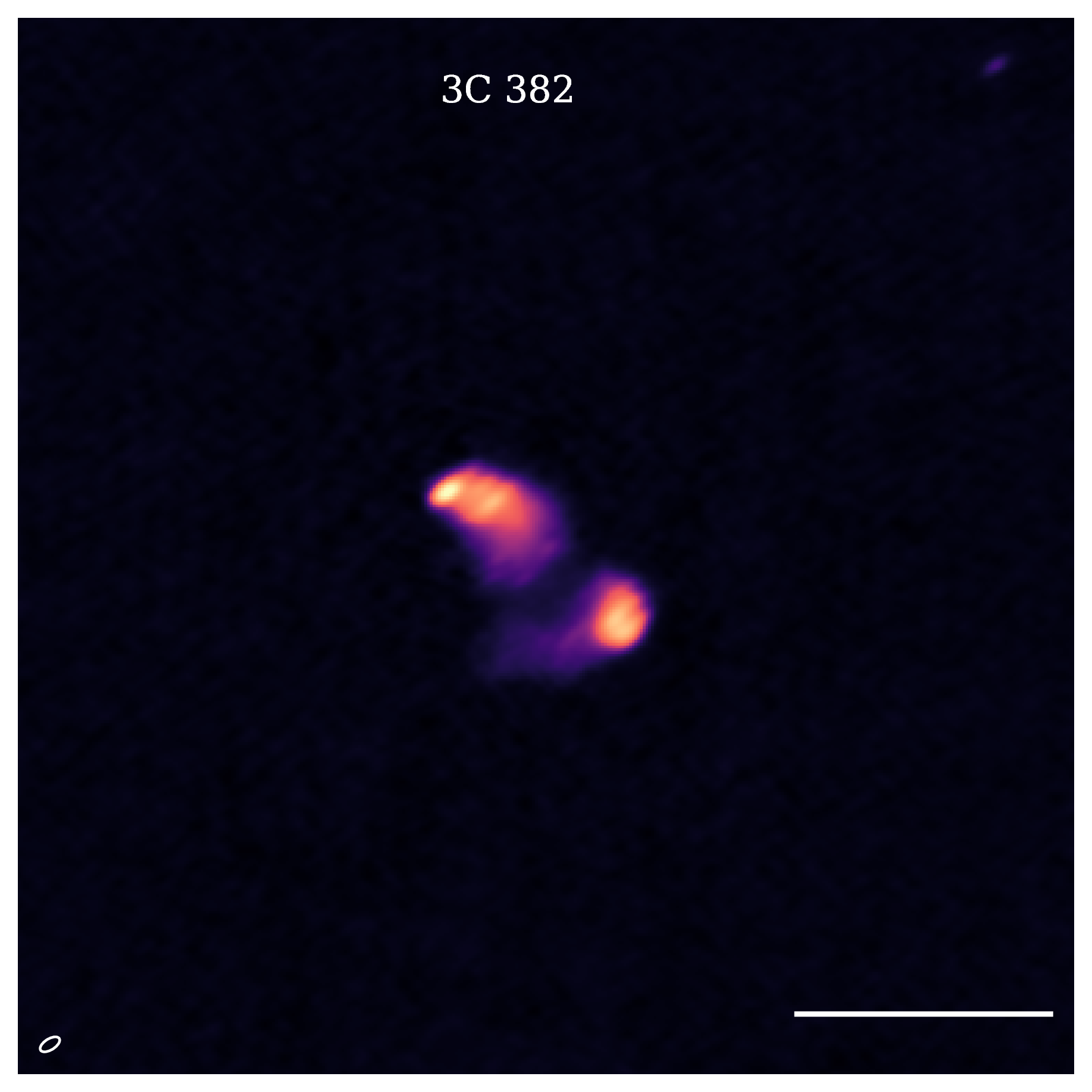

3C382 278.76412 32.69635 0.055565 62.76 6.28 15.9 8.0 9.77

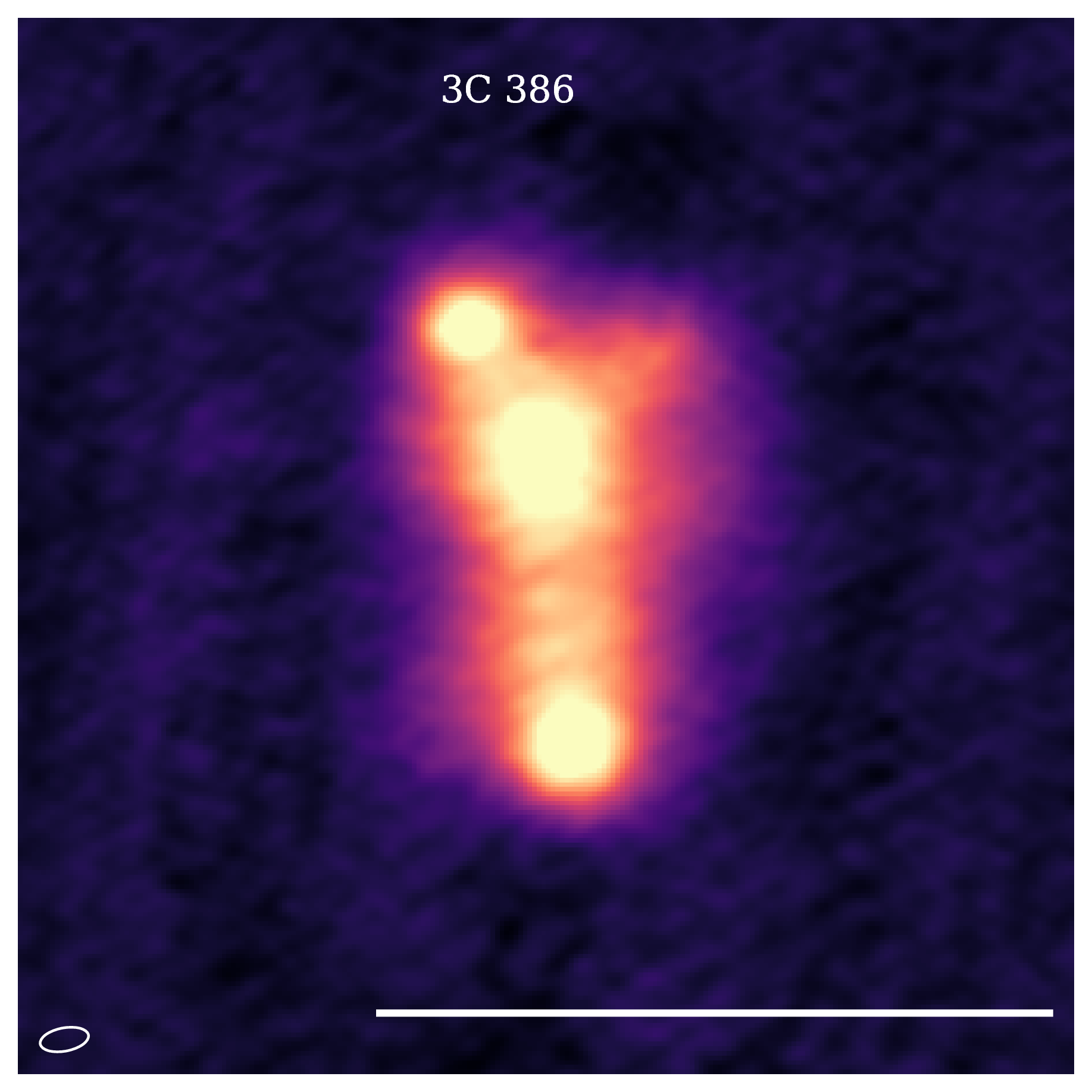

3C386 279.60938 17.1972 0.016885 61.7 6.17 21.2 10.0 15.2

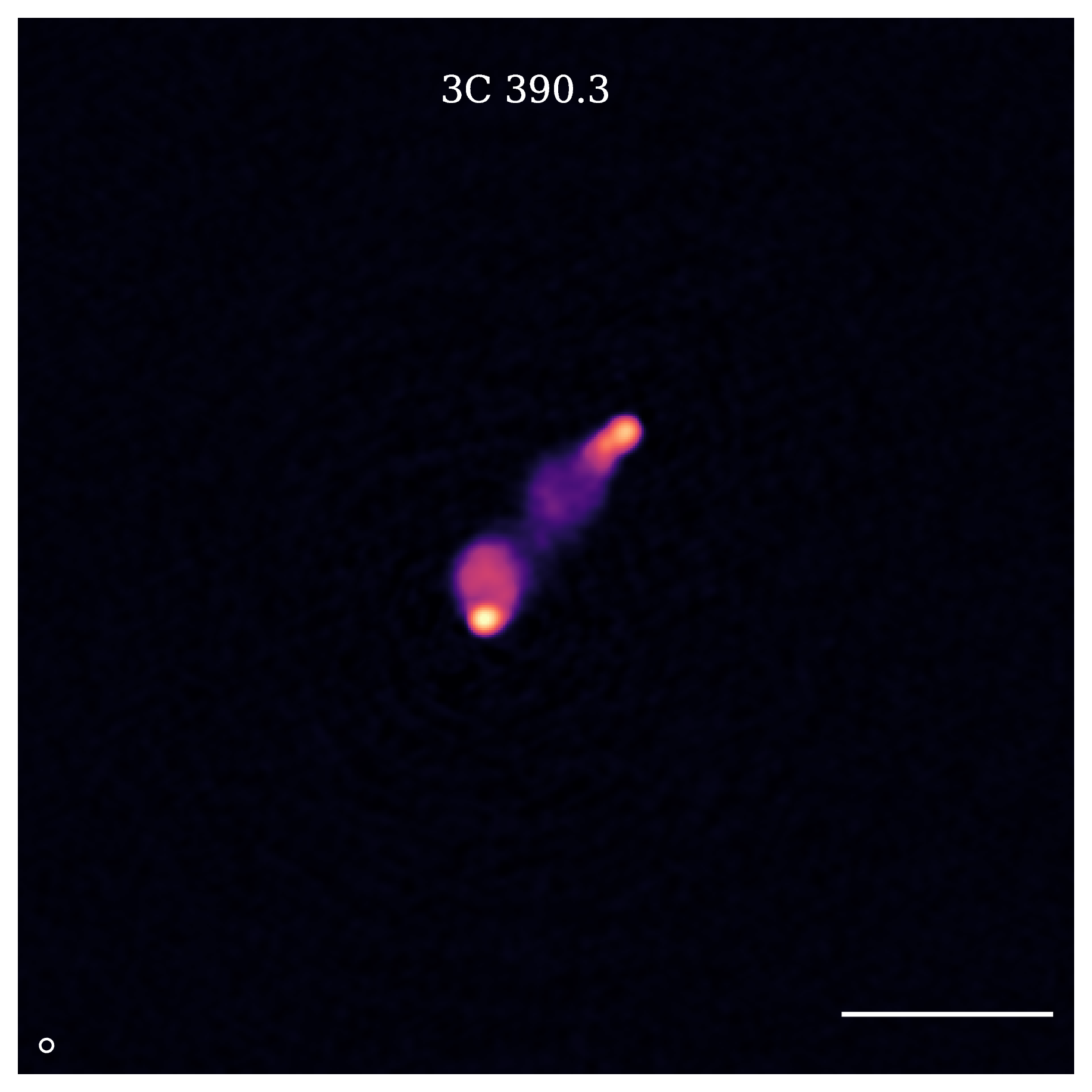

3C390.3 280.53746 79.77142 0.056135 118.85 11.88 11.3 11.2 8.9

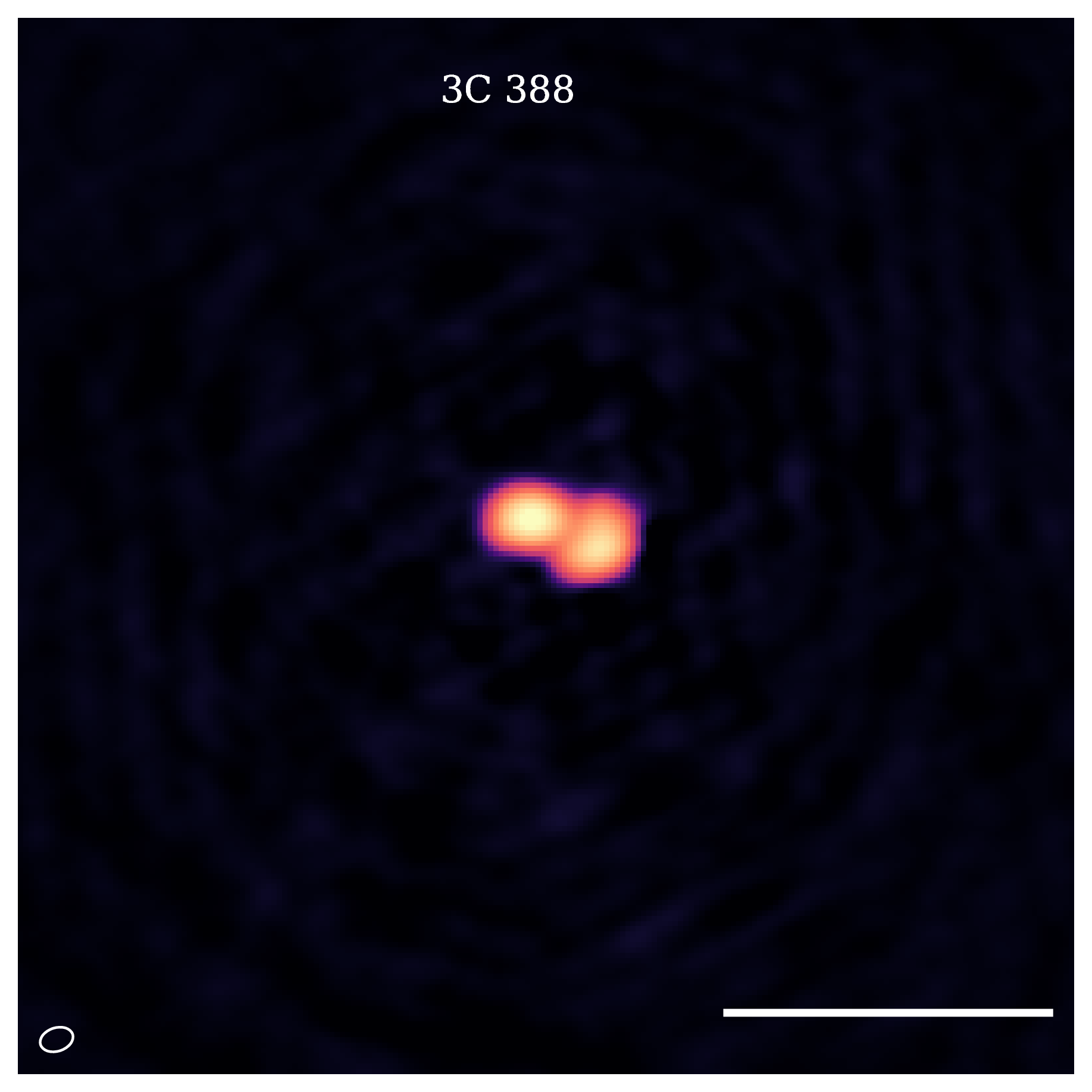

3C388 281.00984 45.55818 0.08612 57.62 5.76 12.8 8.9 8.92
3C401 295.10466 60.69304 0.2011 40.89 4.09 11.3 10.8 8.23
3C427.1 316.02953 76.55291 0.572 73.48 7.35 12.2 11.4 7.74

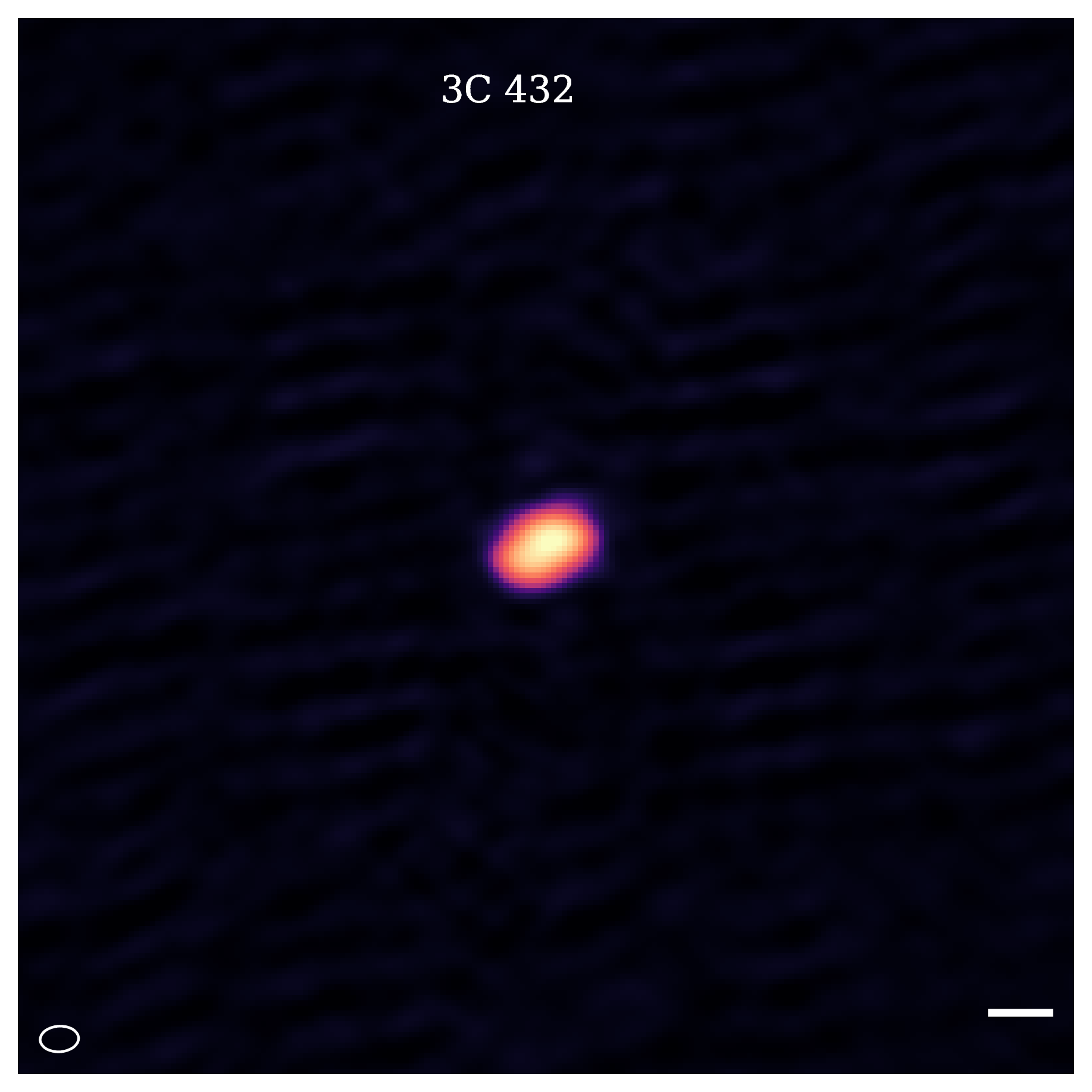

3C432 320.693 17.07722 1.785 32.68 3.27 14.6 9.7 10.64

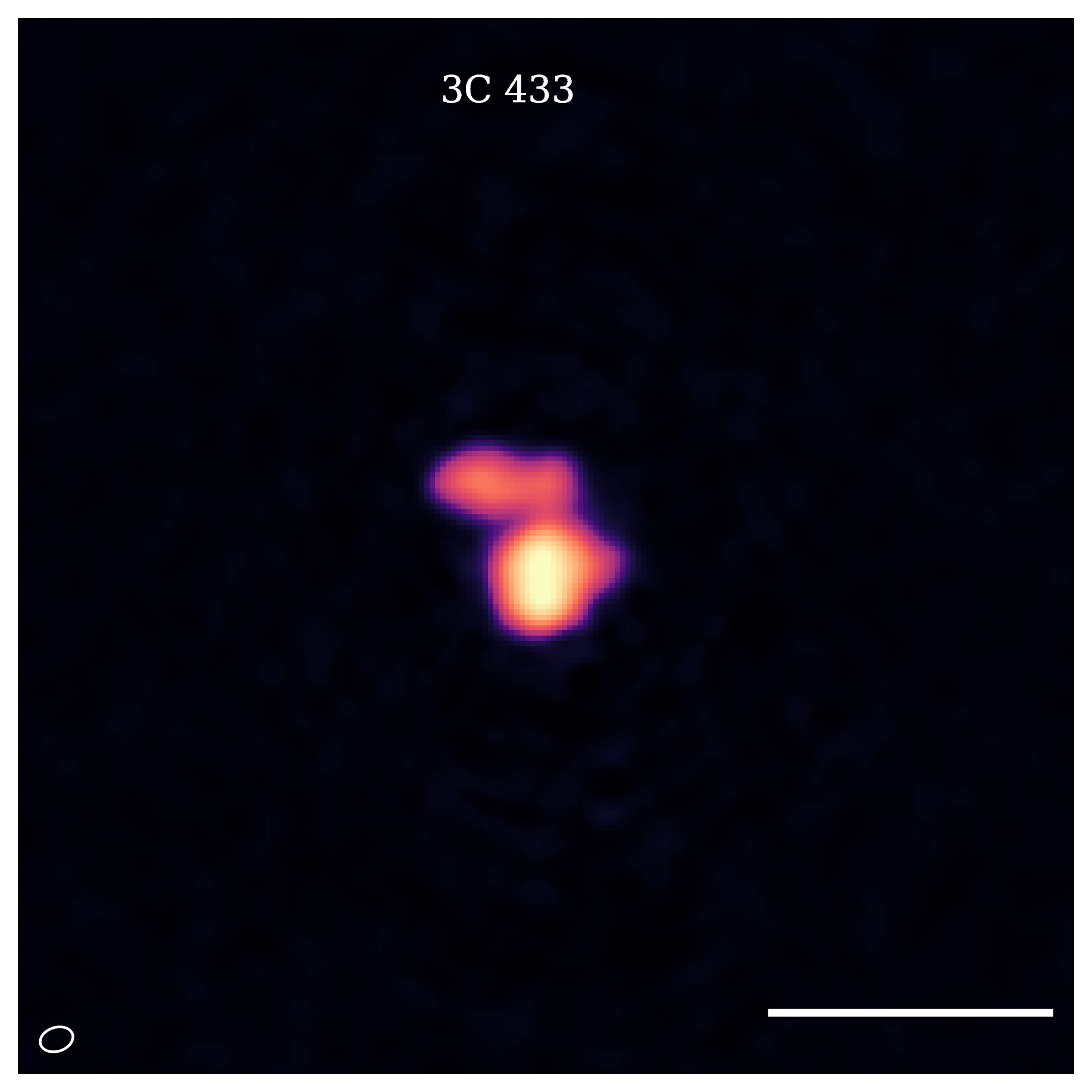

3C433 320.93556 25.06997 0.1016 140.91 14.09 12.7 9.1 8.66
3C436 326.04887 28.17197 0.214594 52.82 5.28 13.2 10.2 8.89

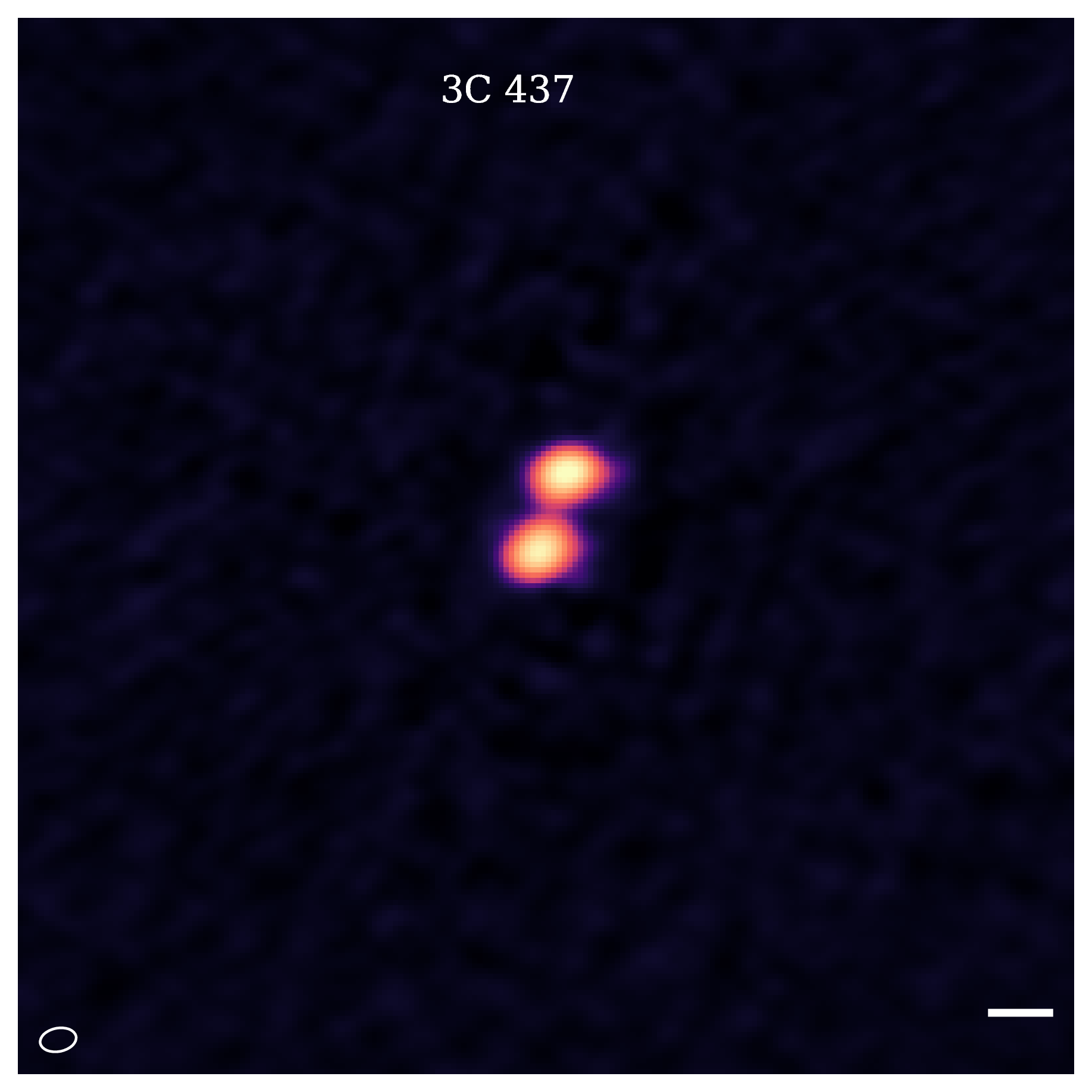

3C437 326.85461 15.34375 1.48 29.33 2.93 13.8 8.9 14.39
3C438 328.96788 38.00823 0.29191 111.66 11.17 13.8 9.3 8.33

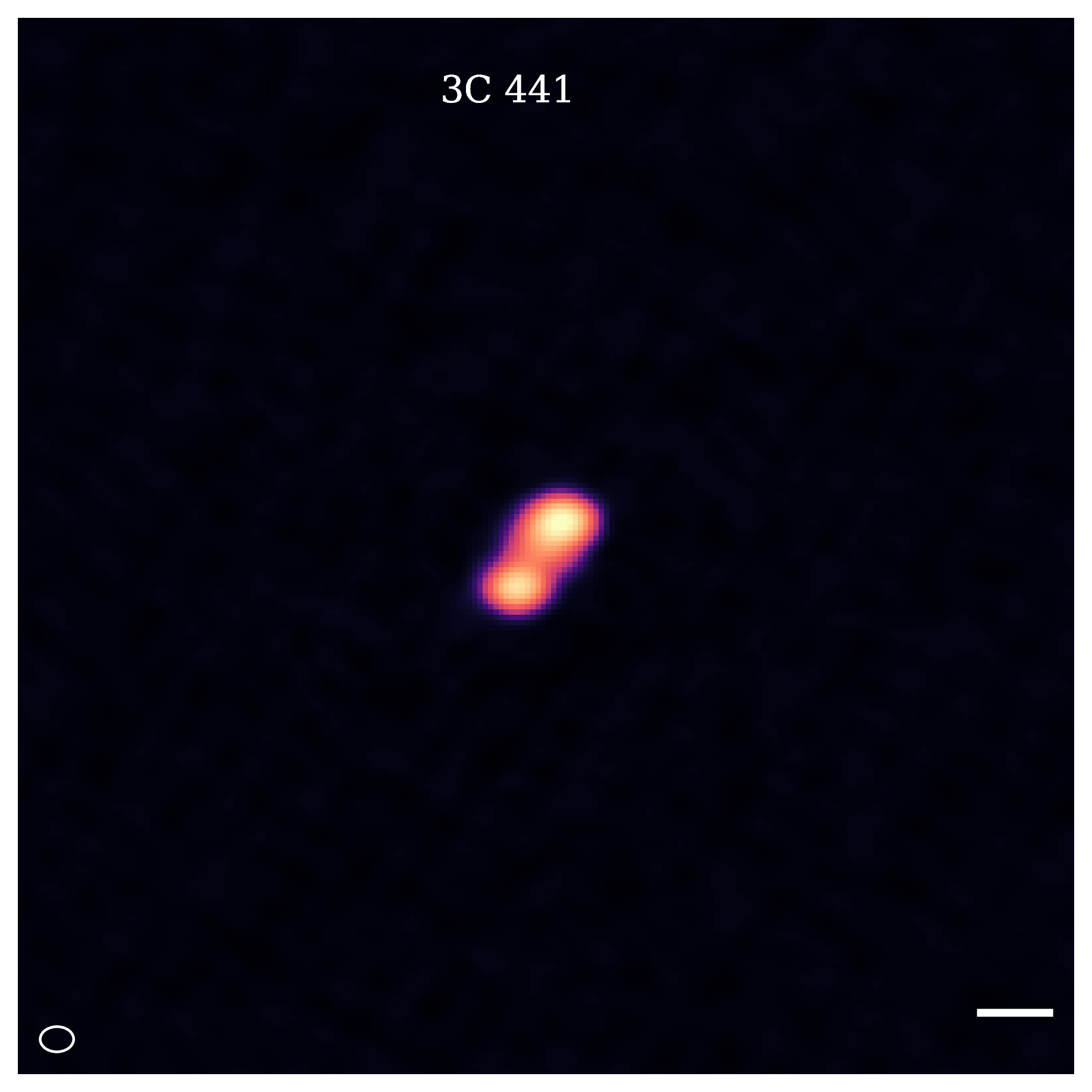

3C441 331.5206 29.48954 0.708 35.01 3.5 12.7 9.5 8.37
3C442A 333.70695 13.84476 0.0263 57.77 5.78 15.7 11.1 13.41

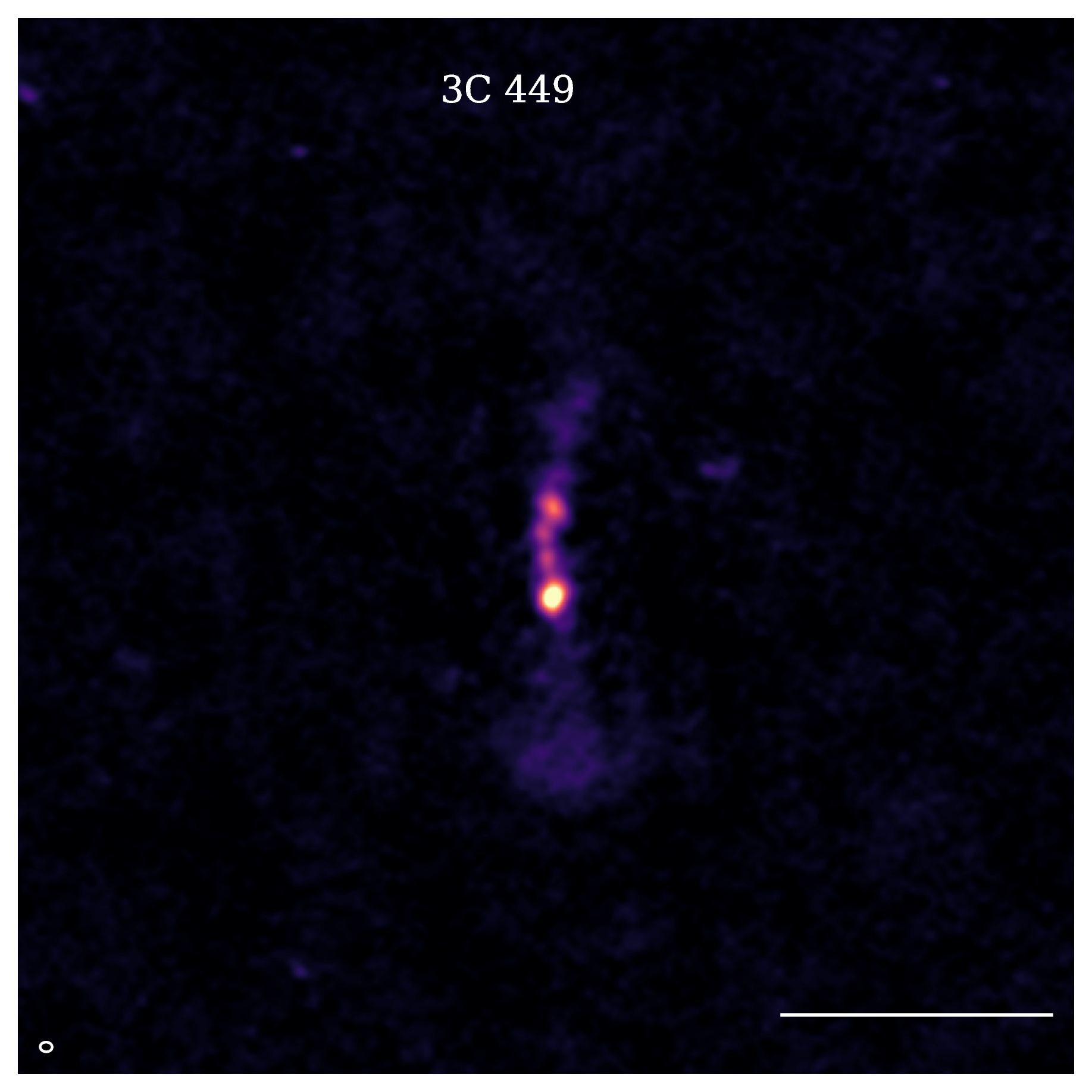

3C449 337.83813 39.36256 0.017132 38.52 3.85 25.5 20.7 13.98
3C452 341.45301 39.68776 0.083838 157.74 15.77 13.3 9.5 8.62

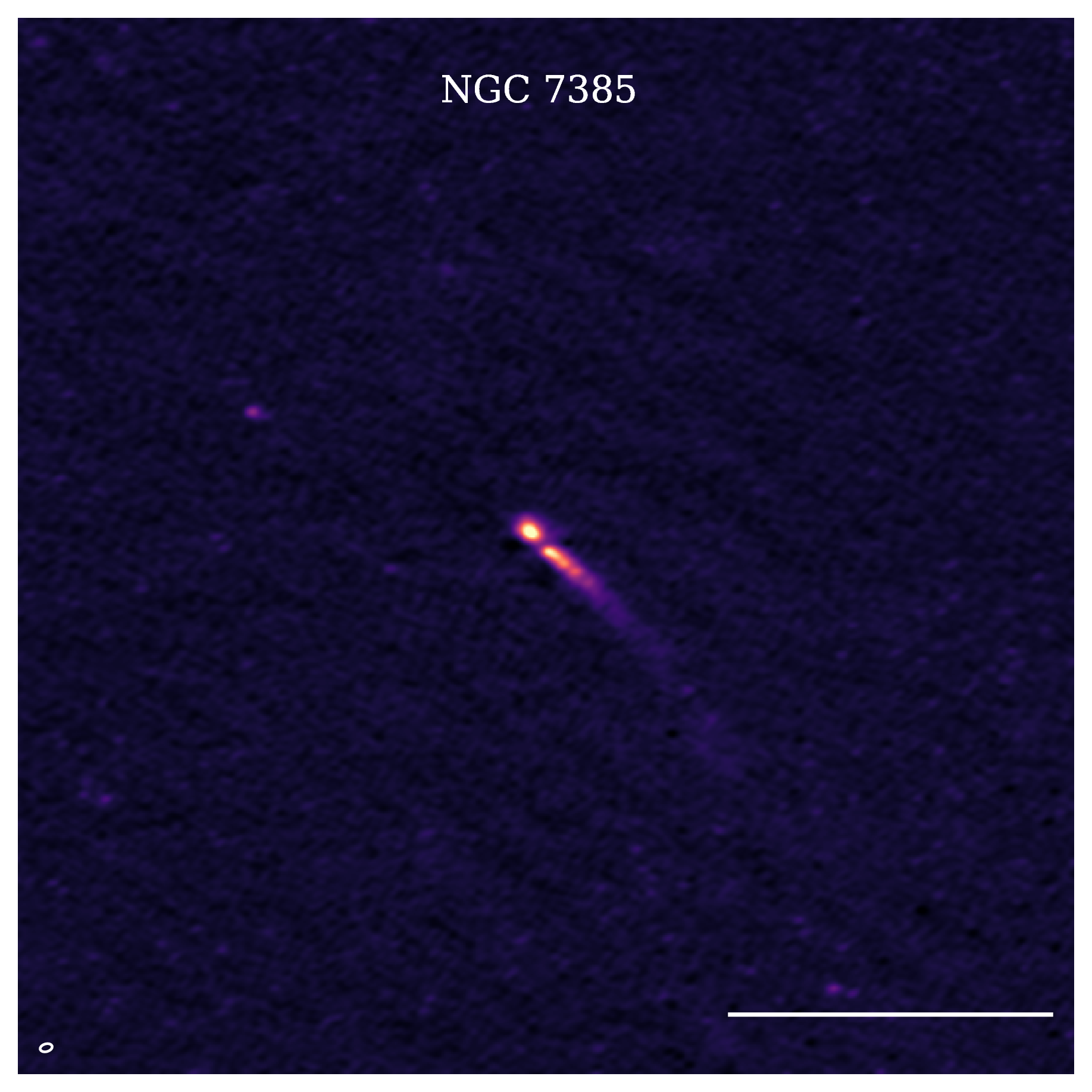

NGC7385 342.47744 11.60857 0.026175 29.15 2.92 14.5 9.1 12.83

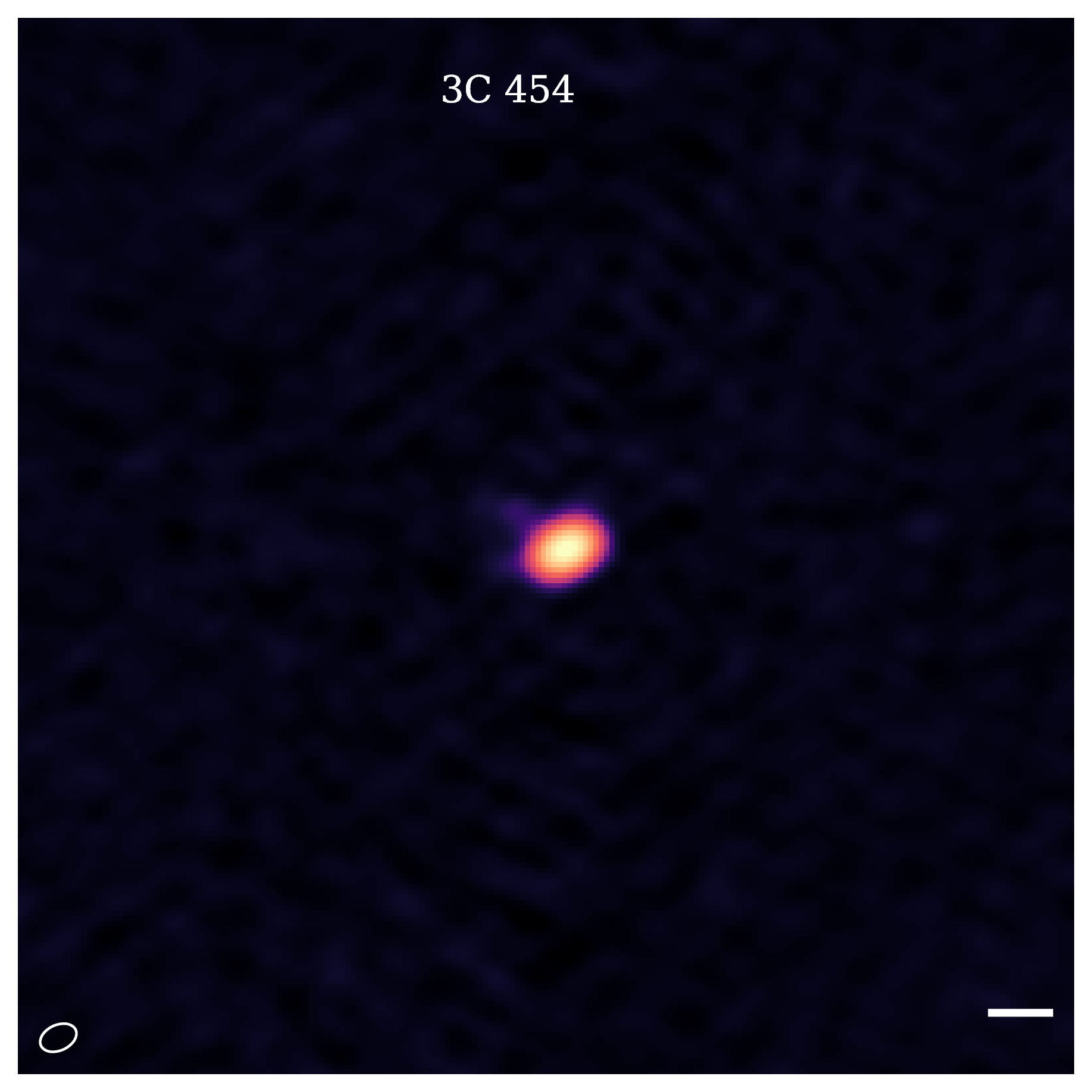

3C454 342.89475 18.81115 1.762773 23.86 2.39 14.5 9.7 14.82

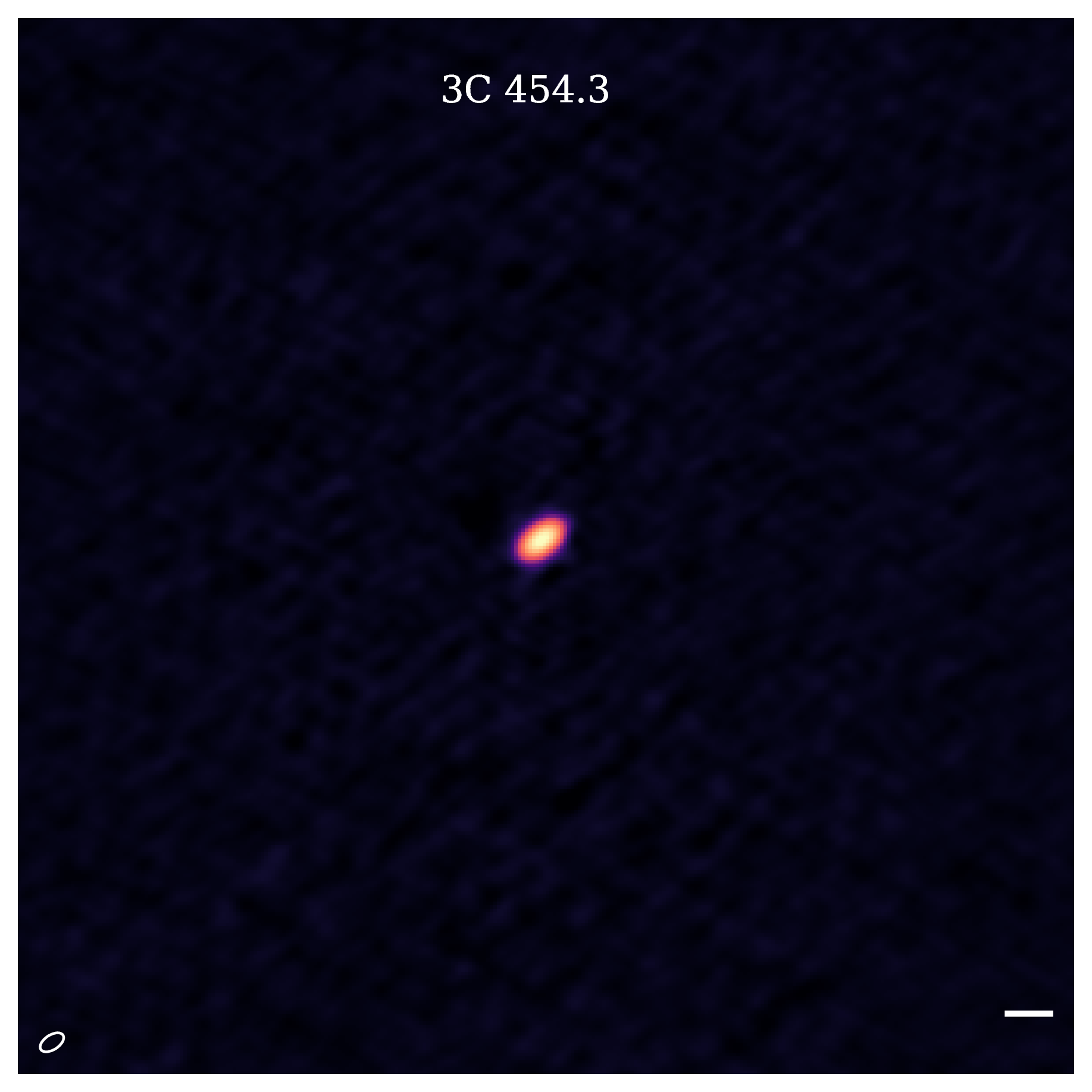

3C454.3 343.49062 16.14821 0.859 21.84 2.18 15.0 8.4 13.05

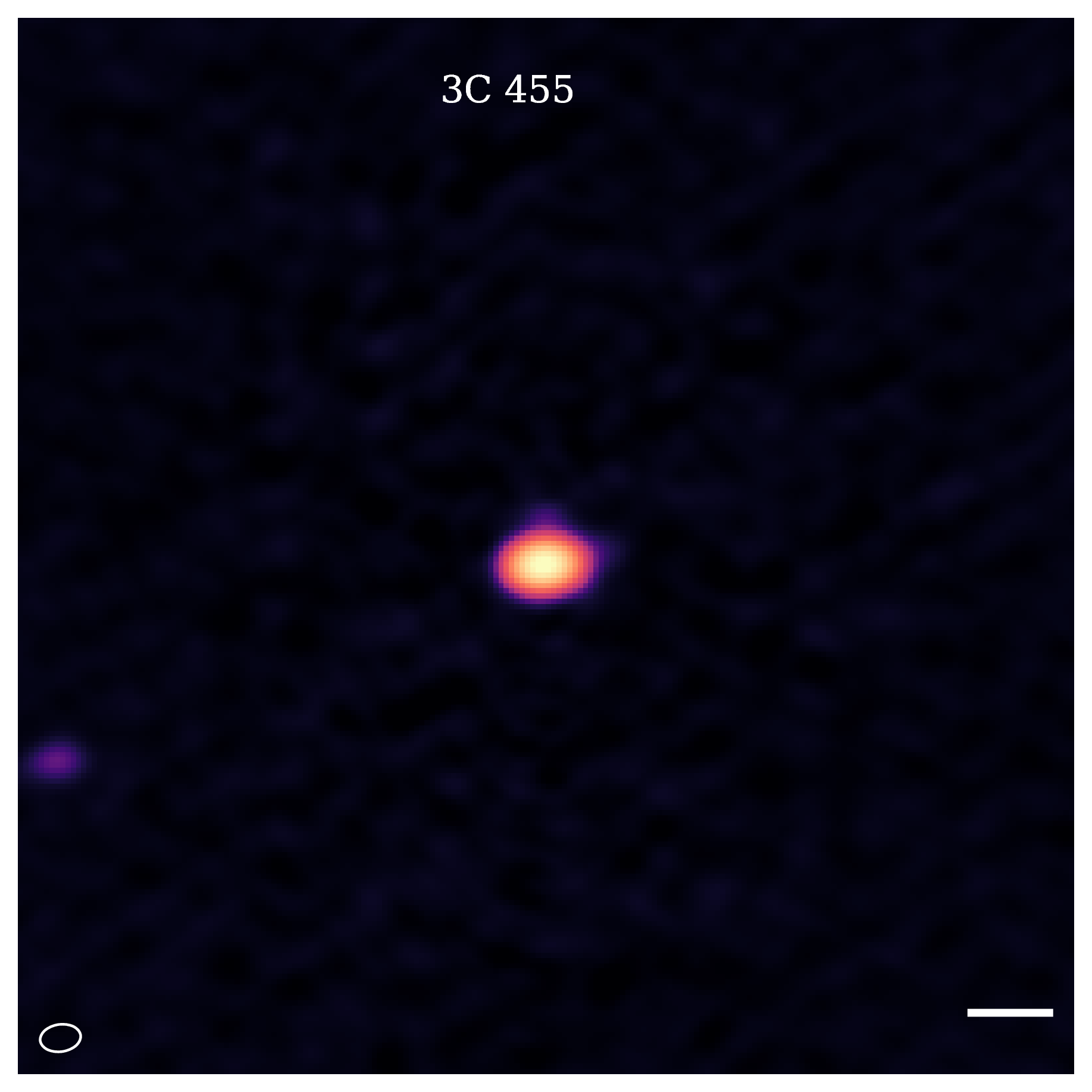

3C455 343.7662 13.22611 0.542 28.14 2.81 15.4 10.3 12.28

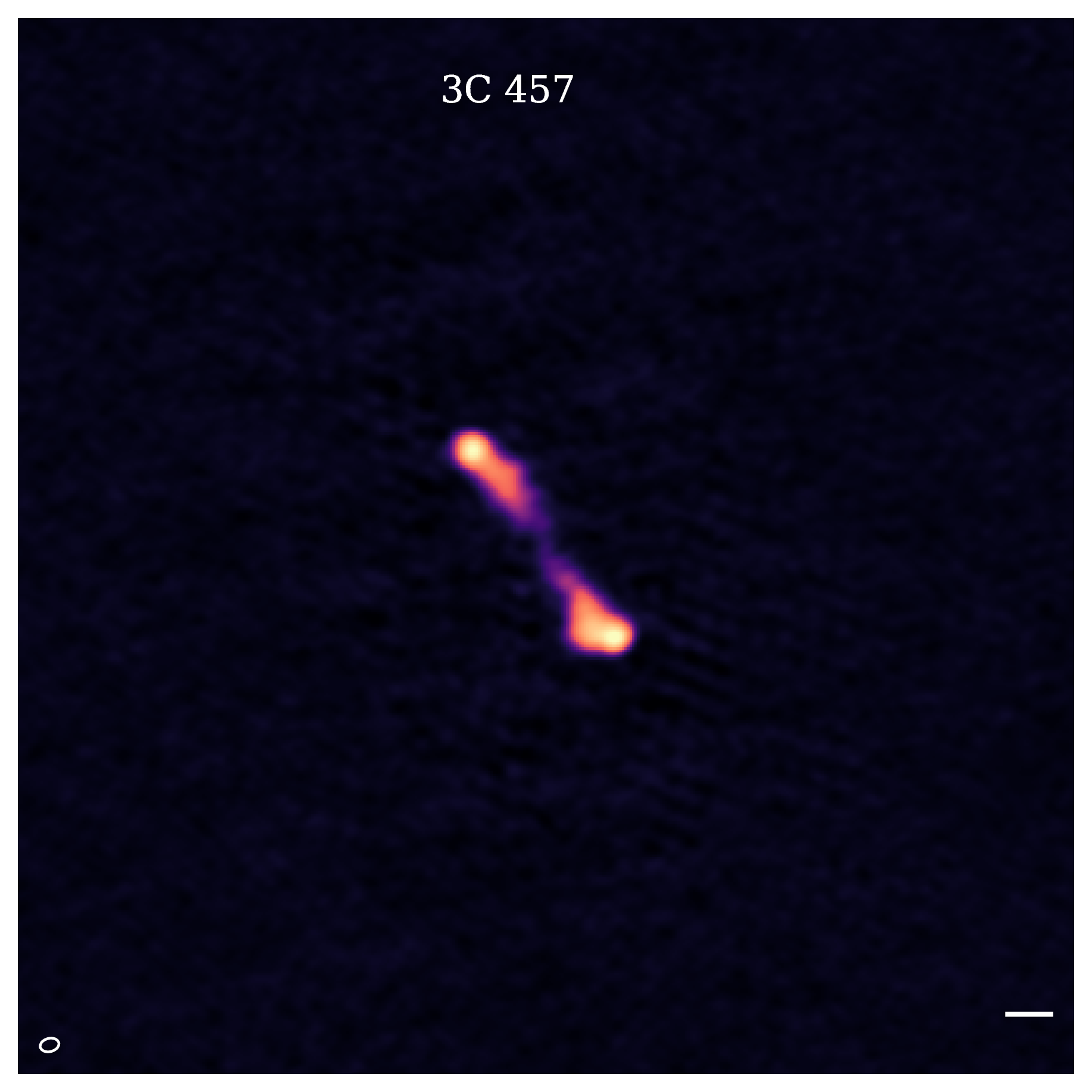

3C457 348.03165 18.76155 0.426514 38.19 3.82 15.1 10.5 12.25
3C465 354.62243 27.03146 0.030221 113.34 11.33 22.7 16.7 12.01

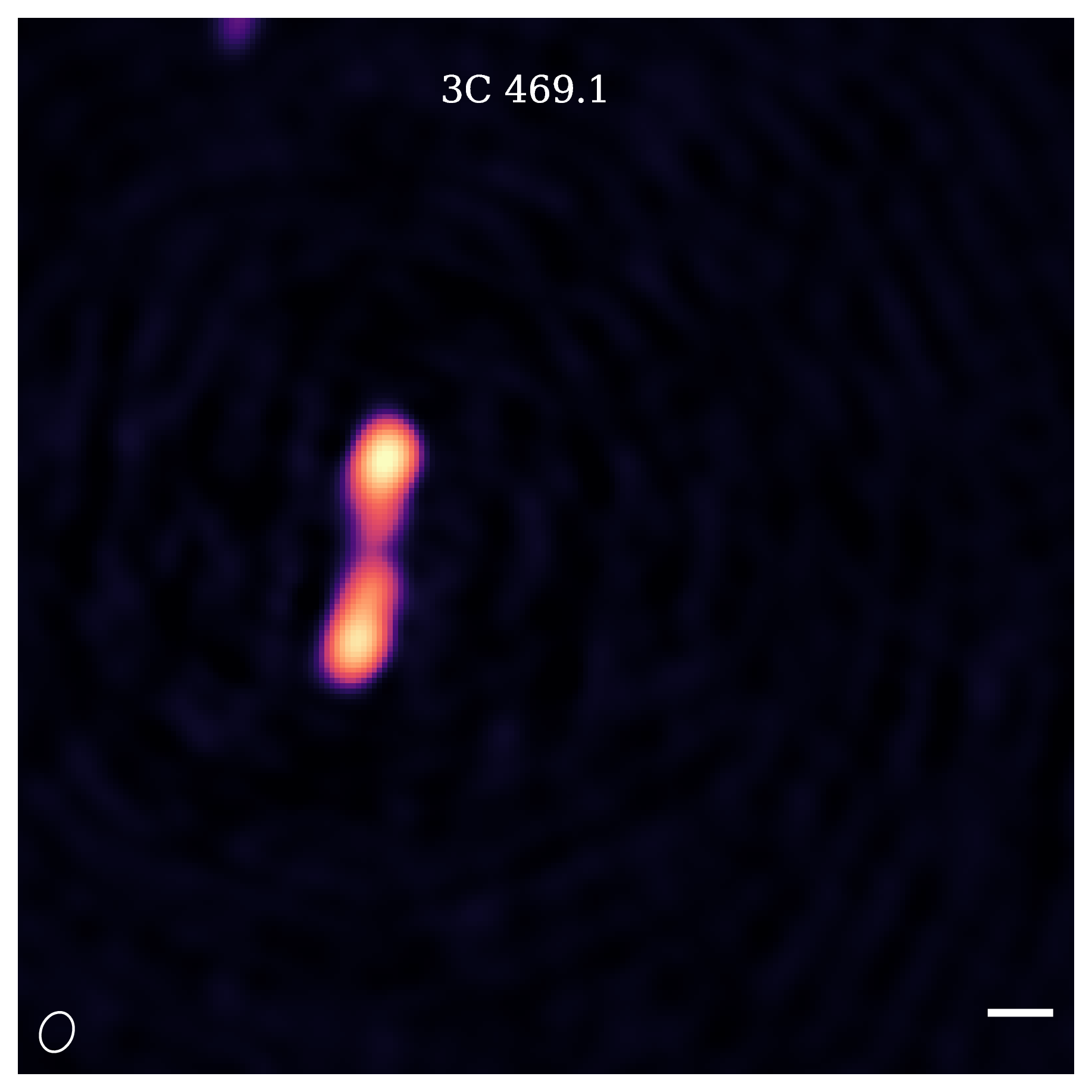

3C469.1 358.84693 79.92181 1.336 32.66 3.27 15.4 12.1 9.88
3C470 359.64954 44.07932 1.653 21.27 2.13 13.2 9.9 8.44
